Isolation DC DC 12V to 20V Boost Converter Modules 20V 100A 2000W New Energy Vehicles Converter
Product Description
Isolation DC DC 12V to 20V Boost Converter Modules (20V 100A 2000W)
★ Key Features
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. This prevents interference between different circuits and damage caused by ground potential differences.
Widely used in industrial automation, medical equipment, communication systems, and new energy vehicles, providing a solid guarantee for the reliable operation of complex circuits.
⚡ Professional Power Solutions
Our team has been providing power solutions since 2001. We have developed more than 5000+ power supply solutions, with a power range from 1 watt to 200 kilowatts and input voltages up to 2000 volts. Our R&D team has more than 24 years of experience to ensure the high reliability of our products. The design life of the products is 15 to 20 years, meeting the high requirements for complex working environments.
Customization Capabilities: We specialize in customizing DC-DC converters (1V to 1000V DC and 1A to 1000A) to meet specific requirements, including external dimensions, pin definitions, and rated power.
📋 Technical Specifications
| DATASHEET: IPS-DTD12-14S20-100 | ||||||
|---|---|---|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTD12-14S20-100 | |||

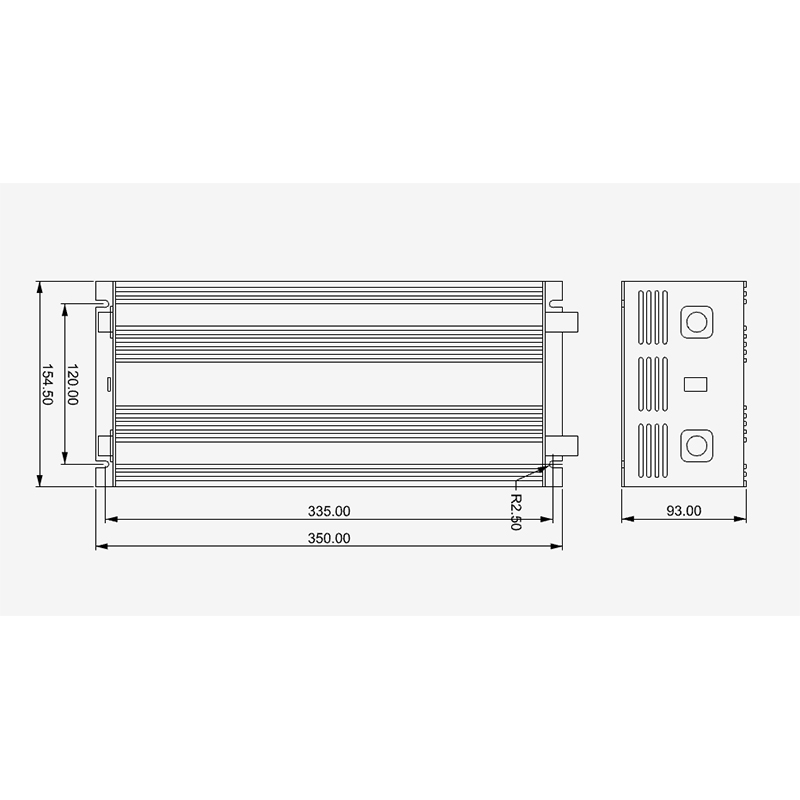

| Product Size | 350*93*133 MM | Design | Input and output completely isolated | |||
| Net Weight | 5KG | Gross Weight | 6KG | |||
| Technical Parameters | Minimum | Typical Value | Maximum | Unit | Condition | Remark |
| Input voltage range | 12 | 12 | 14 | VDC | - | - |
| Output voltage | - | 20 | - | VDC | - | - |
| Output current | - | 100 | - | A | - | - |
| Voltage regulation | - | ±1 | - | % | - | - |
| Ripple and noise | - | 200 | - | Mvp-p | - | - |
| Isolation voltage | - | 1500 | - | VDC | Input to output | - |
| Protection function | Input undervoltage, over-temperature protection, output overcurrent, short circuit protection | |||||
| Waterproof grade | - | - | - | - | Waterproof | - |
🔥 Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100V | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72V | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36V | Output: 24V 4.16A
IPS-DTD400-800S12-8.33
Input: 400V-800V | Output: 12V 8.33A
IPS-DTD65-154S24-12.5
Input: 65V-154V | Output: 24V 12.5A
IPS-DTD18-36S24-20.8
Input: 18V-36V | Output: 24V 20.8A

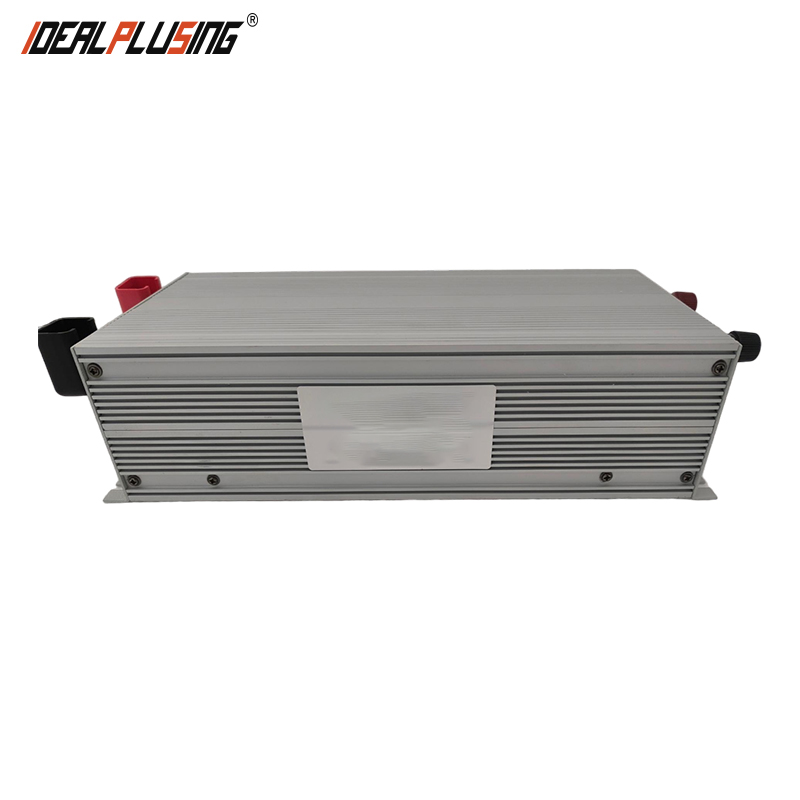

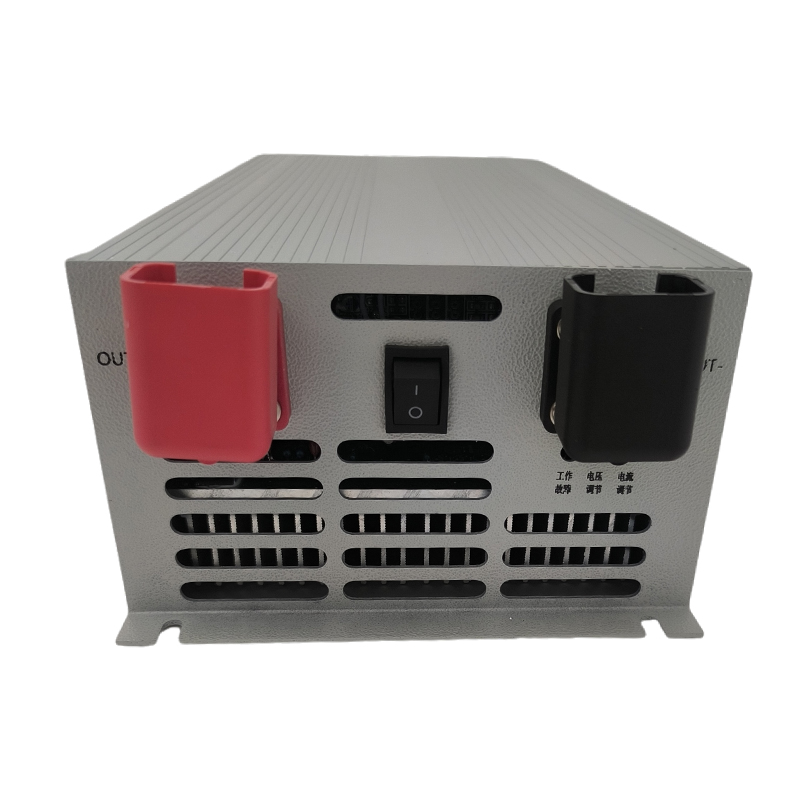

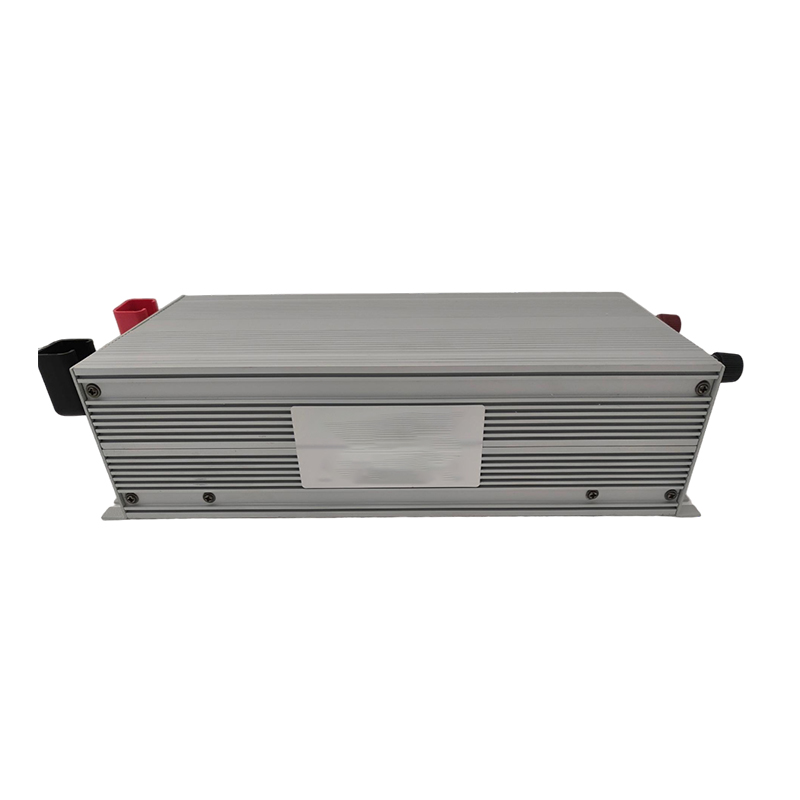

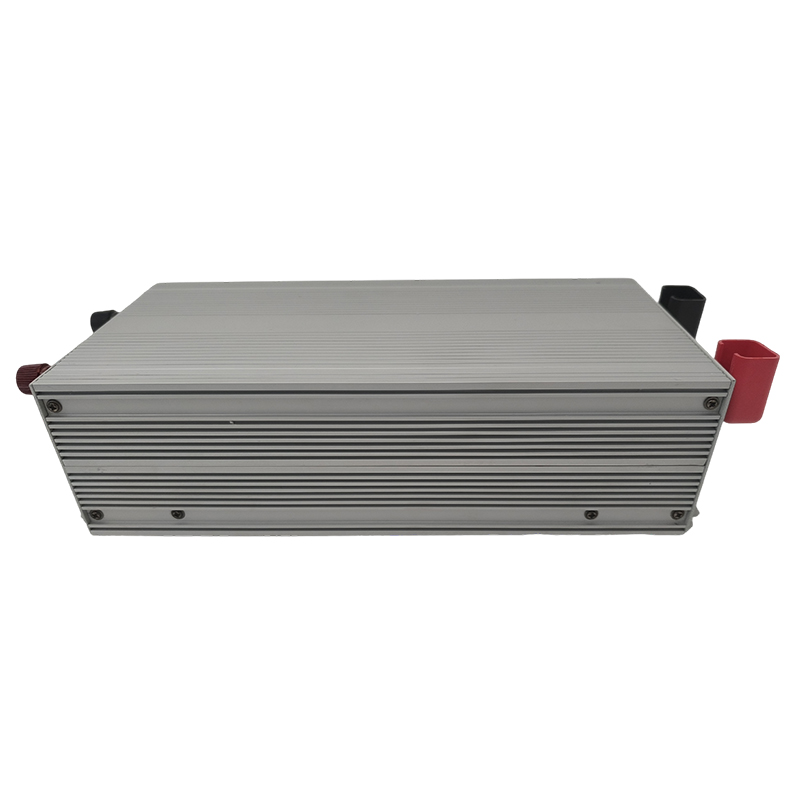

📸 Product Details & Shows
💡 Technical Application Notes
- 🔹 Standard Protections: All buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection.
- 🔹 Inductive Loads: For motors or coils, we recommend a power supply 3-5 times the rated power of the load.
- 🔹 Isolated vs. Non-Isolated: Isolated products prevent high input voltage from passing to the output, protecting precious equipment.
- 🔹 Wiring Note: Negative poles (ground) of isolated products cannot be shared; input and output must be used separately.
- 🔹 Negative Voltage: Isolated supplies support negative voltage input (connect 0V to red wire, negative to black).
Frequently Asked Questions (FAQ)
1. What are the main benefits of using an isolated DC-DC converter?
Isolated converters establish an electrical barrier that ensures signal stability, prevents ground potential interference, and protects the output load from high-voltage surges in the event of a circuit failure.
2. How should I choose a power supply for motor or inductive applications?
For inductive loads such as motors, magnetic valves, or speakers, it is recommended to use a power supply that is 3 to 5 times the rated power of the load to handle startup current spikes.
3. Can the input and output ground wires be connected together?
No. In isolated products, the negative poles (ground) must be used separately. Sharing a negative pole will cause the isolation effect to be lost.
4. What happens if a non-isolated buck converter fails?
The worst consequence is that the high input voltage could pass directly to the output end, potentially burning out the connected equipment. Isolated converters are recommended for precious loads.
5. Are these converters suitable for outdoor use?
Yes, many of our products feature high-temperature resistant aluminum casings and waterproof designs, making them ideal for outdoor and high-demand industrial applications.
6. Can I request a custom voltage or current specification?
Yes, we provide extensive customization services for DC-DC converters, ranging from 1V to 1000V and 1A to 1000A, to meet your specific equipment requirements.
