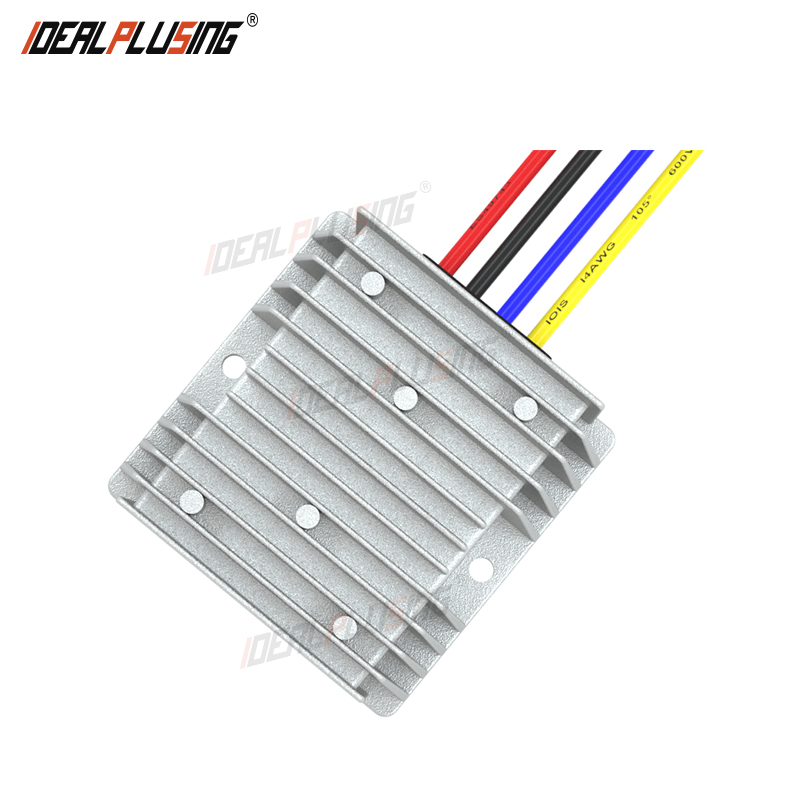

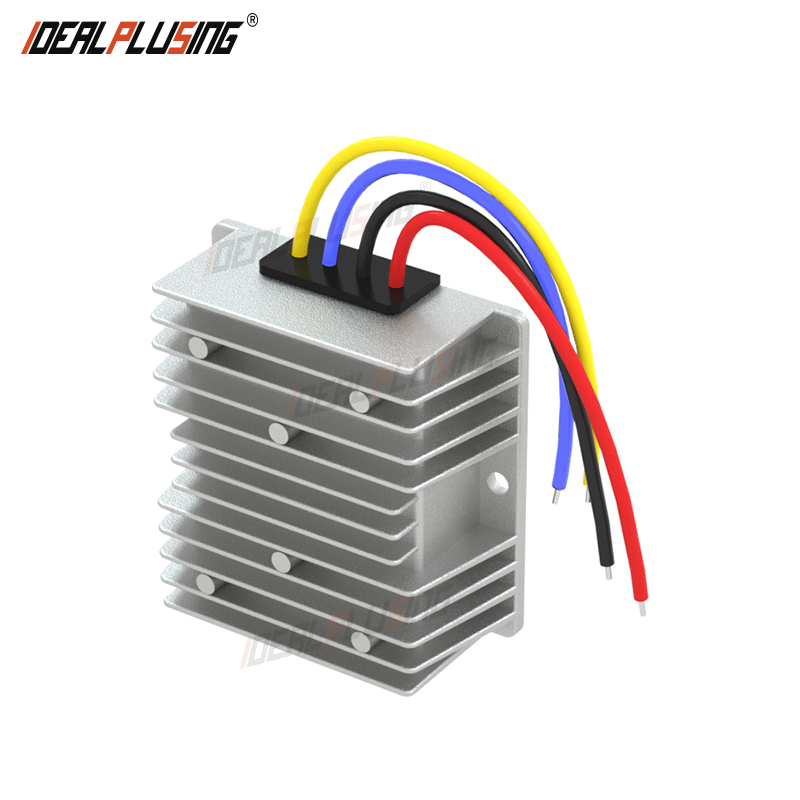

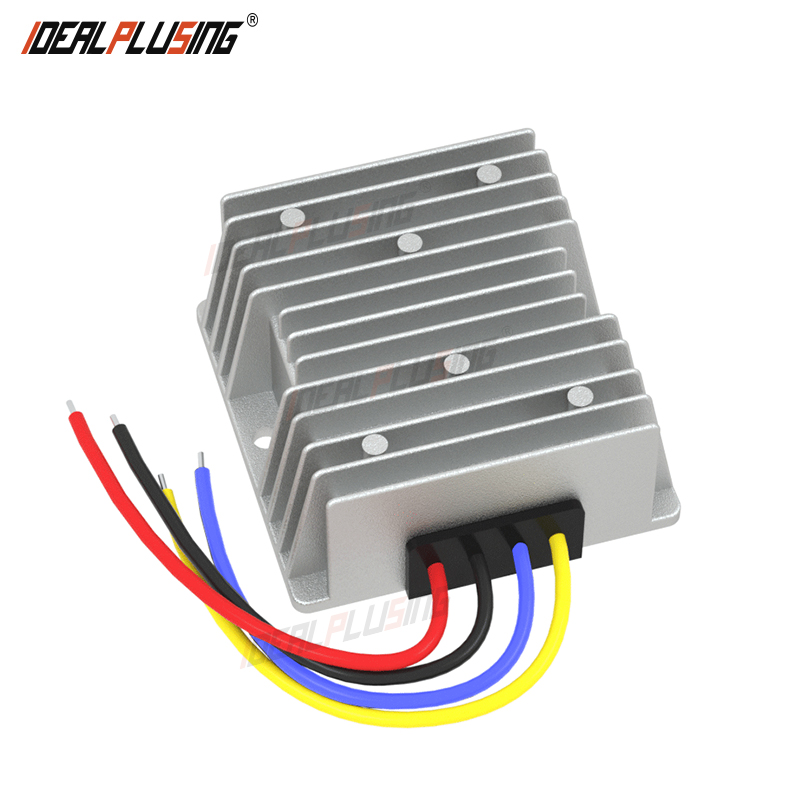

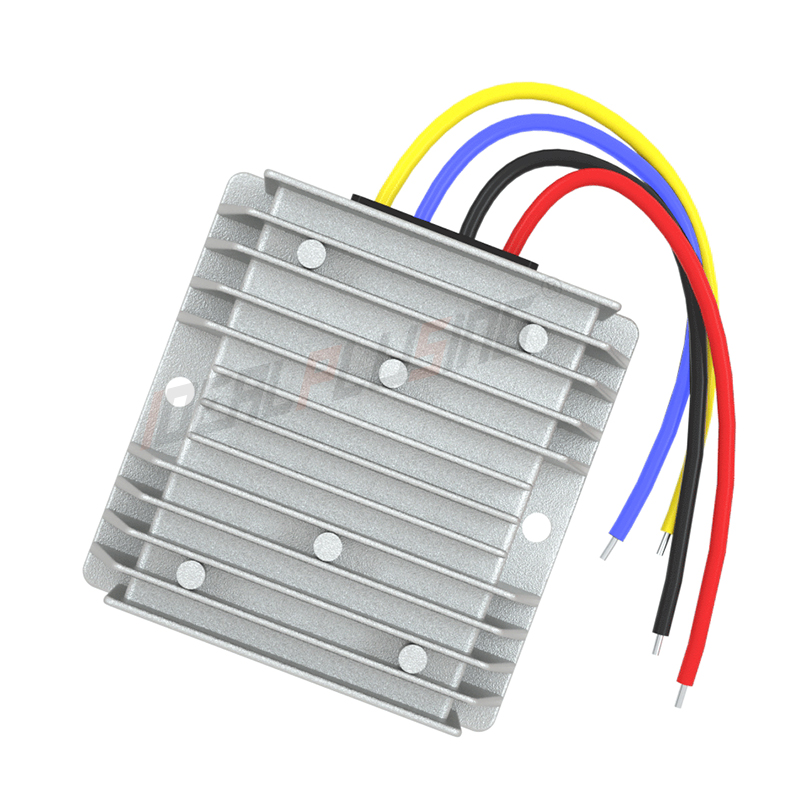

Long Lifetime 9-36V 12v 24v to 24VDC 5A 3A 100W 120W Isolate Step Down Step up DC-DC Converter
Product Description
Long Lifetime 9-36V 12V 24V to 24VDC 5A 3A 100W 120W Isolated DC-DC Converter
High-efficiency power conversion solutions for industrial, medical, and communication systems.
🛡️
Electrical Isolation
Establishes an effective isolation barrier between input and output for maximum safety.
⚡
High Stability
Ensures signal stability during transmission and prevents circuit interference.
🔧
Customizable
Tailored pin definitions, dimensions, and power parameters to meet special needs.
Our power conversion solutions are widely used in electric vehicles, automobiles, RVs, marine, and communication industries. With over 24 years of R&D experience and more than 5000+ developed power supply solutions, we provide high-reliability products ranging from 1 watt to 200 kilowatts.
Technical Specifications
| Parameter | Minimum | Typical Value | Maximum | Unit |
|---|---|---|---|---|
| Input Voltage Range | 9 | 24 | 36 | VDC |
| Output Voltage | - | 24 | - | VDC |
| Output Current | - | 5 | - | A |
| Voltage Regulation | - | ±1 | - | % |
| Ripple and Noise | - | 200 | - | Mvp-p |
| Isolation Voltage | - | 1500 | - | VDC |
| Operating Temp | -25 | - | 85 | ℃ |
| Waterproof Grade | Waterproof / Self Cooling | |||
Hot Selling Models
IPS-DTD600-1000S24
600VDC to 24VDC 1.05A
IPS-DTD36-72S12-8.33
36V-72VDC to 12VDC 8.33A
IPS-DTD9-36S24-4.16
9V-36VDC to 24VDC 4.16A
IPS-DTD400-800S12
400V-800VDC to 12VDC
IPS-DTD65-154S24
65V-154VDC to 24VDC
IPS-DTD18-36S24
18V-36VDC to 24VDC 500W
Application Technical Guide
- All buck-boost products include standard output overcurrent, short-circuit, and undervoltage protection.
- Isolated products are strongly recommended for carrying precious loads to prevent high input voltage from passing to the output.
- For inductive loads (motors, magnetic valves), use a power supply 3-5 times the rated load power.
- The negative poles (ground) of isolated products must be used separately to maintain isolation effects.
- Small aluminum casings are high-temperature resistant and highly reliable for outdoor applications.
Product Details Showcase
Frequently Asked Questions
Why should I choose an isolated DC-DC converter?
Isolated converters provide an electrical barrier that protects the output load from high input voltage surges and prevents ground loop interference, making them the safest choice for precious equipment.
Do these converters have built-in protection?
Yes, our standard buck-boost products include output overcurrent protection, output short-circuit protection, input undervoltage protection, and overheating protection.
Can I use these for motor or inductive loads?
For inductive loads like motors or magnetic valves, we recommend using a power supply that is 3-5 times the rated power of the load to handle start-up current surges.
Are the negative poles of the input and output shared?
No, for isolated products, the negative pole (ground) cannot be shared. They must be used separately to maintain the isolation effect.
What is the expected design life of the products?
Our products are designed for high reliability with a design life of 15 to 20 years, suitable for complex and demanding working environments.
Is the output voltage adjustable?
Isolated power supplies have a more limited adjustable range compared to non-isolated ones. Custom parameters can be set during manufacturing to meet specific voltage requirements.
