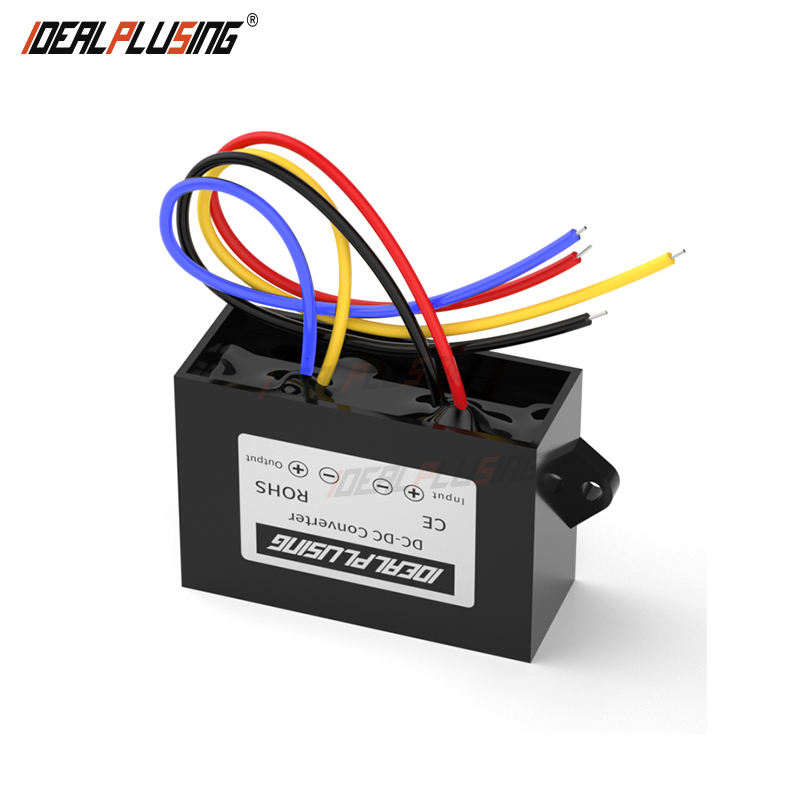

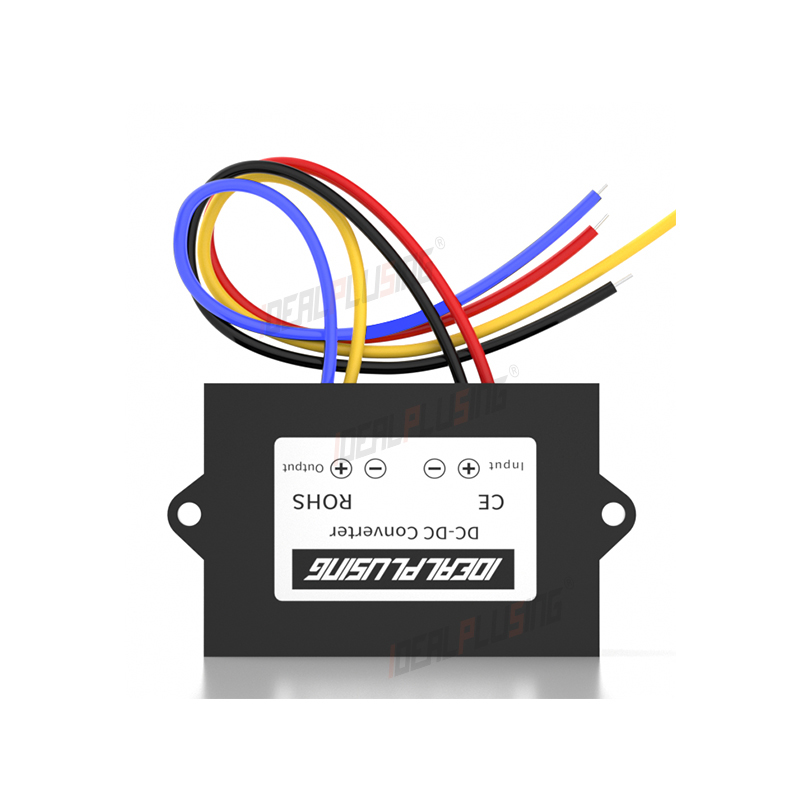

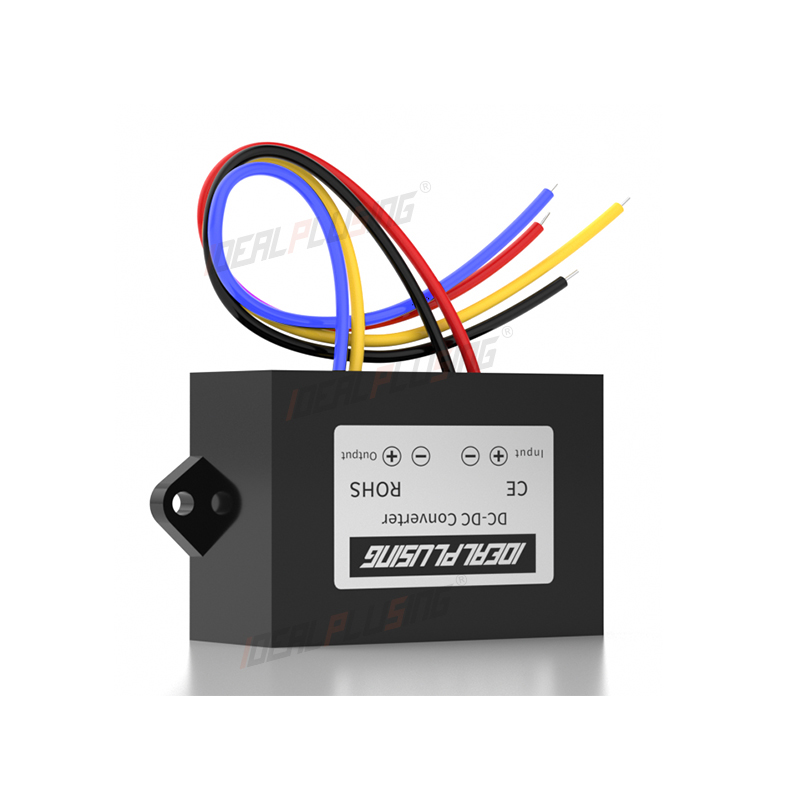

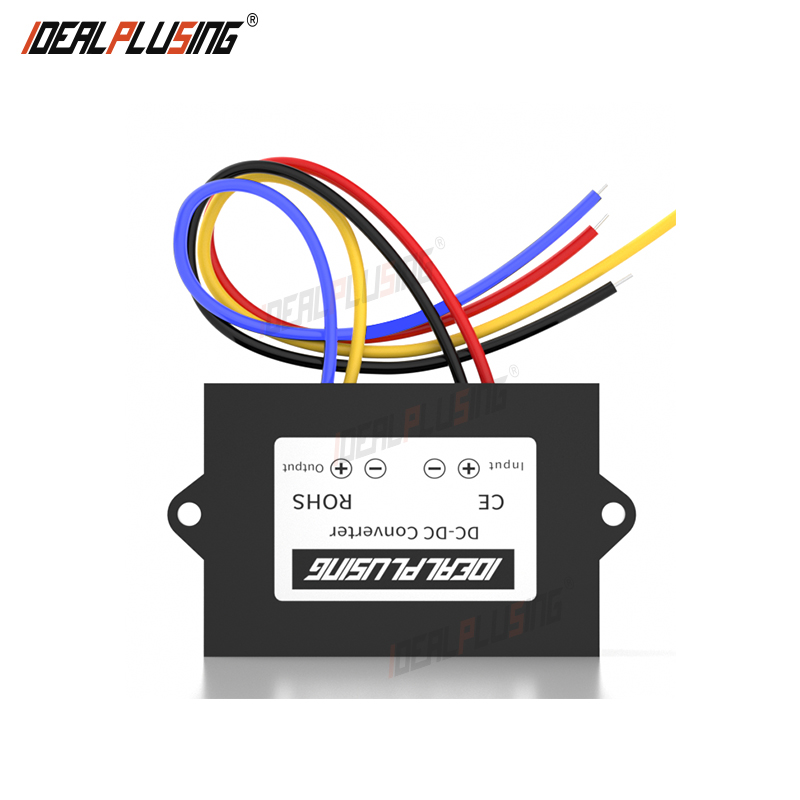

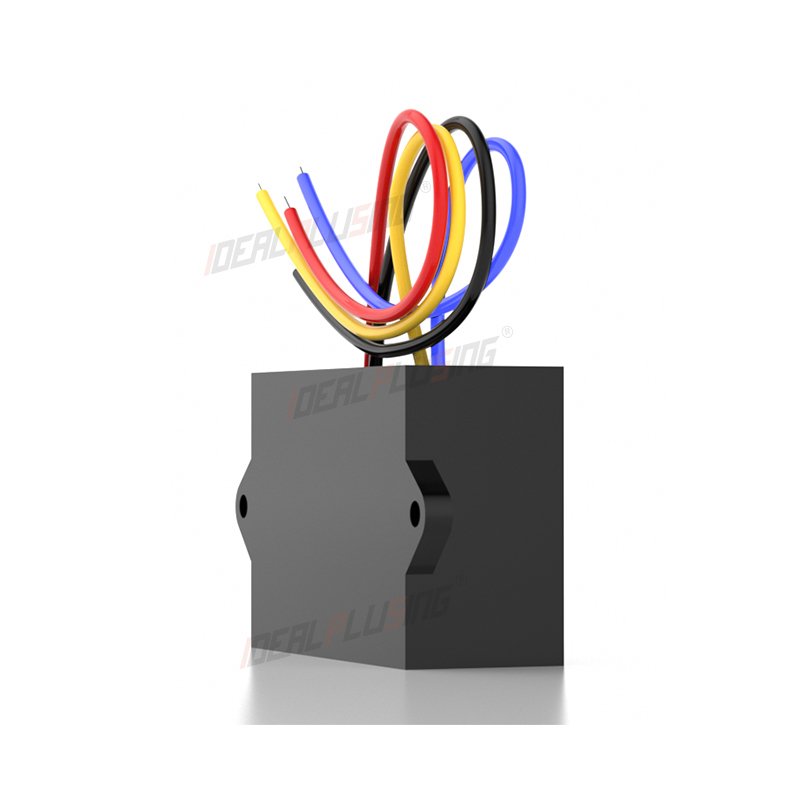

Waterproof 36v 48v 60v Step up to 5vdc 3amp 15w Voltage Regulator Dc to Dc Converter
Product Description
Waterproof 36v 48v 60v Step up to 5vdc 3amp 15w Voltage Regulator Dc to Dc Converter
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission. By establishing an effective isolation barrier between input and output, they prevent interference between circuits and damage caused by ground potential differences.
1
Wide Application
Widely used in industrial automation, medical equipment, communication systems, and new energy.
2
Customization
Parameters like dimensions, pin definitions, and rated power can be tailored to meet special needs.
Customized Power Solutions
Providing power solutions since 2001, our team has developed over 5000+ supply solutions. The power range spans from 1 watt to 200 kilowatts, with input voltages up to 2000 volts.
★
Range
DC-DC converters from 1V to 1000V DC and 1A to 1000A.
★
Durability
Design life of 15 to 20 years, suitable for complex working environments.
Product Specification (Datasheet)
| Technical Parameters | Typical Value | Maximum | Unit | |
|---|---|---|---|---|
| Name | Isolated DC DC Converter | - | - | - |
| Model | IPS-DTDYI9~36S53 | - | - | - |
| Input Voltage Range | 9 | 24 | 36 | VDC |
| Output Voltage | - | 5 | - | VDC |
| Output Current | - | 3 | - | A |
| Voltage Regulation | - | ±1 | - | % |
| Ripple and Noise | - | 200 | - | Mvp-p |
| Isolation Voltage | - | 1500 | - | VDC |
Hot Selling Models
IPS-DTD600-1000S24-1.05
600VDC-100VDC to 24VDC
IPS-DTD36-72S12-8.33
36VDC-72VDC to 12VDC
IPS-DTD9-36S24-4.16
9VDC-36VDC to 24VDC
IPS-DTD400-800S12-8.33
400V-800V to 12V
IPS-DTD65-154S24-12.5
65V-154V to 24V
IPS-DTD18-36S24-20.8
18V-36V to 24V
Product Details & Build Quality
Technical Application Notes
1. Protection Features: All buck-boost products include standard output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2. Short Circuit Prevention: To prevent damage in equipment, it is recommended to add fuses; to prevent current backflow, add diodes.
3. Inductive Loads: For motors, coils, and magnetic valves, use a power supply 3-5 times the rated power of the load.
4. Isolation Safety: Isolated products prevent high input voltage from passing to the output, making them the safest choice for precious loads.
5. Wiring: The negative pole (ground) of isolated products cannot be shared; input and output negative poles must be used separately.
Frequently Asked Questions
Q1: Why choose an isolated DC-DC converter over a non-isolated one?
Isolated converters provide an electrical barrier that prevents high input voltage from damaging the load during a failure, making them essential for protecting expensive equipment.
Q2: Can I use this converter for motor applications?
Yes, but for inductive loads like motors, it is recommended to select a power supply with 3-5 times the rated power of the load to handle start-up surges.
Q3: Are these converters waterproof?
Yes, these specific series are designed as waterproof units, often featuring hard gel encapsulation for reliability in outdoor and high-demand environments.
Q4: Do the input and output share a common ground?
No. For isolated products, the input and output negative poles must remain separate to maintain the isolation effect.
Q5: What protection features are included?
Standard features include input undervoltage protection, over-temperature protection, output overcurrent, and short-circuit protection.
Q6: Can the output voltage be adjusted?
Isolated power supplies have a more limited adjustable output range compared to non-isolated versions because the internal transformer is specifically tuned to the parameters.
