10000W High Reliability Low Drift 20VDC 500A Industrial Equip R&D Power Supply, High-Stability LED LCD Screen Display DC Module
Product Description
10000W High Reliability Low Drift Industrial Power Supply
High-Stability LED LCD Screen Display DC Module | 20VDC 500A
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be quoted based on your actual needs, purchase quantity, and market conditions.
Product Description
1
Small size and light weight, suitable for work surface use and rack installation.
2
Using PWM modulation for low power consumption, high efficiency, and superior electronic technology circuit design.
3
Low noise and low ripple characteristics for sensitive equipment R&D.
4
High gain amplifier circuit design providing excellent fast response characteristics.
5
4-bit high sampling rate, high-resolution voltage and current digital display meter.
6
Built-in O.V.P. (Over-Voltage Protection) and O.T.P. (Over-Temperature Protection) for maximum reliability.
7
Accurate load terminal voltage detection and precise control functionality.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IPS-ATDD20500 |
| AC Input | 3-phase 380VAC ±15%, 50Hz/60Hz |
| Output Voltage | 0-20VDC |
| Output Current | 0-500A |
| Output Power | 10KW (10000W) |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word |
| Protection | O.V.P, O.T.P, Overload, Current Limit |
| Cooling | Forced fan cooling |
| Dimensions | 132*430*500(MM) |
| Net Weight | 15KG |
Hot Selling Models
IPS-ATDY2075
20VDC, 75A, 1500W
IPS-ATDY3050
30VDC, 50A, 1500W
IPS-ATDY4050
40VDC, 50A, 2000W
IPS-ATDY5060
50VDC, 60A, 3000W
IPS-ATDY12050
120VDC, 50A, 6000W
IPS-ATDY80150
80VDC, 150A, 12000W

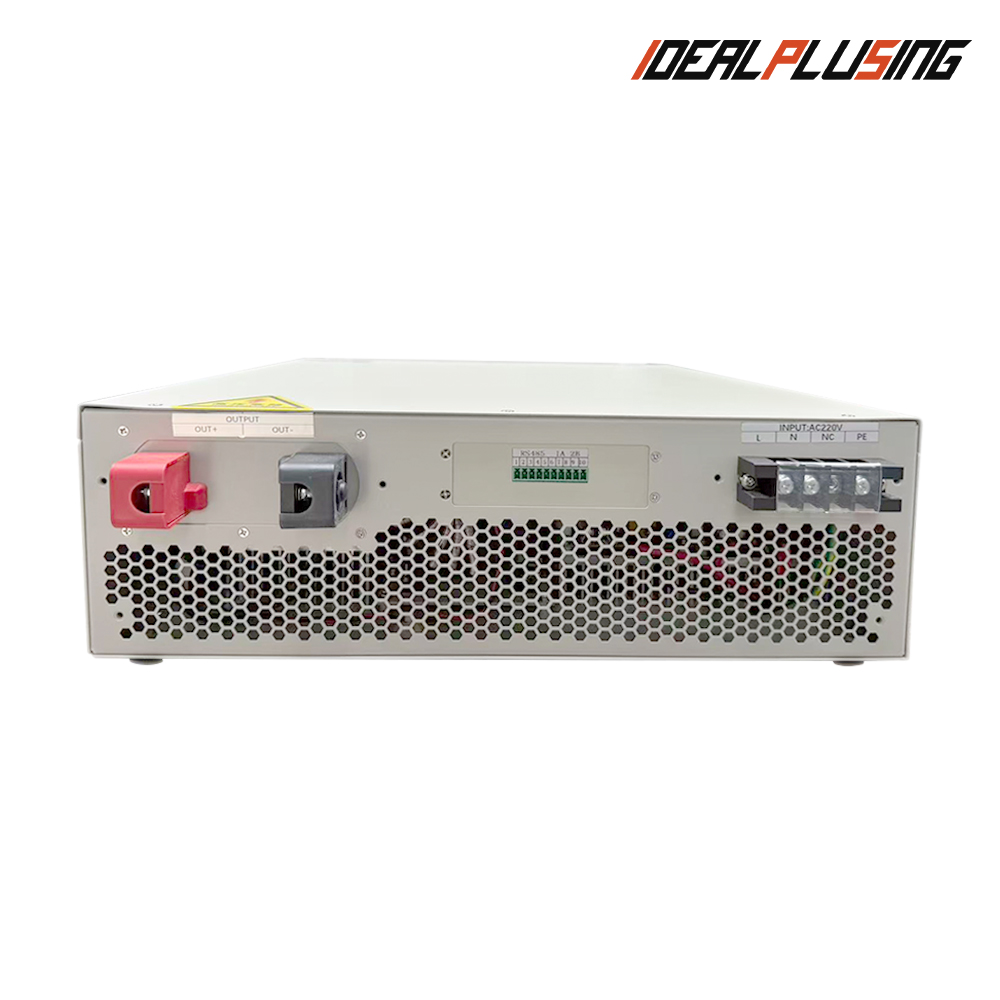

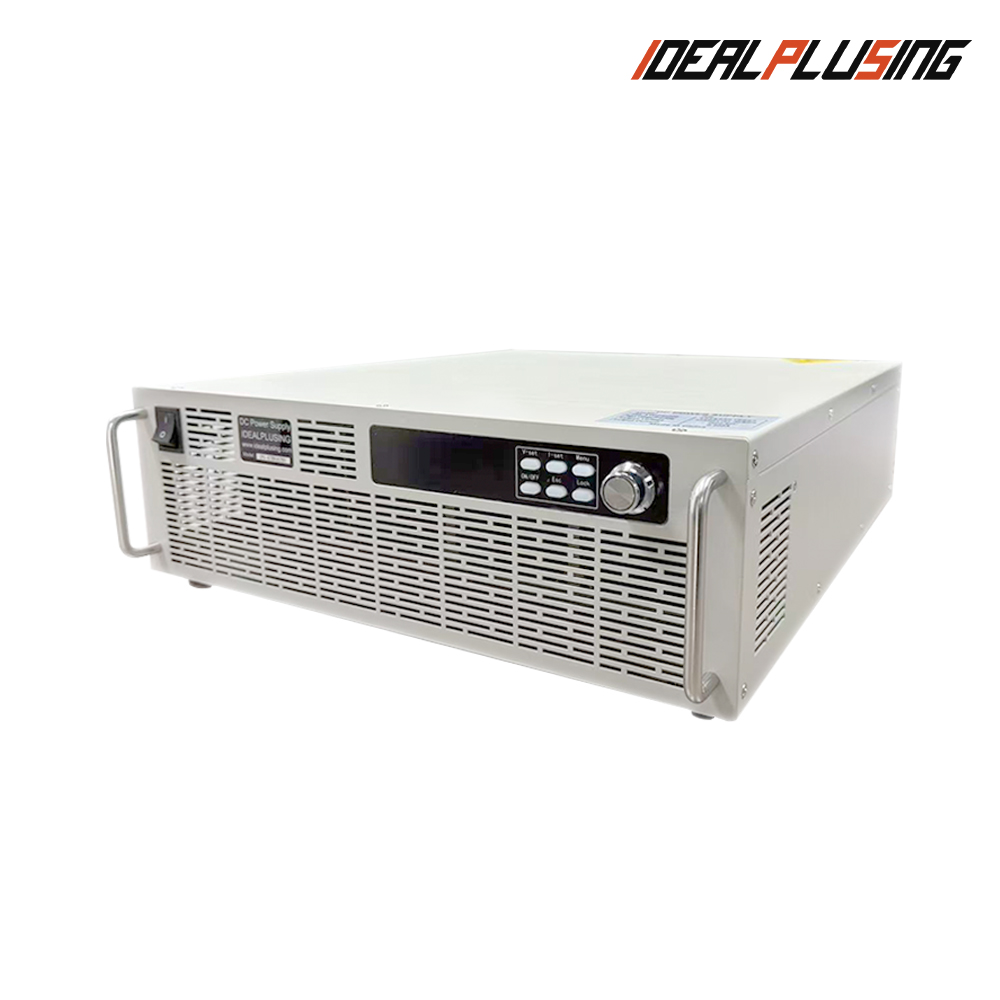

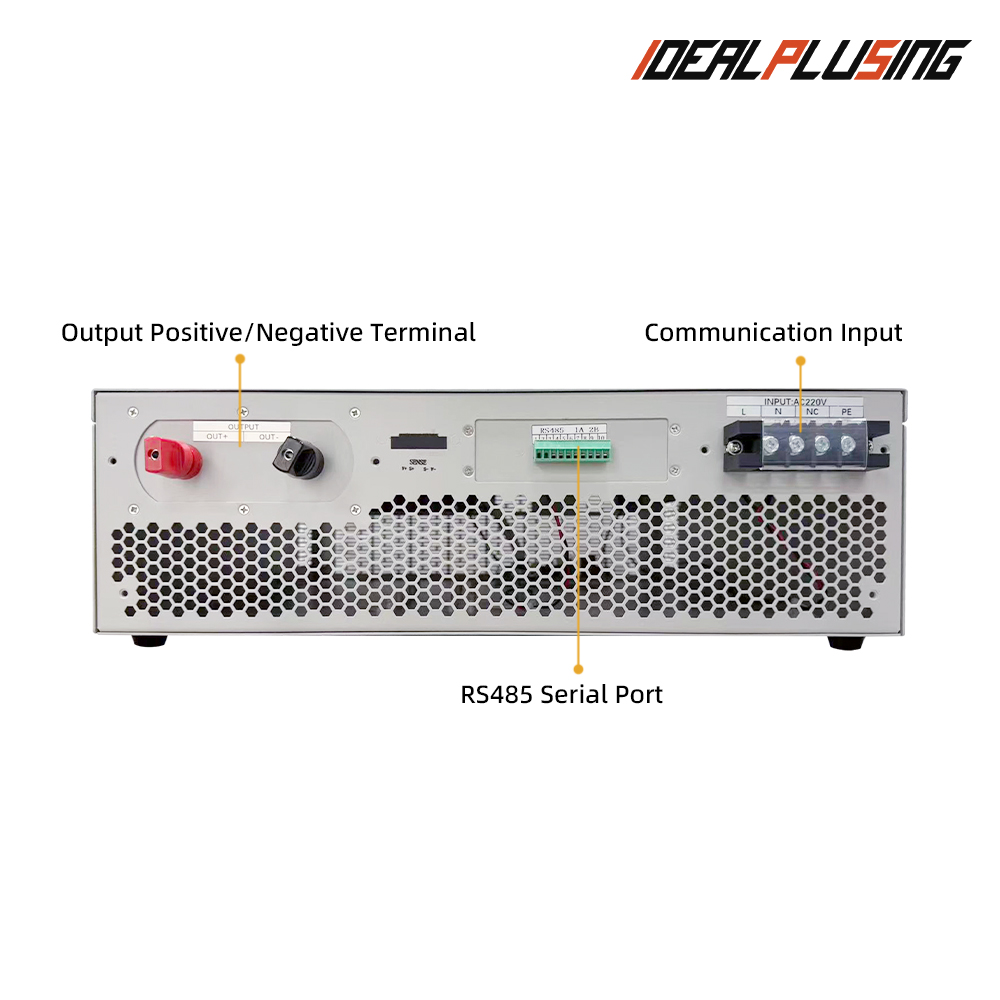

Detailed Product Views
Application Scope
Series Model List (10KW - 20KW)
| Series | Voltage Range | Current Range | Max Power |
|---|---|---|---|
| IPS-ATDD-Series-10KW | 10VDC - 10000VDC | 1A - 1000A | 10000W |
| IPS-ATDD-Series-12KW | 12VDC - 6000VDC | 2A - 1000A | 12000W |
| IPS-ATDD-Series-15KW | 15VDC - 5000VDC | 3A - 1000A | 15000W |
| IPS-ATDD-Series-20KW | 20VDC - 5000VDC | 4A - 1250A | 20000W |
About Our Power Solutions
We focus on the research and development, sales, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-power industrial power supplies. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries, ensuring our customers get the right items with optimized quotations.
Frequently Asked Questions
Can I have a sample order?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
What is the lead time for production?
Most models are in stock. Sample lead time after receiving payment is 1-3 working days. For bulk orders, please consult our sales staff.
Is there a minimum order quantity (MOQ)?
We offer low MOQ; 1 piece for sample checking is available.
How do you ship the goods and how long does it take?
We often ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all our power supply units.
Is logo customization available?
Yes. Please inform us formally before production and confirm the design based on our sample requirements.
