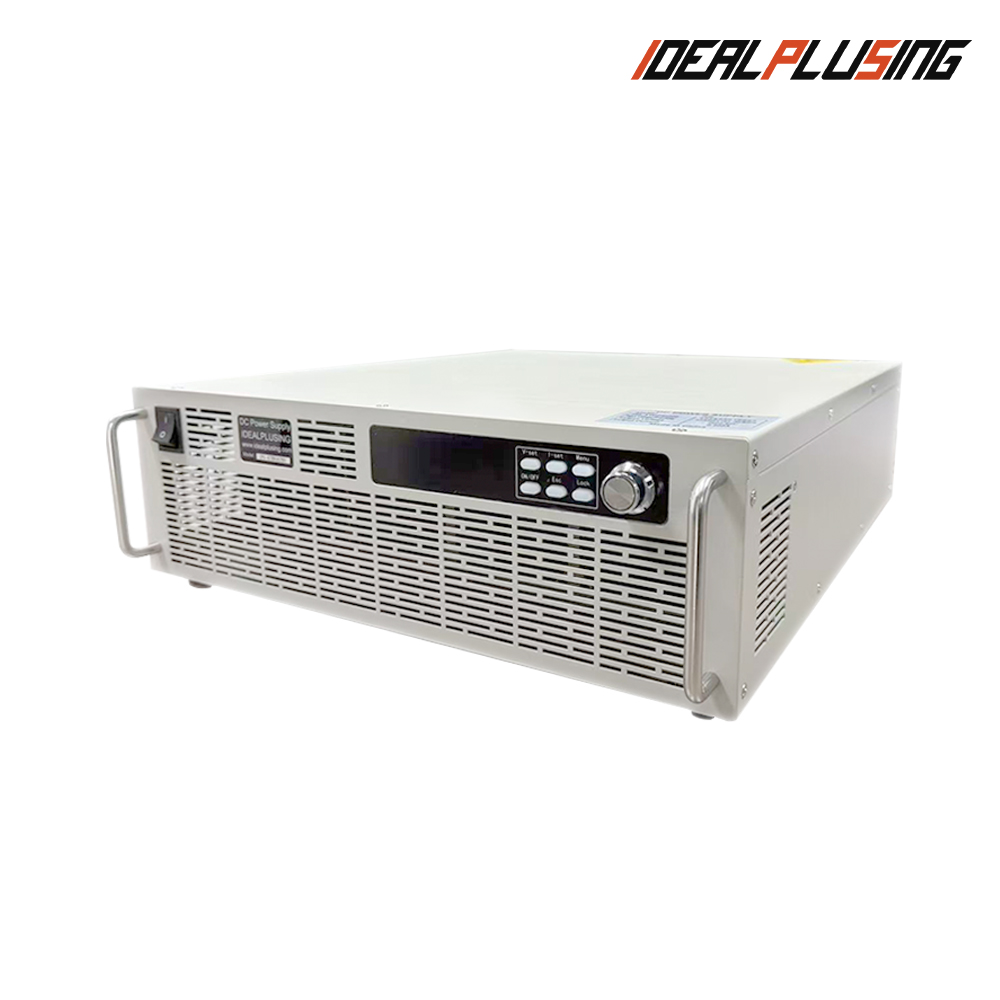

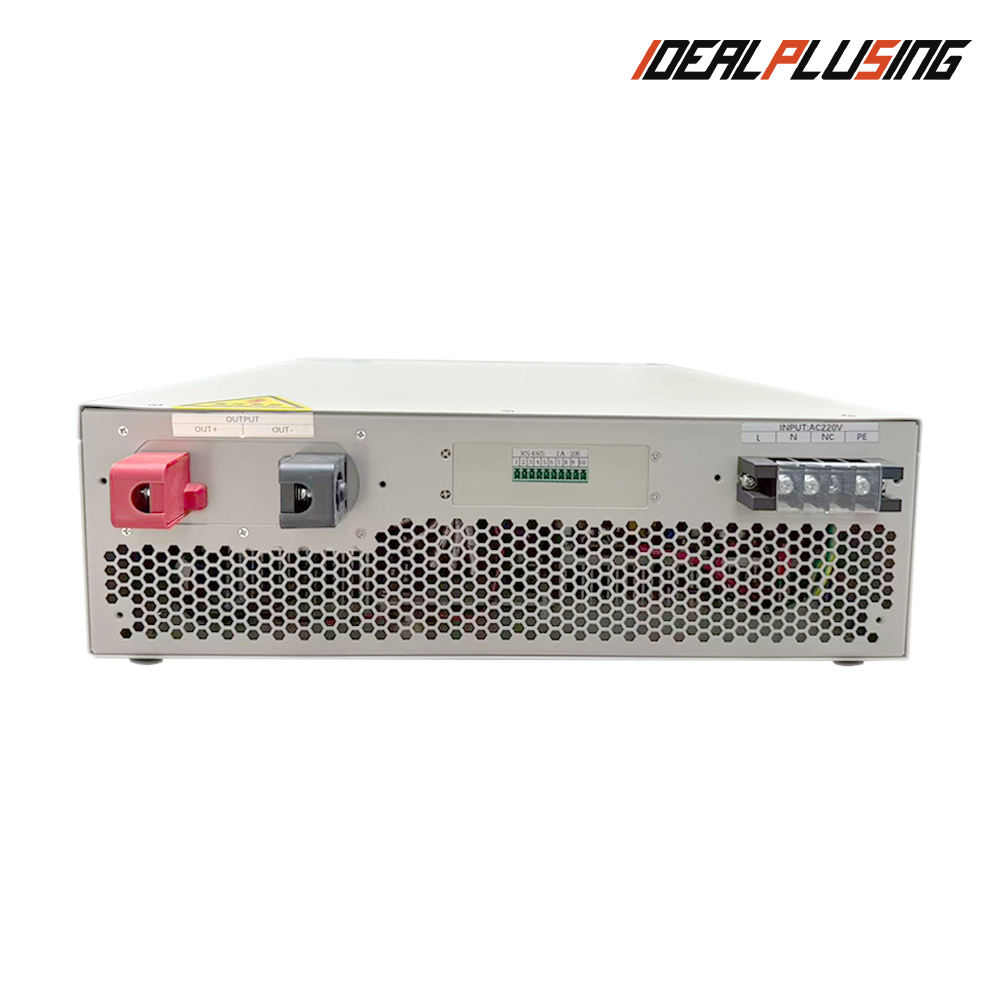

Semiconductor Testing High Precision Low Ripple 12-150VDC 150VDC 80A 12000W Programmable DC Power Supply With IGBT Transistor
Product Description
Semiconductor Testing High Precision Low Ripple Programmable DC Power Supply
12-150VDC | 80A | 12000W | IGBT Transistor Technology
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions.
1
Small size and light weight, suitable for work surface use and rack installation.
2
PWM modulation ensures low crystal module power consumption, high efficiency, and high power output.
3
Low noise and low ripple for high-precision requirements.
4
High gain amplifier circuit design with excellent fast response characteristics.
5
4-bit high sampling rate and high-resolution voltage/current digital display.
6
Built-in O.V.P. (Over Voltage Protection) and O.T.P. (Over Temperature Protection) circuits.
7
Load terminal voltage detection for accurate reading and precise control.
| Parameter | Details |
|---|---|
| Model | IPS-ATDD15080 |
| AC Input | 3-phase 380VAC ±15%, 50Hz/60Hz |
| Output Range | 0-150VDC, 0-80A |
| Output Power | 12KW |
| Efficiency | ≥85% |
| Voltage Accuracy | ≤±0.3%FS |
| RMS Ripple Voltage | ≤+0.3%FS ±50mv |
| Display | 4-digit Accuracy: ±1%+1 word |
| Protection | O.V.P, Overload, Constant Current, O.T.P (85℃±5%) |
| Cooling | Forced fan cooling |
| Communication | RS485 / RS232 / CAN |
| Dimension / Weight | 132*430*500(MM) / 15KG |
IPS-ATDY2075
20VDC, 75A, 1500W
IPS-ATDY3050
30VDC, 50A, 1500W
IPS-ATDY4050
40VDC, 50A, 2000W
IPS-ATDY5060
50VDC, 60A, 3000W
IPS-ATDY12050
120VDC, 50A, 6000W
IPS-ATDY80150
80VDC, 150A, 12000W
| 12KW Series Models | |||
| Model | Output Voltage | Output Current | Power |
|---|---|---|---|
| IPS-ATDD121000 | 12VDC | 1000A | 12000W |
| IPS-ATDD15800 | 15VDC | 800A | 12000W |
| IPS-ATDD48250 | 48VDC | 250A | 12000W |
| IPS-ATDD15080 | 150VDC | 80A | 12000W |
| IPS-ATDD30040 | 300VDC | 40A | 12000W |
| IPS-ATDD60002 | 6000VDC | 2A | 12000W |
We focus on the research, development, and service of high-performance power supply modules, including AC to DC rectifiers, DC to AC inverters, and programmable DC power supplies. We aim to provide personalized, efficient, and cost-effective power solutions for various industrial applications.
Can I request a sample order?
Yes, sample orders are welcome to test and verify the quality for our initial cooperation.
What is the standard lead time?
Most models are in stock. The lead time for samples is typically 1-3 working days after payment receipt.
Is there a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 1 piece for sample checking is available.
What are the available shipping methods?
We commonly ship via DHL, UPS, FedEx, or TNT (3-5 days). Airline and sea shipping are also optional for larger orders.
Do you provide a warranty for your products?
Yes, we offer a 1-year warranty for all our power supply products.
Is it possible to print my logo on the product?
Yes, we support OEM services. Please inform us formally and confirm the design before production starts.
