Lab Research 15KW High Power 300V 50A 0-300VDC High Precision Stable Volt Current Low Drift IGBT Programmable DC Power Supply

1 / 5

Lab Research 15KW High Power 300V 50A 0-300VDC High Precision Stable Volt Current Low Drift IGBT Programmable DC Power Supply

Send Inquiry

Product Description

Friendly Reminder

Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.

Product Description

1

Small size and light weight are suitable for work surface use and rack installation.
2

Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.
3

Low noise and low ripple.
4

Using high gain amplifier circuit design, with good fast response characteristics.
5

Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
6

Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.
7

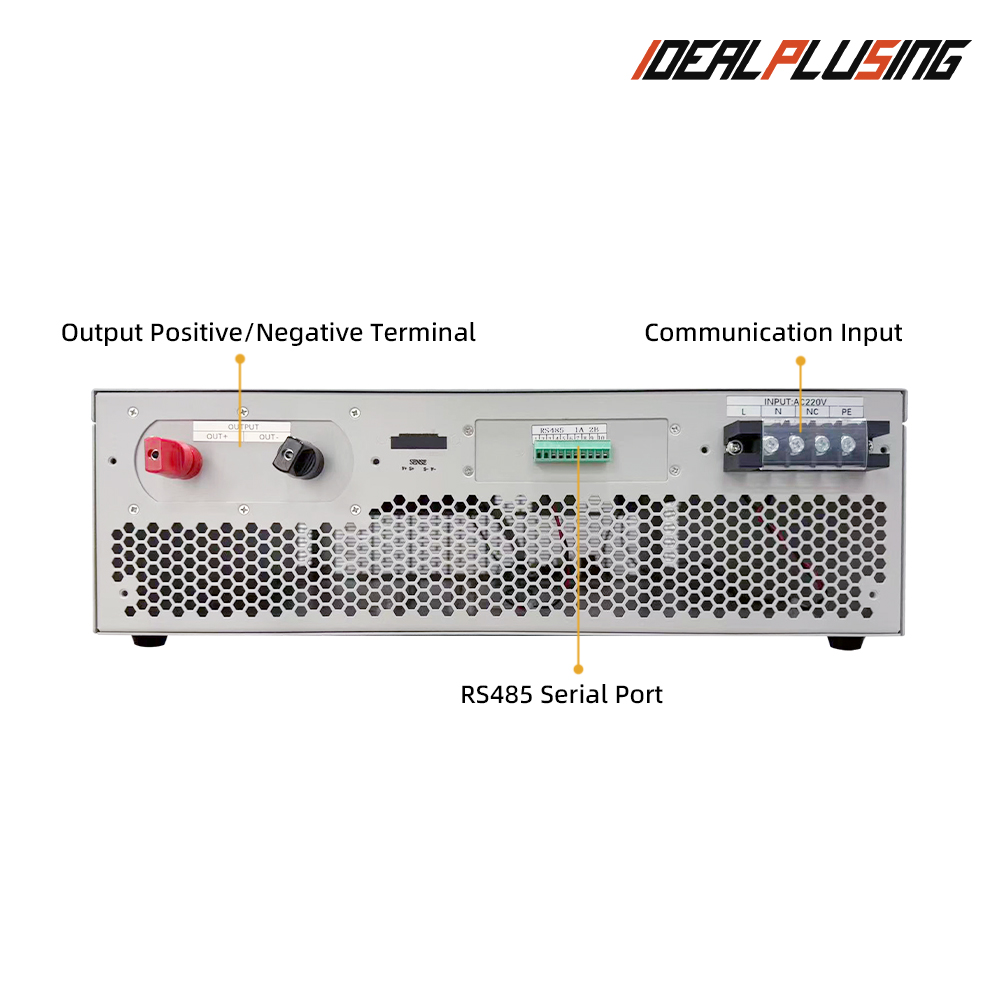

This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.

Specification

Parameter Spec
Model	IPS-ATDD30050
AC Input	3-phase 380VAC
Input Voltage Range	380VAC ±15%
Input frequency	50Hz/60Hz
Output voltage	0-300VDC
Output current	0-50A
Output Power	15KW
Efficiency	≥85%
Voltage Regulation Accuracy	≤±0.3%FS
Steady Flow Accuracy	≤+0.5%FS
RMS Ripple Voltage	≤+0.3%FS±50mv
Voltage Display Accuracy	4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format	0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy	4-digit Accuracy: ±1%+1 word (10%-100% rating)
Output Over Voltage Protection	Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection	Overload, current limit, constant current output
Over Temperature Protection	Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting	10-turn precision potentiometer
Current Setting	10-turn precision potentiometer
Output Polarity	Output Positive (+) negative (-) Can be grounded at will
Heat Dissipation Way	Forced fan cooling
Work Conditions	Indoor use design, Temperature: 0℃~50℃, Humidity: 10%~95%RH
Storage Conditions	Temperature: -25℃~50℃, Humidity: 10%~95%RH
Machine Dimension	132430500(MM)
Net Weight	15KG
Communication	RS485 or RS232 or CAN

Note: All specifications are subject to change without prior notice!

Hot Selling Models

IPS-ATDY2075 DC Power Supply

① AC IN: 1 phase 110/220VAC±15% 50/60HZ

② DC OUT: 0~20VDC, 0~75A

③ Max power: 1500W

IPS-ATDY3050 DC Power Supply

① AC IN: 1 phase 110/220VAC±15% 50/60HZ

② DC OUT: 0~30VDC, 0~50A

③ Max power: 1500W

IPS-ATDY4050 DC Power Supply

① AC IN: 1 phase 110/220VAC±15% 50/60HZ

② DC OUT: 0~40VDC, 0~50A

③ Max power: 2000W

IPS-ATDY5060 DC Power Supply

① AC IN: 1 phase 220VAC±15% 50/60HZ

② DC OUT: 0~50VDC, 0~60A

③ Max power: 3000W
