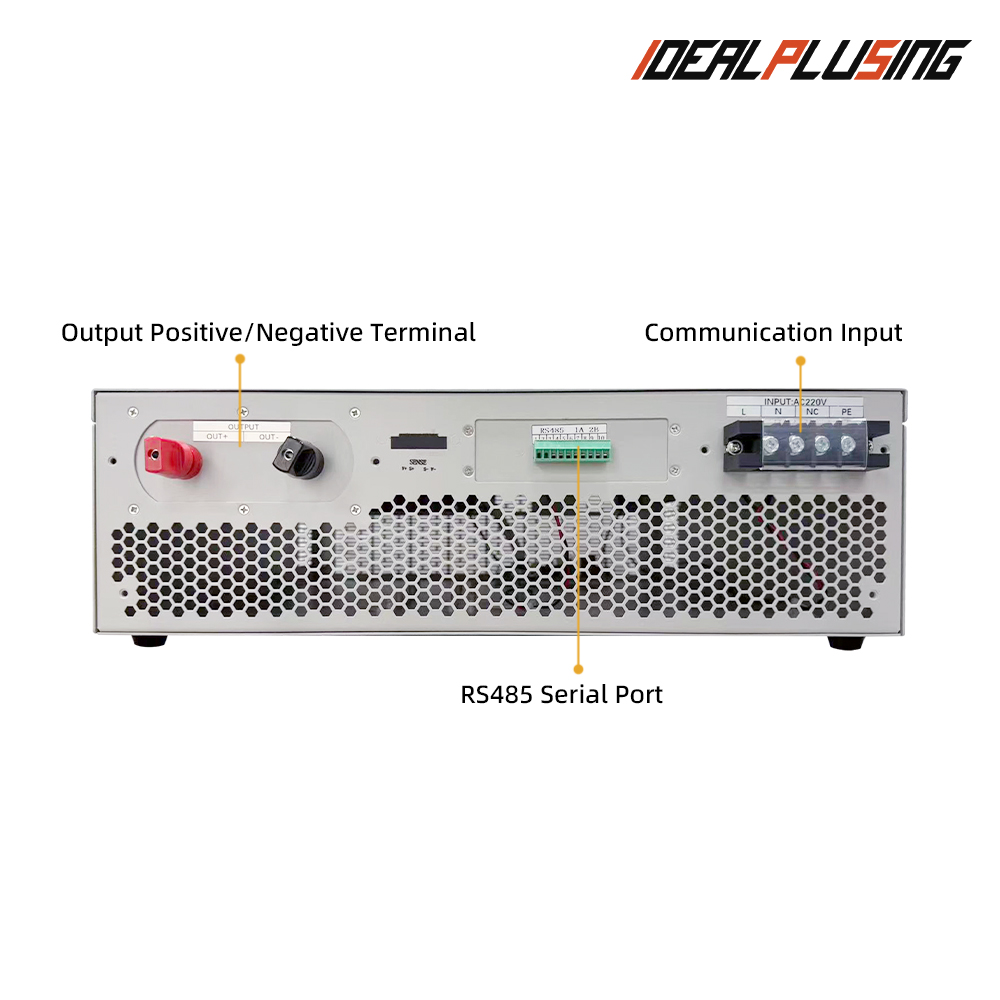

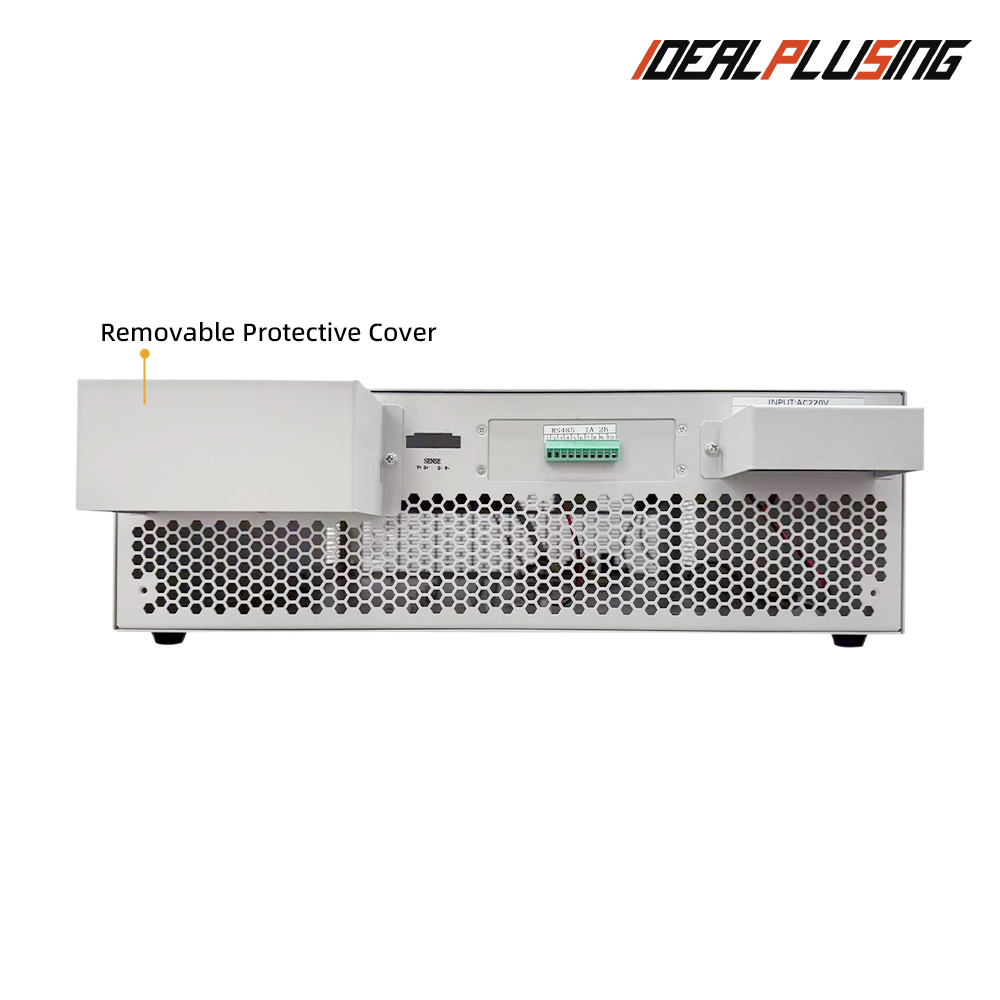

12-400VDC/30A 12000W High Precision Low Drift 12KW Programmable DC Power Supply for Lab Research with IGBT Power Module
Product Description
12-400VDC/30A 12000W High Precision Low Drift 12KW Programmable DC Power Supply for Lab Research with IGBT Power Module
Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. These prices are for preliminary budget reference and do not constitute a final commitment. We adhere to the principle of integrity and appreciate your trust.
Product Description
- Small size and light weight, suitable for work surface use and rack installation.
- Using PWM modulation, low consumed power of the crystal module, high efficiency, and high power.
- Well-designed electronic circuit, forced air cooling, and heat treatment with a very low-temperature coefficient.
- Low noise and low ripple.
- High gain amplifier circuit design with fast response characteristics.
- 4-bit high sampling rate, high-resolution voltage and current digital display meter.
- Built-in O.V.P. (over-voltage) and O.T.P. (over-temperature) protection circuits for reliable performance.
- Load terminal voltage detection for accurate reading and precise control.
Technical Specifications
| Parameter | Detail |
|---|---|
| Model | IPS-ATDD40030 |
| AC Input | 3-phase 380VAC ±15%, 50Hz/60Hz |
| Output Voltage | 0-400VDC |
| Output Current | 0-30A |
| Output Power | 12KW |
| Efficiency | ≥85% |
| Voltage Regulation Accuracy | ≤±0.3%FS |
| Steady Flow Accuracy | ≤+0.5%FS |
| RMS Ripple Voltage | ≤+0.3%FS ±50mv |
| Display Accuracy | 4-digit: ±1%+1 word (10%-100% rating) |
| Protection | O.V.P. (Rated +5%), Overload, Current Limit, O.T.P. (85℃±5%) |
| Adjustment | 10-turn precision potentiometer |
| Dimensions | 132*430*500 (MM) |
| Net Weight | 15KG |
| Communication | RS485 / RS232 / CAN |
Note: All specifications are subject to change without prior notice.
Hot Selling Models
IPS-ATDY2075
0~20VDC, 0~75A, 1500W
IPS-ATDY3050
0~30VDC, 0~50A, 1500W
IPS-ATDY4050
0~40VDC, 0~50A, 2000W
IPS-ATDY5060
0~50VDC, 0~60A, 3000W
IPS-ATDY12050
0~120VDC, 0~50A, 6000W
IPS-ATDY80150
0~80VDC, 0~150A, 12000W
Product Details Gallery
Application Scope
Model Selection List (380VAC Input)
| IPS-ATDD Series High Power Solutions | |||
|---|---|---|---|
| Model Name | Output Voltage | Output Current | Total Power |
| IPS-ATDD101000 | 10VDC | 1000A | 10000W |
| IPS-ATDD40025 | 400VDC | 25A | 10000W |
| IPS-ATDD121000 | 12VDC | 1000A | 12000W |
| IPS-ATDD40030 | 400VDC | 30A | 12000W |
| IPS-ATDD151000 | 15VDC | 1000A | 15000W |
| IPS-ATDD50030 | 500VDC | 30A | 15000W |
| IPS-ATDD251000 | 25VDC | 1000A | 20000W |
| IPS-ATDD100025 | 1000VDC | 20A | 20000W |
About Our Solutions
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifiers, inverters, and specialized power systems. We provide personalized, efficient, and cost-effective power supply solutions across all industries. Beyond selling products, we strive to deliver the right items paired with expert quotation solutions to empower your projects.
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, sample orders are acceptable to test and check quality for initial cooperation.
Q2. What is the typical lead time?
Most models are in stock. Sample lead time is usually 1-3 working days after receiving payment.
Q3. Is there a minimum order quantity (MOQ)?
We offer a low MOQ; even 1 piece for sample checking is available.
Q4. How are the goods shipped and how long does it take?
We typically ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Is it possible to print a custom logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q6. What kind of guarantee do you offer?
We offer a 1-year warranty for all power supply products, ensuring strict quality control.
