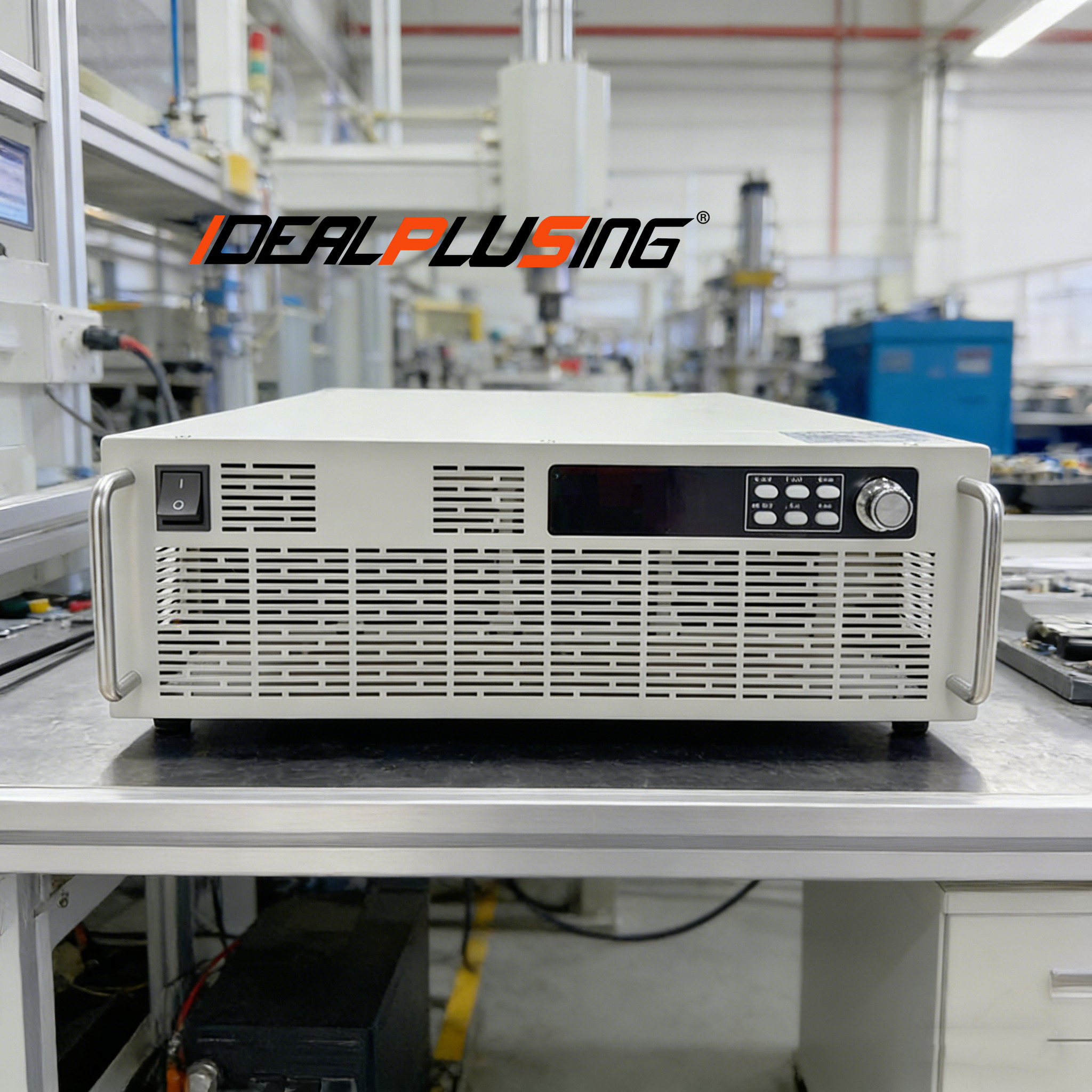

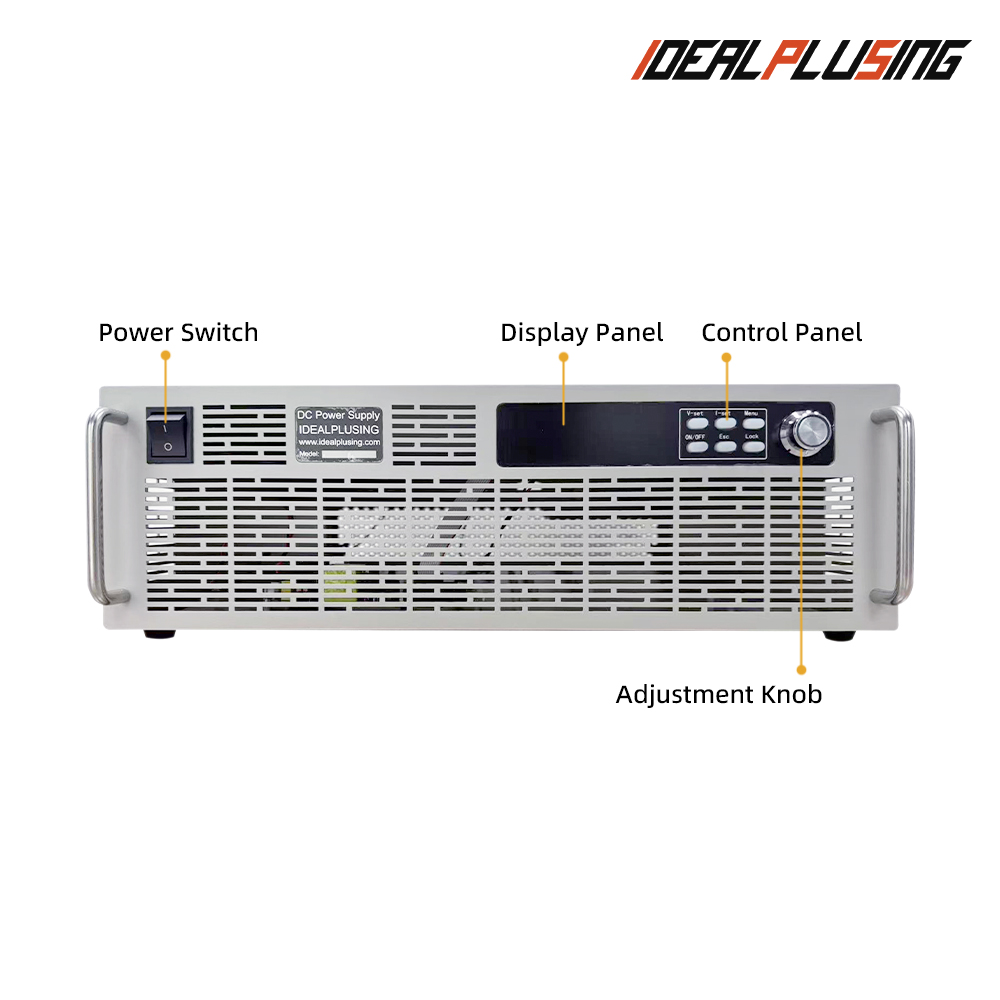

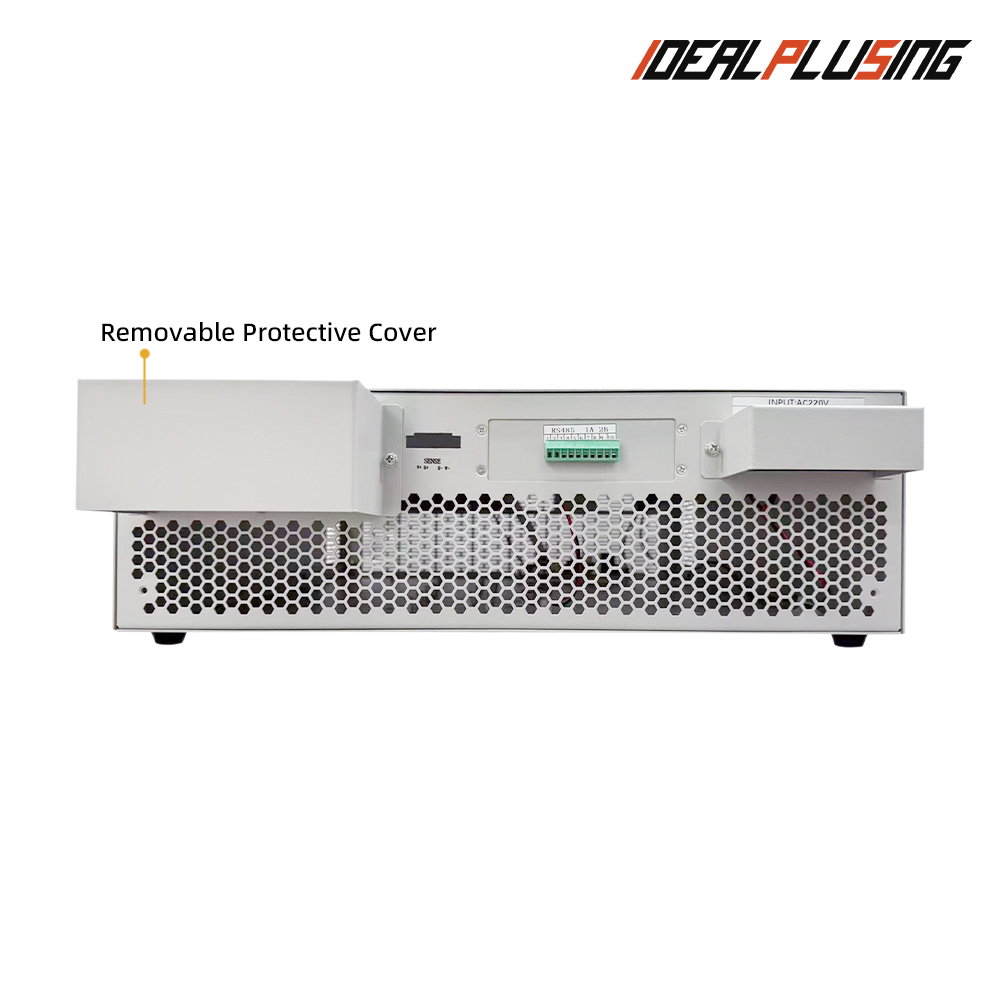

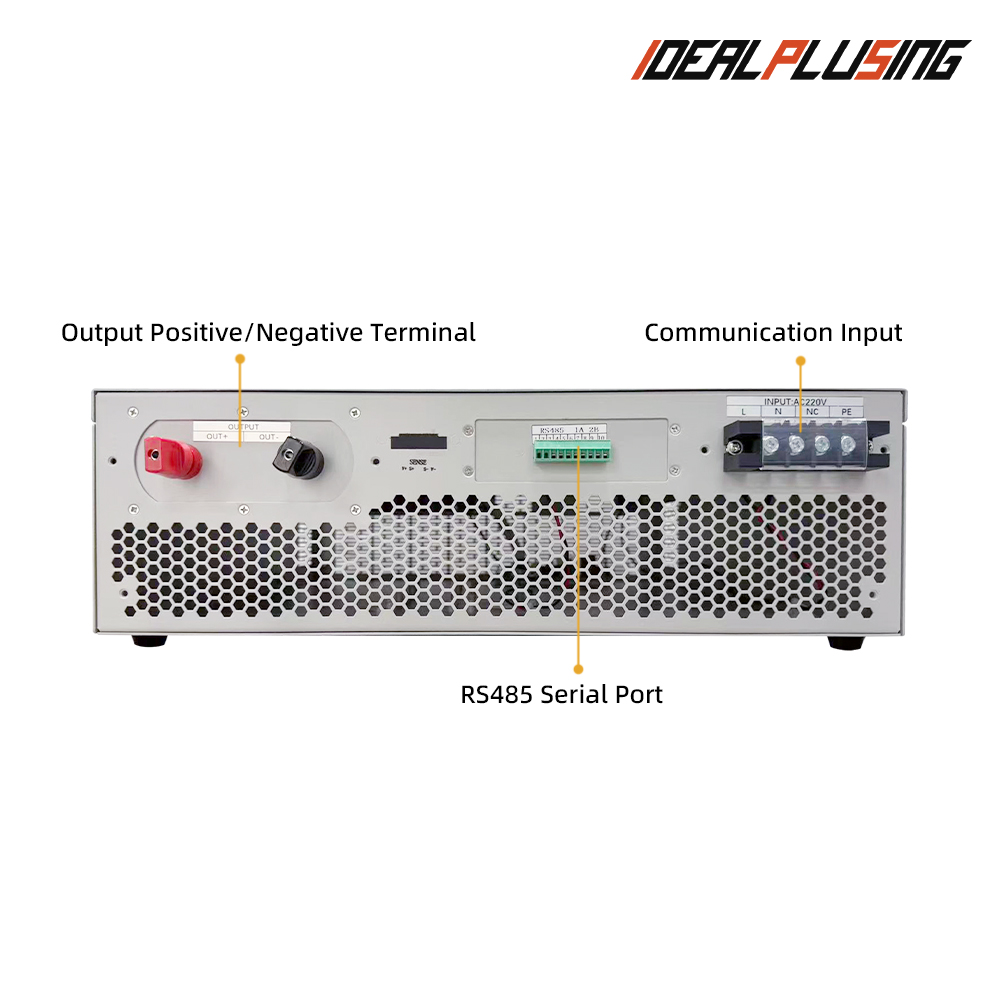

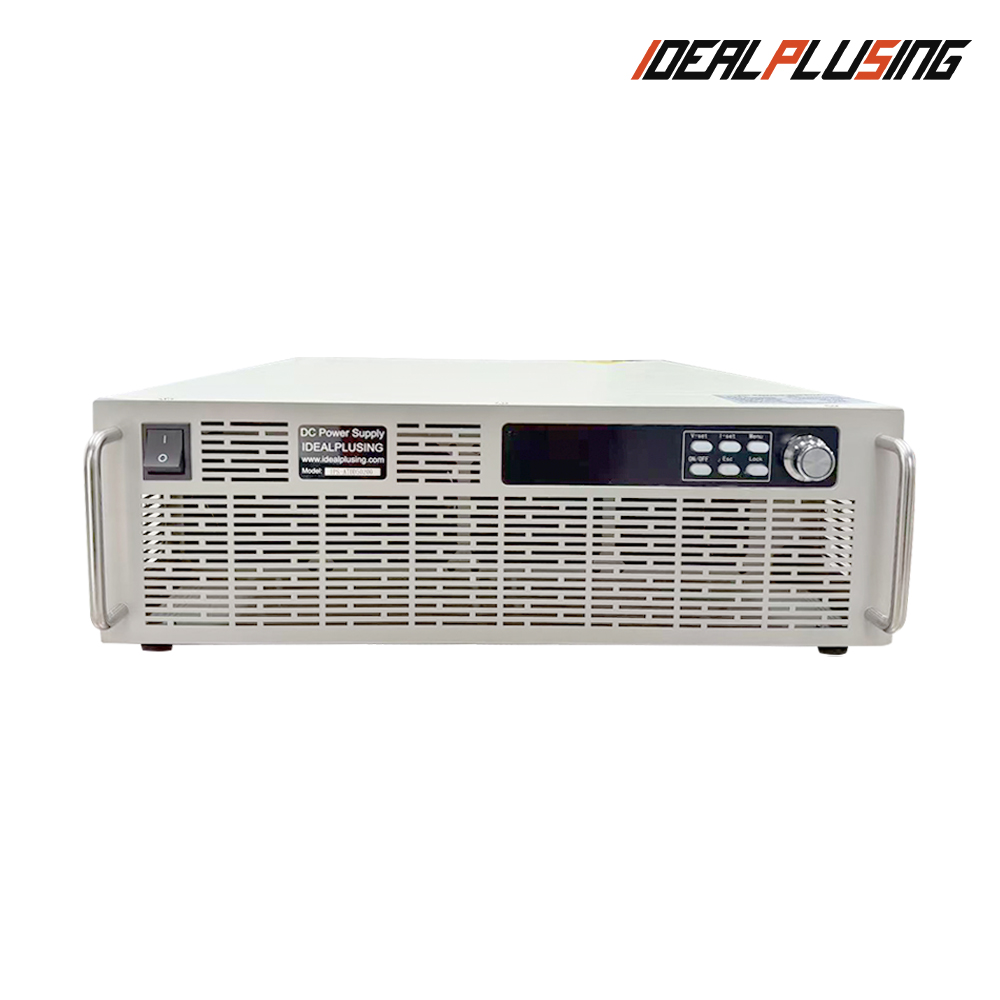

Low Ripple High Stability Precise Programmable 24V 48V 96V/125A 12kW Industrial & Battery Test Power Supply
Product Description
Low Ripple High Stability Precise Programmable Industrial & Battery Test Power Supply
💡 Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
🚀 Product Description
⚙️
Small size and light weight are suitable for work surface use and rack installation.
⚡
Using PWM modulation, high efficiency with low crystal module power consumption. Forced air cooling with a low-temperature coefficient.
🔇
Low noise and low ripple design for precision testing.
📈
High gain amplifier circuit design with fast response characteristics.
🔢
4-bit high sampling rate, high-resolution voltage and current digital display meter.
🛡️
Built-in O.V.P. and O.T.P. protection circuits for reliable performance.
📋 Technical Specifications
| Parameter | Details |
|---|---|
| Model | IPS-ATDD96125 |
| AC Input | 3-phase 380VAC ±15% (50Hz/60Hz) |
| Output Range | 0-95VDC / 0-125A |
| Output Power | 12KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word |
| Protections | O.V.P (Rated +5%), O.T.P (85℃±5%), Overload, Current Limit |
| Control | 10-turn precision potentiometer |
| Cooling | Forced fan cooling |
| Dimension / Weight | 132*430*500(MM) / 15KG |
🔥 Hot Selling Models
IPS-ATDY2075
DC OUT: 0~20V, 0~75A
Max Power: 1500W
IPS-ATDY3050
DC OUT: 0~30V, 0~50A
Max Power: 1500W
IPS-ATDY4050
DC OUT: 0~40V, 0~50A
Max Power: 2000W
IPS-ATDY5060
DC OUT: 0~50V, 0~60A
Max Power: 3000W
IPS-ATDY12050
DC OUT: 0~120V, 0~50A
Max Power: 6000W
IPS-ATDY80150
DC OUT: 0~80V, 0~150A
Max Power: 12000W
📸 Product Detail Gallery
🌍 Application Scope
📊 Comprehensive Model List
10KW Series (380VAC Input)
| Model | Voltage | Current | Power |
|---|---|---|---|
| IPS-ATDD101000 | 10VDC | 1000A | 10000W |
| IPS-ATDD80125 | 80VDC | 125A | 10000W |
| IPS-ATDD20050 | 200VDC | 50A | 10000W |
| IPS-ATDD100010 | 1000VDC | 10A | 10000W |
12KW Series (380VAC Input)
| Model | Voltage | Current | Power |
|---|---|---|---|
| IPS-ATDD24500 | 24VDC | 500A | 12000W |
| IPS-ATDD48250 | 48VDC | 250A | 12000W |
| IPS-ATDD96125 | 96VDC | 125A | 12000W |
| IPS-ATDD60020 | 600VDC | 20A | 12000W |
💡 Professional Power Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and DC power supplies. We aim to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. Our goal is to provide customers with the right items and the best quotation solutions for their specific needs.
❓ Frequently Asked Questions
Q1. Can I have a sample order?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
Most models are in stock; sample lead time is 1-3 working days after receiving payment.
Q3. Do you have any MOQ limit?
Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies.
Q6. Is it possible to print my logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
