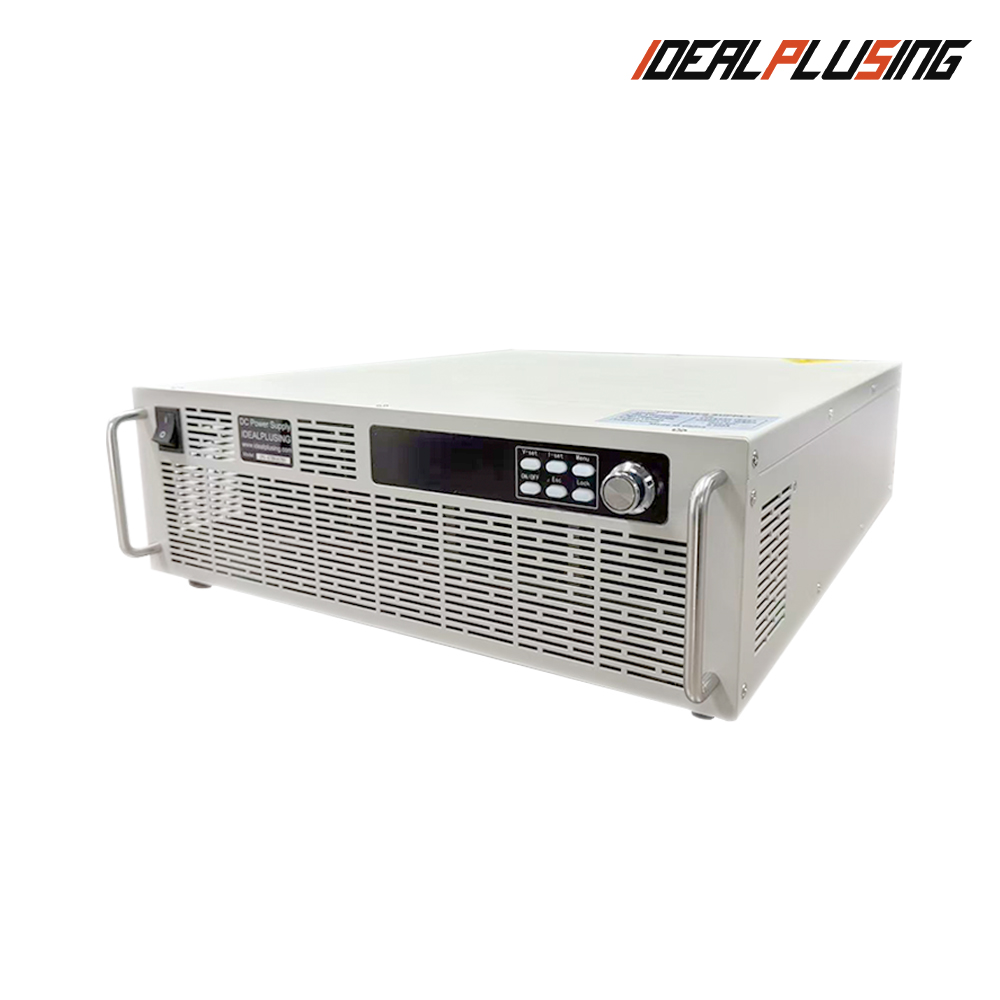

10000W High Reliability 5V 15V 25VDC 400A Industrial Equip R&D Power Supply, Low Ripple High-Stability Precision DC Module
Product Description
10000W High Reliability 5V 15V 25VDC 400A Industrial Power Supply
Low Ripple High-Stability Precision DC Module
Low Ripple High-Stability Precision DC Module
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be quoted by our sales staff based on your actual needs, purchase quantity, and market conditions.
Product Description
💎
Small size and light weight are suitable for work surface use and rack installation.
⚡
Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment.
🔈
Low noise and low ripple with high gain amplifier circuit design for fast response characteristics.
📊
Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
🛡️
Built-in O.V.P. over-voltage protection and O.T.P. over-temperature protection circuit; functions are perfect and reliable.
🔍
Designed with a load terminal voltage detection terminal for accurately reading voltage and performing precise control.
Specifications
| Parameter | Details |
|---|---|
| Model | IPS-ATDD25400 |
| AC Input | 3-phase 380VAC ±15% |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | 0-25VDC |
| Output Current | 0-400A |
| Output Power | 10KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit: ±1%+1 word (10%-100% rating) |
| Protection | Built-in O.V.P. (Rated +5%) & O.T.P. (85℃±5%) |
| Cooling Way | Forced fan cooling |
| Net Weight | 15KG |
| Options | Analog control (0-5V/0-10V), RS485/RS232 Communication |
Hot Selling Models
IPS-ATDY2075
0~20VDC, 0~75A
Max: 1500W
IPS-ATDY3050
0~30VDC, 0~50A
Max: 1500W
IPS-ATDY4050
0~40VDC, 0~50A
Max: 2000W
IPS-ATDY5060
0~50VDC, 0~60A
Max: 3000W
IPS-ATDY12050
0~120VDC, 0~50A
Max: 6000W
IPS-ATDY80150
0~80VDC, 0~150A
Max: 12000W
Detail Images
Application Scope
Model Selection List (10KW - 20KW)
| Model Series | Output Range | Input Voltage |
|---|---|---|
| 10KW Series | 10VDC/1000A to 10000VDC/1A | 380VAC |
| 12KW Series | 12VDC/1000A to 6000VDC/2A | 380VAC |
| 15KW Series | 15VDC/1000A to 5000VDC/3A | 380VAC |
| 20KW Series | 20VDC/1250A to 5000VDC/4A | 380VAC |
About Our Service
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and precision DC power supplies. We aim to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. Our goal is to provide customers with the right power supply solution and optimized quotation solutions for every project.
Frequently Asked Questions
Q1: Can I have a sample order for testing?
Yes, sample orders are acceptable to test and check the quality for initial cooperation.
Q2: What is the typical lead time for orders?
Most models are in stock. Sample lead time after payment is usually 1-3 working days.
Q3: How do you ship the goods and how long is the transit?
We often ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q4: Is it possible to print a buyer's logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q5: What is your quality control system like?
Our products are produced under a strict quality control system, and the pass rate is maintained over 99.8%.
Q6: Do you offer a guarantee for the power supplies?
Yes, we offer a 1-year warranty for all power supply products.
