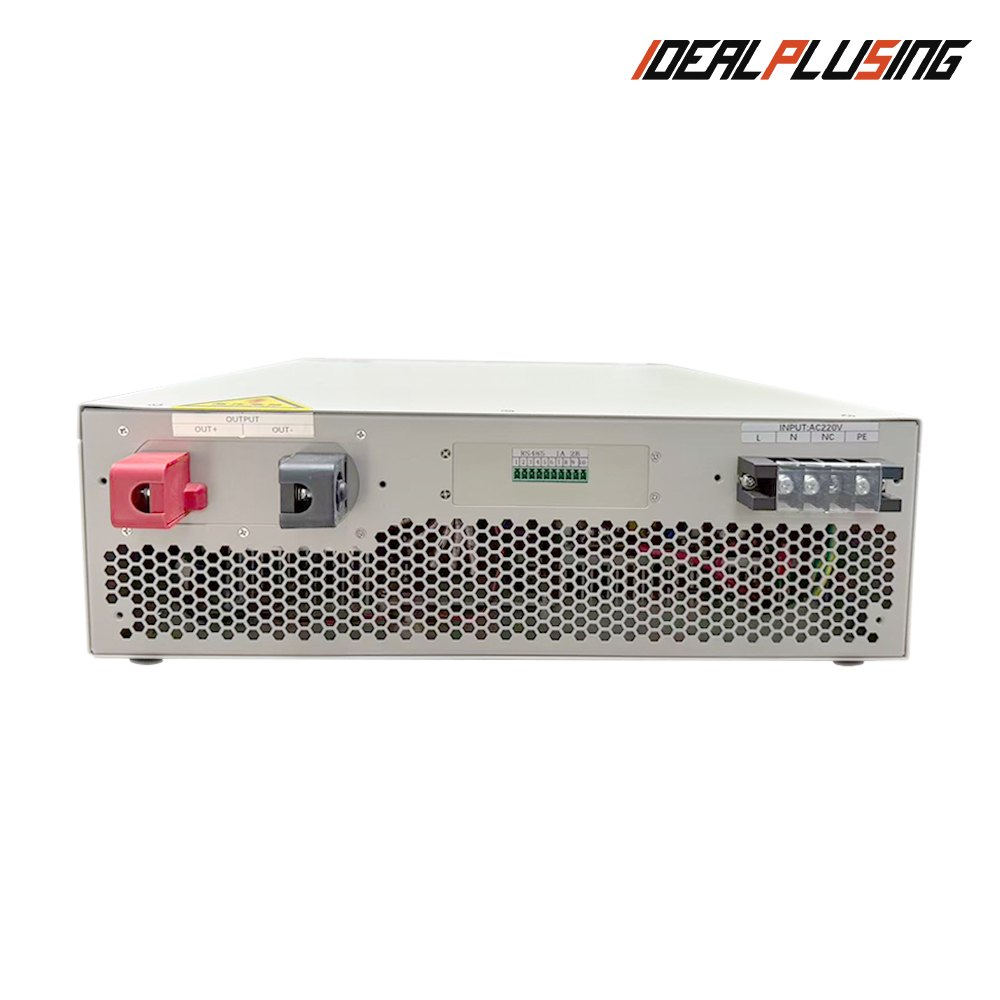

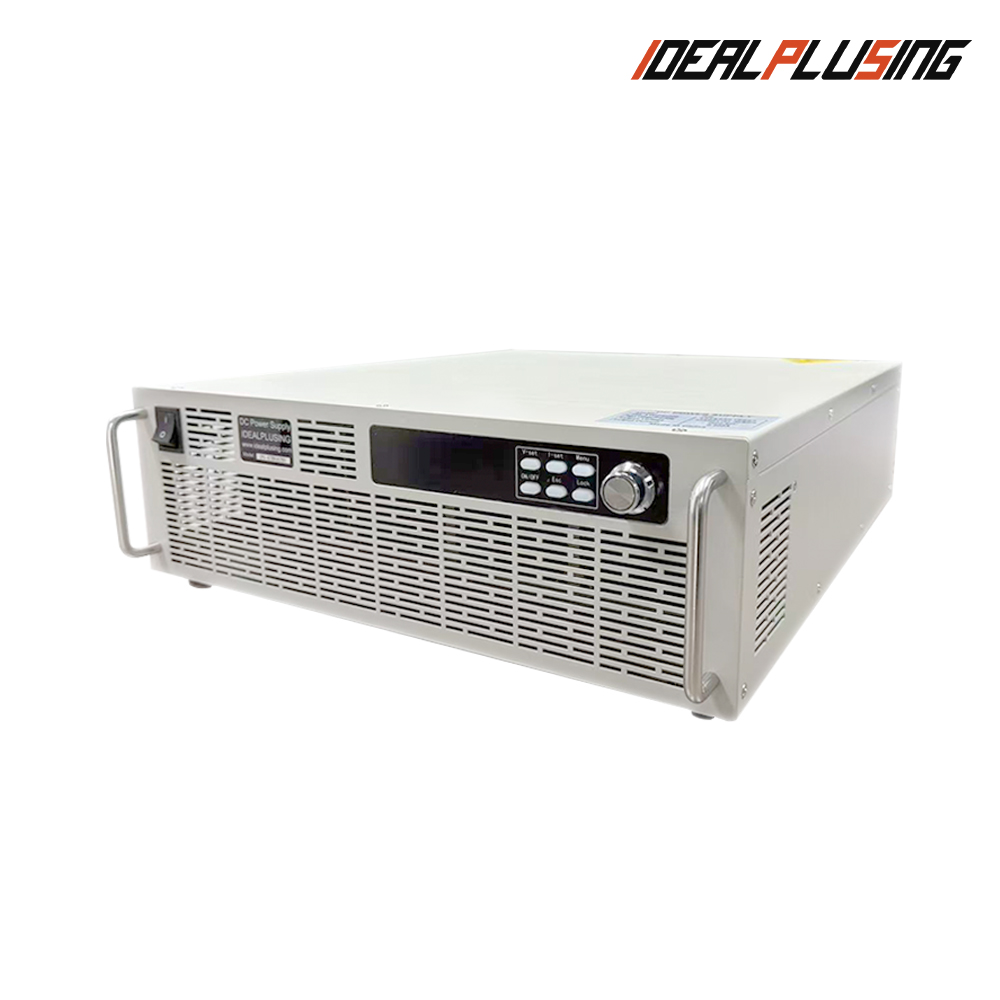

12KW 0/12V 1000A Stable Volt Current Adjustable Output DC High Stability Industrial Lab R&D Testing Digital Control Power Supply

1 / 5

12KW 0/12V 1000A Stable Volt Current Adjustable Output DC High Stability Industrial Lab R&D Testing Digital Control Power Supply

Send Inquiry

Product Description

Friendly Reminder

Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.

Product Description

Small size and light weight are suitable for work surface use and rack installation.

Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.

Low noise and low ripple.

Using high gain amplifier circuit design, with good fast response characteristics.

Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.

Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.

This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.

Specification

Parameter Name		Specifications details
Model		IPS-ATDD121000
AC Input		3-phase 380VAC
Input Voltage Range		380VAC ±15%
Input frequency		50Hz/60Hz
Output voltage		0-12VDC
Output current		0-1000A
Output Power		12KW
Efficiency		86%
Voltage Stabilization		≤0.3%+10mV
Load Stabilization		≤0.5%+30mV
Ripples and Noises		≤0.5%+10mVrms
Voltage Display Accuracy		4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format		0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy		4-digit Accuracy: ±1%+1 word (10%-100% rating)
Output Over Voltage Protection		Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection		Overload, current limit, constant current output
Over Temperature Protection		Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting		10-turn precision potentiometer
Current Setting		10-turn precision potentiometer
Output Polarity		Output Positive（+) negative（- ) Can be grounded at will
Heat Dissipation Way		Forced fan cooling
Work Conditions		Indoor use design，Temperature：0℃~40℃， Humidity： 10%~85%RH
Storage Conditions		Temperature：-20℃~70℃，Humidity： 10%~90%RH
Machine Dimension		132430500(MM)
Net Weight		15KG
Custom Item(Charge)
Option 1：Analog control		0-5VDC or 0-10VDC
Option 2：Communication		RS485 or RS232
Option 3：Analog control+Communication		0-5VDC or 0-10VDC
Note: All specifications are subject to change without prior notice!
