12KW 0/15V 800A High Stability Industrial Lab R&D Testing Digital Control Power Supply Stable Volt Current Adjustable Output DC
Product Description
12KW 0/15V 800A High Stability Industrial Lab R&D Testing Digital Control Power Supply Stable Volt Current Adjustable Output DC
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Description
1
Small size and light weight are suitable for work surface use and rack installation.
2
Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.
3
Low noise and low ripple.
4
Using high gain amplifier circuit design, with good fast response characteristics.
5
Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
6
Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.
7
This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.
Specification
| Model | IPS-ATDD15800 |
|---|---|
| AC Input | 3-phase 380VAC |
| Input Voltage Range | 380VAC ±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0-15VDC |
| Output current | 0-800A |
| Output Power | 12KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Over Voltage Prot. | Built-in O.V.P. protection, limited value is rated +5% |
| Heat Dissipation | Forced fan cooling |
| Work Conditions | 0℃~40℃； Humidity： 10%~85%RH |
| Machine Dimension | 132*430*500(MM) |
| Net Weight | 15KG |
Hot Selling Models
IPS-ATDY2075
AC IN: 1 phase 110/220VAC
DC OUT: 0~20VDC, 0~75A
Max power: 1500W
AC IN: 1 phase 110/220VAC
DC OUT: 0~20VDC, 0~75A
Max power: 1500W
IPS-ATDY3050
AC IN: 1 phase 110/220VAC
DC OUT: 0~30VDC, 0~50A
Max power: 1500W
AC IN: 1 phase 110/220VAC
DC OUT: 0~30VDC, 0~50A
Max power: 1500W
IPS-ATDY4050
AC IN: 1 phase 110/220VAC
DC OUT: 0~40VDC, 0~50A
Max power: 2000W
AC IN: 1 phase 110/220VAC
DC OUT: 0~40VDC, 0~50A
Max power: 2000W
IPS-ATDY5060
DC OUT: 0~50VDC, 0~60A
DC OUT: 0~50VDC, 0~60A
IPS-ATDY12050
DC OUT: 0~120VDC, 0~50A
DC OUT: 0~120VDC, 0~50A
IPS-ATDY80150
DC OUT: 0~80VDC, 0~150A
DC OUT: 0~80VDC, 0~150A

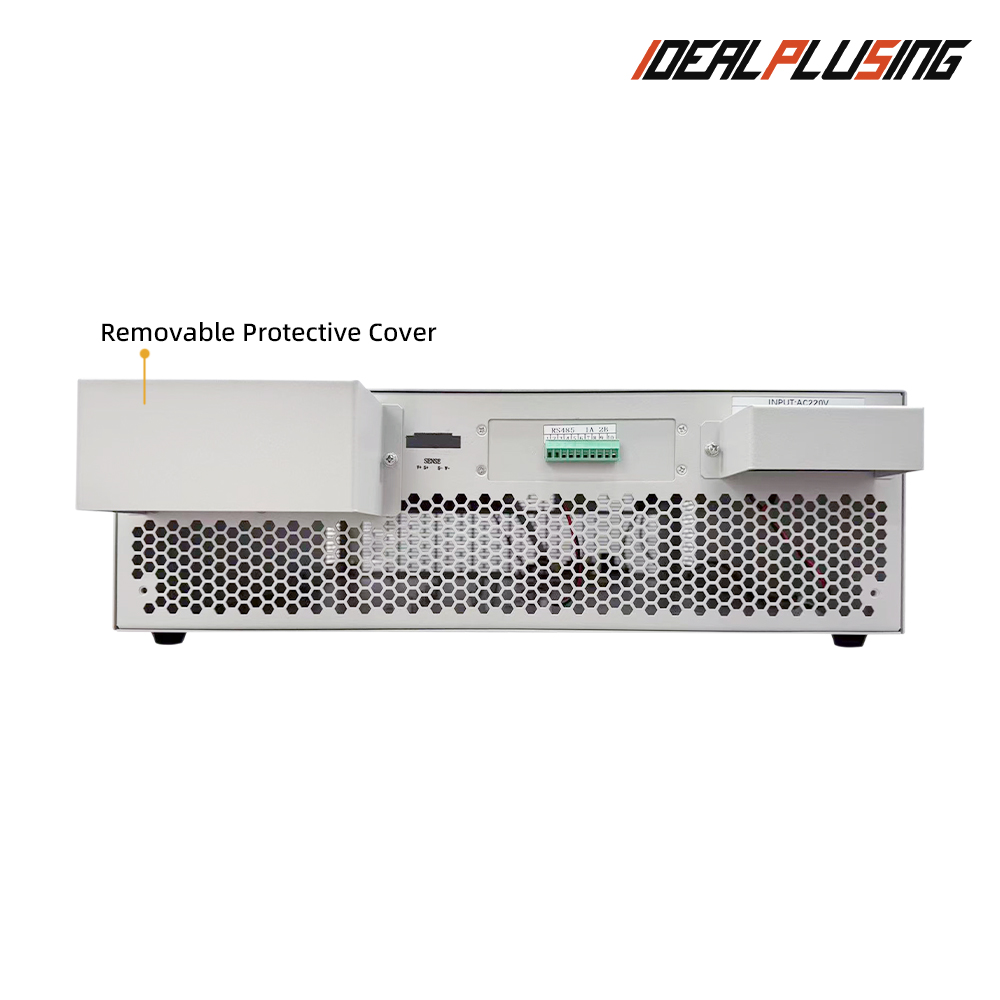

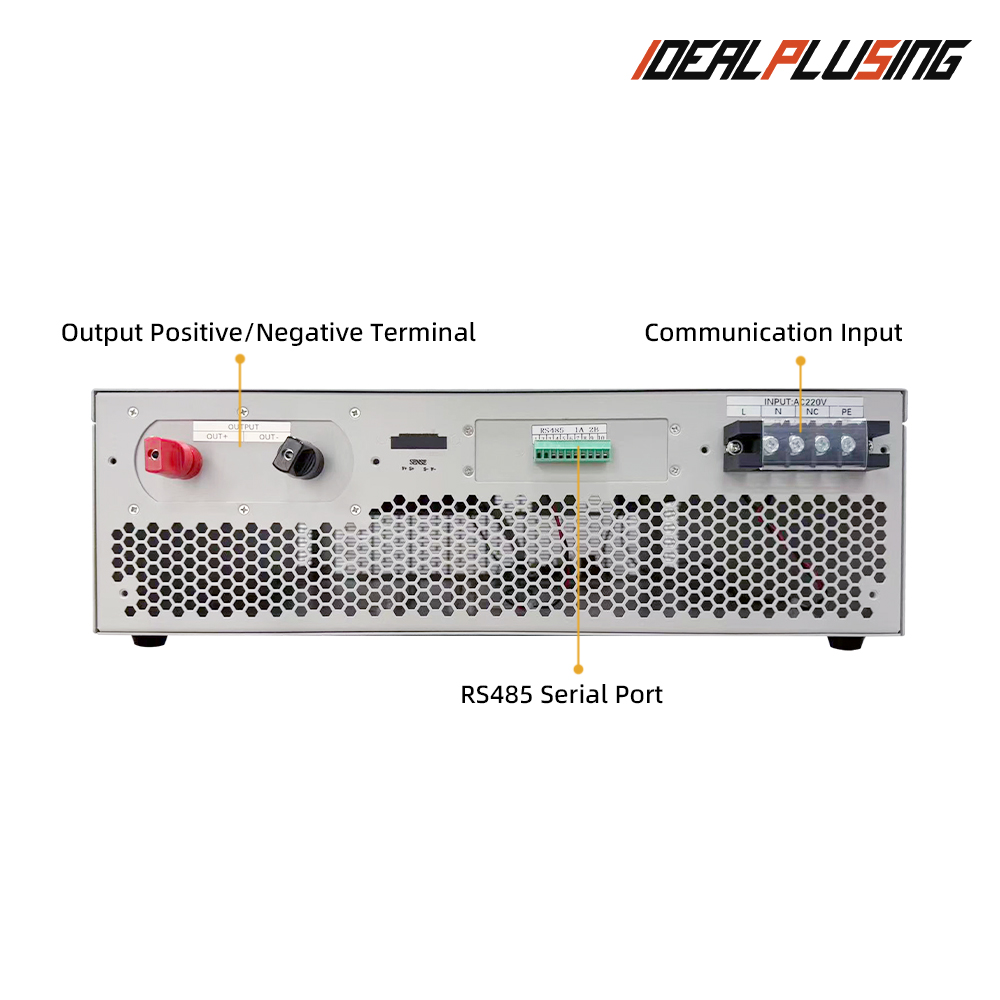

Details Images
Application Scope
Company Profile
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together. let's make it much better.
FAQ
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most of the model in the stock, sample lead time after receive payment 1-3 working days.
Do you have any MOQ limit?
Low MOQ, 1 pieces for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Is it acceptable to print the buyer logo on the product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply.
