12KW 0/16V 750A Adjustable Output High Precise Industrial Lab R&D Testing Digital Control Constant Voltage Current Power Supply
Product Description

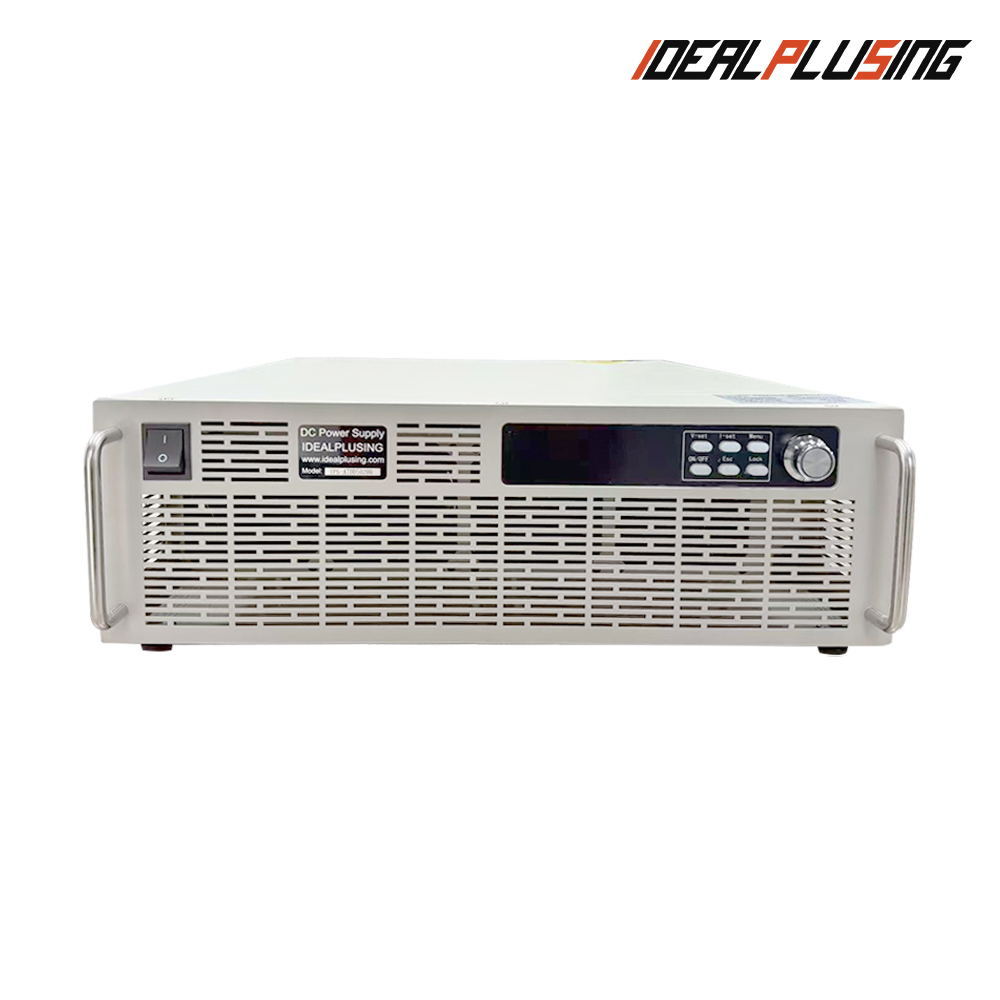

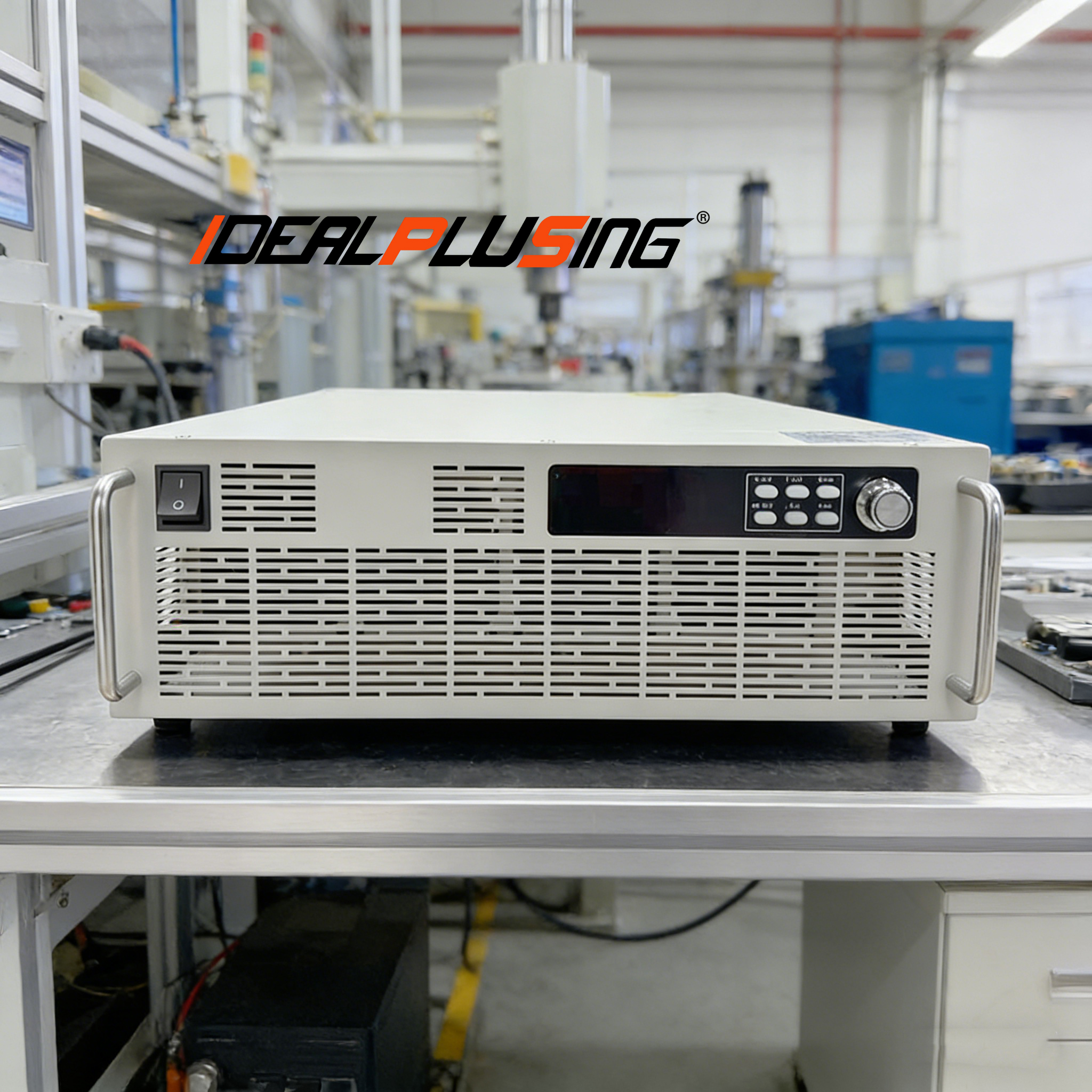

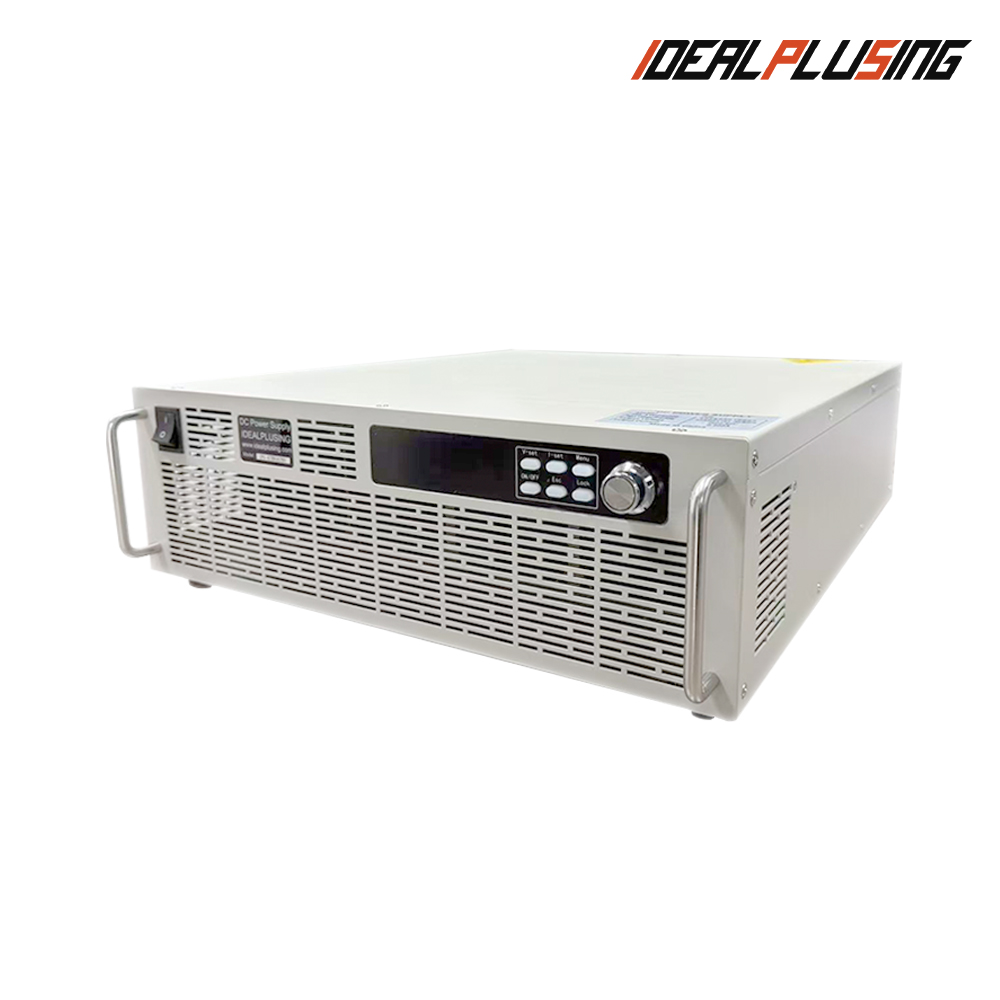

12KW 0/16V 750A Adjustable Industrial Power Supply
📢 Friendly Reminder: The prices shown are for reference only. Final transaction prices will be quoted by sales based on your specific requirements and purchase quantity.
🚀 Product Description
01
Small size and light weight, suitable for both work surface use and standard rack installation.
02
Using PWM modulation for high efficiency, low power consumption, and forced air cooling for optimal thermal management.
03
Engineered for low noise and low ripple output.
04
High gain amplifier circuit design provides excellent fast response characteristics.
05
Equipped with 4-bit high sampling rate and high-resolution digital display for voltage and current.
06
Built-in O.V.P. (Over Voltage Protection) and O.T.P. (Over Temperature Protection) for reliable operation.
07
Load terminal voltage detection allows for accurate reading and precise control of the actual load terminal voltage.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Model | IPS-ATDD16750 |
| AC Input | 3-phase 380VAC ±15%, 50Hz/60Hz |
| Output Range | 0-16VDC / 0-750A |
| Max Power | 12KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word |
| Protection | O.V.P, O.T.P, Current Limit, Overload |
| Cooling | Forced fan cooling |
| Dimensions | 132*430*500 (MM) |
| Weight | 15KG |
🔥 Hot Selling Models
IPS-ATDY2075
20V / 75A / 1500W
20V / 75A / 1500W
IPS-ATDY3050
30V / 50A / 1500W
30V / 50A / 1500W
IPS-ATDY4050
40V / 50A / 2000W
40V / 50A / 2000W
IPS-ATDY5060
50V / 60A / 3000W
50V / 60A / 3000W
IPS-ATDY12050
120V / 50A / 6000W
120V / 50A / 6000W

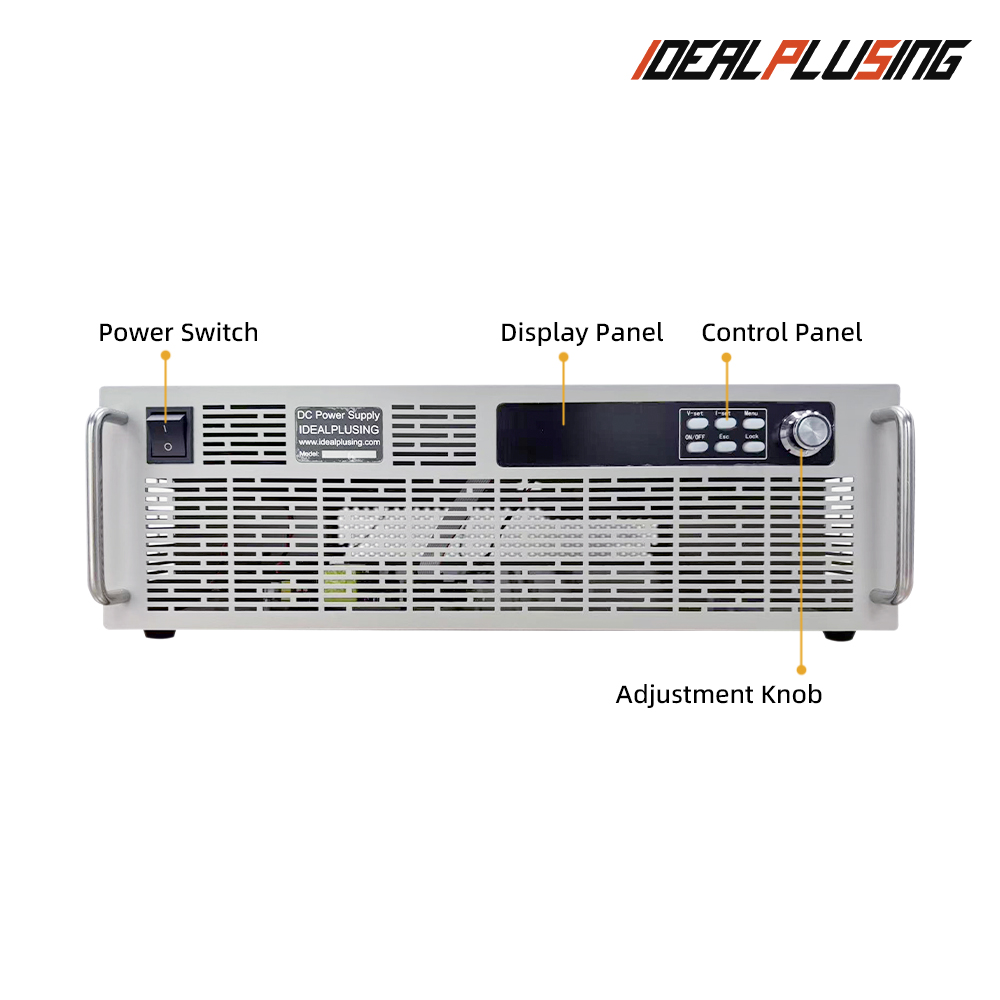

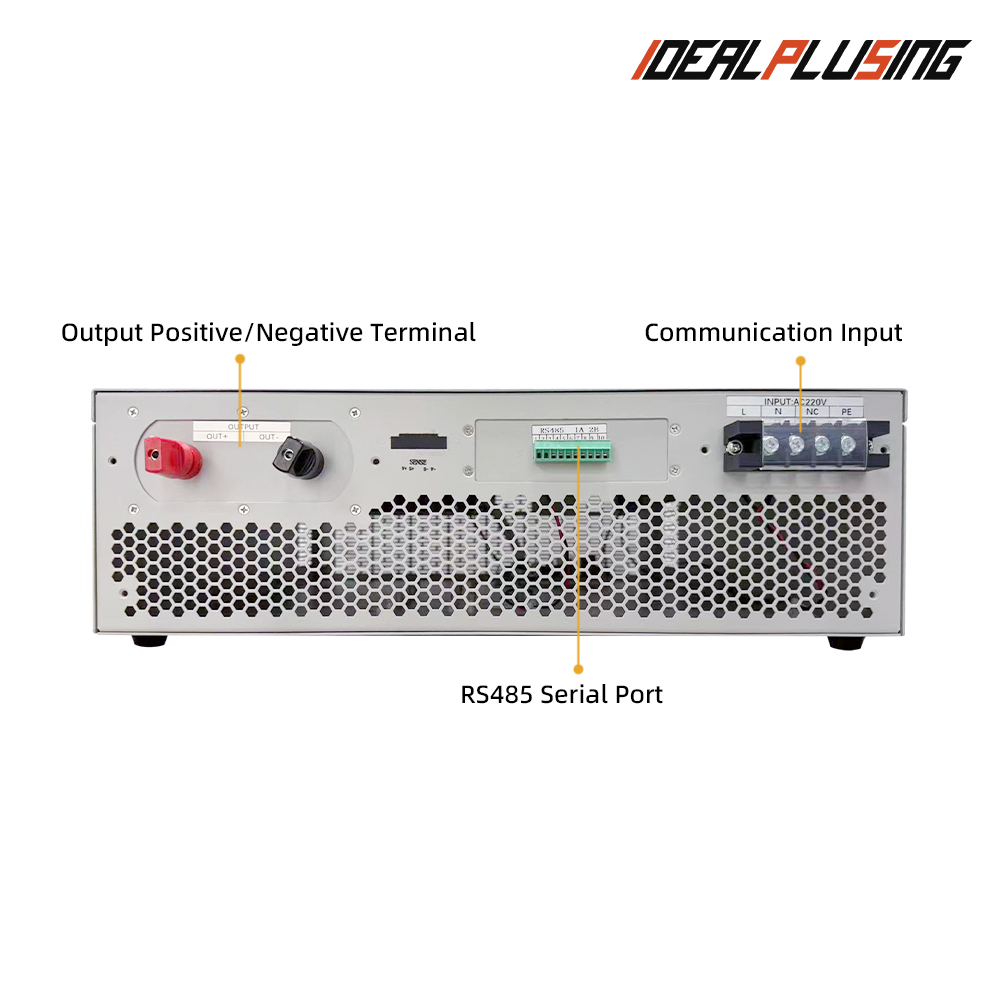

🖼️ Product Detail Images
🌍 Application Scope
🛠️ Our Capabilities
We focus on research, development, and service of high-performance power supply modules. Our range includes DC-DC modules, AC-DC rectifiers, inverters, and specialized LED power supplies. We provide efficient, reliable, and cost-effective solutions tailored to various industrial requirements.
❓ Frequently Asked Questions
Can I request a sample order?
Yes, sample orders are welcome to test and verify quality for our first cooperation.
What is the typical lead time?
Most models are in stock. For samples, lead time is usually 1-3 working days after payment is received.
Is there a Minimum Order Quantity (MOQ)?
We offer low MOQ; even 1 piece for sample checking is available.
How are the goods shipped?
We typically ship via DHL, UPS, FedEx, or TNT (3-5 days delivery). Airline and sea shipping are also optional.
Is logo customization available?
Yes, we can print the buyer's logo on the product. Please inform us formally before production.
What is your product guarantee?
We offer a 1-year warranty for all our power supply products. Our strict quality control ensures a pass rate of over 99.8%.
