0 24V 500A 12KW Adjustable Output High Stability Digital Control Programmable DC Power Automotive Electronic and Portable Device
Product Description
0-24V 500A 12KW Adjustable Output DC Power Supply
📢
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be quoted based on your actual needs, purchase quantity, and market conditions.
High Stability Digital Control Programmable DC Power optimized for Automotive Electronic and Portable Devices.
Product Description
| # | Features & Benefits |
|---|---|
| 1 | Small size and light weight, suitable for work surface use and rack installation. |
| 2 | Using PWM modulation, high efficiency, and low power consumption. Well-designed electronic circuit with forced air cooling. |
| 3 | Low noise and low ripple for precise applications. |
| 4 | High gain amplifier circuit design with excellent fast response characteristics. |
| 5 | 4-bit high sampling rate, high-resolution voltage, and current digital display. |
| 6 | Built-in O.V.P. (Over Voltage) and O.T.P. (Over Temperature) protection for maximum reliability. |
| 7 | Load terminal voltage detection for accurate reading and precise control. |
Technical Specification
| Model | IPS-ATDD24500 |
|---|---|
| AC Input | 3-phase 380VAC ±15% (50Hz/60Hz) |
| Output Range | 0-24VDC / 0-500A |
| Output Power | 12KW |
| Efficiency | 86% |
| Stabilization | Voltage: ≤0.3%+10mV | Load: ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word |
| Protection | Built-in O.V.P, O.T.P (85℃±5%), Overload Current Limit |
| Heat Dissipation | Forced fan cooling |
| Dimensions | 132*430*500 (MM) | Net Weight: 15KG |
| Control Options | Analog (0-5V/10VDC) / RS485 or RS232 Communication |
Hot Selling Models
IPS-ATDY2075
0~20VDC, 0~75A | 1500W
IPS-ATDY3050
0~30VDC, 0~50A | 1500W
IPS-ATDY4050
0~40VDC, 0~50A | 2000W
IPS-ATDY5060
0~50VDC, 0~60A | 3000W
IPS-ATDY12050
0~120VDC, 0~50A | 6000W
IPS-ATDY80150
0~80VDC, 0~150A | 12000W

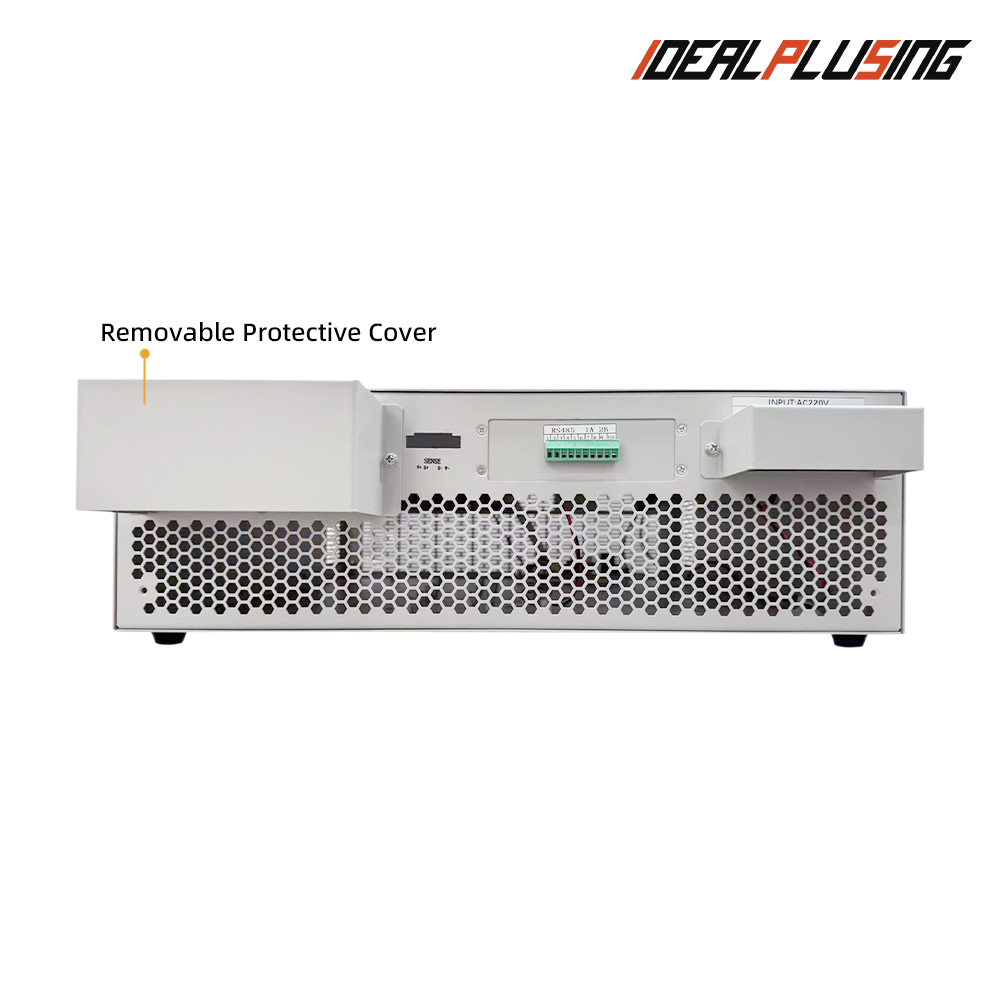

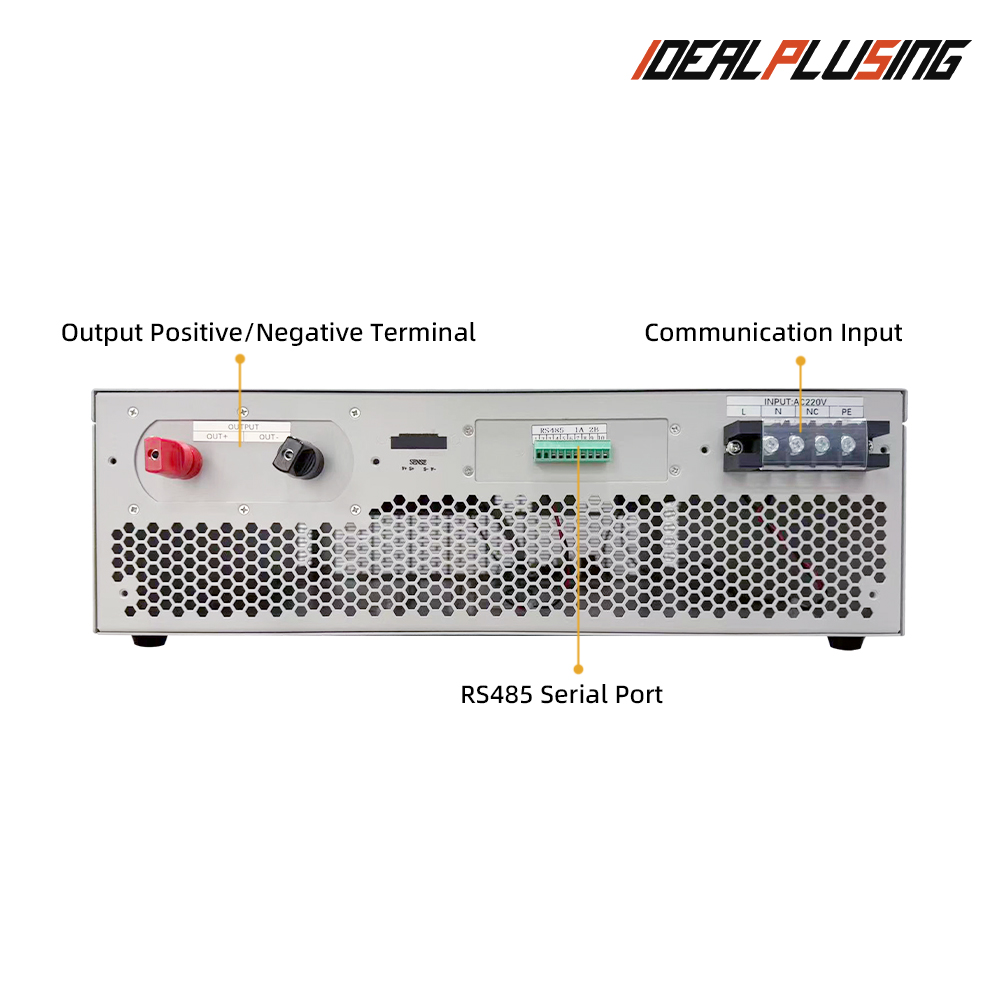

Details & Interior Images
Application Scope
Model Comparison List (12KW Series)
| Model Number | Output Voltage | Output Current | Max Power |
|---|---|---|---|
| IPS-ATDD121000 | 12VDC | 1000A | 12000W |
| IPS-ATDD24500 | 24VDC | 500A | 12000W |
| IPS-ATDD48250 | 48VDC | 250A | 12000W |
| IPS-ATDD100120 | 100VDC | 120A | 12000W |
| IPS-ATDD50024 | 500VDC | 24A | 12000W |
| IPS-ATDD100012 | 1000VDC | 12A | 12000W |
💡
