Energy-Saving Industrial Equipment 4V 8V 16V 625A 10000W Power Supply,Low Noise High Stability Programmable DC Power Supply
Product Description
Energy-Saving Industrial Equipment 4V 8V 16V 625A 10000W Power Supply
Low Noise High Stability Programmable DC Power Supply
Friendly Reminder:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation.
📋 Product Description
- Small size and light weight are suitable for work surface use and rack installation.
- Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.
- Low noise and low ripple.
- Using high gain amplifier circuit design, with good fast response characteristics.
- Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
- Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.
- This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.
📊 Specification
| Parameter | Details |
|---|---|
| Model | IPS-ATDD16625 |
| AC Input | 3-phase 380VAC |
| Input Voltage Range | 380VAC ±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0-16VDC |
| Output current | 0-625A |
| Output Power | 10KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Output Over Voltage Protection | Built-in O.V.P. protection, limited value is rated +5% |
| Over Temperature Protection | Built-in O.T.P. protection, 85℃±5% |
| Machine Dimension | 132*430*500(MM) |
| Net Weight | 15KG |
🔥 Hot Selling Models
IPS-ATDY2075
AC IN: 1ph 110/220V
DC OUT: 0~20V, 0~75A
Max: 1500W
IPS-ATDY3050
AC IN: 1ph 110/220V
DC OUT: 0~30V, 0~50A
Max: 1500W
IPS-ATDY4050
AC IN: 1ph 110/220V
DC OUT: 0~40V, 0~50A
Max: 2000W
IPS-ATDY5060
AC IN: 1ph 220VAC
DC OUT: 0~50V, 0~60A
Max: 3000W
IPS-ATDY12050
AC IN: 3ph 380VAC
DC OUT: 0~120V, 0~50A
Max: 6000W
IPS-ATDY80150
AC IN: 3ph 380VAC
DC OUT: 0~80V, 0~150A
Max: 12000W

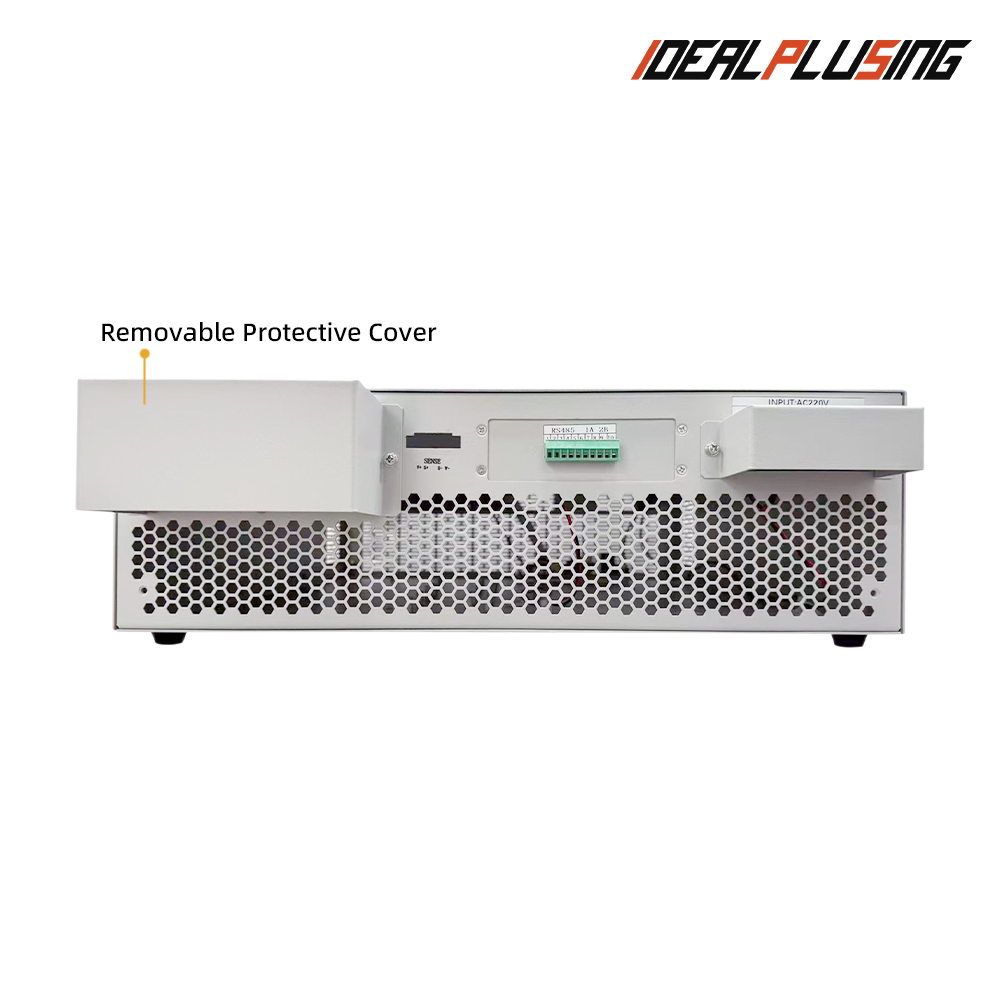

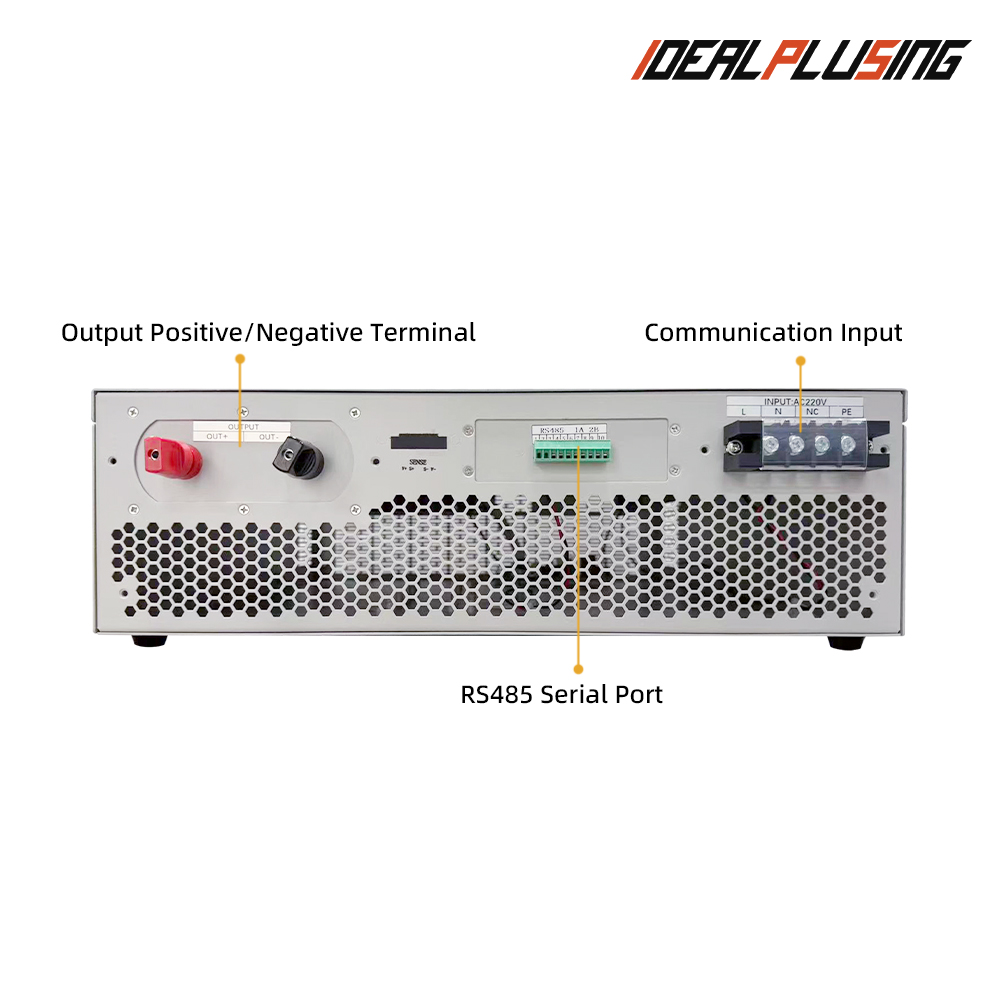

🔍 Details Images
⚙️ Application Scope
📝 Model list (10KW - 20KW Series)
| IPS-ATDD-Series-10KW (380VAC Input) | |||
|---|---|---|---|
| Model | Voltage | Current | Power |
| IPS-ATDD101000 | 10VDC | 1000A | 10000W |
| IPS-ATDD16625 | 16VDC | 625A | 10000W |
| IPS-ATDD40250 | 40VDC | 250A | 10000W |
| IPS-ATDD100100 | 100VDC | 100A | 10000W |
