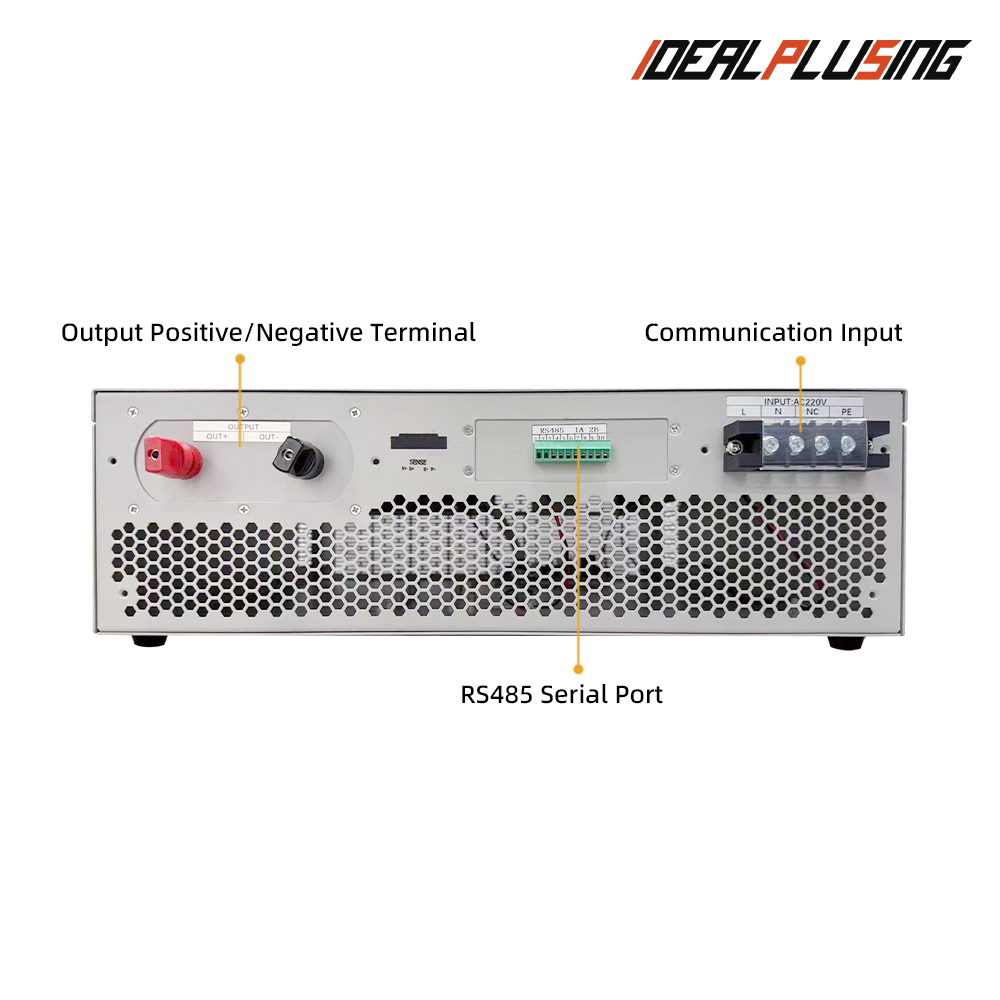

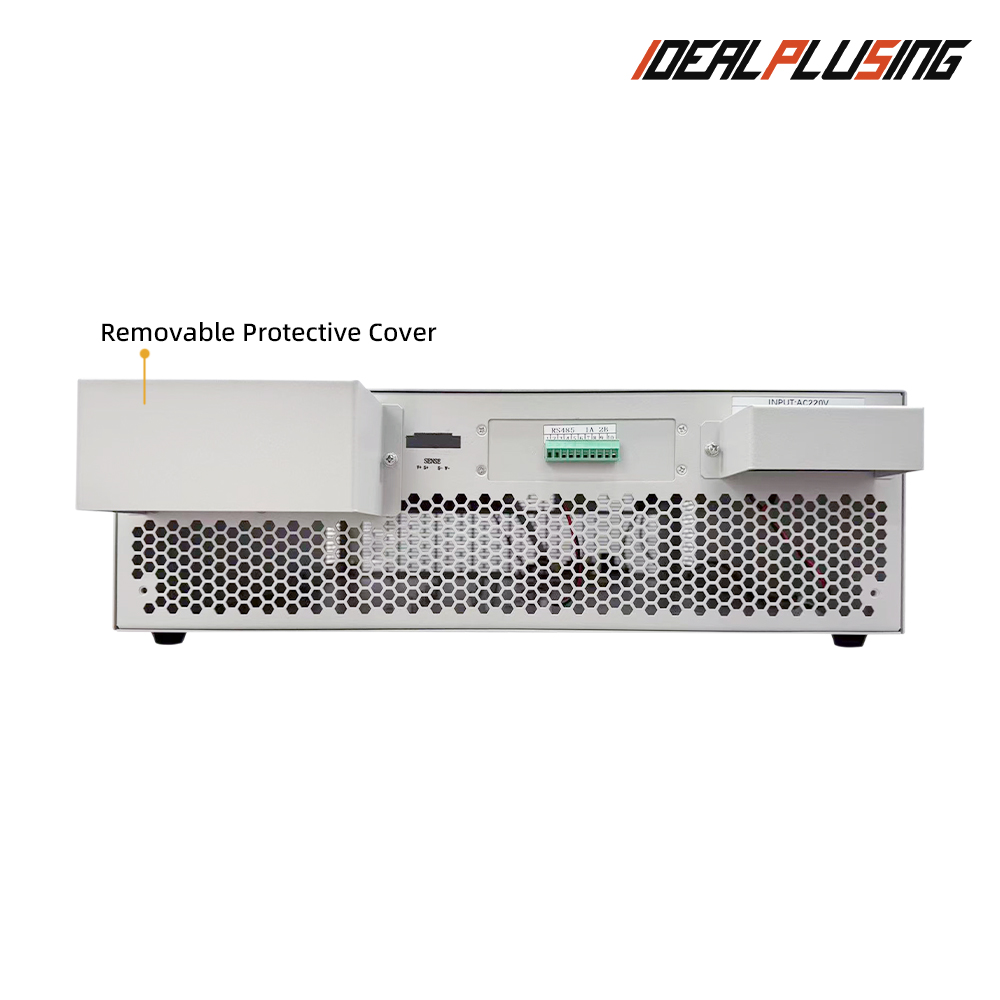

High Stability Industrial Lab R&D Precise Stable Volt Current Adjustable Output 50V 200A DC Digital Control 10000W Power Supply
Product Description
High Stability Industrial Lab R&D Precise Stable Volt Current Adjustable Output 50V 200A DC Digital Control 10000W Power Supply
📢 Friendly Reminder:
The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. These prices are for preliminary budget reference and do not constitute a final commitment.
📏
Small size and light weight are suitable for work surface use and rack installation.
⚡
Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.
🔇
Low noise and low ripple design for stable performance.
📈
Using high gain amplifier circuit design, with good fast response characteristics.
📟
Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
🛡️
Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.
🔍
Load terminal voltage detection for accurate reading and performing precise control.
| Parameter | Value |
|---|---|
| Model | IPS-ATDD50200 |
| AC Input | 3-phase 380VAC |
| Input Voltage Range | 380VAC ±15% |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | 0-50VDC |
| Output Current | 0-200A |
| Output Power | 10KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Protection | O.V.P, O.T.P (85℃±5%), Constant Current Limit |
| Settings | 10-turn precision potentiometer |
| Weight | 15KG |
| Dimension | 132*430*500(MM) |
Custom Items (Optional)
- Option 1: Analog control (0-5VDC or 0-10VDC)
- Option 2: Communication (RS485 or RS232)
- Option 3: Analog control + Communication
IPS-ATDY2075
AC IN: 1 phase 110/220VAC
DC OUT: 0~20V, 75A
Max Power: 1500W
IPS-ATDY3050
AC IN: 1 phase 110/220VAC
DC OUT: 0~30V, 50A
Max Power: 1500W
IPS-ATDY4050
AC IN: 1 phase 110/220VAC
DC OUT: 0~40V, 50A
Max Power: 2000W
IPS-ATDY5060
AC IN: 220VAC
DC OUT: 0~50V, 60A
Max Power: 3000W
IPS-ATDY12050
AC IN: 3-phase 380VAC
DC OUT: 0~120V, 50A
Max Power: 6000W
IPS-ATDY80150
AC IN: 3-phase 380VAC
DC OUT: 0~80V, 150A
Max Power: 12000W
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, and rectifier systems. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We aim to provide the right power supply solution and a better quotation with the ideal items for your specific needs.
Q1. Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Q3. Do you have any MOQ limit?
We maintain a low MOQ; 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Is it acceptable to print the buyer logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q6. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies provided.
