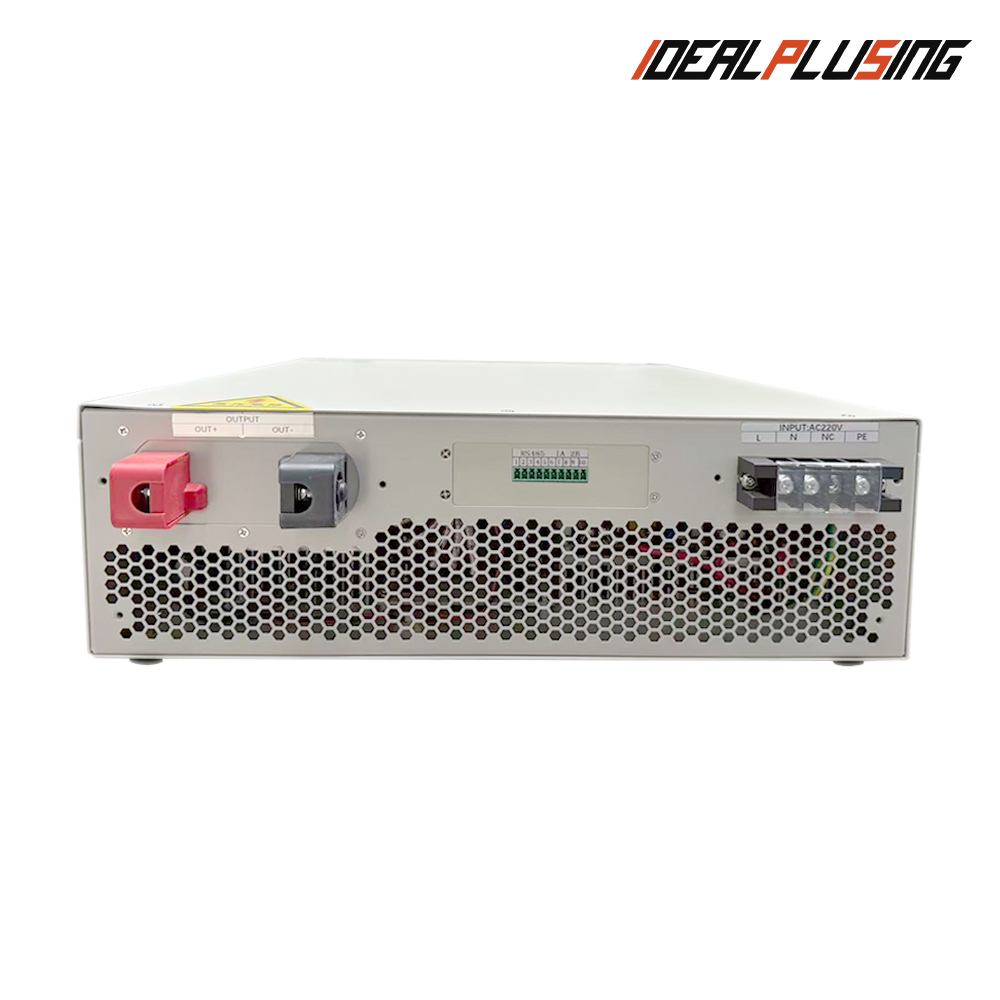

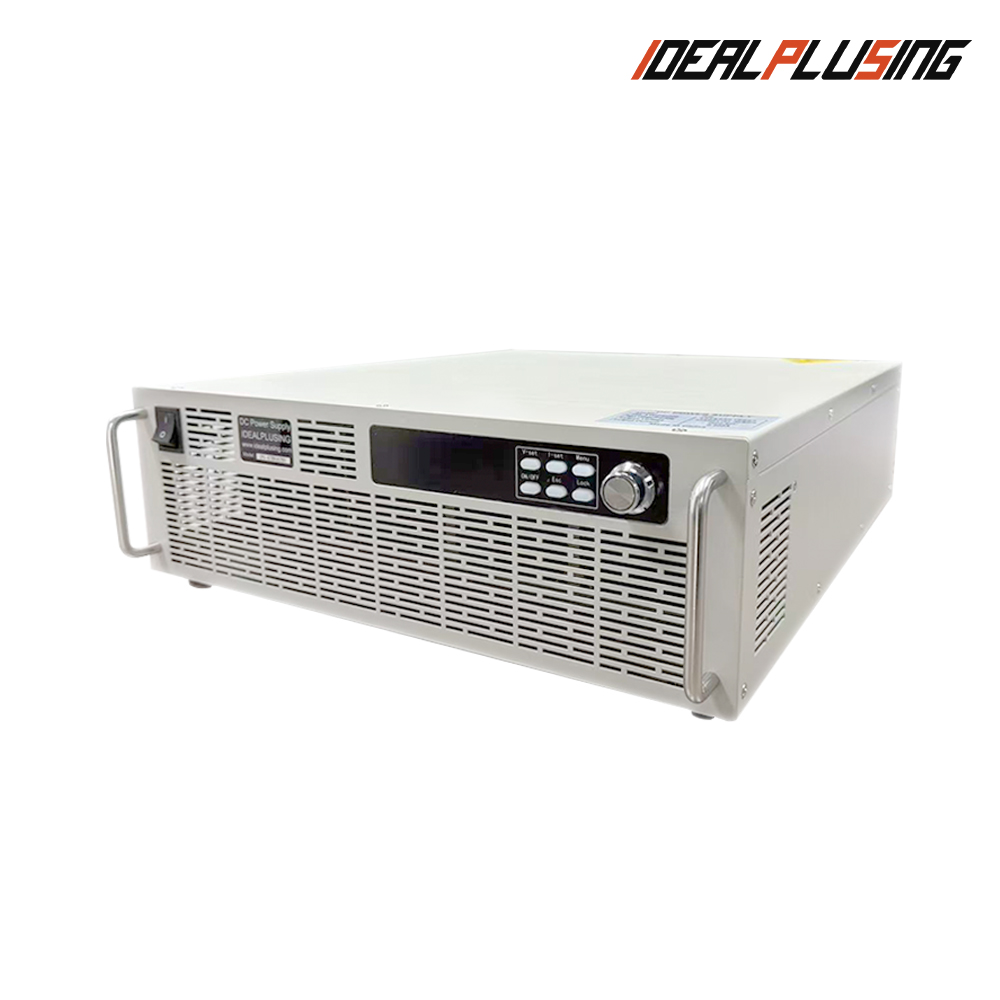

10000W High Stability Lab R&D Testing Precise High Resolution Adjustable Output 0 100V 100A DC Digital Control Power Supply
Product Description
10000W High Stability Lab R&D Testing Precise High Resolution Adjustable Output 0 100V 100A DC Digital Control Power Supply
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Description
1
Small size and light weight are suitable for work surface use and rack installation.
2
Using PWM modulation, the consumed power of the crystal module is low, high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.
3
Low noise and low ripple.
4
Using high gain amplifier circuit design, with good fast response characteristics.
5
Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.
6
Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.
7
This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.
Specification
| Parameter Details | |
|---|---|
| Model | IPS-ATDD100100 |
| AC Input | 3-phase 380VAC |
| Input Voltage Range | 380VAC ±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0-100VDC |
| Output current | 0-100A |
| Output Power | 10KW |
| Efficiency | 86% |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Over Voltage Protection | Built-in O.V.P. protection, rated +5% |
| Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, 85℃±5% |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Heat Dissipation | Forced fan cooling |
| Work Conditions | Temperature: 0℃~40℃; Humidity: 10%~85%RH |
| Machine Dimension | 132*430*500(MM) |
| Net Weight | 15KG |
Custom Options
| Option 1：Analog control | 0-5VDC or 0-10VDC |
| Option 2：Communication | RS485 or RS232 |
| Option 3：Analog + Communication | 0-5VDC or 0-10VDC |
Hot Selling Models
IPS-ATDY2075 DC Power Supply
AC IN: 1 phase 110/220VAC
DC OUT: 0~20VDC, 0~75A
Max power: 1500W
IPS-ATDY3050 DC Power Supply
AC IN: 1 phase 110/220VAC
DC OUT: 0~30VDC, 0~50A
Max power: 1500W
IPS-ATDY4050 DC Power Supply
AC IN: 1 phase 110/220VAC
DC OUT: 0~40VDC, 0~50A
Max power: 2000W
IPS-ATDY12050 DC Power Supply
AC IN: 3-phase 380VAC
DC OUT: 0~120VDC, 0~50A
Max power: 6000W
IPS-ATDY80150 DC Power Supply
AC IN: 3-phase 380VAC
DC OUT: 0~80VDC, 0~150A
Max power: 12000W
IPS-ATDY40030 DC Power Supply
AC IN: 3-phase 380VAC
DC OUT: 0~400VDC, 0~30A
Max power: 12000W
Details Images
Application Scope
Company Profile
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
Frequently Asked Questions
Can I have a sample order?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
What about the lead time?
Most models are in stock. The lead time for samples after receiving payment is typically 1-3 working days.
Do you have any MOQ limit?
We offer a low MOQ; 1 piece for sample checking is available.
How do you ship the goods and how long does it take?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Is it acceptable to print my logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all our power supplies.
