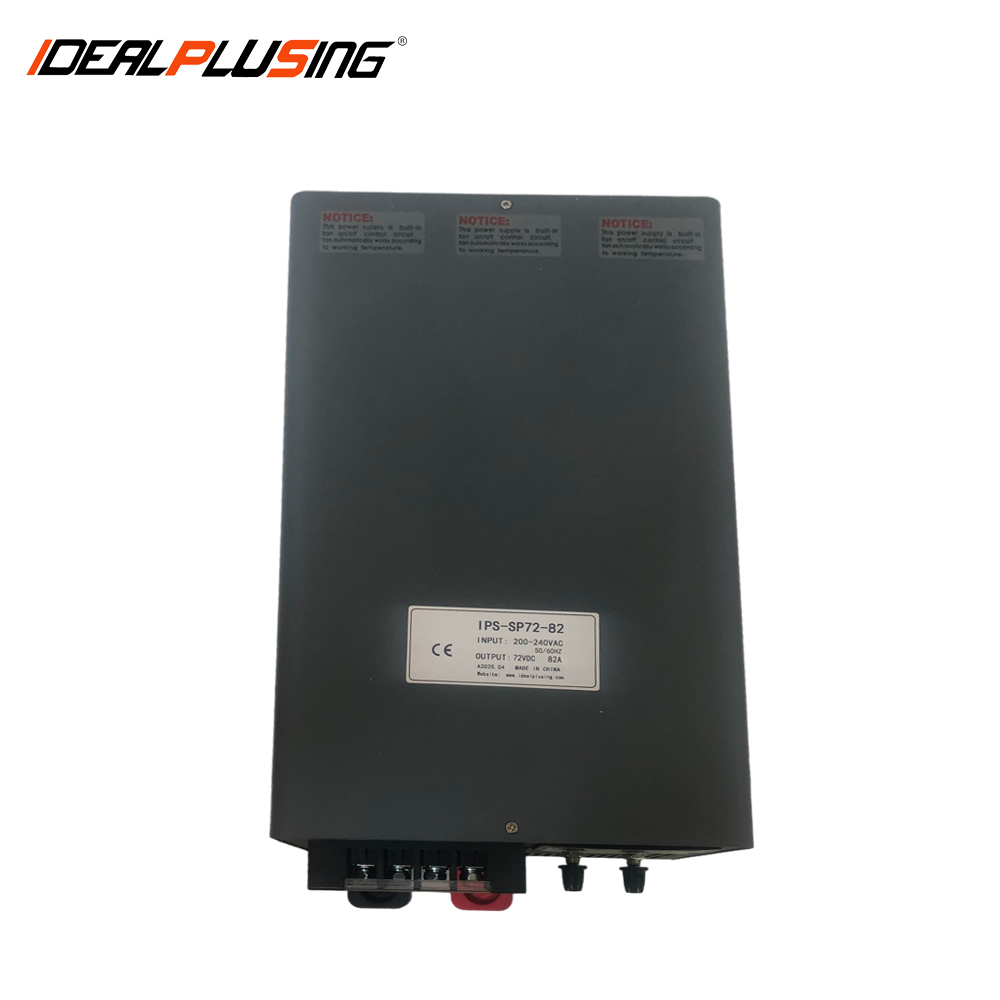

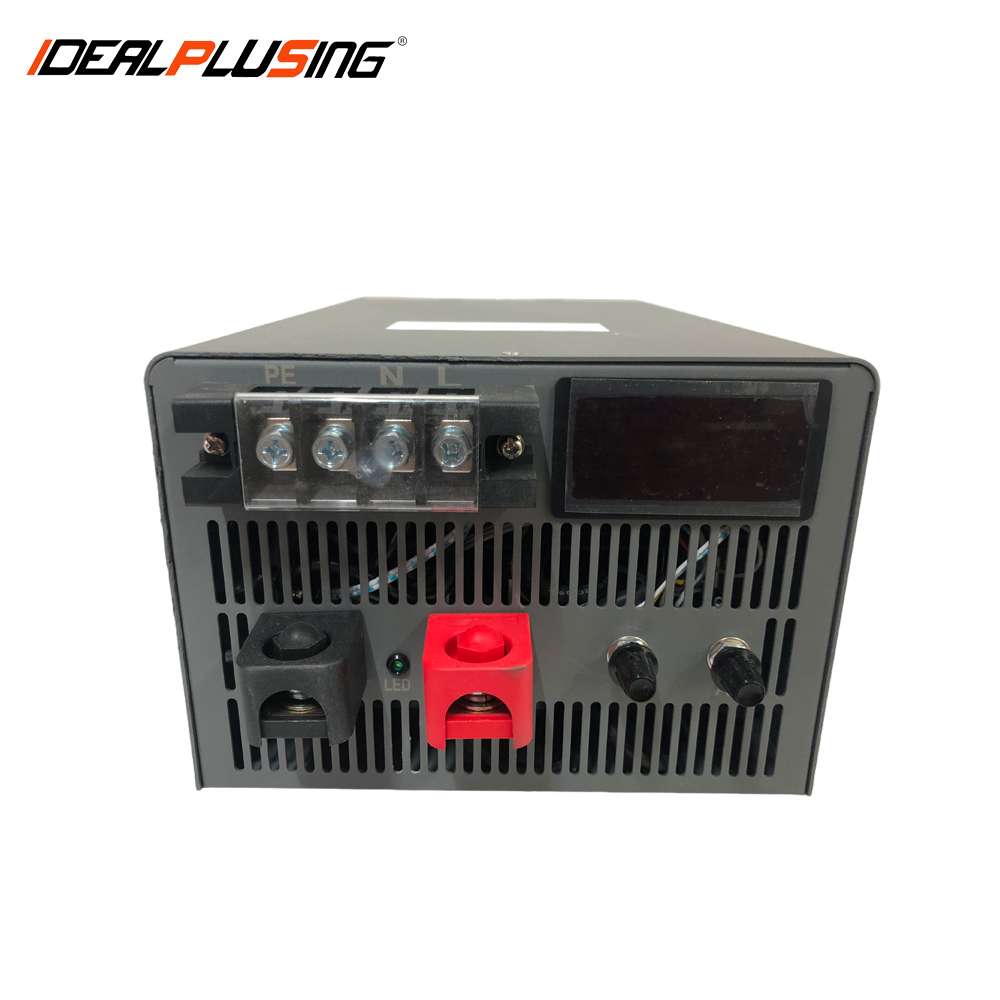

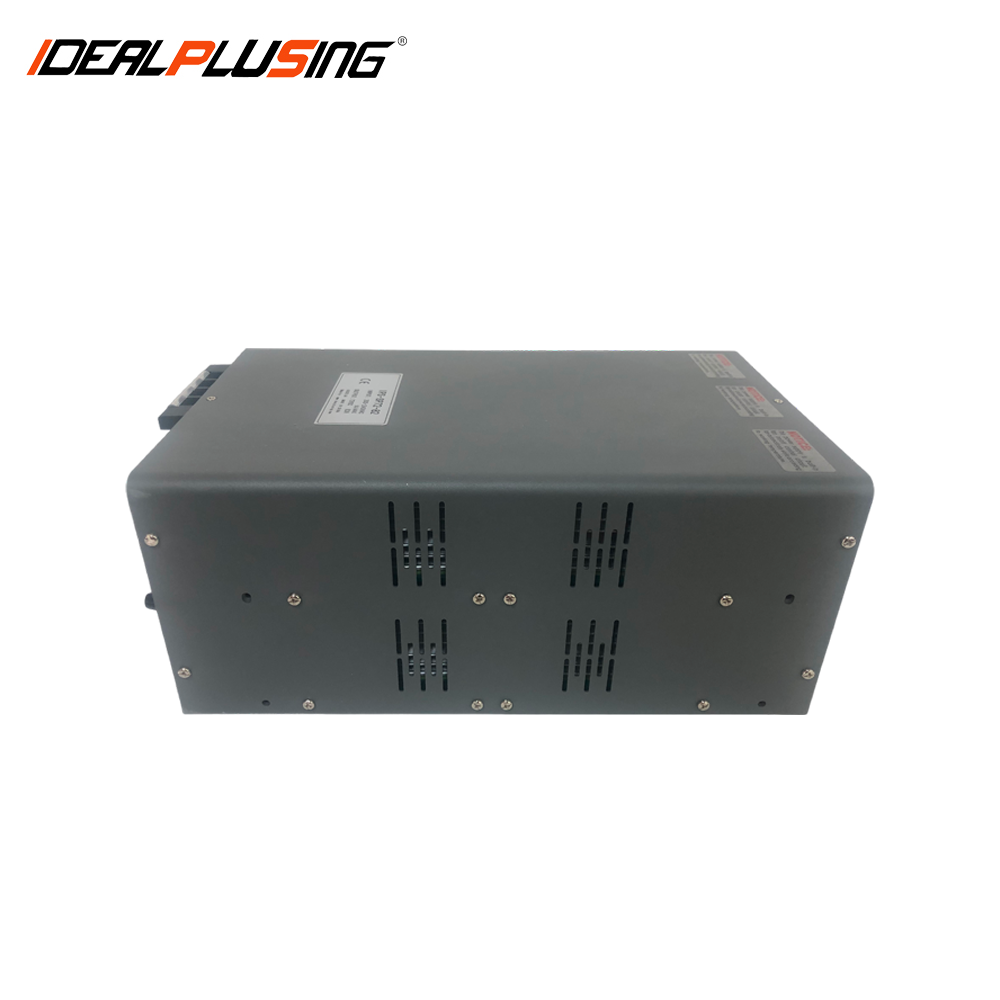

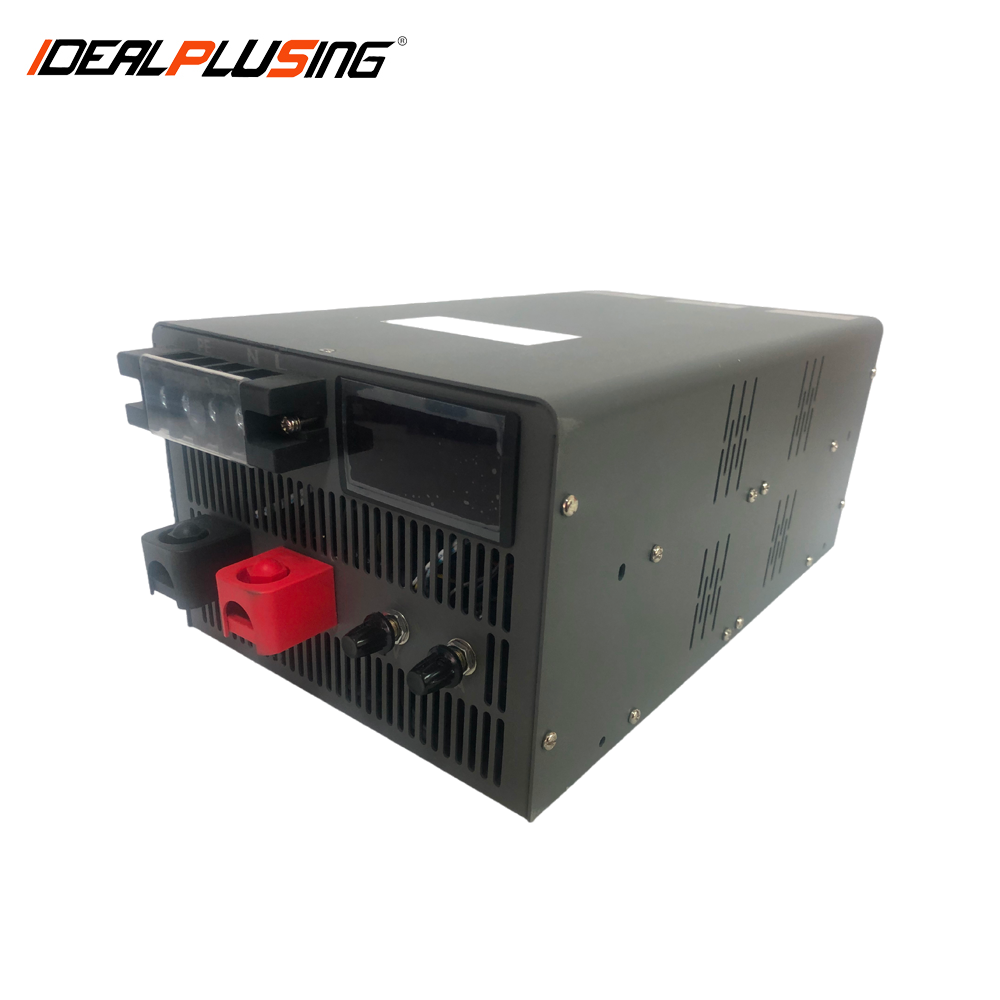

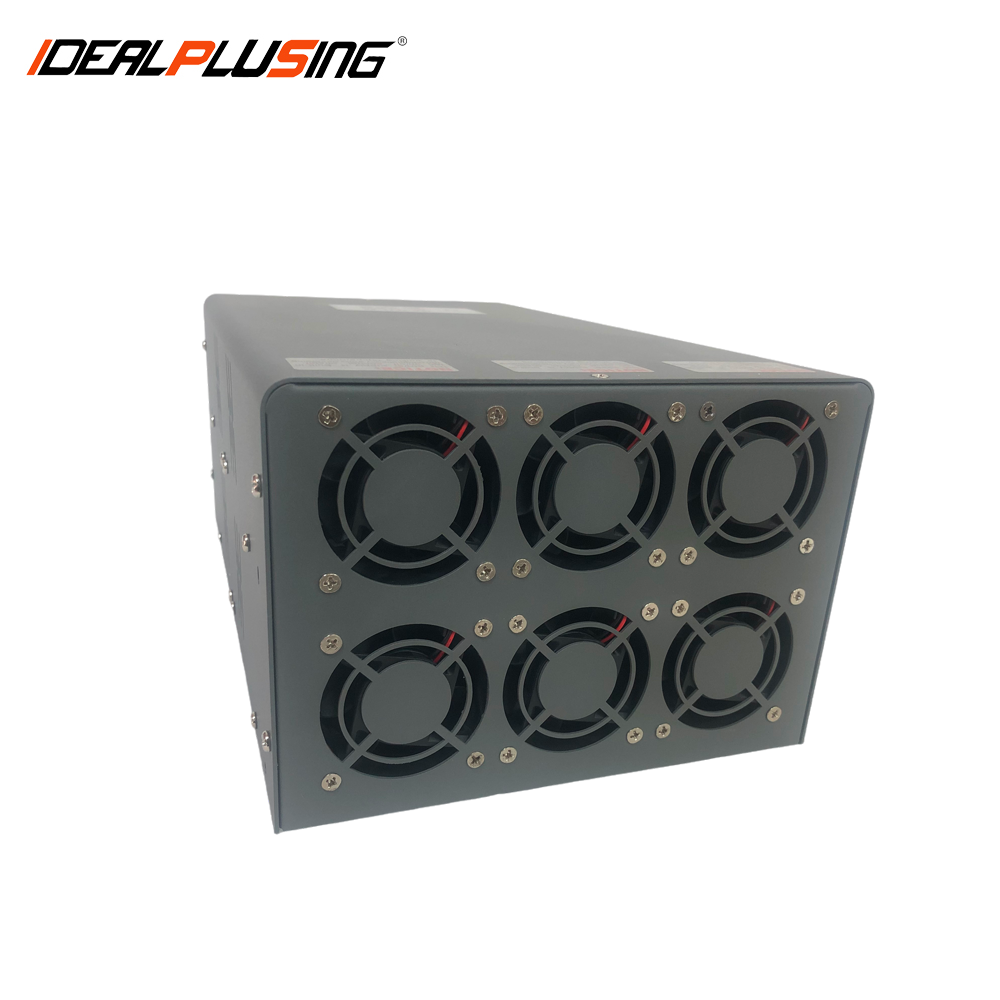

10000W High Power 200-240VAC / 380VAC to 72v Ac Dc Adjustable Industrial Switch Mode Power Supply for Laser Equipment
Product Description
10000W High Power Adjustable Industrial Switch Mode Power Supply for Laser Equipment
🚀 Profile
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, providing personalized, efficient, reliable and cost-effective power supply solutions for all industries.
What we want to give our customers is the right power supply solution, offering optimized quotations with precisely matched specifications. We specialize in customizing switching power supplies to meet your specific requirements.
⚙️ Product Features
1
Adjustable with compact size and light weight.2
AC input 200-240VAC 50/60HZ (Optional 110VAC/120VAC support).3
100% full load burn-in test.4
Protection: Short circuit / Over load / Over voltage.5
Fixed switching frequency at 25KHz.6
High efficiency, reliability quality, and competitive cost.7
0-5Vdc / 0-10Vdc External control output (Optional).8
Extra adjustable potentiometer (Optional).9
Output voltage adjustable, output current fixed (Optional).
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP72-118 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 10000W Max |
| Dimension | 415*222.8*172.2(mm) |
| Net / Gross Weight | 14.6KG / 19.4KG |
📋 Model List (8000W-10000W Series)
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-354 | 200-240VAC / 380VAC | 24VDC | 354A |
| IPS-SP36-236 | 200-240VAC / 380VAC | 36VDC | 236A |
| IPS-SP48-177 | 200-240VAC / 380VAC | 48VDC | 177A |
| IPS-SP60-141 | 200-240VAC / 380VAC | 60VDC | 141A |
| IPS-SP72-118 | 200-240VAC / 380VAC | 72VDC | 118A |
| IPS-SP96-88 | 200-240VAC / 380VAC | 96VDC | 88A |
| IPS-SP110-77 | 200-240VAC / 380VAC | 110VDC | 77A |
| IPS-SP150-56 | 200-240VAC / 380VAC | 150VDC | 56A |
| IPS-SP220-38 | 200-240VAC / 380VAC | 220VDC | 38A |
🔥 Hot Selling Models
IPS-PFC500-24 500W
24VDC, 20.83A
IPS-PFC500-48 500W
48VDC, 10.42A
IPS-PFC350-12 350W
12VDC, 29.17A
IPS-PFC1000-24 1000W
Output: 24VDC
IPS-PFC2000-24 2000W
Output: 24VDC
IPS-PFC3000-24 3000W
Output: 24VDC
📏 Dimensions & Layout
🎯 Application Scope
🏭 Factory Show
❓ Frequently Asked Questions
Can the output voltage and current be customized?
Yes, we specialize in customization. Our products support adjustable input and output voltages ranging from 1V to 1000V and currents from 1A to 1000A to meet specific load requirements.
What safety protections are included in these power supplies?
All units are equipped with comprehensive protection features, including short circuit protection, overload protection, and over-voltage protection to ensure long-term stability and safety.
Are the products tested before they are shipped?
Every single power supply undergoes a 100% full load burn-in test before shipping to ensure reliability and performance in industrial environments.
Do you support external control for voltage adjustment?
Yes, we offer optional external control interfaces such as 0-5Vdc or 0-10Vdc for remote voltage and current regulation.
What is the standard input voltage for these high-power units?
The standard input is 200-240VAC or 380VAC 50/60Hz. However, we can also customize models for 110VAC/120VAC inputs upon request.
What industries are these power supplies typically used in?
These units are ideal for laser equipment, industrial automation, UV curing system, battery charging, LED testing, and various research and development laboratories.
