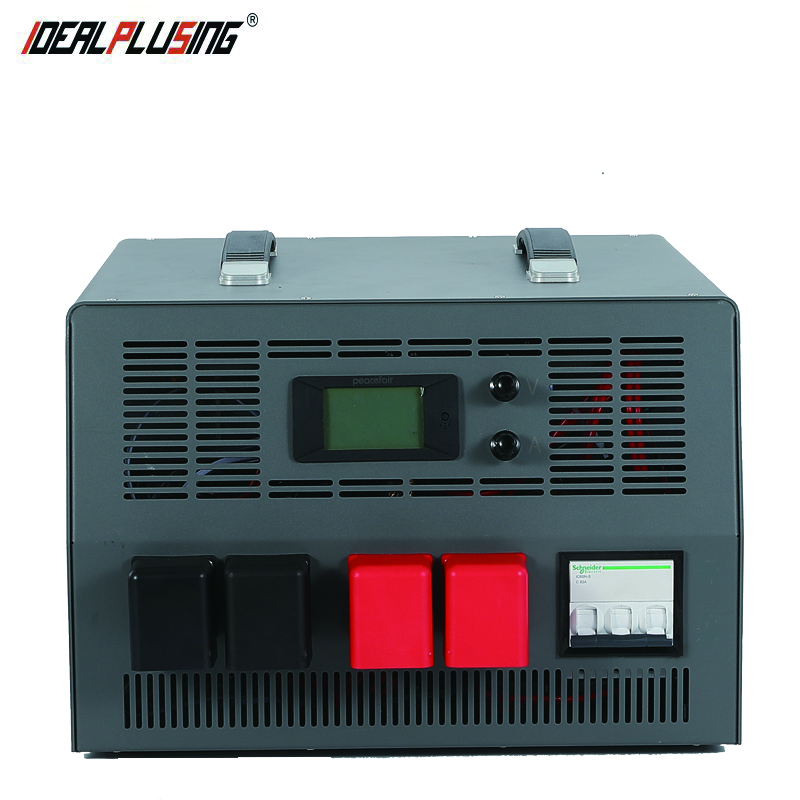

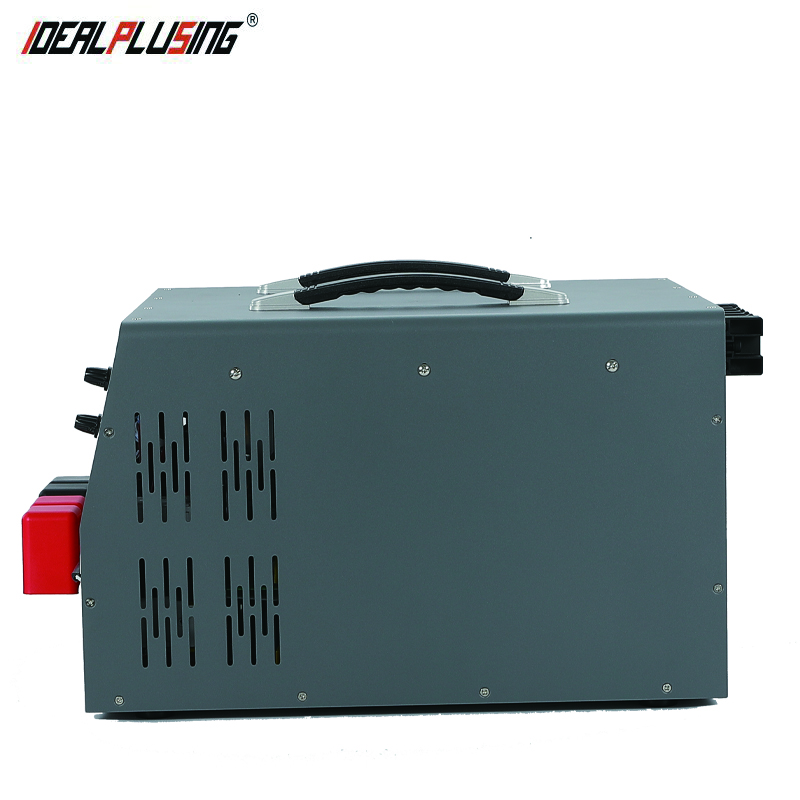

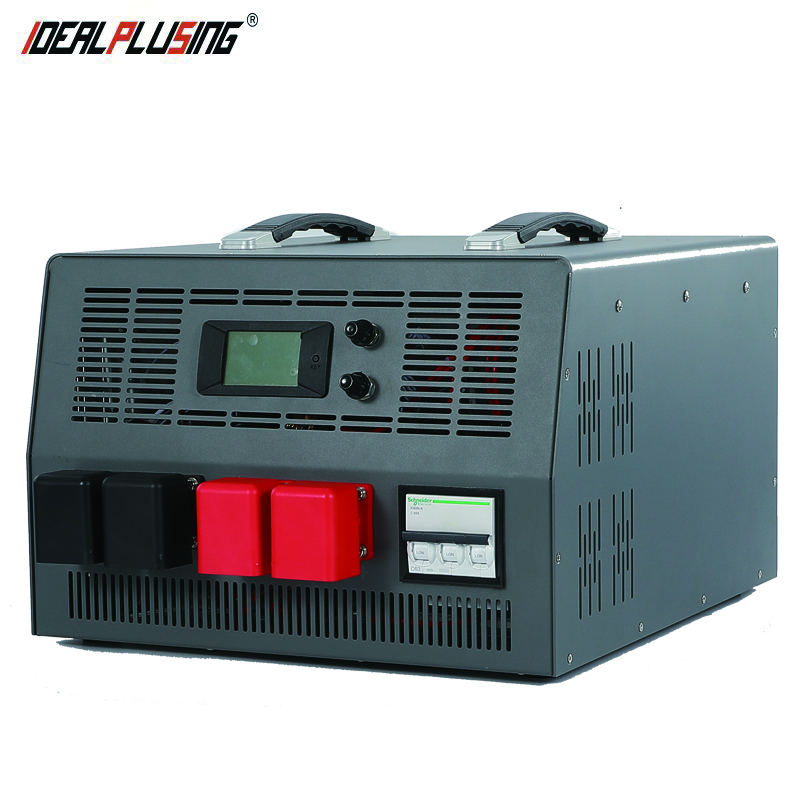

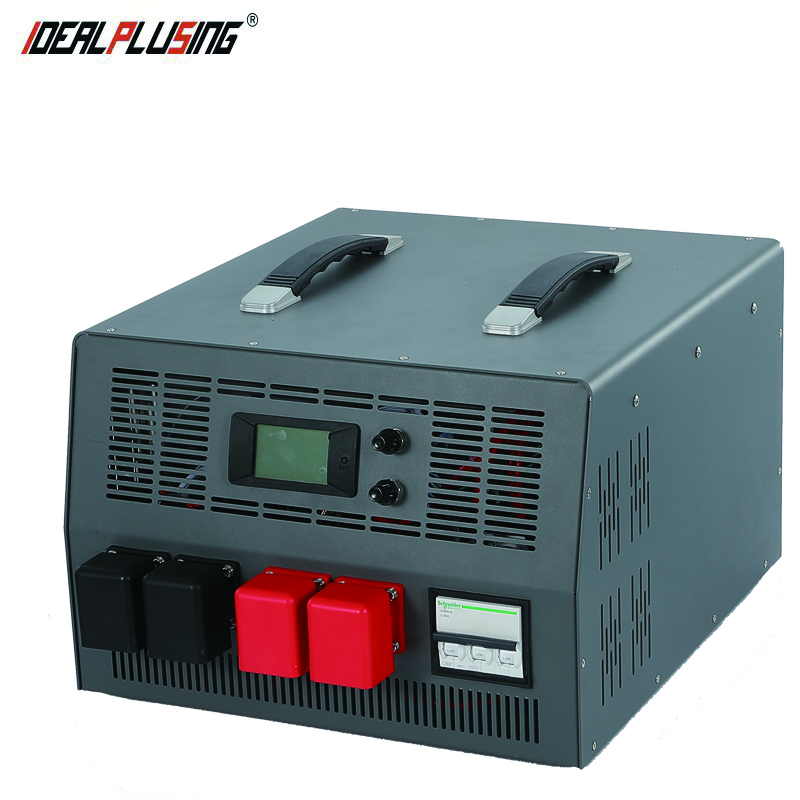

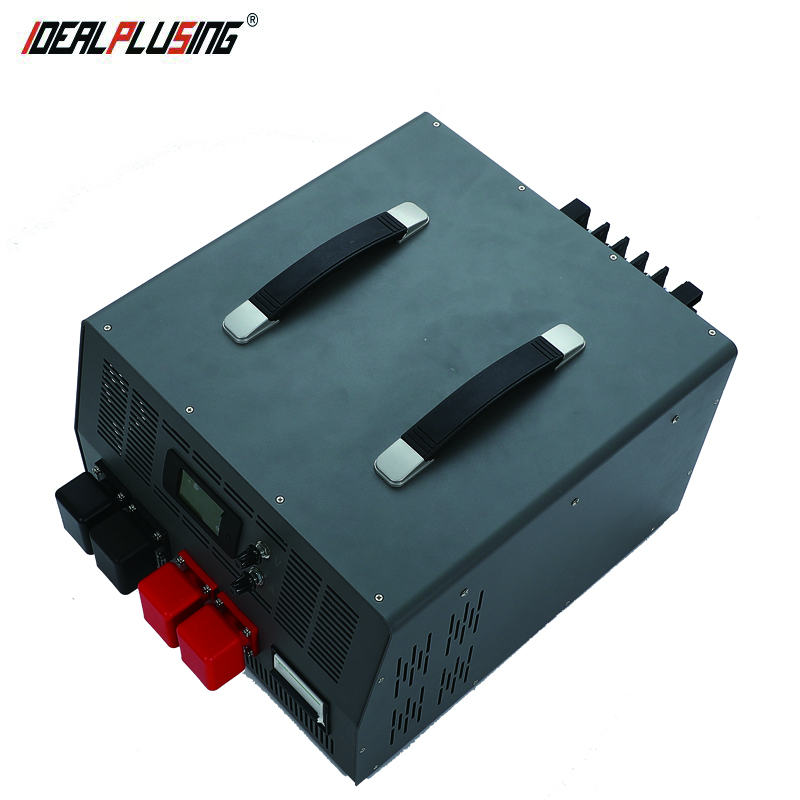

IDEALPLUSING 12000W Best Dual Output Buck Ac to Dc Switching Power Supply for Research and Laboratories
Product Description
12000W Best Dual Output Buck AC to DC Switching Power Supply
Research and development of DC power modules, AC/DC rectifiers, and inverters. Focus on providing personalized, efficient, reliable, and cost-effective power solutions for diverse industrial applications.
Product Advantages
✓
Expertise in customizing switching power supplies to meet specific voltage and current requirements.
✓
Dedicated engineering team providing professional quotation solutions.
✓
High-efficiency designs optimized for various load scenarios.
Key Features
1
Adjustable with compact size and light weight.
2
AC input 200-240VAC 50/60Hz (110VAC/120VAC options available).
3
100% full load burn-in testing for reliability.
4
Comprehensive protection: Short circuit, Over load, Over voltage.
5
High efficiency and quality with fixed switching frequency at 25KHz.
6
Optional 0-5Vdc / 0-10Vdc external control and extra potentiometers.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP48-212 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 12000W Max |
| Dimensions | 455*345*251 (mm) |
| Weight (Net/Gross) | 18KG / 24.3KG |
8000W Model Series
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-425 | 100-120V/200-240V/380 | 24VDC | 425A |
| IPS-SP48-212 | 100-120V/200-240V/380 | 48VDC | 212A |
| IPS-SP96-106 | 100-120V/200-240V/380 | 96VDC | 106A |
| IPS-SP220-46 | 100-120V/200-240V/380 | 220VDC | 46A |
Hot Selling Models
IPS-PFC500-24 500W
Input: 95-264VAC
Output: 24VDC, 20.83A
Output: 24VDC, 20.83A
IPS-PFC500-48 500W
Input: 95-264VAC
Output: 48VDC, 10.42A
Output: 48VDC, 10.42A
IPS-PFC350-12 350W
Input: 95-264VAC
Output: 12VDC, 29.17A
Output: 12VDC, 29.17A
High Capacity SMPS Series
24VDC 1000W
Input: 110~240VAC
24VDC 2000W
Input: 110~240VAC
24VDC 3000W
Input: 110~240VAC
Customization Services
Specialization in customizing switching converters for voltages 1V to 1000V and currents 1A to 1000A. We provide one-to-one engineering support to recommend the best solution based on your usage scenarios and load information.
Product Dimensions & Variations
Industrial Applications
Factory Display
Frequently Asked Questions
What is the range of customization available?
We support a wide range of output parameters from 1V to 1000V and 1A to 1000A, allowing us to tailor solutions to almost any load requirement.
Is the input voltage selectable?
Yes, standard models support 200-240VAC. However, 110V/120V input options are available for many models upon request.
What kind of control options do you provide?
We offer external control via 0-5Vdc or 0-10Vdc signals, as well as extra adjustable potentiometers for precise voltage and current management.
How do you ensure product reliability?
All products undergo a 100% full load burn-in test before shipment. We also include built-in protections against short circuits, overloads, and overvoltage.
Can these power supplies be used in laboratories?
Absolutely. Their adjustable nature, high stability, and compact design make them ideal for research and laboratory environments.
What is the efficiency of these units?
Our switching power supplies are designed for high efficiency and reliability using advanced topologies with a fixed switching frequency of 25KHz.
