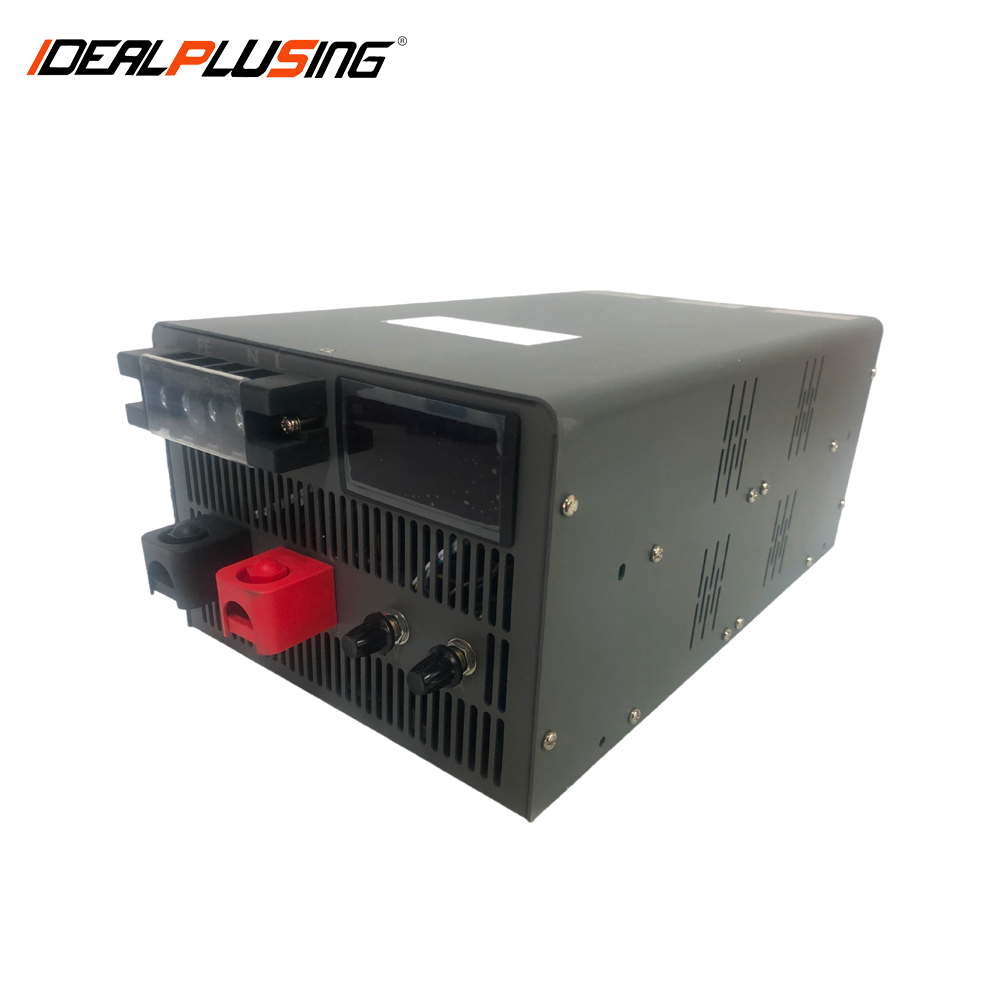

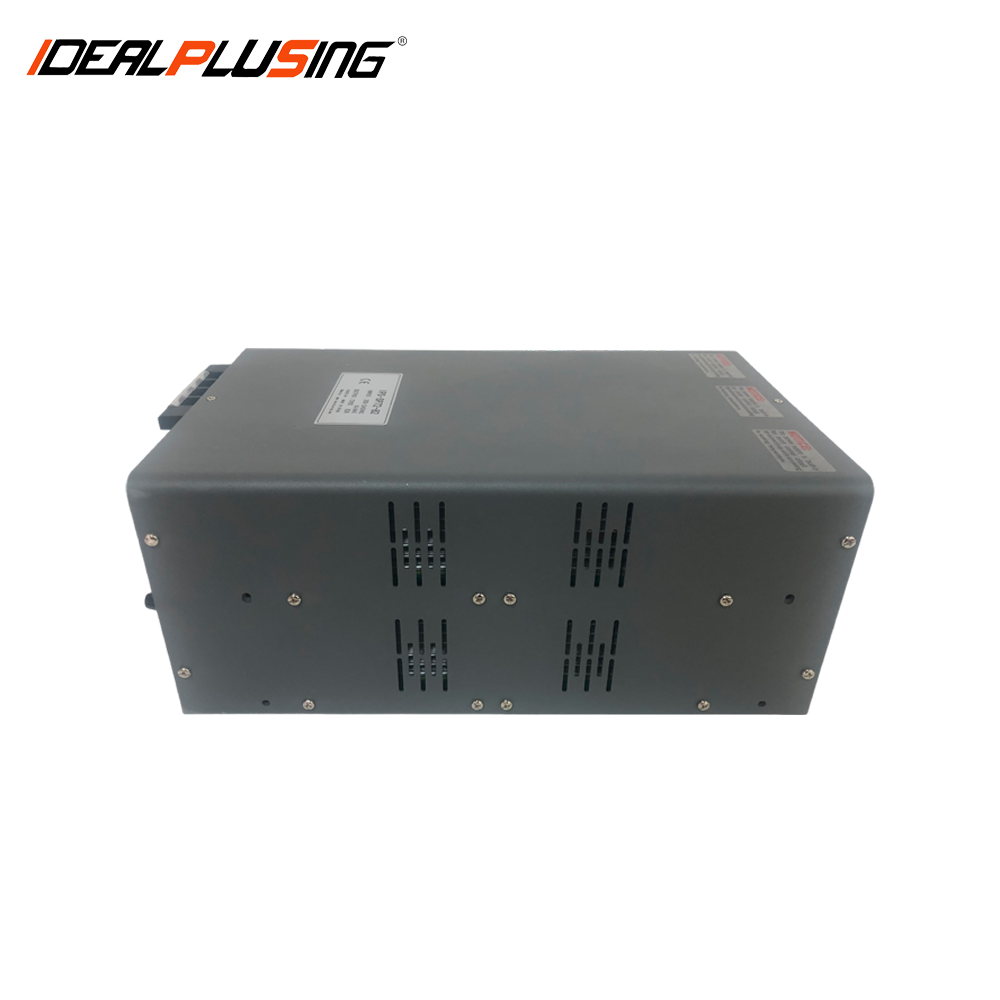

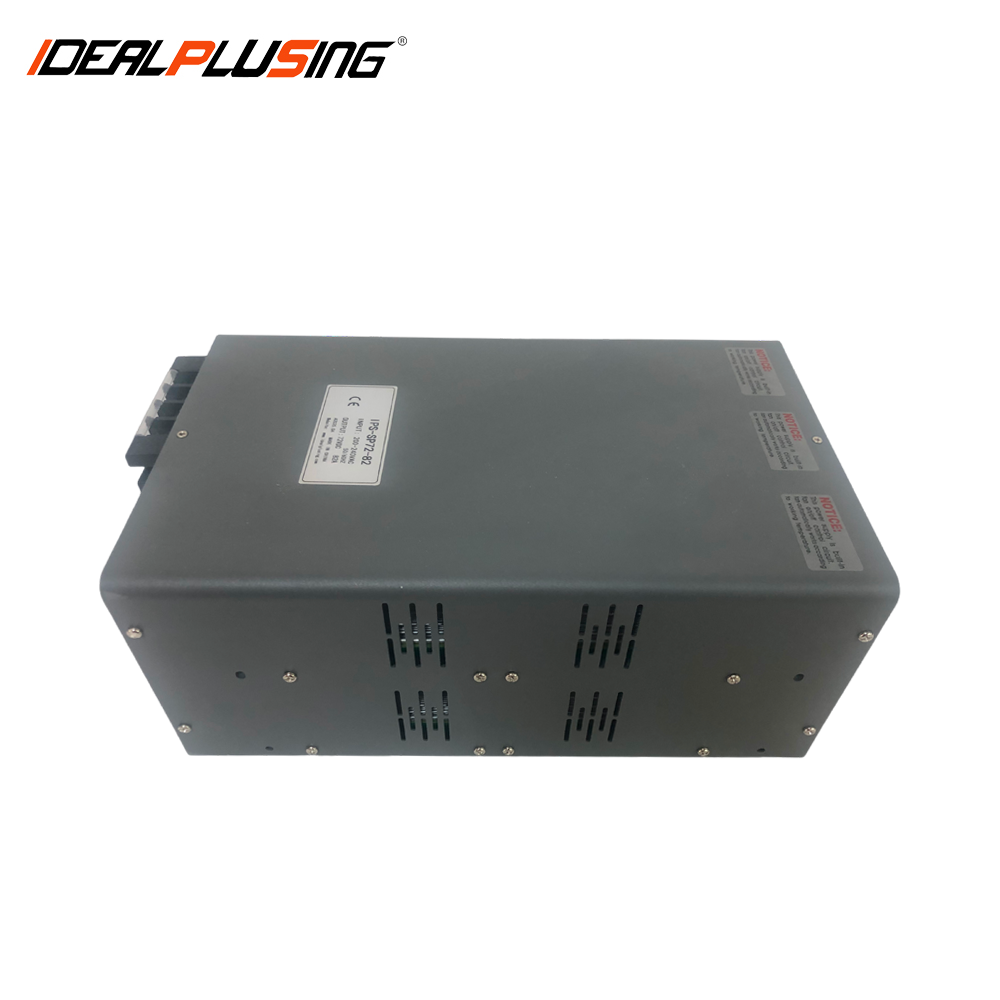

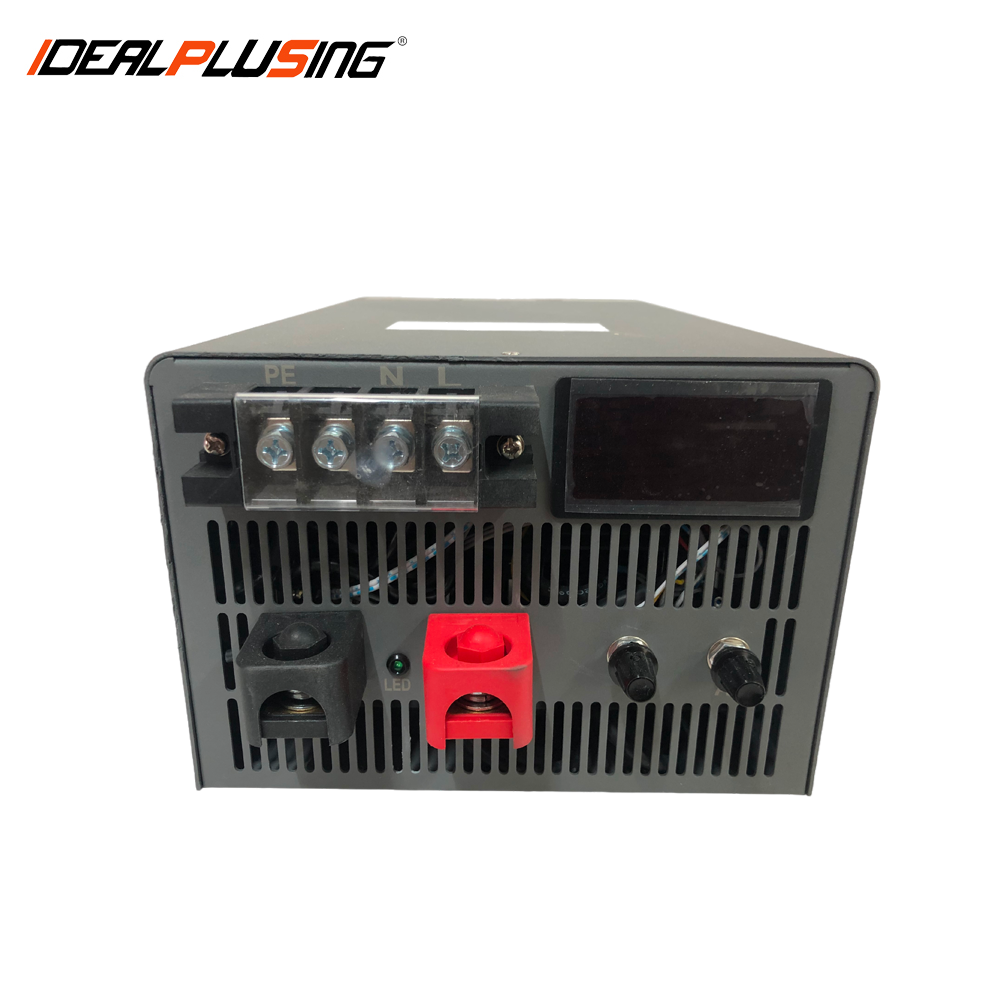

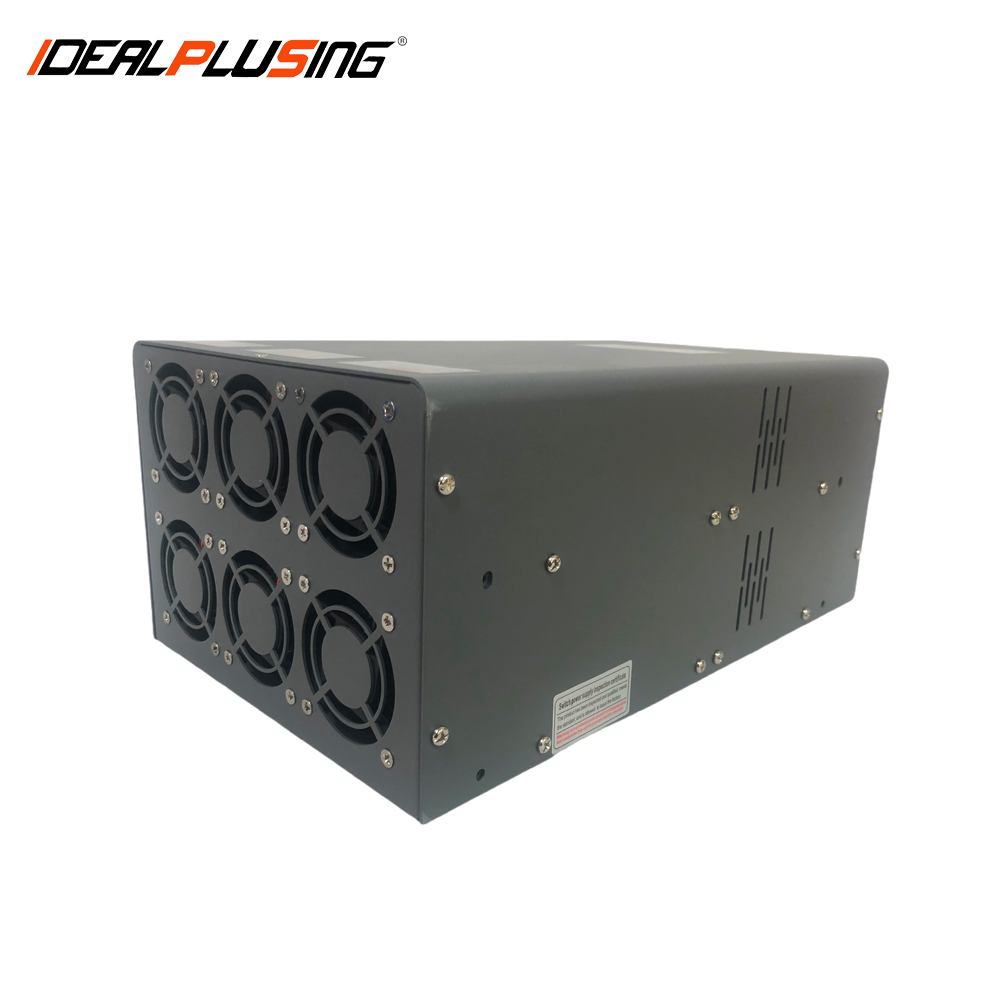

Intelligent 24V 48V 72V 120V 150V 39A Adjustable Switching Power Supply 5000W 6000W 7000W Laboratory Regulated Power Supply
Product Description
Intelligent Adjustable Switching Power Supply
5000W 6000W 7000W Laboratory Regulated Power Supply available in 24V, 48V, 72V, 120V, 150V, and 39A configurations. We focus on research, development, and service for DC to DC power modules, AC to DC rectifiers, inverters, and chargers, providing efficient and cost-effective solutions for all industries.
📍 Company Profile
We provide personalized and reliable power supply solutions. Beyond selling products, we offer the right power supply solutions with accurate quotations and specifications to meet your specific requirements.
✨ Our Advantages: We specialize in customizing switching Power Supplies. If you cannot find the exact specifications you need, our dedicated team is ready to assist you in creating a custom solution.
🚀 Product Features
1 Compact size and light weight design.
2 Wide AC input range (200-240VAC 50/60HZ).
3 100% full load burn-in tested for reliability.
4 Built-in protection: Short circuit, Over load, Over voltage.
5 Fixed switching frequency at 25KHz.
6 Optional External control (0-5Vdc / 0-10Vdc).
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP150-39 |
| Input voltage | Single phase 200~240VAC |
| Output Power | 7000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Weight | Net 9.8KG / Gross 14.6KG |
🔥 Hot Selling Models - 7000W Series
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-247 | 200-240VAC | 24VDC | 247A |
| IPS-SP48-123 | 200-240VAC | 48VDC | 123A |
| IPS-SP72-82 | 200-240VAC | 72VDC | 82A |
| IPS-SP150-39 | 200-240VAC | 150VDC | 39A |
| IPS-SP220-27 | 200-240VAC | 220VDC | 27A |
24VDC 500W SMPS
48VDC 500W SMPS
12VDC 350W SMPS
Need a Custom Solution?
Support customized input and output voltages/currents: 1V to 1000V and 1A to 1000A.
Contact us now for a professional consultation!
📏 Product Dimensions & Gallery
🏭 Factory & Application
❓ Frequently Asked Questions
Can the output voltage and current be customized?
Yes, we specialize in customization. We support output voltages from 1V to 1000V and currents from 1A to 1000A to suit your load requirements.
Is 110VAC input available?
Standard models are 200-240VAC. However, we can provide 110VAC/120VAC input options upon request. Please consult our technical team.
What safety protections are included?
All units include comprehensive protection features, including short circuit, overload, and over-voltage protection for maximum safety.
Are these power supplies suitable for laboratory use?
Absolutely. Our regulated power supplies are designed for high precision and reliability, making them ideal for laboratory, industrial control, and testing environments.
Do you offer external control options?
Yes, we offer optional 0-5Vdc or 0-10Vdc external control interfaces for remote output adjustment.
How long is the burn-in test?
Every product undergoes a 100% full load burn-in test before shipment to ensure stable performance under real-world conditions.
