8000W High Current Variable DC Boost/Step up Switch Mode Power Supply | Reliable SMPS Manufacturers
Product Description

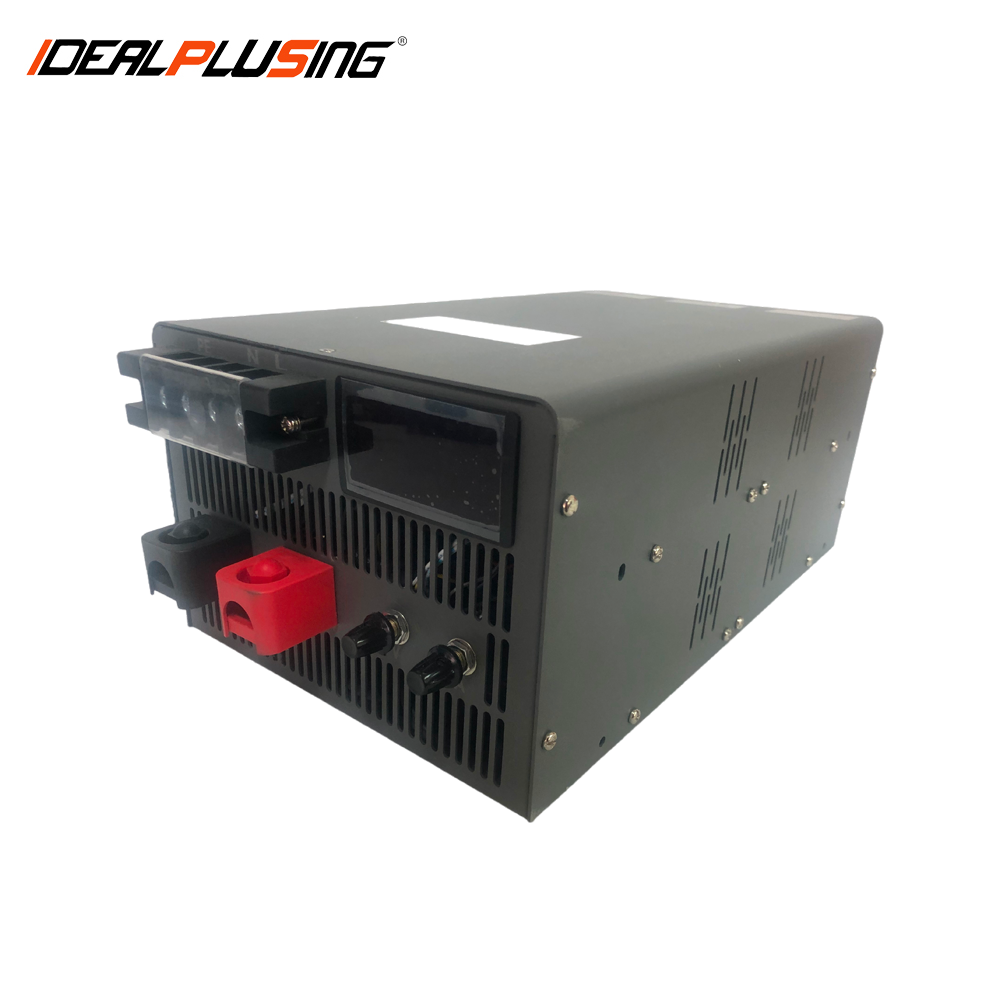

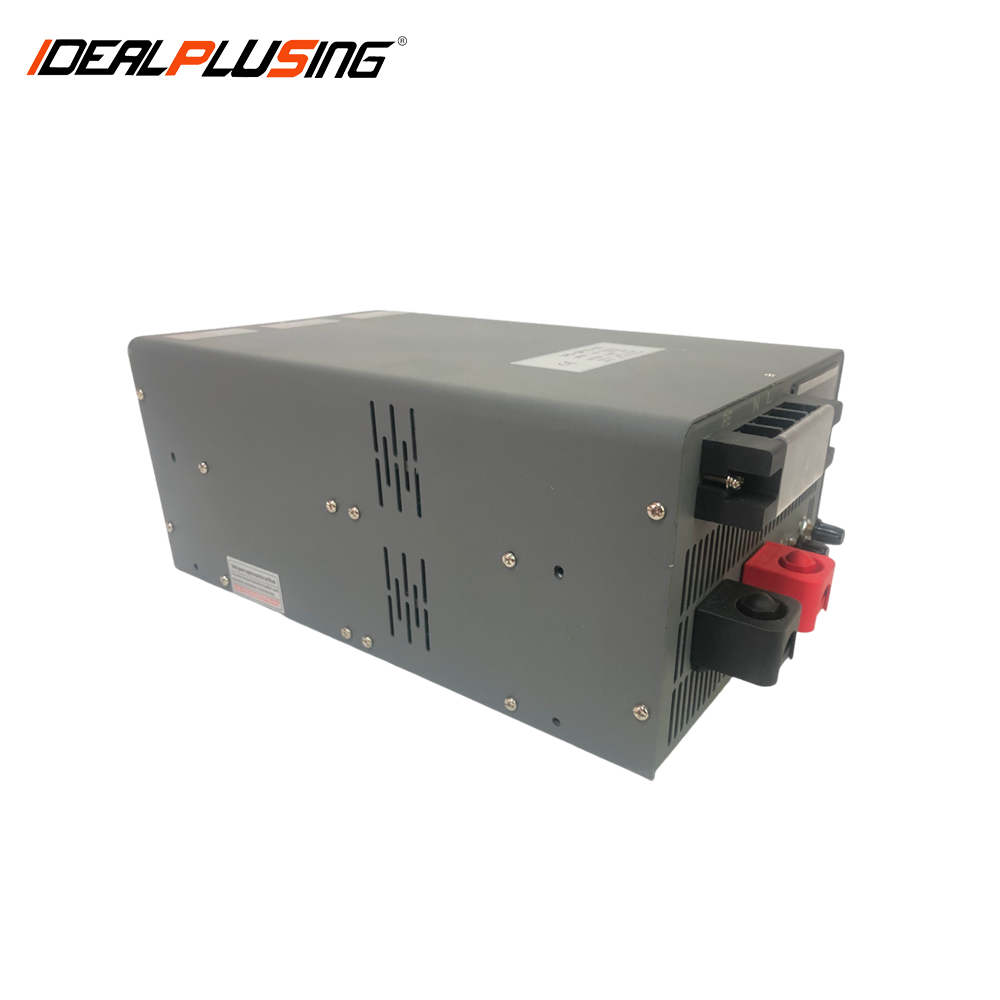

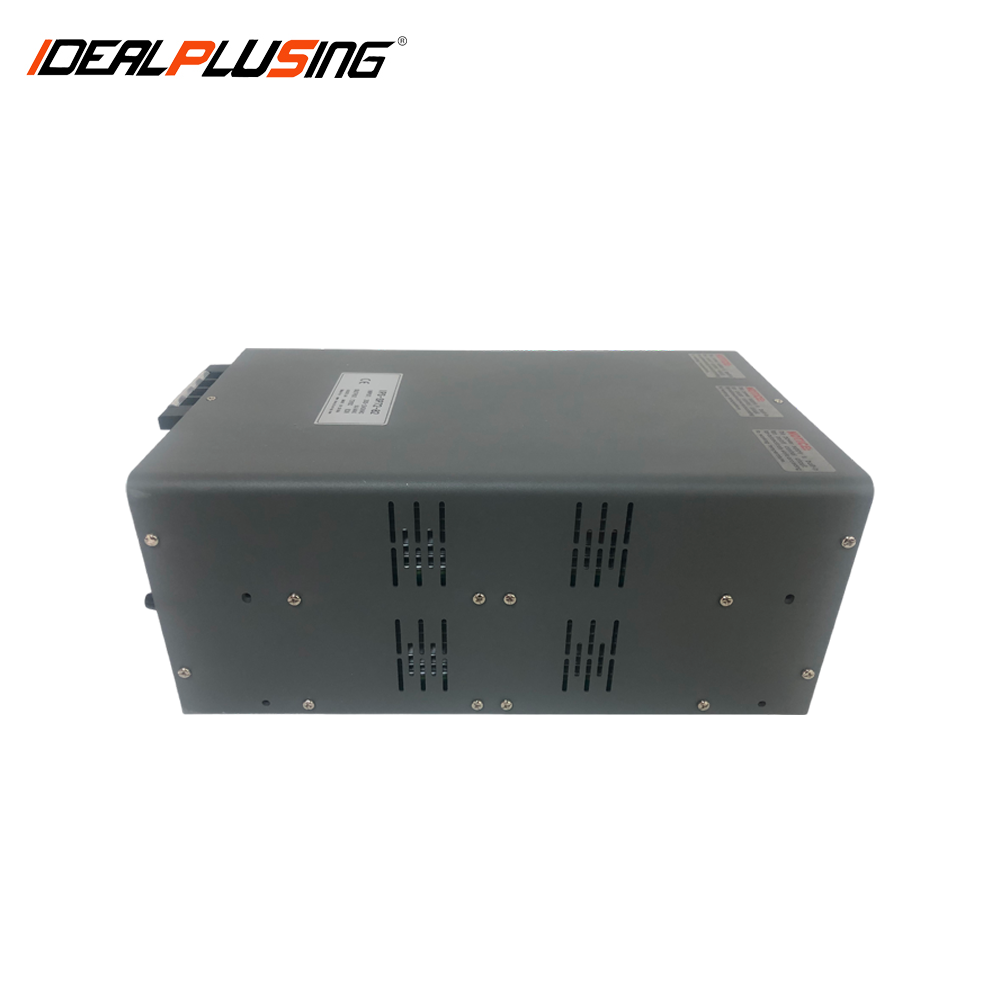

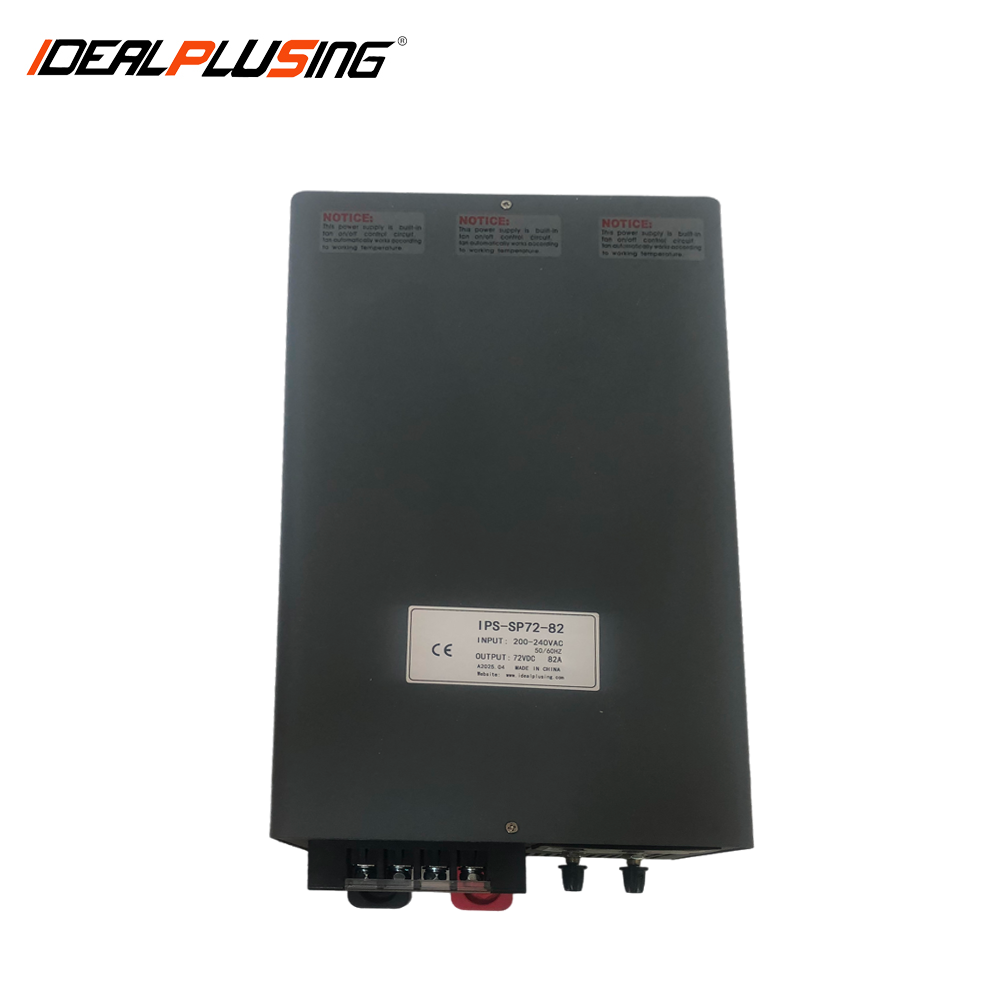

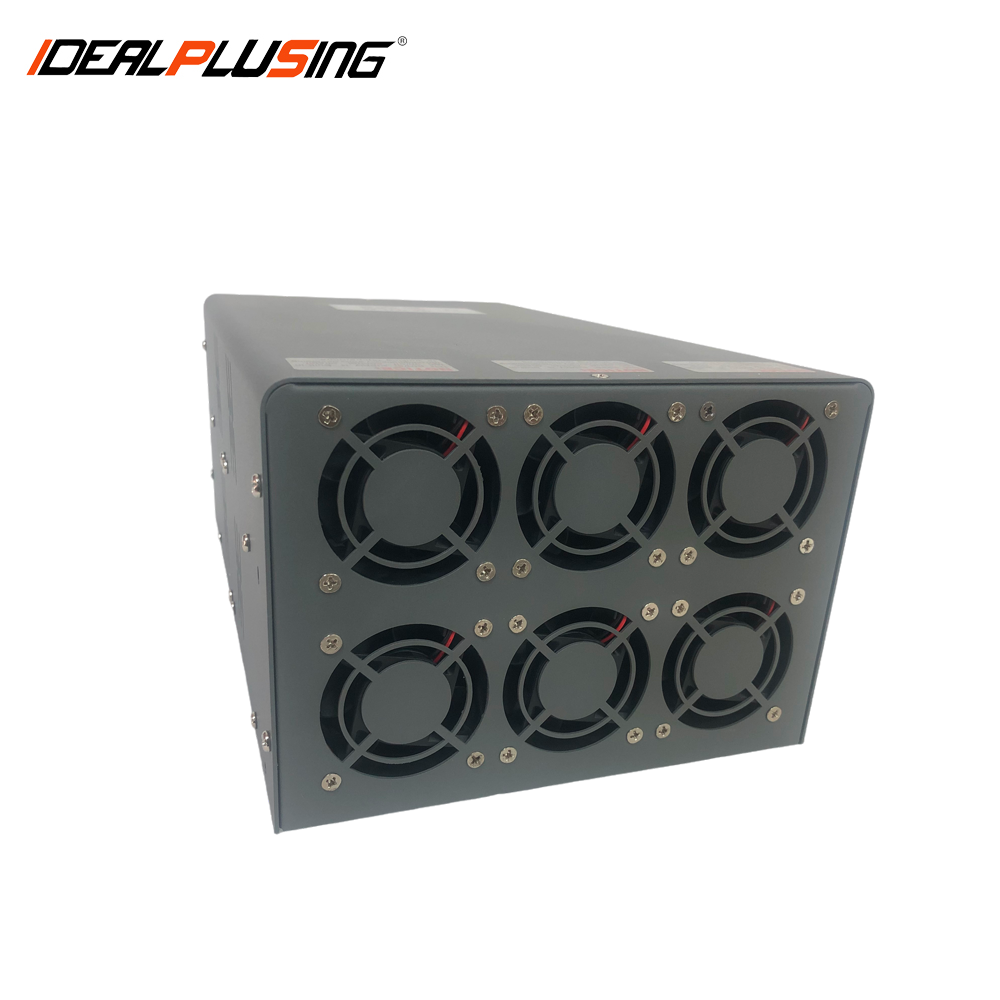

8000W High Current Variable DC Boost/Step up Switch Mode Power Supply
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
🚀
Our Advantages:
We specialize in customizing switching Power Supply to meet your specific requirements. Please explore our capabilities further for personalized specification.
Product Features & Capabilities
⚙️
Adjustable with Compact size, light weight
🔌
AC input 200-240VAC 50/60HZ (110VAC/120VAC available on request)
🔥
100% full load burn-in test
🛡️
Protection: Short circuit / Over load / Over voltage
📉
Fixed switching frequency at 25KHz
💎
High efficiency, reliability quality, competitive cost
| Parameter | Specifications |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP150-45 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | 8000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Net / Gross Weight | 9.8KG / 14.6KG |
8000W Model Configuration List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-283 | 200-240VAC | 24VDC | 283A |
| IPS-SP36-188 | 200-240VAC | 36VDC | 188A |
| IPS-SP48-141 | 200-240VAC | 48VDC | 141A |
| IPS-SP60-113 | 200-240VAC | 60VDC | 113A |
| IPS-SP72-94 | 200-240VAC | 72VDC | 94A |
| IPS-SP96-70 | 200-240VAC | 96VDC | 70A |
| IPS-SP110-61 | 200-240VAC | 110VDC | 61A |
| IPS-SP150-45 | 200-240VAC | 200VDC | 40A |
| IPS-SP220-30 | 200-240VAC | 220VDC | 30A |
Hot Selling Models
IPS-PFC500-24
24VDC 500W SMPS
IPS-PFC500-48
48VDC 500W SMPS
IPS-PFC350-12
12VDC 350W SMPS
IPS-PFC1000-24
24VDC 1000W
IPS-PFC2000-24
24VDC 2000W
IPS-PFC3000-24
24VDC 3000W
High Power Series
12VDC 2000W - 3000W Range
6000W Series
24V/48V/150V Custom Output
Customization Services
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
We provide one-to-one customization services. Just tell us your needs and we will recommend the best solution for you. We are good at customizing various switching power supplies according to your usage scenarios and load information.
Product Detail & Dimensions
Application Scope & Factory Show
Frequently Asked Questions
❓ Can the output voltage and current be customized?
Yes, we provide one-to-one customization. We can adjust input/output voltage and current ranges from 1V to 1000V and 1A to 1000A based on your load requirements.
❓ What safety protections are included in these power supplies?
Our SMPS units come standard with comprehensive protection features, including Short Circuit protection, Over Load protection, and Over Voltage protection to ensure system reliability.
❓ Are the units tested before shipping?
Absolutely. All power supply modules undergo a 100% full load burn-in test to guarantee performance and reliability under real-world industrial conditions.
❓ What is the standard input voltage supported?
Standard units support 200-240VAC 50/60HZ. However, we can also provide 110VAC/120VAC versions upon specific order request.
❓ What applications are these high-current supplies suitable for?
They are widely used in industrial automation, LED lighting systems, battery charging, UV curing equipment, and various DC-powered machinery requiring stable high-power output.
❓ How do I choose the right model for my project?
You can refer to our model configuration tables or share your specific usage scenario and load information with our engineers for a tailored recommendation.
