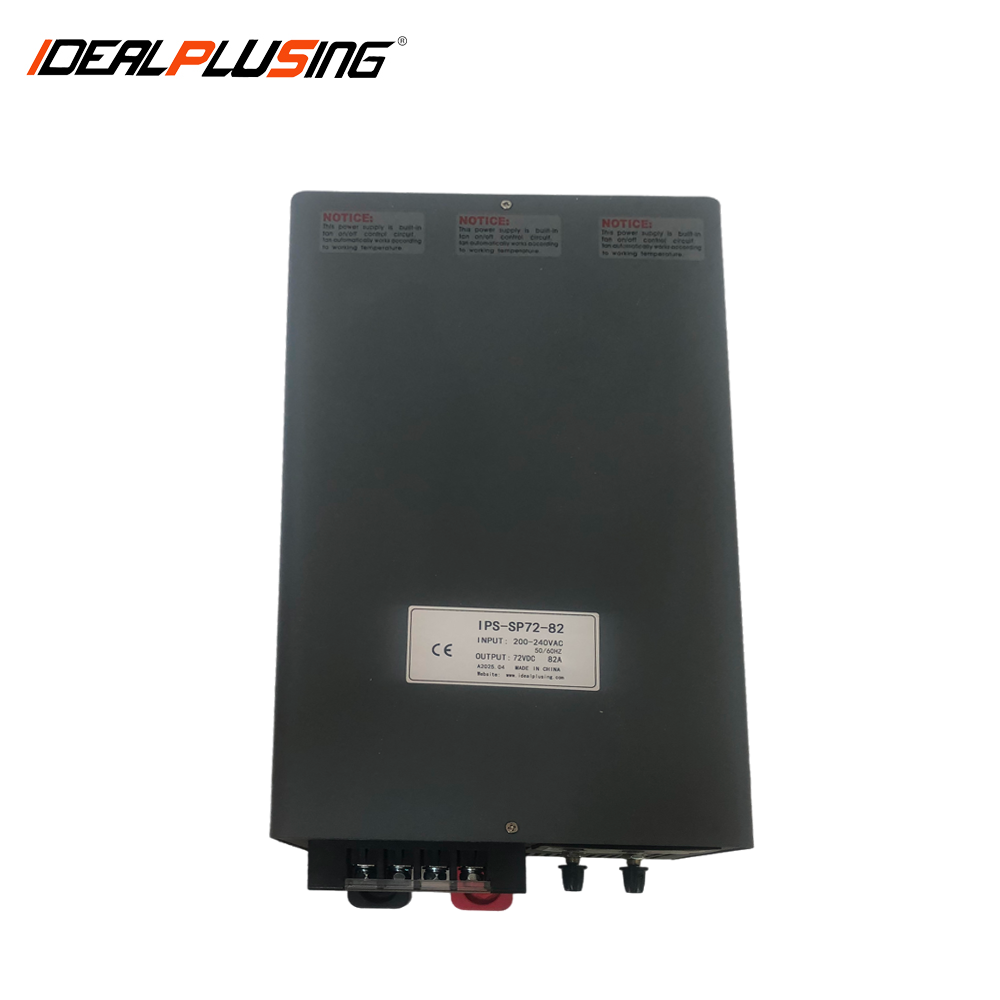

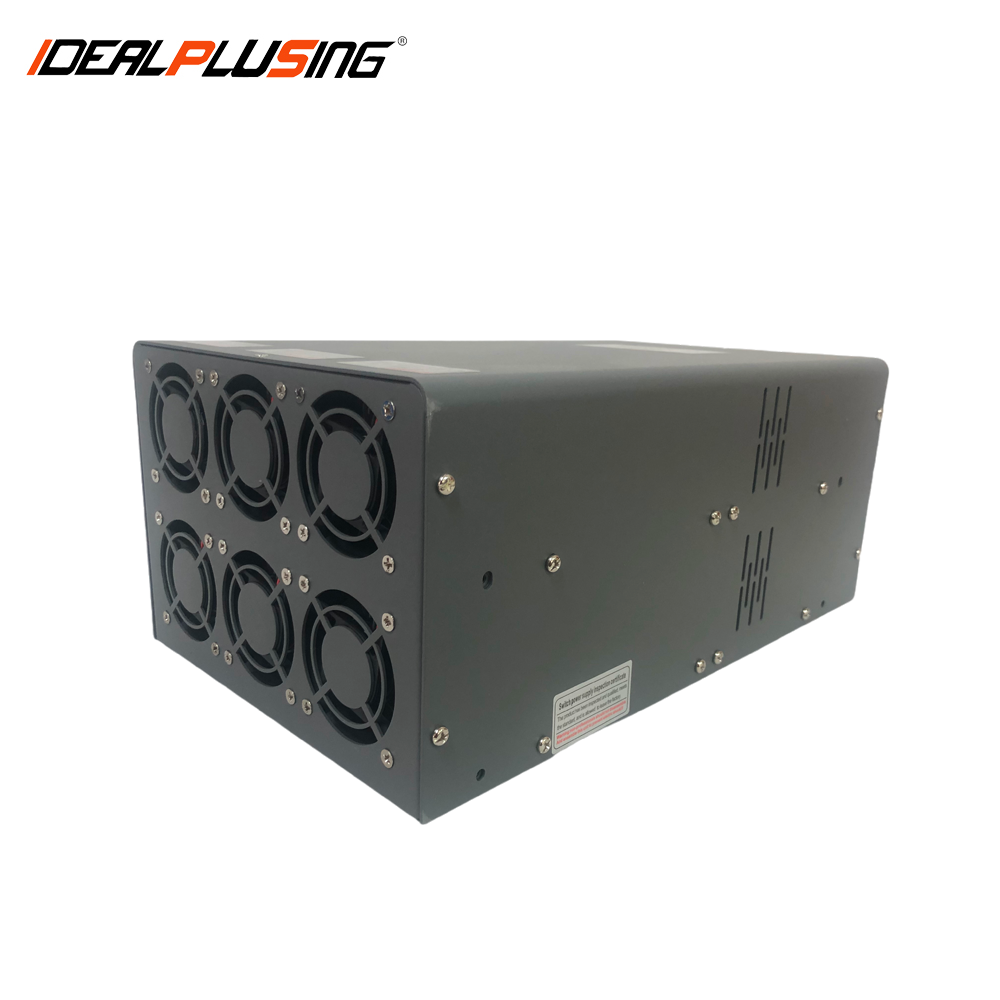

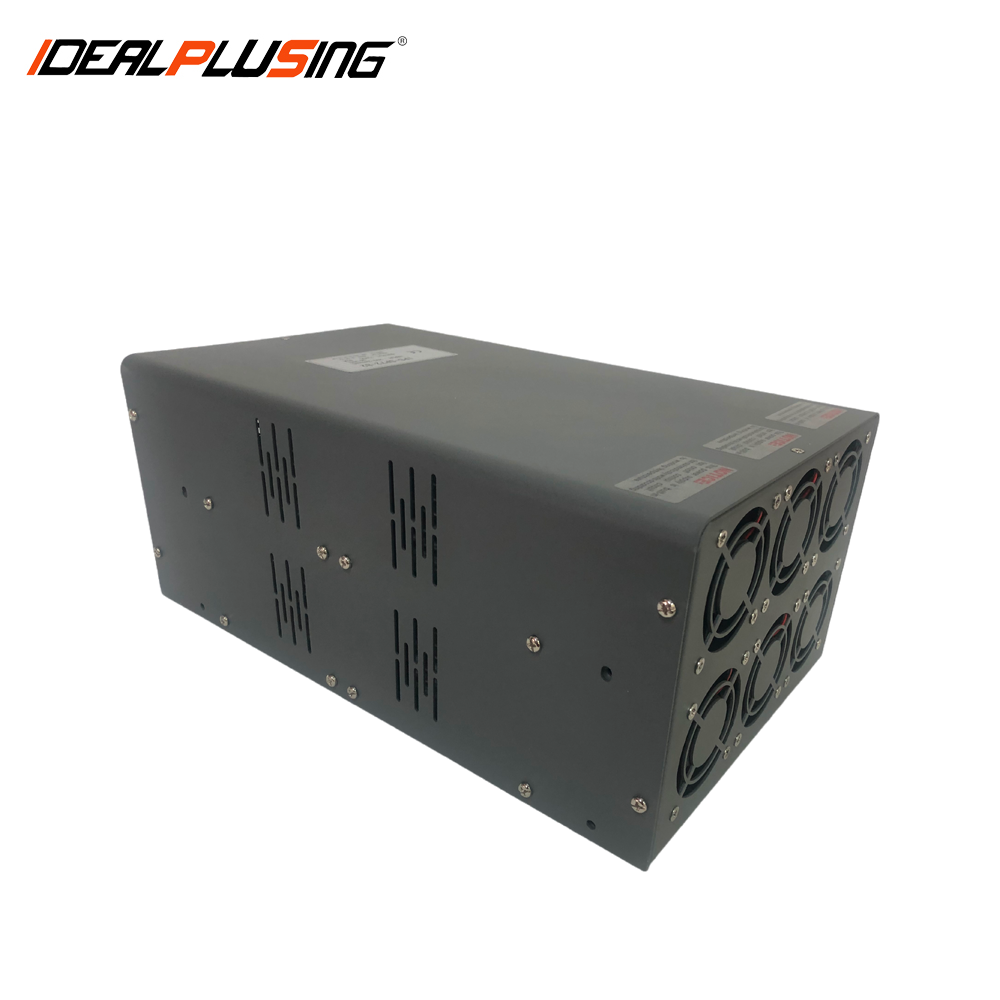

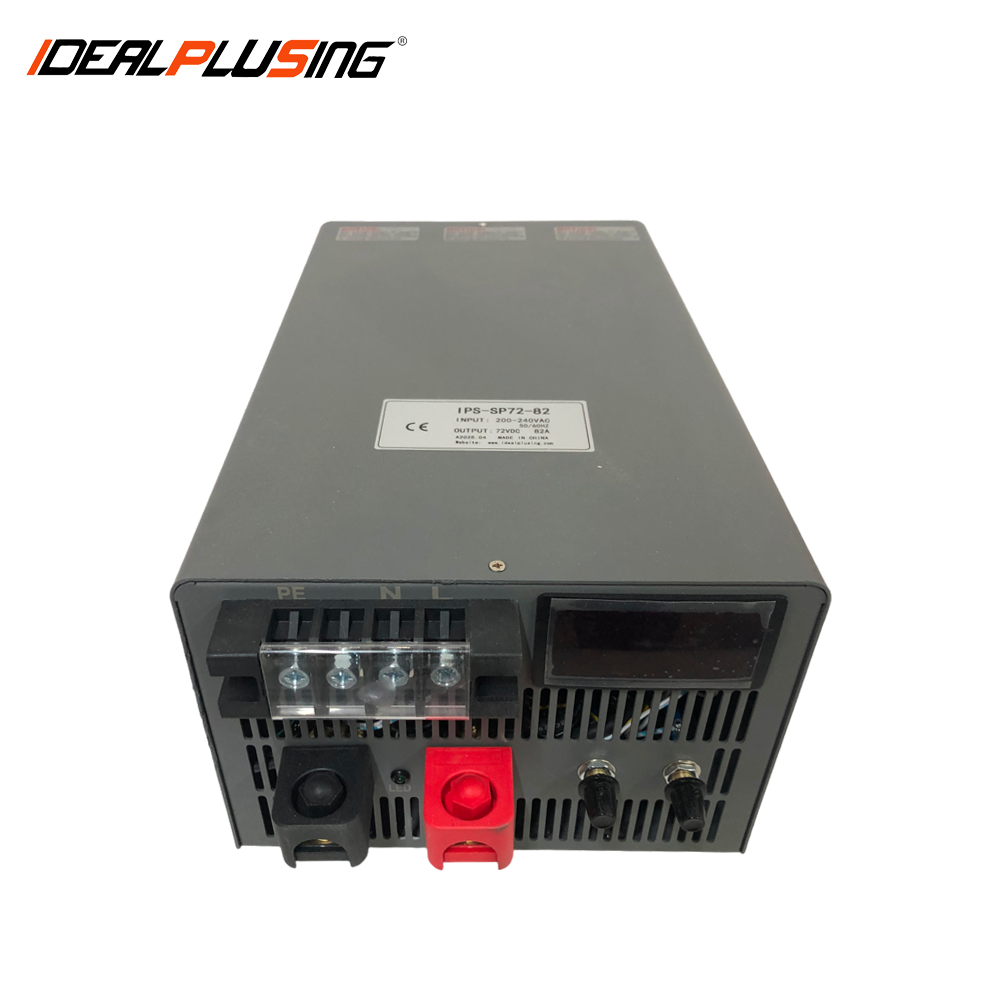

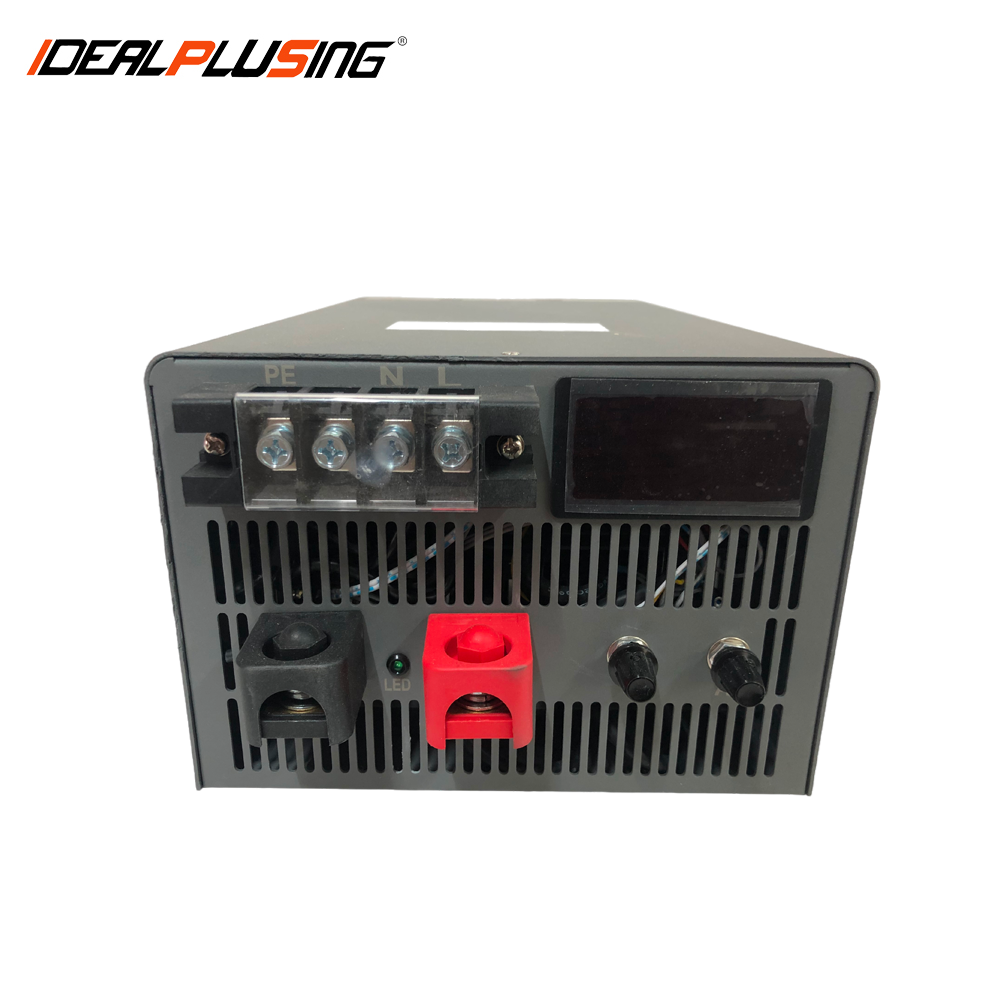

Wholesale Price 3 Phase Ac Dc Switching Power Supply for Electroplating/electrolysis and Electric Vehicle Charging Stations
Product Description
Wholesale Price 3 Phase AC DC Switching Power Supply
High-efficiency solutions for Electroplating, Electrolysis, and Electric Vehicle Charging Stations
★ Corporate Overview
We focus on the research and development, sales, and service of D C to D C power supply modules, A C to D C rectifier modules, D C to A C inverters, and D C power supplies. We provide personalized, efficient, reliable, and cost-effective power solutions for all industries.
Our goal is to provide customers with the right power supply solution, offering optimized quotations with precisely matched specifications. We specialize in customizing switching Power Supplies to meet your specific industrial requirements.
✔ Key Product Features
1 Adjustable with Compact size and light weight
2 AC input 200-240VAC 50/60HZ (110VAC/120VAC options)
3 100% full load burn-in test
4 Protection: Short circuit / Over load / Over voltage
5 Fixed switching frequency at 25KHz
6 High efficiency and reliability quality
7 0-5Vdc / 0-10Vdc External control output (Optional)
8 Extra adjustable potentiometer (Optional)
9 Output voltage adjustable, current fixed (Optional)
⚙ Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP96-88 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | 10000W Max |
| Dimension | 415*222.8*172.2 (mm) |
| Weight (Net/Gross) | 14.6KG / 19.4KG |
📋 8000W Model Series
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-354 | 200-240VAC / 380VAC | 24VDC | 354A |
| IPS-SP36-236 | 200-240VAC / 380VAC | 36VDC | 236A |
| IPS-SP48-177 | 200-240VAC / 380VAC | 48VDC | 177A |
| IPS-SP60-141 | 200-240VAC / 380VAC | 60VDC | 141A |
| IPS-SP72-118 | 200-240VAC / 380VAC | 72VDC | 118A |
| IPS-SP96-88 | 200-240VAC / 380VAC | 96VDC | 88A |
| IPS-SP110-77 | 200-240VAC / 380VAC | 110VDC | 77A |
| IPS-SP150-56 | 200-240VAC / 380VAC | 150VDC | 56A |
| IPS-SP220-38 | 200-240VAC / 380VAC | 220VDC | 38A |
🔥 Hot Selling Models
IPS-PFC500-24
24VDC 500W SMPS
IPS-PFC500-48
48VDC 500W SMPS
IPS-PFC350-12
12VDC 350W SMPS
IPS-PFC1000-24
24VDC 1000W SMPS
IPS-PFC2000-24
24VDC 2000W SMPS
IPS-PFC3000-24
24VDC 3000W SMPS
Specialized Customization Services
We specialize in customizing switching converters to meet your specific needs. Our products support input/output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Our professional sales engineers provide one-to-one consultation to recommend the best power solution based on your usage scenarios and load information.
📐 Product Dimensions & Gallery
🌐 Application Scope
🏭 Factory Showcase
? Frequently Asked Questions
What are the primary applications for these switching power supplies?
They are widely used in electroplating, electrolysis, industrial automation, UV curing equipment, electric vehicle charging stations, and LED systems requiring stable high-power DC output.
Do you support customized input and output parameters?
Yes, we specialize in customization. We can adjust input voltages (110V/220V/380V) and output ranges from 1V to 1000V and 1A to 1000A based on your load requirements.
What safety protections are integrated into the units?
All our power supplies include built-in protection for short circuits, over-load, and over-voltage to ensure the safety of both the power module and your connected equipment.
Are the products tested before shipping?
Absolutely. Every unit undergoes a 100% full load burn-in test to guarantee reliability and performance quality before it leaves our facility.
Can I control the output externally?
Yes, we offer optional external control features, including 0-5Vdc or 0-10Vdc signals for remote output voltage and current adjustment.
What is the standard lead time for customized models?
Lead times vary depending on the complexity of the specifications, but our dedicated team strives to provide efficient production and fast delivery for all customized solutions.
