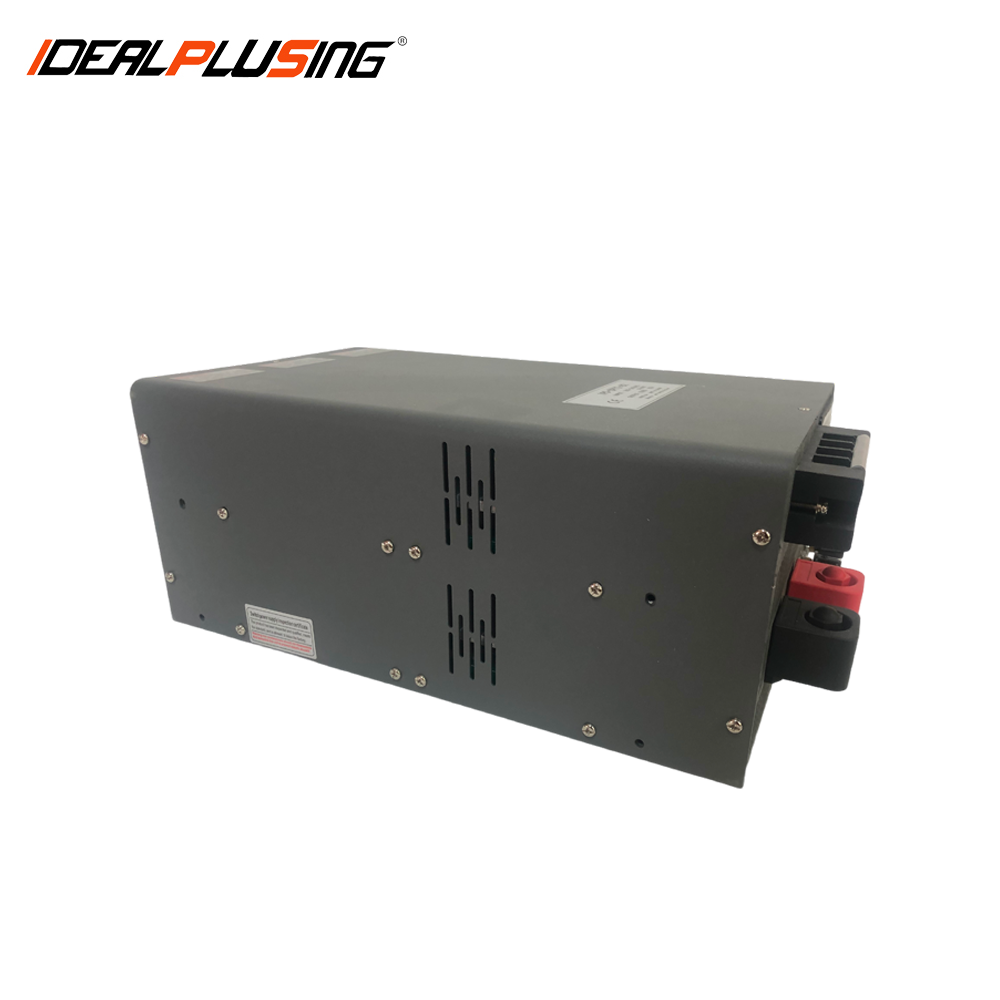

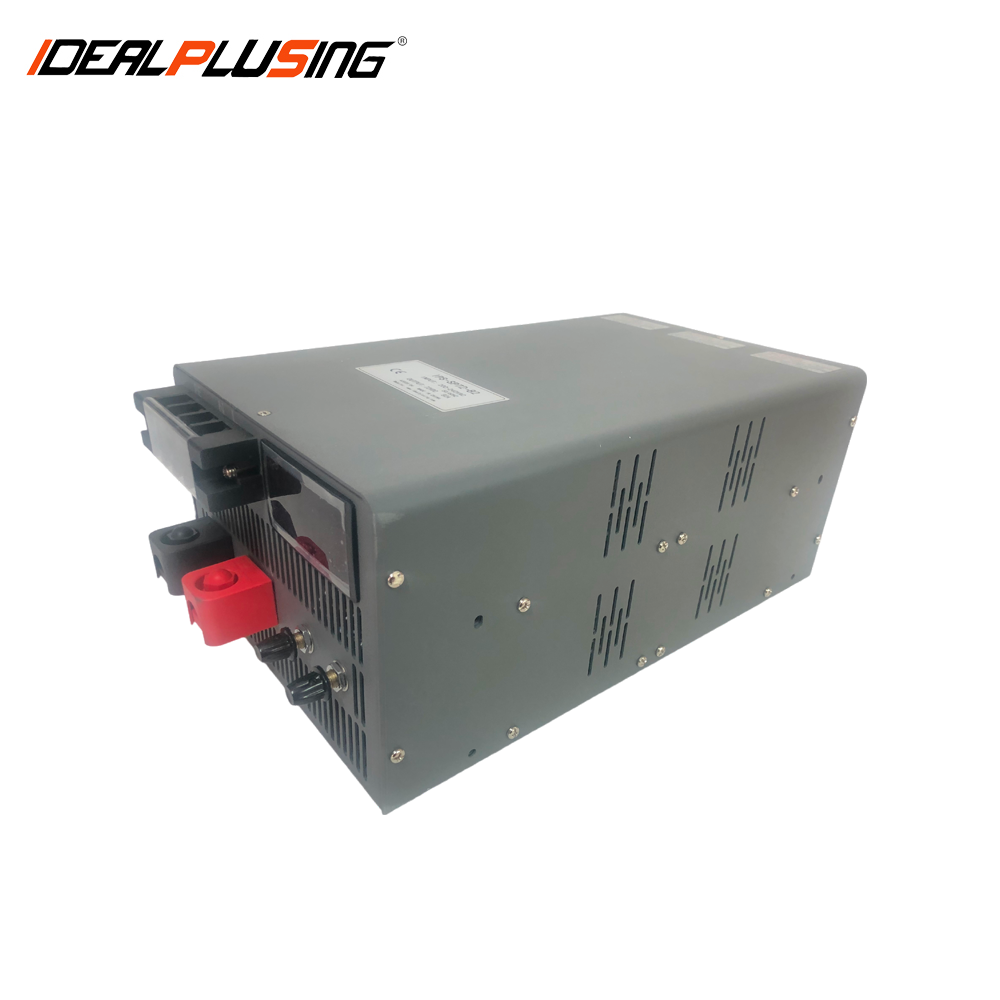

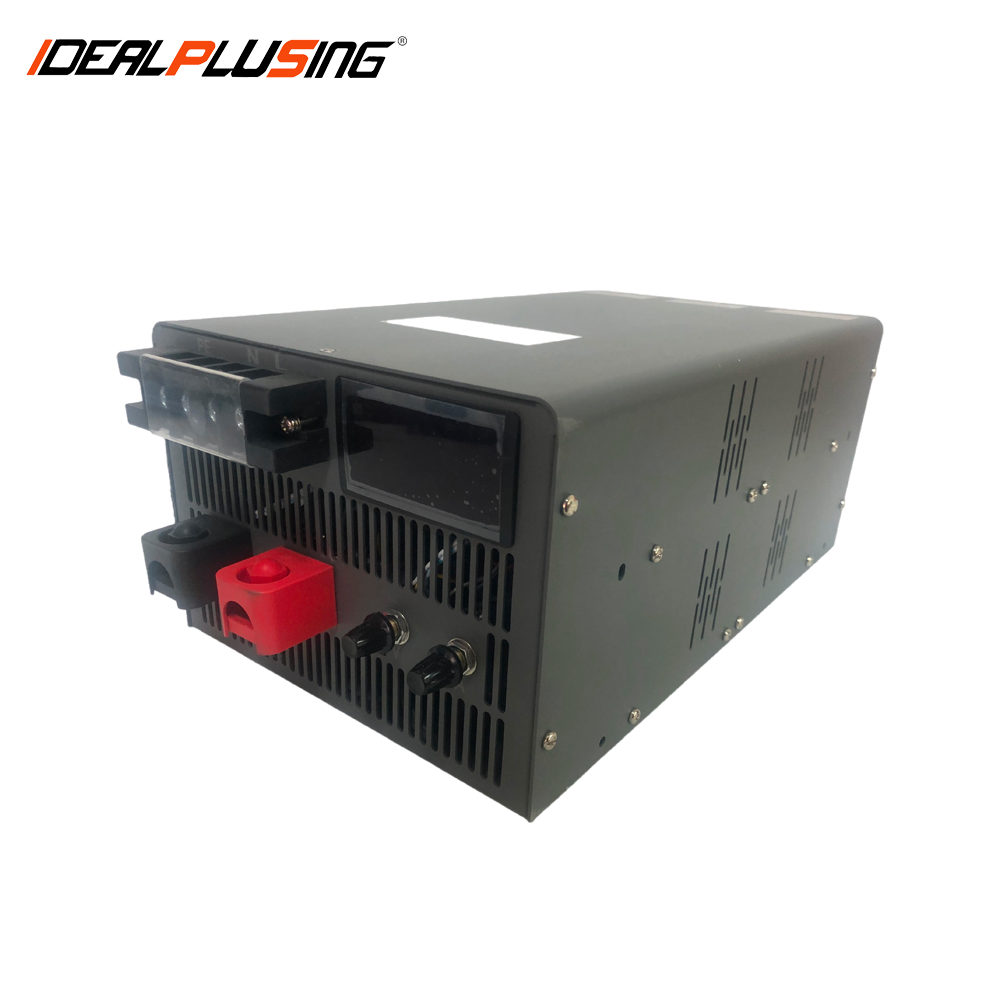

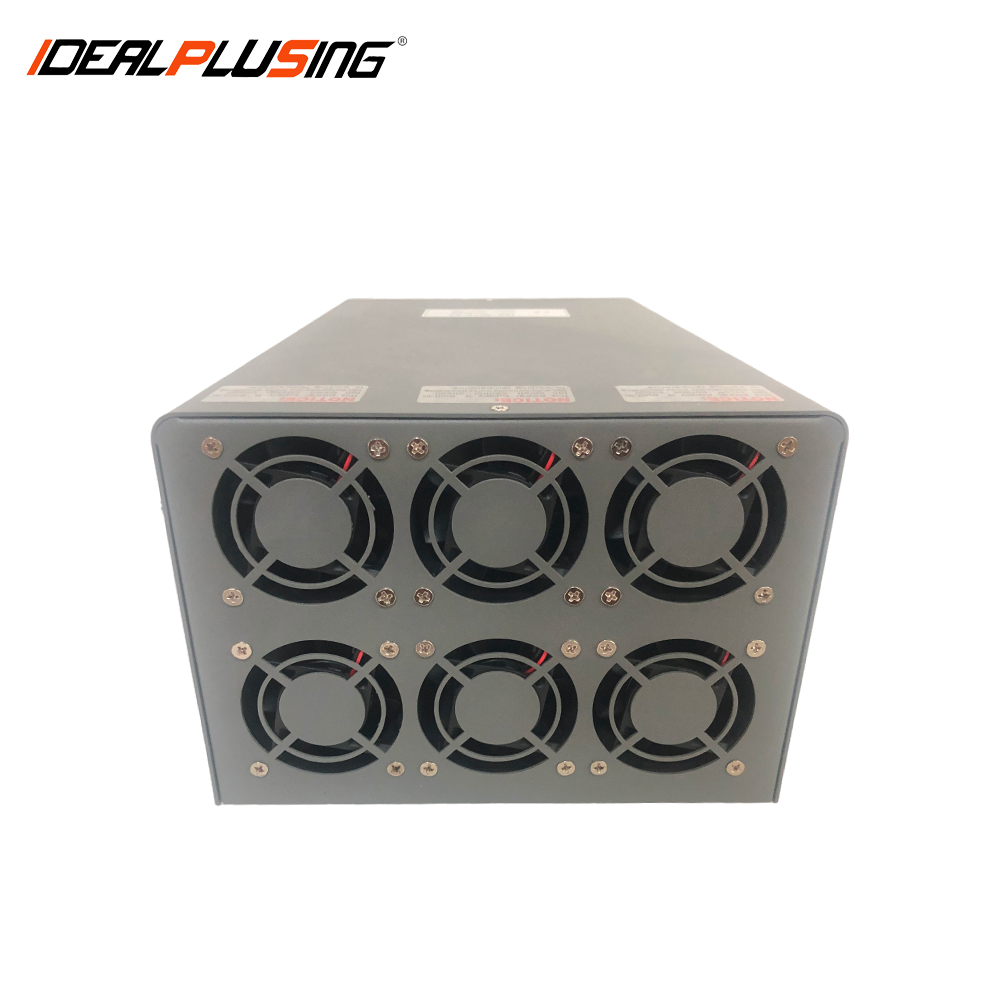

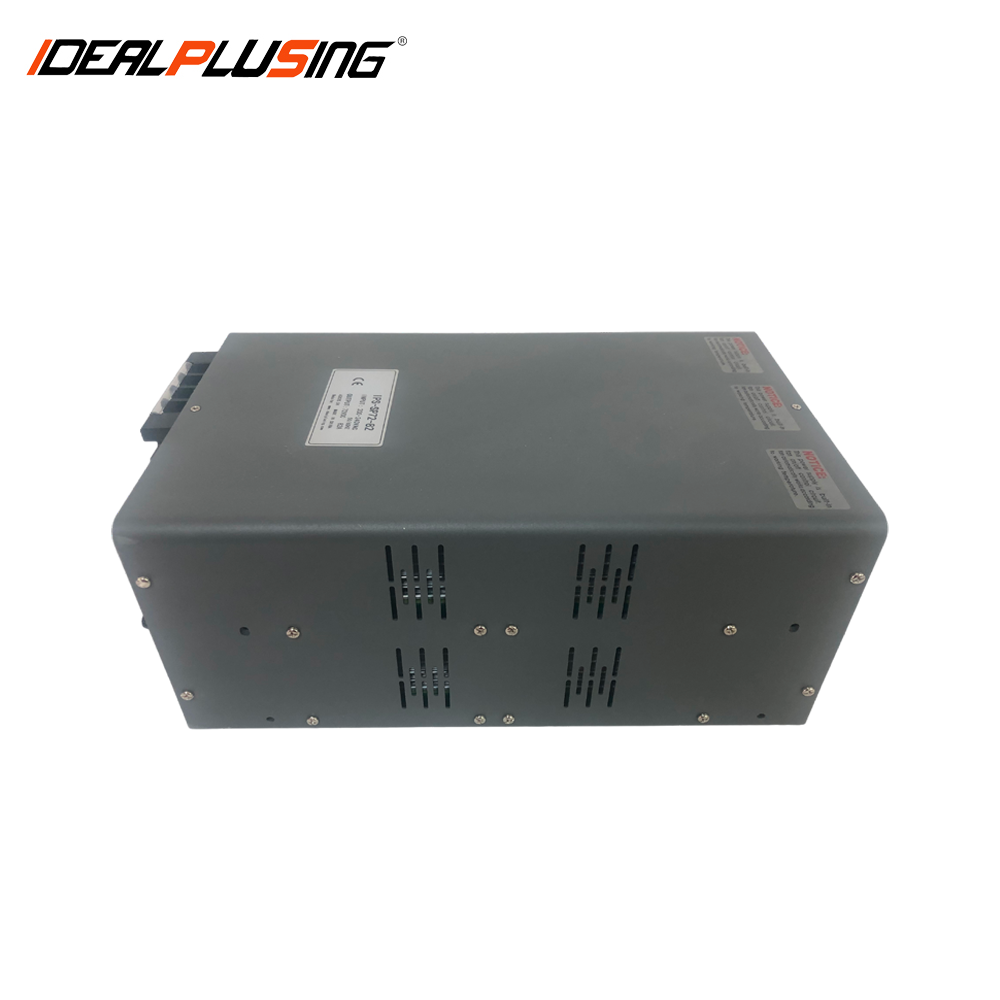

IDEALPLUSING 8000W AC to DC Switching Power Supply 12VDC/24VDC/48VDC/72VDC/110VDC/220VDC 30A for EV Charging Stations OEM/ODM
Product Description
8000W 200-240VAC 12V 24V 48V 72V 110V 220V 30A AC to DC Smps Switching Power Supply for Charging Piles
🏢 Professional Power Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
Our Advantages: We specialize in customizing switching Power Supply to meet your specific requirements. Please submit any inquiries to explore our capabilities further.
⭐ Product Features
01 Adjustable with Compact size, light weight
02 AC input 200-240VAC 50/60HZ (110VAC/120VAC customizable)
03 100% full load burn-in test
04 Protection: Short circuit / Over load / Over voltage
05 Fixed switching frequency at 25KHz
06 High efficiency, reliability quality, competitive cost
07 0-5Vdc / 0-10Vdc External control output (Optional)
08 Extra adjustable potentiometer (Optional)
09 Output voltage adjustable, output current fixed (Optional)
📊 Technical Specifications
| Parameter | Detail |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP220-30 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | 8000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Net Weight / Gross Weight | 9.8KG/14.6KG |
🔥 Hot Selling Models
IPS-PFC500-24 24VDC 500W SMPS
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT : 24VDC, 20.83A
2. OUTPUT : 24VDC, 20.83A
IPS-PFC500-48 48VDC 500W SMPS
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT : 48VDC, 10.42A
2. OUTPUT : 48VDC, 10.42A
IPS-PFC350-12 12VDC 350W SMPS
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT :12VDC, 29.17A
2. OUTPUT :12VDC, 29.17A
📝 Power Range Model List
We specialize in customizing switching converters. Our products support input/output voltages and currents from 1V to 1000V and 1A to 1000A.
| Power Level | Model | Input Voltage | Output Voltage | Output Current |
|---|---|---|---|---|
| 8000W | IPS-SP24-283 | 200-240VAC | 24VDC | 283A |
| 8000W | IPS-SP48-141 | 200-240VAC | 48VDC | 141A |
| 8000W | IPS-SP110-61 | 200-240VAC | 110VDC | 61A |
| 8000W | IPS-SP220-30 | 200-240VAC | 220VDC | 30A |
📐 Product Detail Dimensions
🚀 Application Scope
🏭 Factory Show
❓ Frequently Asked Questions
Do you offer customization for specific voltage requirements?
Yes, we specialize in customizing switching power supplies. We can adjust input and output voltages (up to 1000V) and currents (up to 1000A) to meet your specific industrial needs.
What kind of protection does the power supply have?
Our power supplies are equipped with comprehensive protection features, including short circuit protection, overload protection, and over-voltage protection to ensure equipment safety.
Can these units be controlled externally?
Yes, we offer optional external control functions such as 0-5Vdc or 0-10Vdc signals to manage the output voltage and current remotely.
Are the products tested before shipping?
Every power supply unit undergoes a 100% full load burn-in test to guarantee reliability, quality, and performance under real-world conditions.
What is the typical efficiency of these power supplies?
Our switching mode power supplies are designed for high efficiency and reliability, using a fixed switching frequency (typically 25KHz) to ensure stable output and energy savings.
Do you provide solutions for charging piles?
Absolutely. Our high-power AC to DC SMPS units are specifically designed for applications like charging piles, UV curing equipment, and various industrial automation systems.
