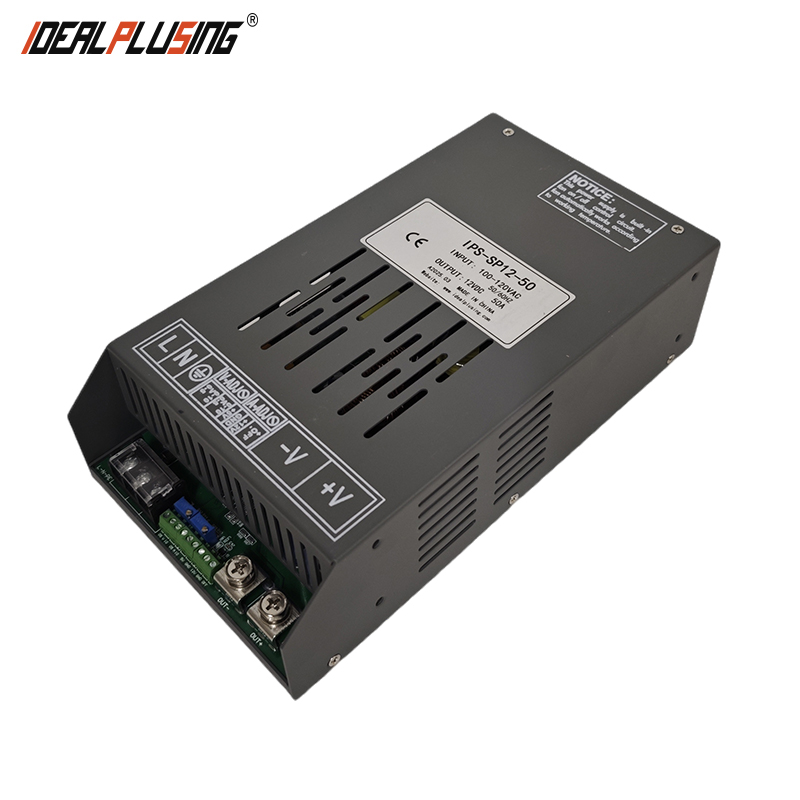

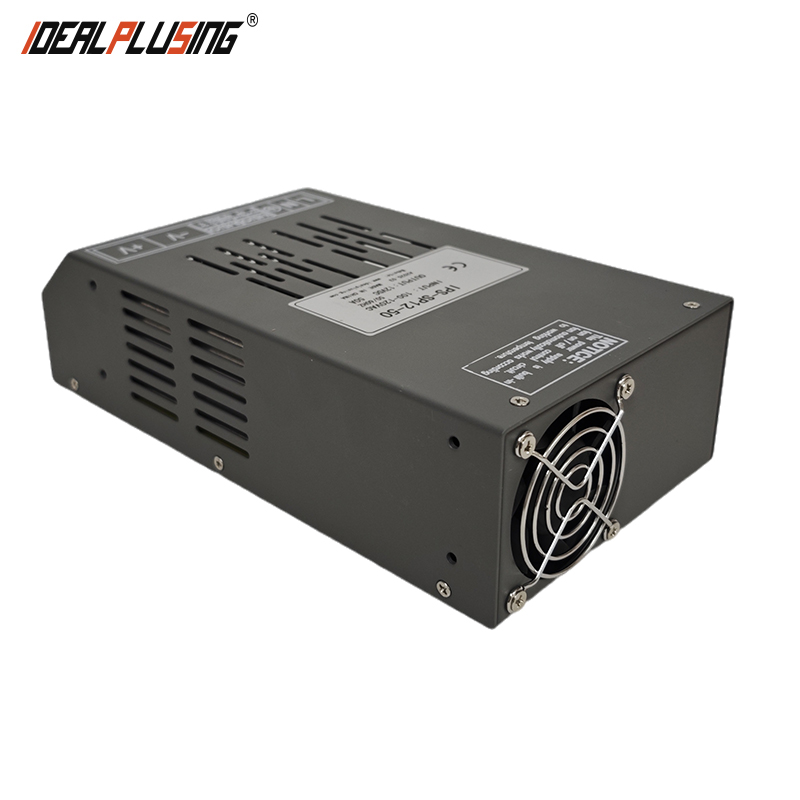

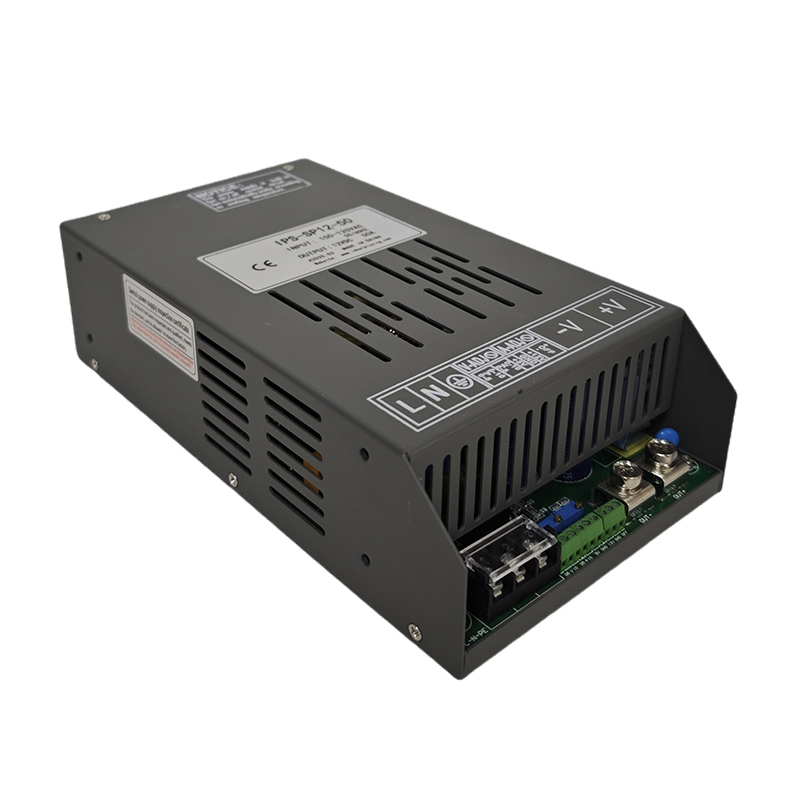

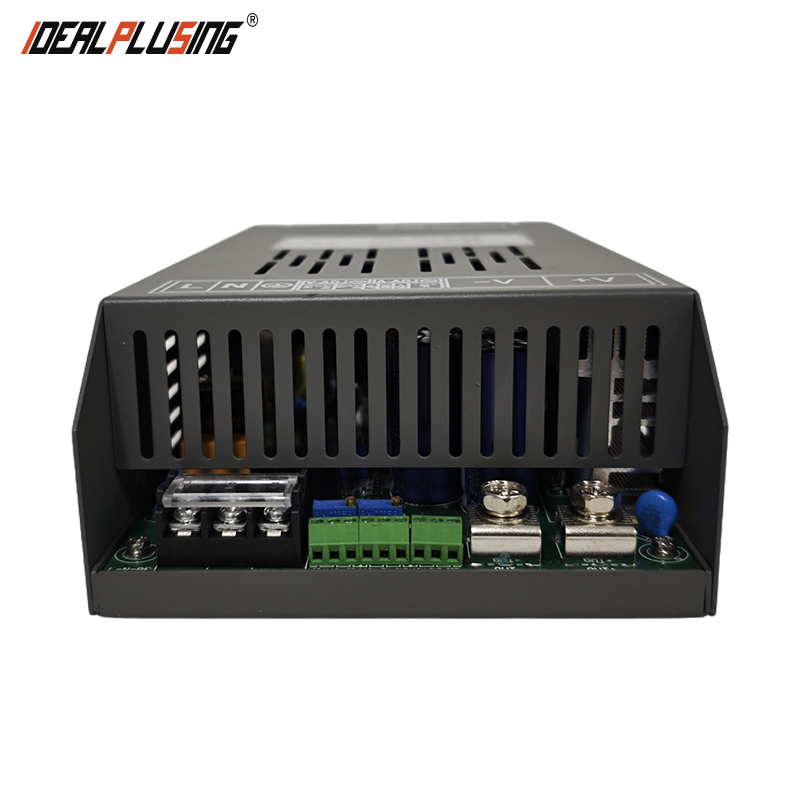

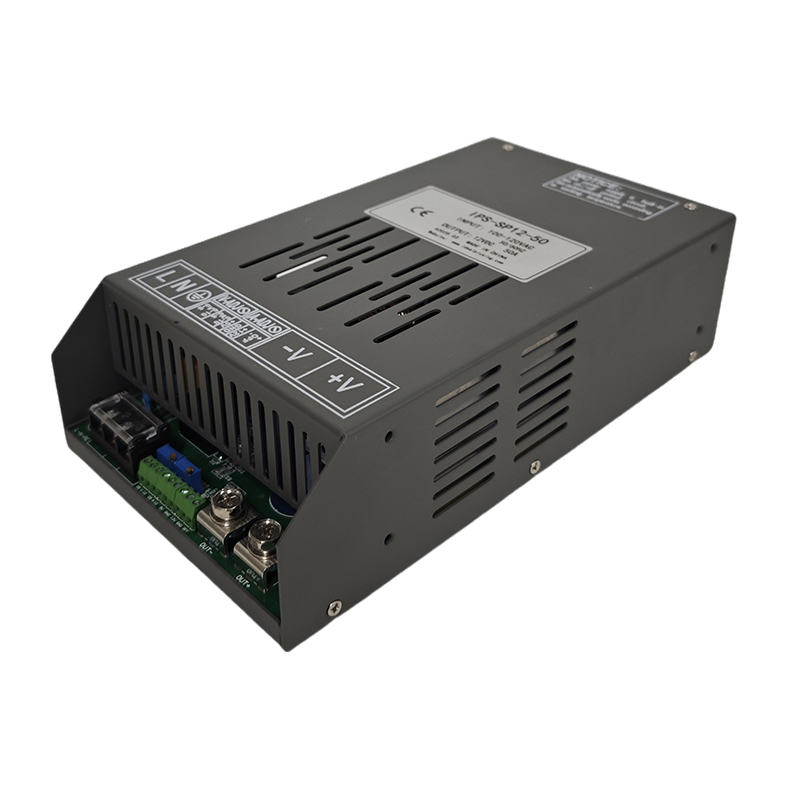

High Quality 1000w Input Voltage Ac 200v 220v 240v Output Dc 12v 24v 41.7a Auto Ac/dc Smps Switch Mode Power Supply Computer
Product Description
High Quality 1000w Input Voltage AC 200v 220v 240v Output DC 12v 24v 41.7a Switch Mode Power Supply
🚀 Company Profile
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
Our Advantages: We specialize in customizing switching Power Supply to meet your specific requirements. We are not only selling products; we provide the right power supply solution with optimized quotations.
✅ Product Feature
01 Adjustable with Compact size, light weight
02 AC input 200-240VAC 50/60HZ (110VAC/120VAC optional)
03 100% full load burn-in test
04 Protection: Short circuit / Over load / Over voltage
05 Fixed switching frequency at 25KHz
06 High efficiency, reliability quality, competitive cost
07 0-5Vdc / 0-10Vdc External control output (Optional)
08 Extra adjustable potentiometer (Optional)
09 Output voltage adjustable, current fixed (Optional)
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP24-41.7 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 1000W Max |
| Dimension | 237*130*65(mm) |
| Weight | 1.8KG (Net) / 1.9KG (Gross) |
🔥 Hot Selling Models
IPS-PFC500-24 (24V 500W)
Input: 95-264VAC | Output: 24VDC, 20.83A
IPS-PFC500-48 (48V 500W)
Input: 95-264VAC | Output: 48VDC, 10.42A
IPS-PFC350-12 (12V 350W)
Input: 95-264VAC | Output: 12VDC, 29.17A
IPS-PFC1000-24
Output: 24VDC 1000W
IPS-PFC2000-24
Output: 24VDC 2000W
IPS-PFC3000-24
Output: 24VDC 3000W
🛠️ Customization Service
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services. Just tell us your needs and we will recommend the best solution for you.
📐 Product Detail Dimensions
🏭 Factory & Application Show
❓ Frequently Asked Questions
Q1: Can I request a 110VAC input version for this power supply?
A: Yes, although standard input is 200-240VAC, we support 110VAC/120VAC input customization upon request.
Q2: What kind of protections are built into the unit?
A: Our switching power supplies include comprehensive protection for short circuits, overloads, and over-voltage scenarios to ensure equipment safety.
Q3: Is the output voltage adjustable?
A: Yes, we offer models with adjustable output voltage. External control via 0-5Vdc or 0-10Vdc is also an optional feature for remote adjustment.
Q4: Does the product undergo reliability testing?
A: Every unit undergoes a 100% full load burn-in test before shipping to ensure high reliability and quality standards.
Q5: Can you provide customized parameters beyond the standard model list?
A: Absolutely. We specialize in tailoring voltages (1V to 1000V) and currents (1A to 1000A) to meet your specific industrial load requirements.
Q6: What are the main applications for these SMPS units?
A: They are widely used in CCTV systems, industrial automation, UV curing equipment, LED lighting, and battery charging.
