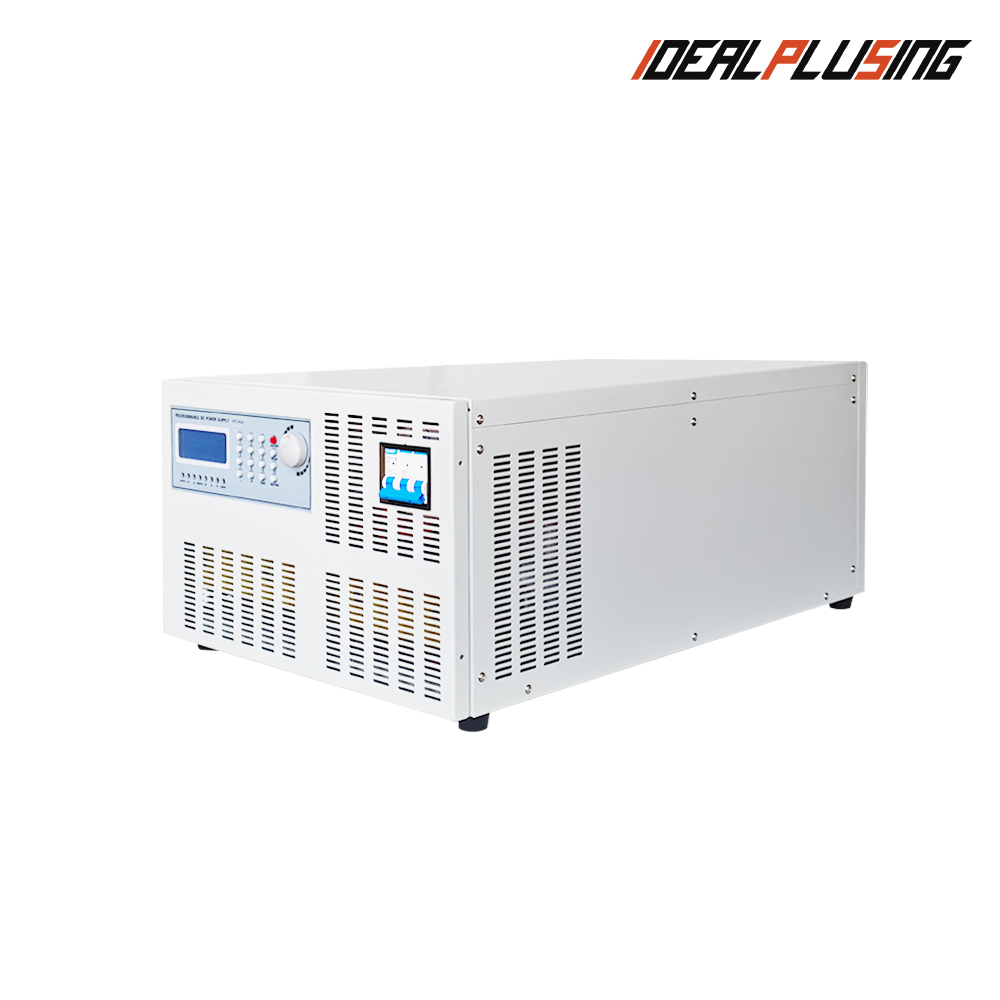

10kW Programmable DC Power Supply 8V 1250A Precision DC Power Supply Programmable CV CC DC Power Supply Lab Test
Product Description
10kW Programmable DC Power Supply
8V 1250A Precision DC Power Supply | Programmable CV CC Lab Test Solution
⚠️ Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your trust.
Product Description
⚙️
Customizable Specs
Specifications ranging from 0-5000V, 0-2000A, and 0-200KW.
📊

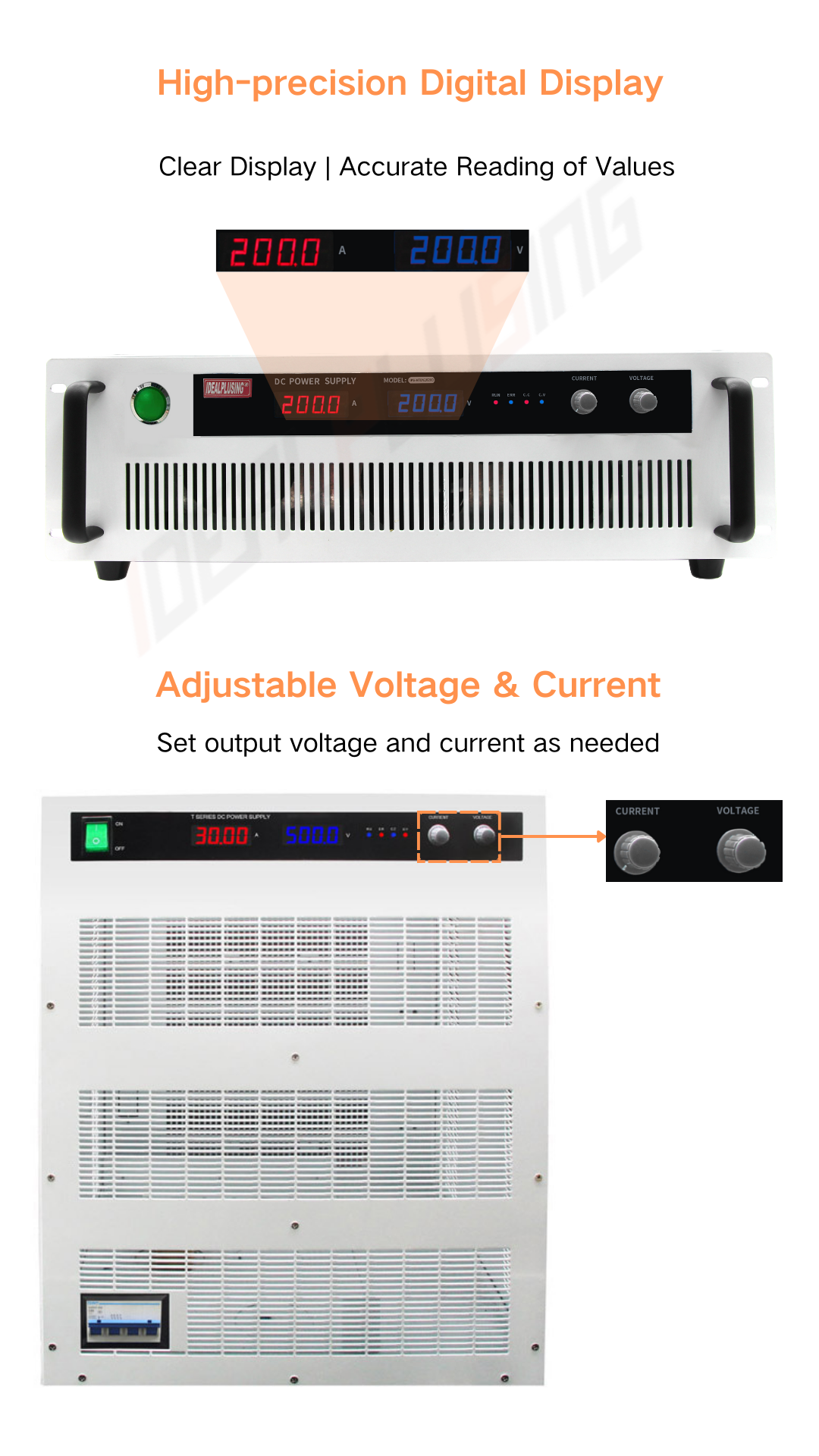

HD Display
LED LCD screen displays voltage, current, and power in high definition.
⌨️
Precise Control
Digital keypad and rotary encoder for precise adjustment.
🔄
Test Sequences
Supports 20-step test sequences with customizable cycles.
🌐

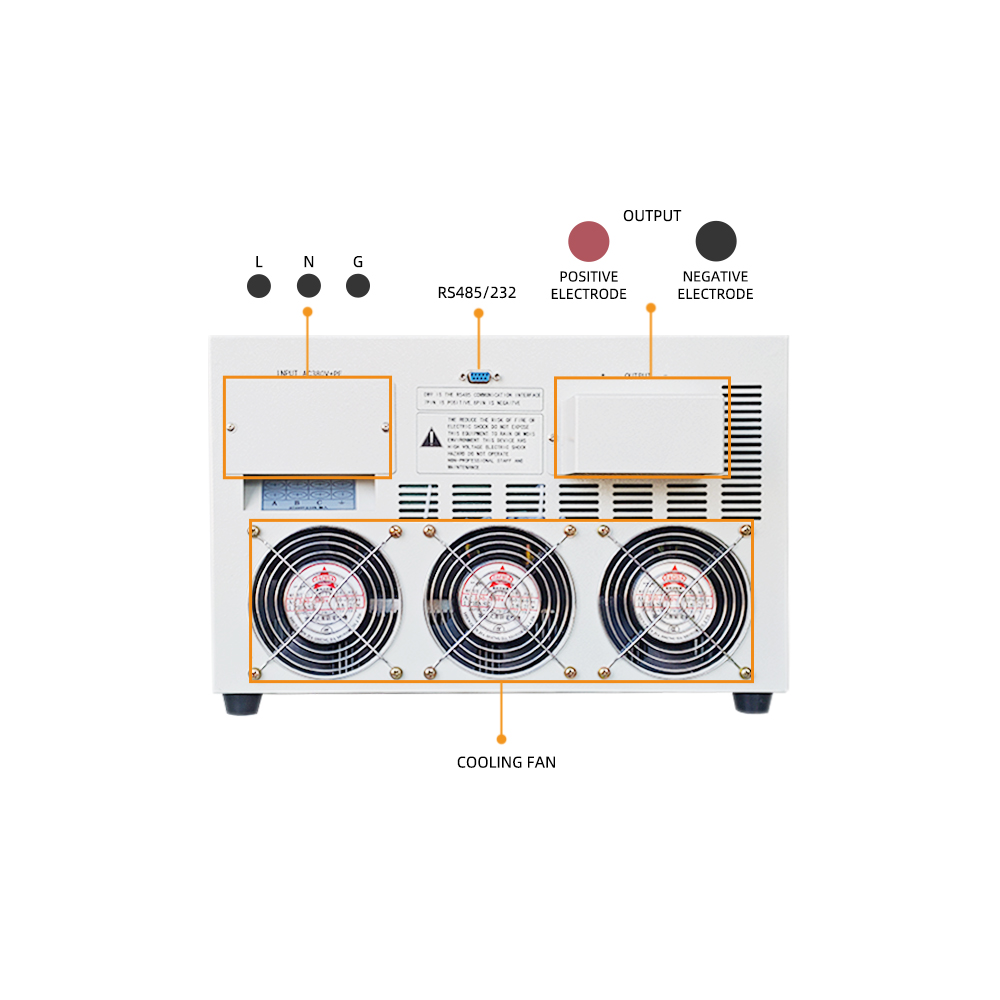

Communication
Standard RS-485 interface, Modbus protocol support.
🛡️
Full Protection
Overvoltage, overcurrent, overtemperature, and short-circuit protection.

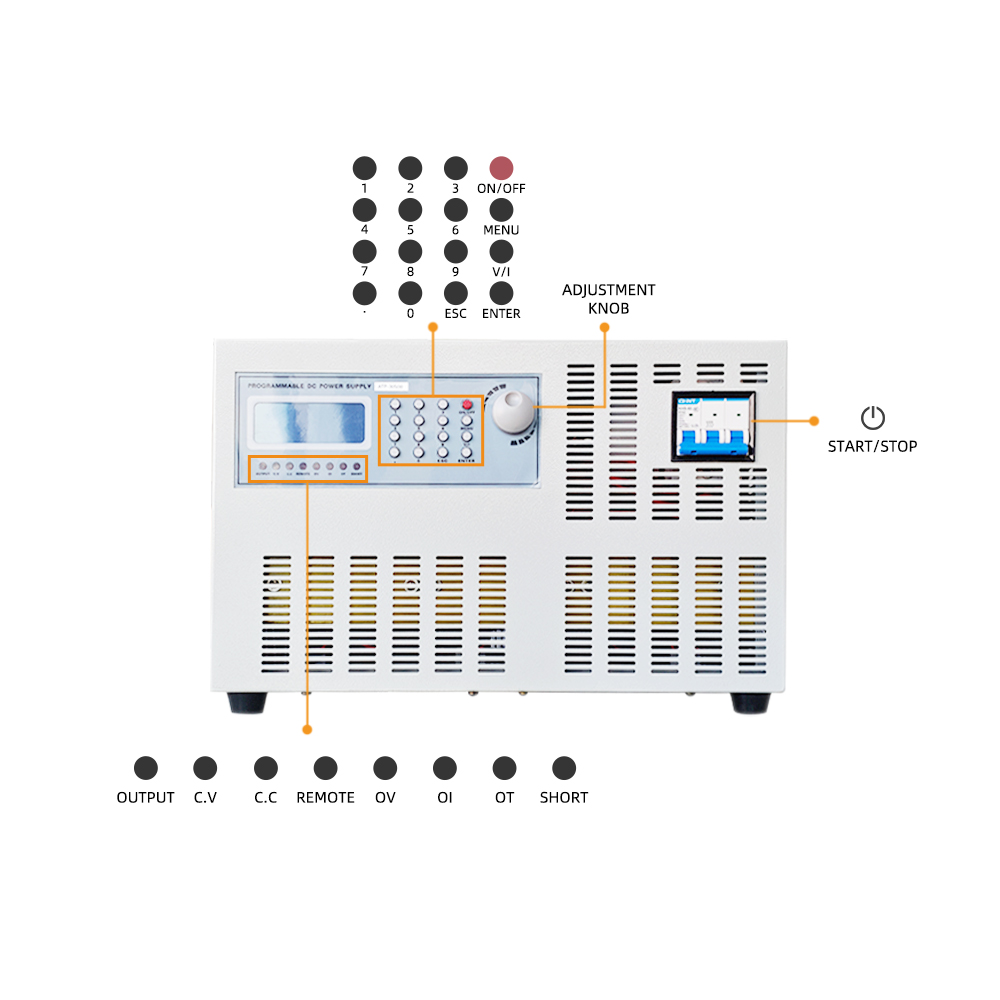

Human-Machine Interface
| Component | Description |
|---|---|
| LCD display | Human-machine interaction interface, displaying menu |
| Keyboard | Function keys and number keys for input |
| Digital encoder | Used as an input substitute for the keyboard |
| OUTPUT Indicator | Lights up when there is power output |
| C.V / C.C Status | Indicates Constant Voltage or Constant Current mode |
| Protection Indicators | OV, OI, OT, and SHORT circuit warnings |
| Power Switch | Used to start and shut down the system |
Technical Specifications
| Input & Output Parameters | |
|---|---|
| AC Input | Single-phase 220V ±10% or Three-phase 380V ±10% (50Hz/60Hz) |
| Model | IPS-ATDP81250 |
| Output Voltage | 0-8VDC |
| Output Current | 0-1250A |
| Output Power | 10KW |
| Stability | ≤ 0.2%+10mV (Power); ≤ 0.2%+30mV (Load) |
| Ripple | ≤ 0.5%+10mV (rms) |
| Display Accuracy | ±0.3%FS + 3 digits |

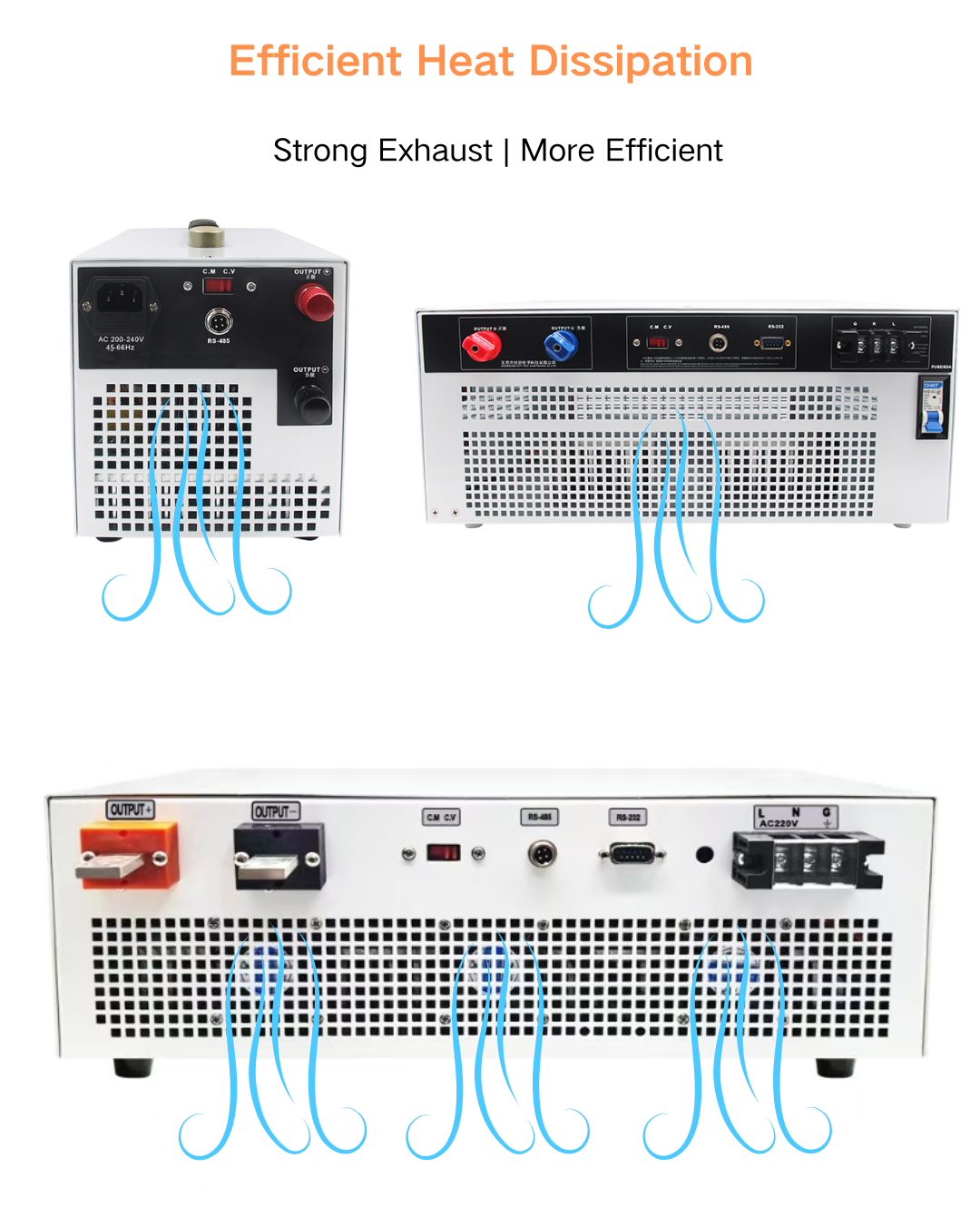

| Cooling | Forced air cooling |
Hot Selling Models
IPS-ATDY2075
0~20VDC, 75A, 1500W
IPS-ATDY3050
0~30VDC, 50A, 1500W
IPS-ATDY4050
0~40VDC, 50A, 2000W
IPS-ATDY5060
0~50VDC, 60A, 3000W
IPS-ATDY12050
0~120VDC, 50A, 6000W
IPS-ATDY80150
0~80VDC, 150A, 12000W
Product Details
Working Modes Comparison
| Feature | Constant Current (C.C) | Constant Voltage (C.V) |
|---|---|---|
| Principle | Current is maintained; voltage adjusts. | Voltage is maintained; current adjusts. |
| Application | Charging, LED drivers. | Voltage testing, regulated supply. |
| Characteristics | Limits current if load exceeds set value. | Maintains stable voltage for experiments. |
Application Scope
Professional Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and more. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We provide the right power supply solution with optimized quotation items to ensure project success.
Frequently Asked Questions
Can the output specifications be customized?
Yes, our ATP series can be fully customized with specifications ranging from 0-5000V voltage and 0-2000A current up to 200KW.
What communication protocols are supported for remote control?
The power supply comes standard with an RS-485 interface and supports the Modbus communication protocol. RS232 is available as an option.
Is it possible to program complex test sequences?
Absolutely. The system supports setting up test sequences with up to 20 steps, where you can define specific voltage, current, and duration for each step.
How is the device protected against electrical faults?
It features comprehensive protection including overvoltage (OVP), overcurrent (OCP), undervoltage, and short-circuit protection which triggers automatically.
Can the output polarity be grounded?
Yes, the design allows both the positive (+) and negative (-) output terminals to be grounded arbitrarily based on your application needs.
What are the environmental requirements for operation?
The unit is designed for indoor use with an operating temperature of 0℃ to 40℃ and humidity between 10% to 85% RH.
