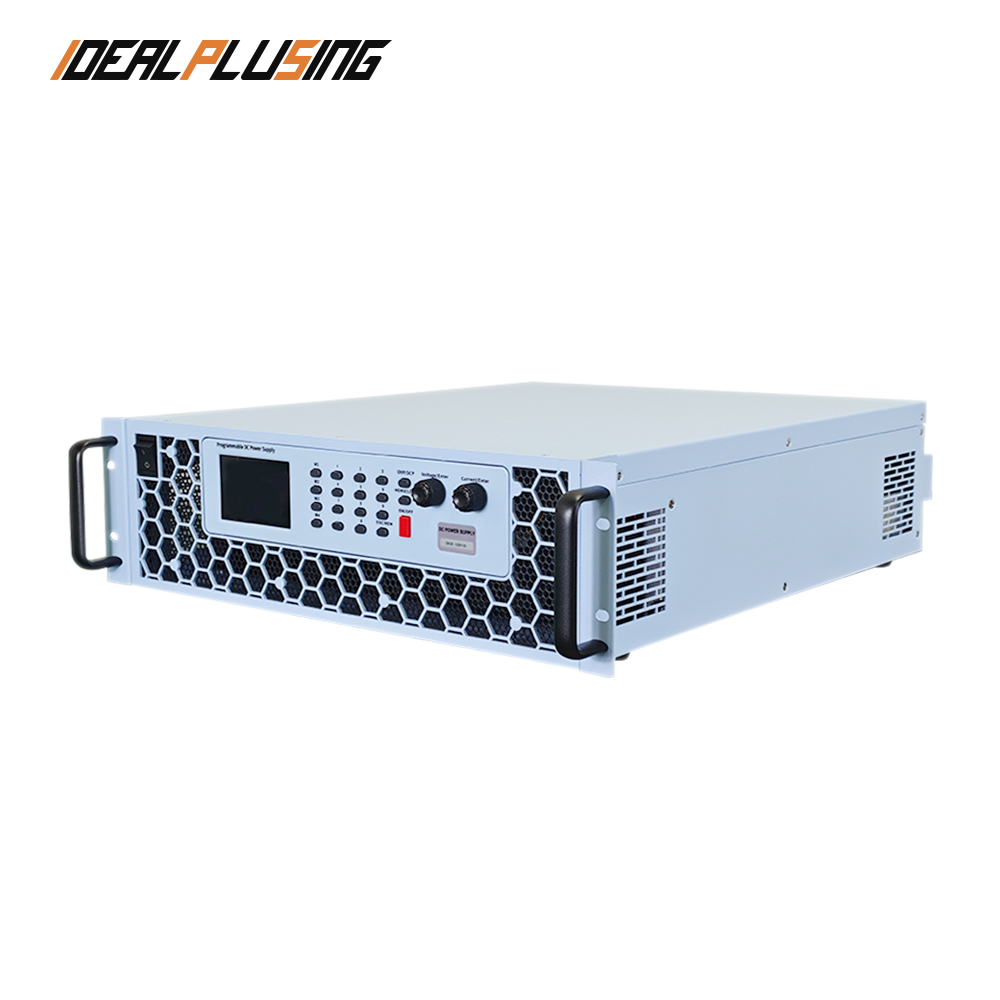

IDEALPLUSING Programmable DC Power Supply 750V 1500V 3000VDC 5A with RS232 High Precision Lightweight for Electronic R&D Testing
Product Description

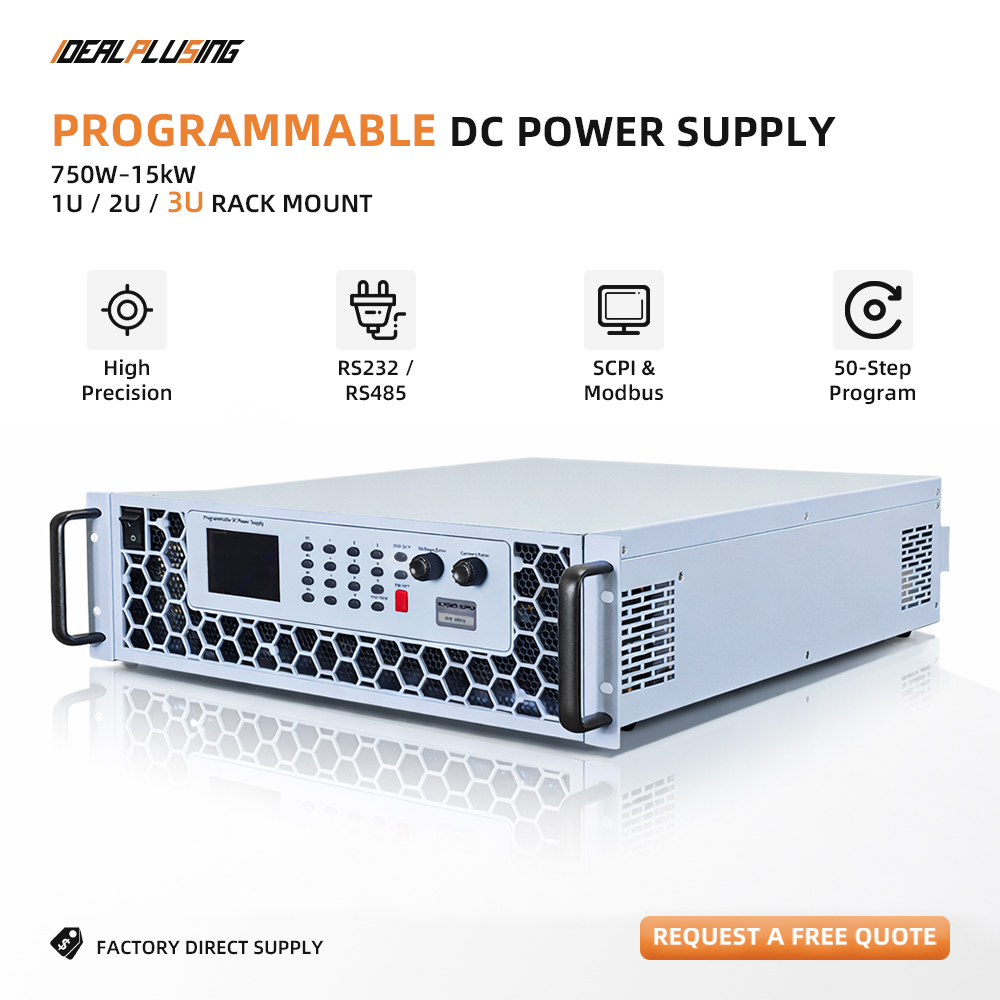

Programmable DC Power Supply 750V 1500V 3000VDC 5A
High Precision Lightweight for Electronic R&D Testing
š” Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
š Product Description
01

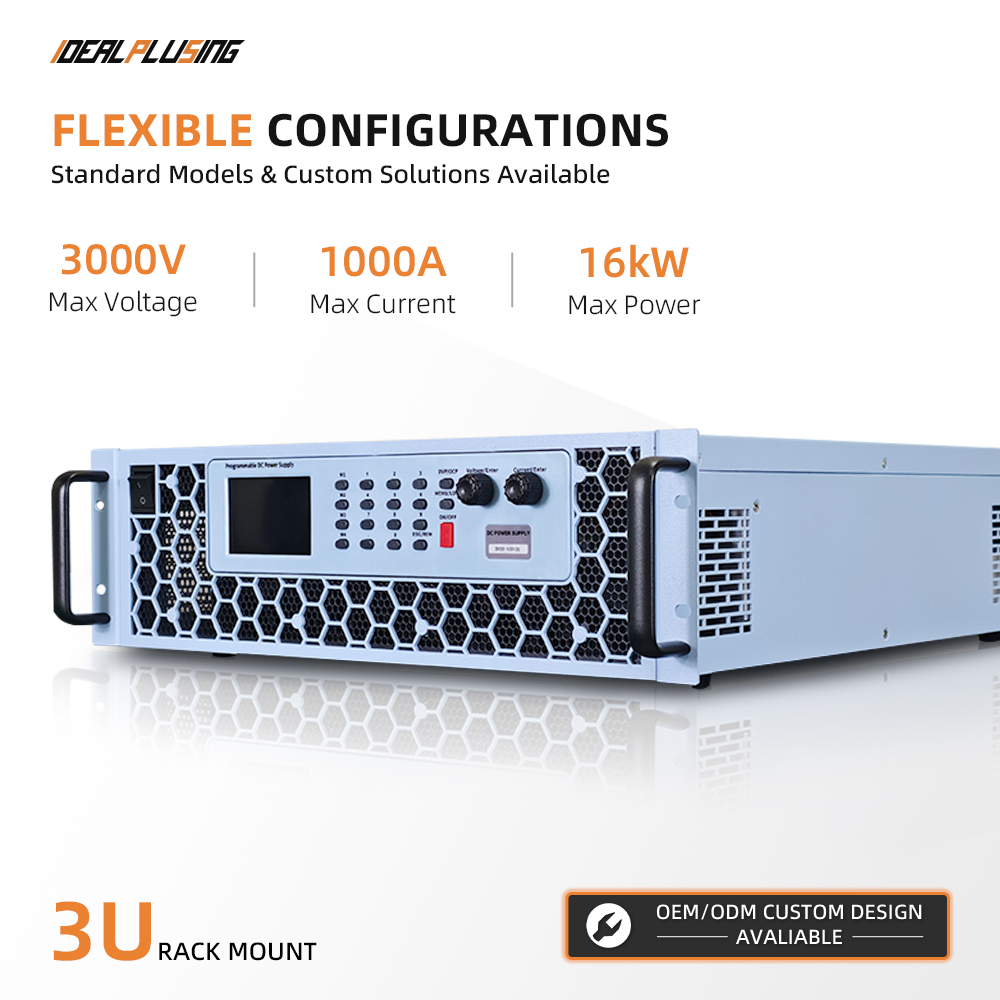

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
02
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
03
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
04
Programmable control over voltage, current, and time outputs.
05
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
06
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
07

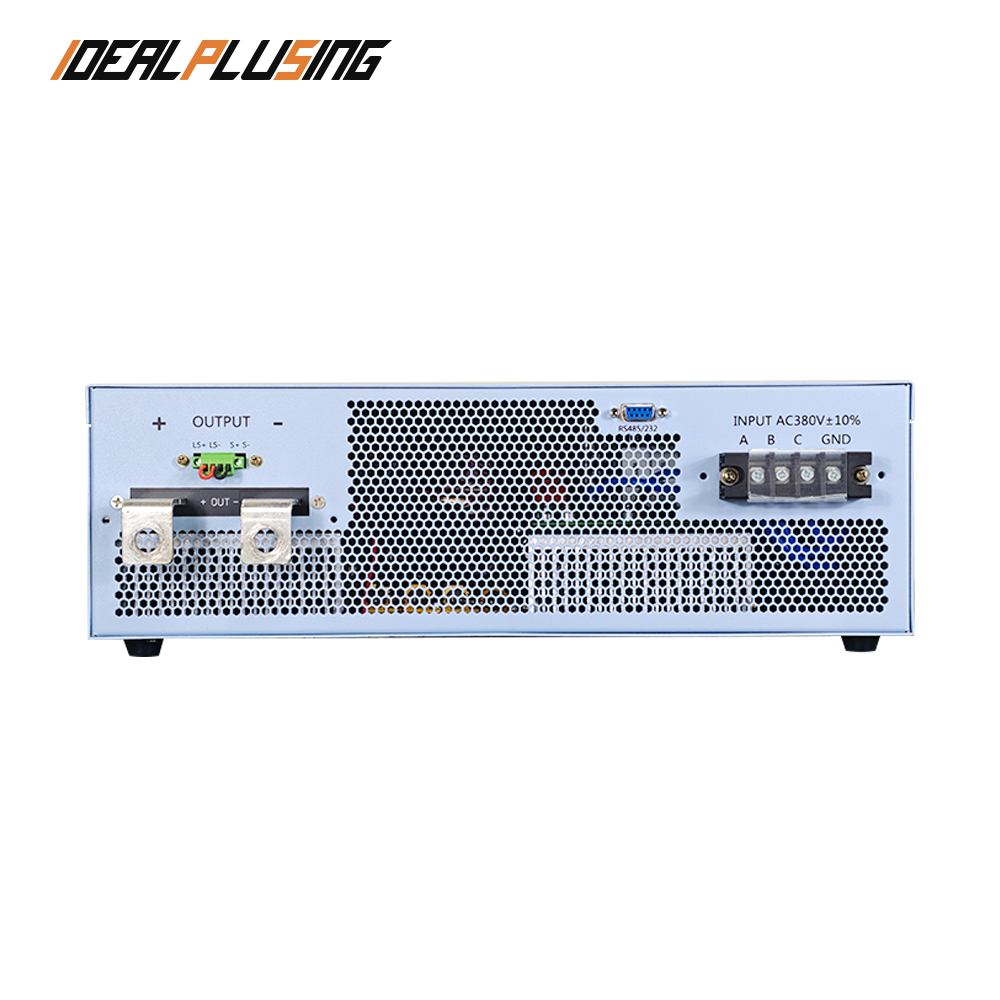

Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
āļø Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10% (50Hz/60Hz) |
| Output Voltage | 0-3000VDC Rated Voltage |
| Output Current | 0-5A Rated Current |
| Output Power | 0-15KW Rated Power |
| Source/Load Regulation | ā¤0.1%+10mV / ā¤0.1%+30mV |
| Regulation Accuracy | ā¤Ā±0.1%FS |
| Ripple (rms) | ā¤0.1%FS+10mV |
| Display Mode | Color LCD Display |
| Protection | OVP, OCP (Configurable), OTP (85āĀ±5%) |
| Communication | RS-485/RS-232 (Modbus & SCPI) |
| Environment | Indoor Use, 0āļ½40ā; 10%ļ½85% RH |
š„ Hot Selling Models
IPS-DH10-6002
600VDC, 2A, 1200W
IPS-DH20-12003
1200VDC, 3A, 3600W
IPS-DH10-5001
500VDC, 1A, 500W
IPS-DH30-8500
8VDC, 500A, 4000W
IPS-DH10-10003
1000VDC, 3A, 3000W
IPS-DH20-8005
800VDC, 5A, 4000W
š Detailed View
š Application Scope
Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
š 15000W Series Model List
| No | Model | Voltage(V) | Current(A) | Power(W) | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH30-30005 | 3000VDC | 5A | 15000W | 100mV/0.1mA |
| 2 | IPS-DH30-25006 | 2500VDC | 6A | 15000W | 100mV/0.1mA |
| 3 | IPS-DH30-150010 | 1500VDC | 10A | 15000W | 100mV/1mA |
| 4 | IPS-DH30-75020 | 750VDC | 20A | 15000W | 100mV/1mA |
š¢ Professional Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, and charging systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We don't just sell products; we provide the right engineering solutions tailored to your specific needs.
ā Frequently Asked Questions
Q1: Can the output voltage and current be programmed?
Yes, this series supports programmable control over voltage, current, and time outputs with up to 50 programmable steps in built-in memory.
Q2: What communication protocols are supported for remote control?
The units are equipped with RS-232 and RS-485 interfaces, supporting both Modbus-RTU and SCPI standard communication protocols.
Q3: How accurate is the voltage measurement at the load?
The unit features dedicated load-side sensing terminals to compensate for voltage drops in lead wires, ensuring precise measurement directly at the load.
Q4: Does the power supply have built-in protection features?
Yes, it includes configurable Over-Voltage Protection (OVP), Over-Current Protection (OCP), and built-in Over-Temperature Protection (OTP).
Q5: Is this power supply suitable for rack mounting?
Yes, it is designed with standard 2U or 3U full-width dimensions, making it ideal for both benchtop testing and standard rack integration.
