IDEALPLUSING ODM Programmable DC Power Supply 48VDC 7.5A 150A 250A with LCD Display High Performance for Production Line Testing
Product Description
ODM Programmable DC Power Supply 48VDC 7.5A 150A 250A with LCD Display High Performance for Production Line Testing
š¢ Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
š

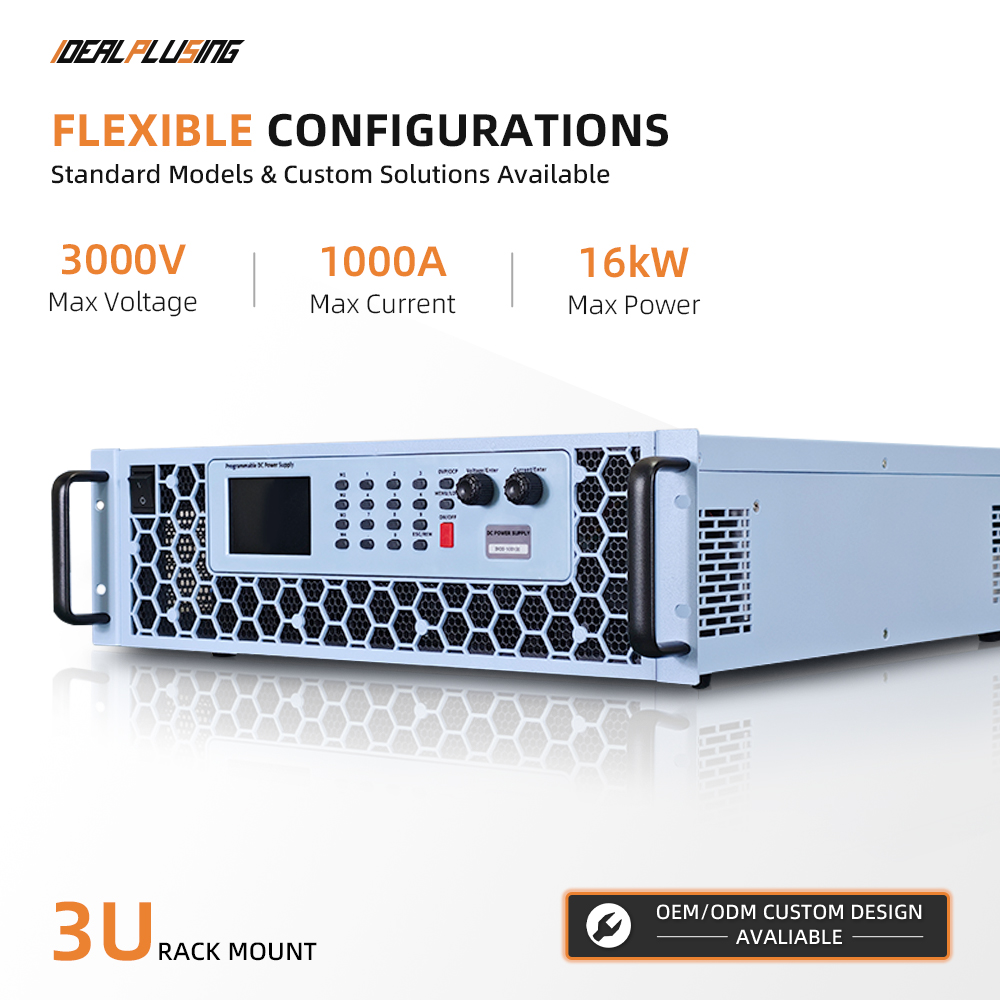

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
š
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
āļø
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
š»
Programmable control over voltage, current, and time outputs.
š¾
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
š
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
šÆ

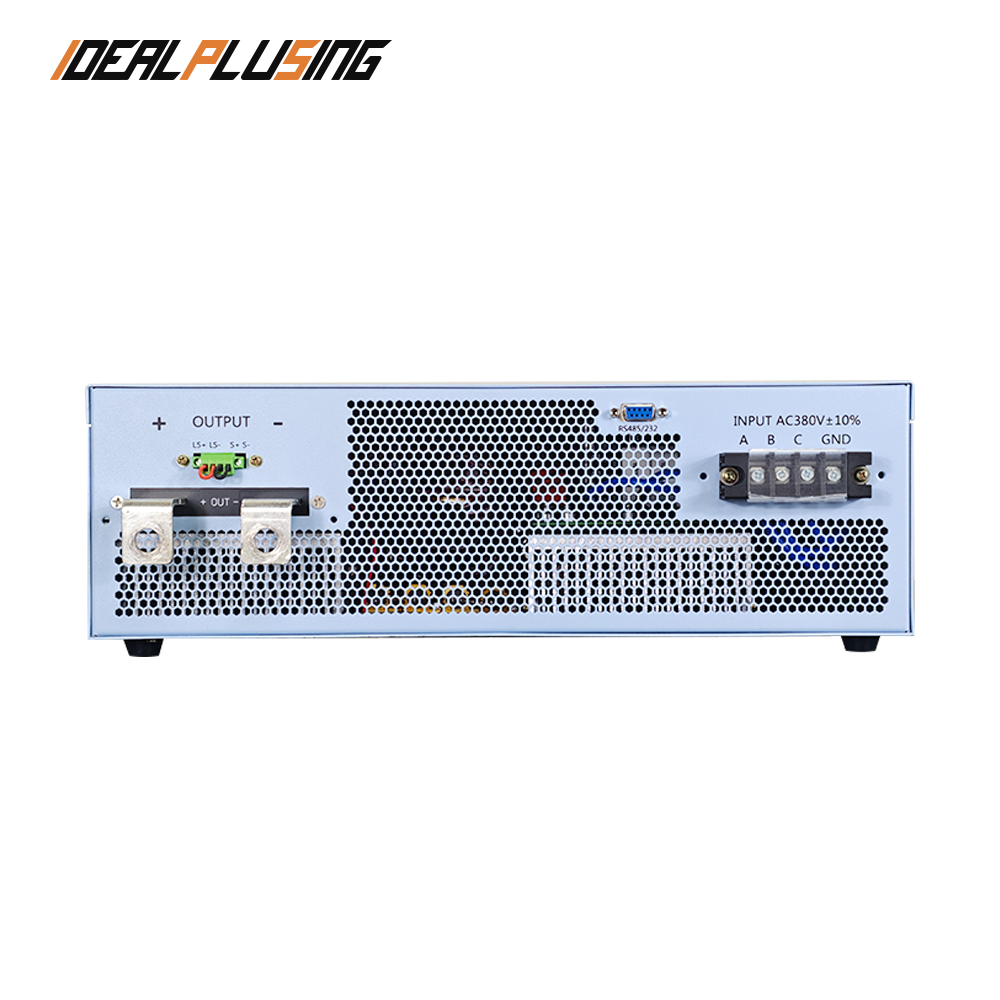

Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
Technical Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10% (50Hz/60Hz) |
| Output Voltage | 0-48VDC Rated Voltage |
| Output Current | 0-250A Rated Current |
| Output Power | 0-12000W Rated Power |
| Regulation Accuracy | Source/Load Regulation ā¤0.1%; Voltage/Current Accuracy ā¤Ā±0.1%FS |
| Ripple (rms) | ā¤0.1%FS+10mV |
| Display Mode | Color LCD Display (5-digit) |
| Protection | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temperature 85āĀ±5%) |
| Communication | RS-485/RS-232 (Support Modbus and SCPI Protocols) |

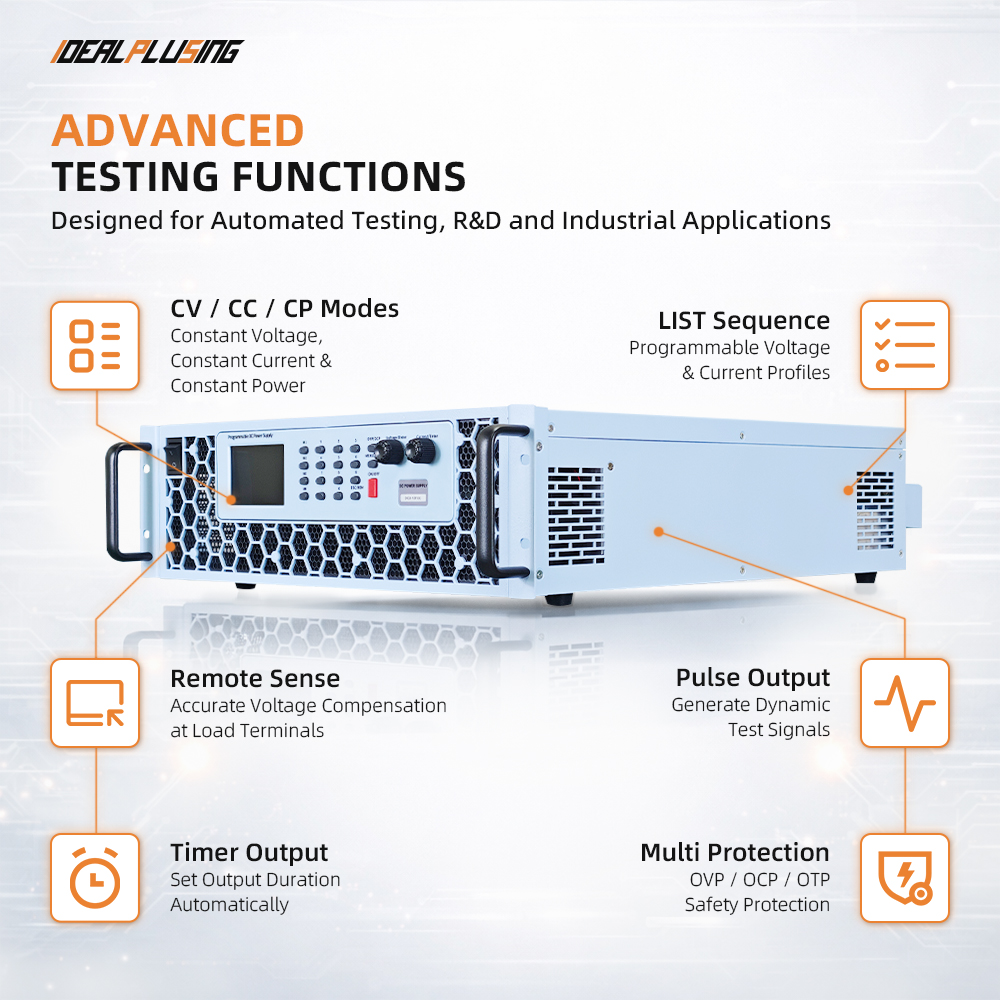

| Functions | CV/CC/CP Modes, Memory Mode, LIST Sequence, Pulse Width Output, Keypad Lock |
| Cooling | Forced Air Cooling |
Hot Selling Models
IPS-DH10-6002
0~600VDC, 2A, 1200W
IPS-DH20-12003
0~1200VDC, 3A, 3600W
IPS-DH10-5001
0~500VDC, 1A, 500W
IPS-DH30-8500
0~8VDC, 500A, 4000W
IPS-DH10-10003
0~1000VDC, 3A, 3000W
IPS-DH20-8005
0~800VDC, 5A, 4000W
Detailed Product Overview
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Application Scope
Power Solutions & Capabilities
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
Frequently Asked Questions (FAQ)
What communication protocols do these power supplies support?
Our programmable DC power supplies come equipped with RS-232 and RS-485 interfaces, fully supporting both Modbus-RTU and SCPI communication protocols for seamless industrial integration.

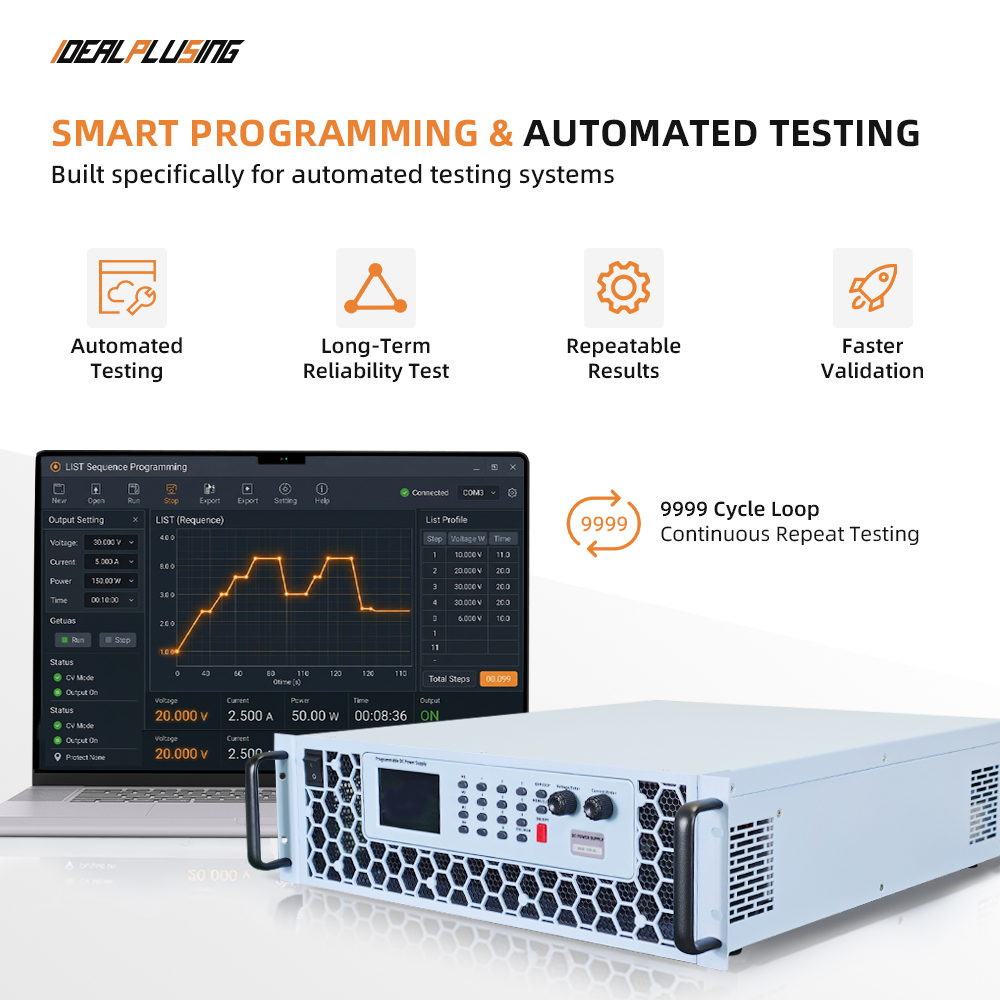

Can I create complex output sequences?
Yes, the built-in memory supports up to 50 programmable steps. You can configure specific voltage, current, and time durations for each step to simulate various testing scenarios.
How does the voltage sensing terminal work?
The dedicated load-side sensing terminals compensate for voltage drops in the connection cables, ensuring the power supply maintains the exact programmed voltage directly at your device under test.
Are the units suitable for rack mounting?
Absolutely. The units are designed with standard 2U or 3U full-width dimensions, making them perfect for both laboratory benchtop use and integration into standard industrial racks.
What safety protections are integrated?
The units feature fully configurable Over-Voltage Protection (OVP) and Over-Current Protection (OCP), along with built-in Over-Temperature Protection (OTP) that triggers if the heatsink reaches 85Ā°C.
Can the output polarity be grounded?
Yes, both the positive (+) and negative (-) output terminals are designed to be floated or grounded arbitrarily according to your specific application requirements.
