OEM/ODM Programmable DC Power Supply 16V 20V 64V 320VDC 50A with Modbus RTU Information-Rich Display for Production Line Testing
Product Description
Programmable DC Power Supply 16V-320V 50A with Modbus RTU
OEM/ODM Information-Rich Display for Production Line Testing
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
š Product Description
1

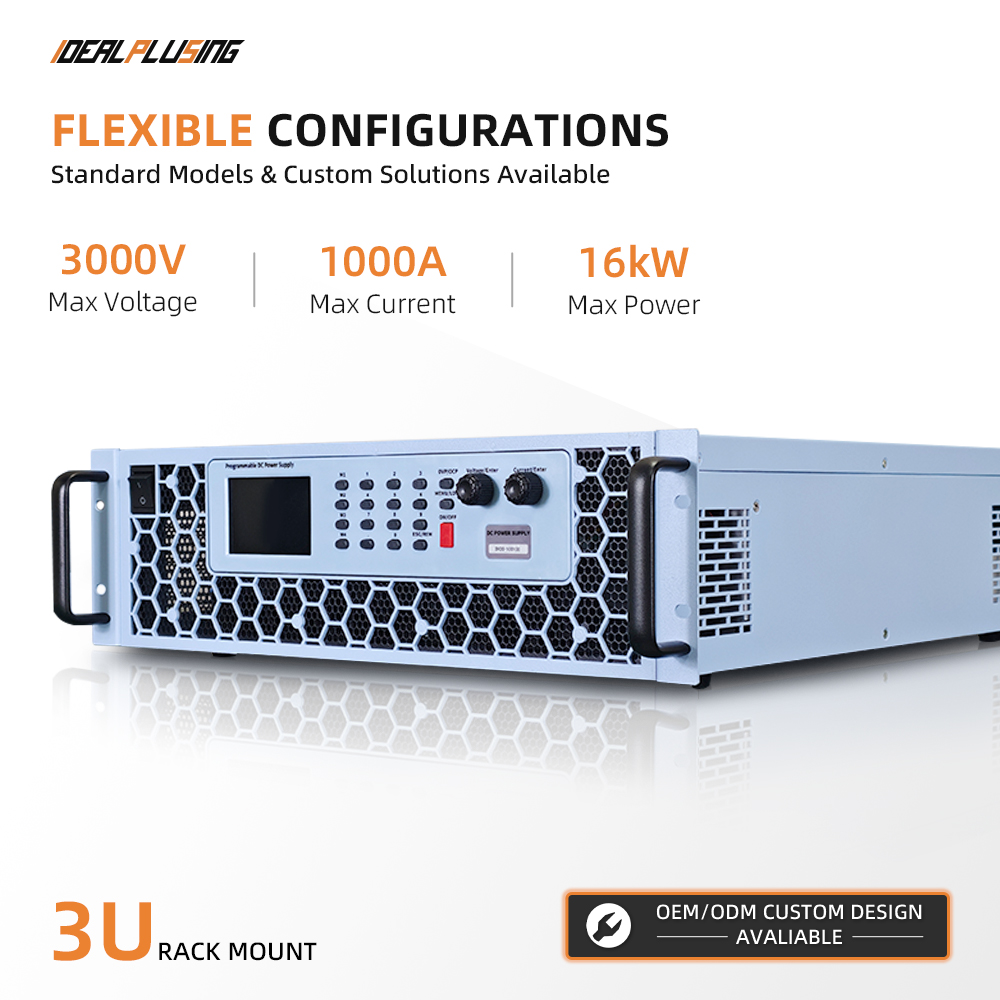

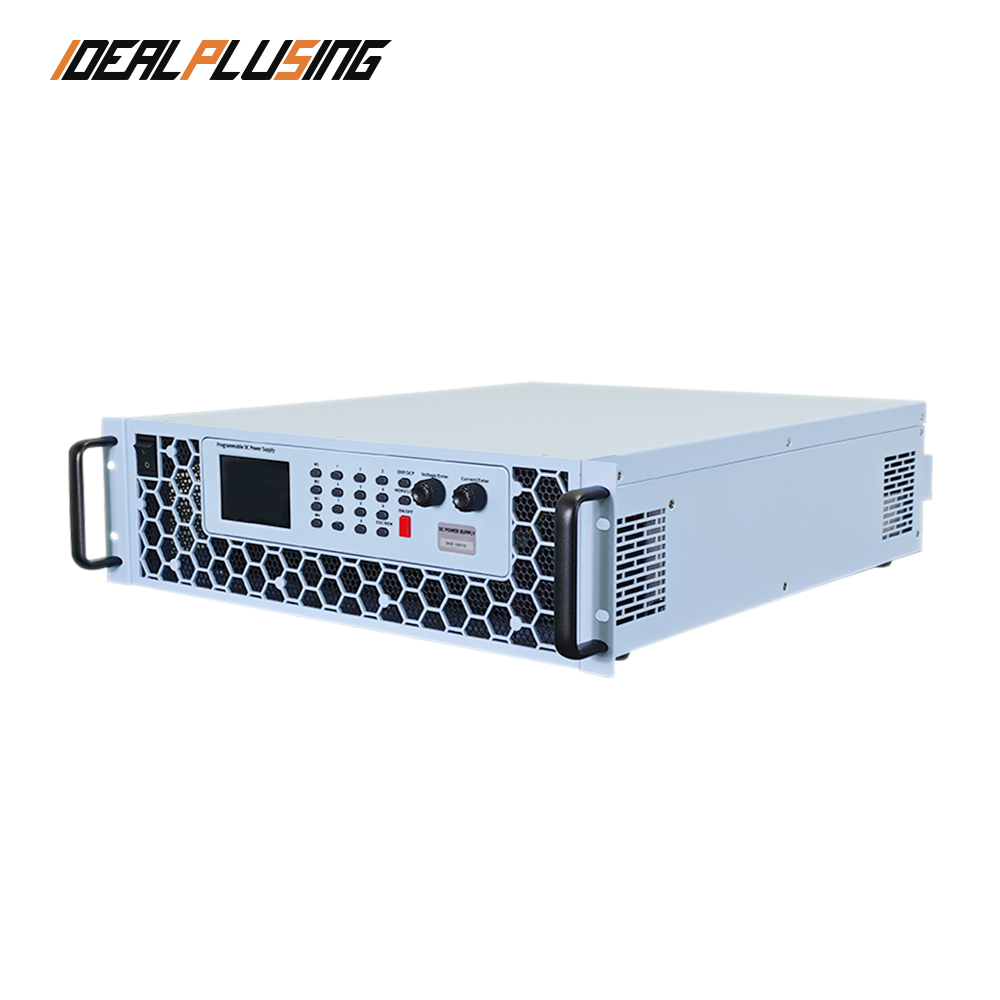

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4

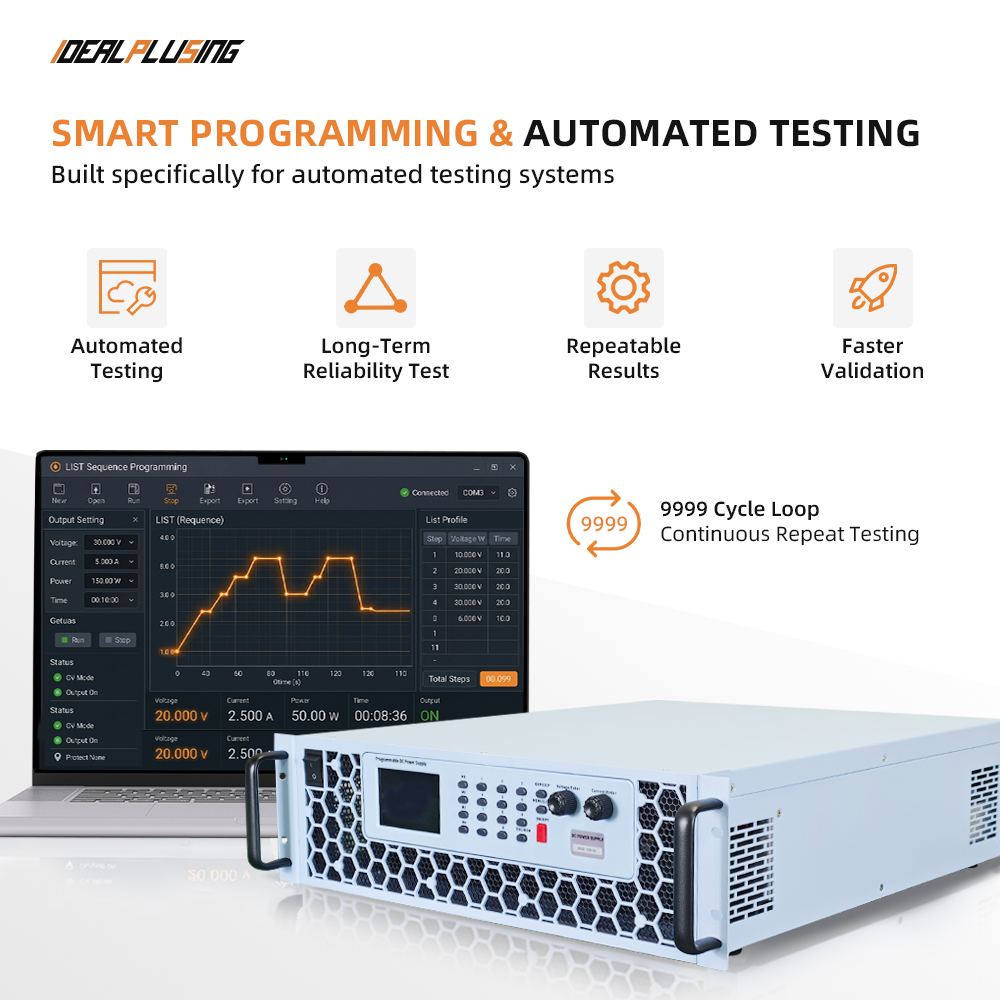

Programmable control over voltage, current, and time outputs.
5
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6

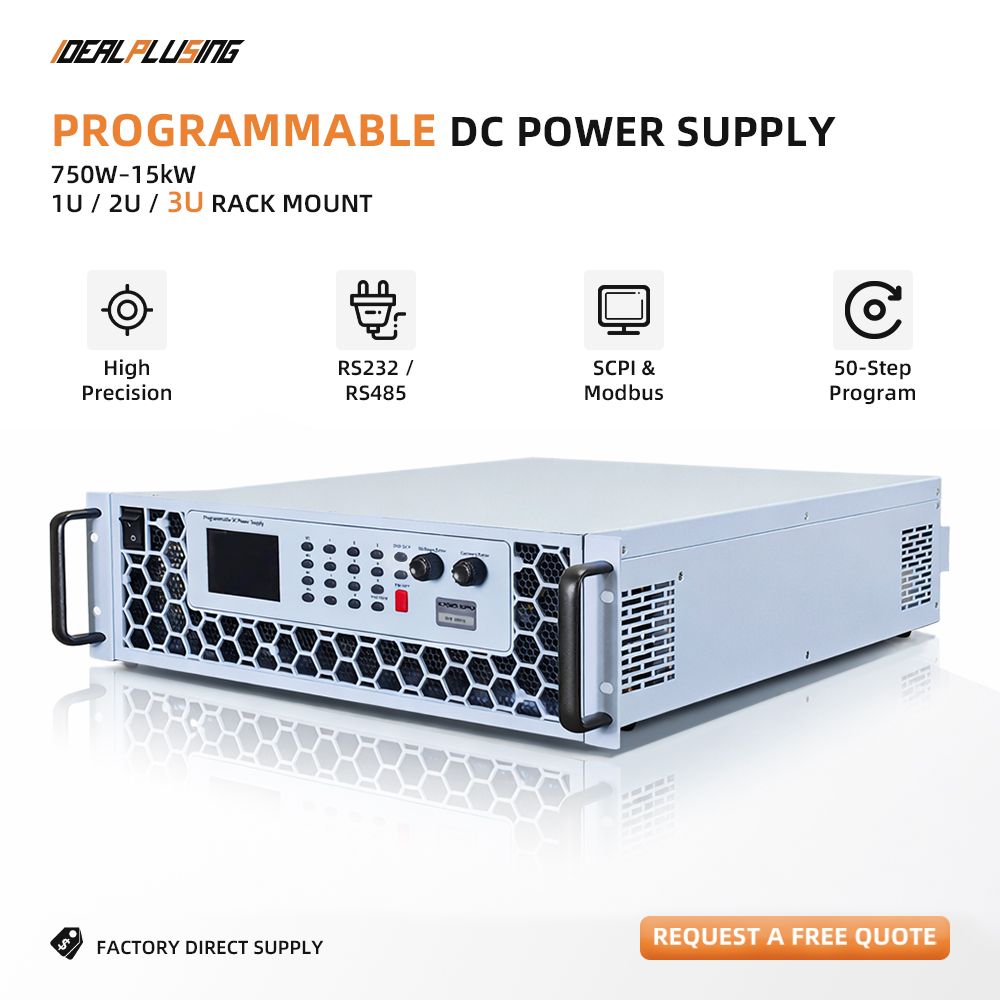

Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
š Specification
| Specifications | 2U/3U Chassis Series Details |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10% (50Hz/60Hz) |
| Output Voltage | 0-320VDC Rated Voltage |
| Output Current | 0-50A Rated Current |
| Output Power | 0-16KW Rated Power |
| Accuracy | Voltage/Current Regulation ≤Ā±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Display Mode | Color LCD Display (5-digit) |
| Protection | OVP, OCP (Configurable via menu), OTP (Threshold 85āĀ±5%) |
| Interface | RS-485/RS-232 (Modbus & SCPI) |
| Functions | CV/CC/CP Modes, Memory, LIST Sequence, Pulse Width Output |
| Cooling | Forced Air Cooling |
| Environment | 0~40ā; Humidity: 10%~85% RH |
*All values are typical values. Accuracy is measured with voltage detection at the load terminal.
š„ Hot Selling Models
IPS-DH10-6002
OUT: 0~600VDC, 0~2A
Max: 1200W
Max: 1200W
IPS-DH20-12003
OUT: 0~1200VDC, 0~3A
Max: 3600W
Max: 3600W
IPS-DH10-5001
OUT: 0~500VDC, 0~1A
Max: 500W
Max: 500W
IPS-DH30-8500
OUT: 0~8VDC, 0~500A
Max: 4000W
Max: 4000W
IPS-DH10-10003
OUT: 0~1000VDC, 0~3A
Max: 3000W
Max: 3000W
IPS-DH20-8005
OUT: 0~800VDC, 0~5A
Max: 4000W
Max: 4000W
š· Product Details
š” Application Scope
Perfectly suited for: Capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
š Model Selection List
| 16000W Series (2U/3U Customization Available) | ||||
|---|---|---|---|---|
| Model | Voltage | Current | Power | Resolution |
| IPS-DH30-20008 | 2000VDC | 8A | 16000W | 100mV/1mA |
| IPS-DH30-100016 | 1000VDC | 16A | 16000W | 100mV/1mA |
| IPS-DH30-32050 | 320VDC | 50A | 16000W | 10mV/1mA |
| IPS-DH30-100160 | 100VDC | 160A | 16000W | 10mV/10mA |
| IPS-DH30-161000 | 16VDC | 1000A | 16000W | 1mV/100mA |
š¢ Service & Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We are committed to giving our customers the right power supply solution with the best items.
ā Frequently Asked Questions
Is the output voltage and current adjustable?
Yes, this is a programmable power supply. Both voltage and current can be adjusted continuously from zero to the rated value via the dual encoder knobs or remote communication.
What communication protocols are supported for system integration?
The power supply comes standard with RS-232 and RS-485 interfaces, supporting both industry-standard Modbus RTU and SCPI communication protocols.
Can I set a specific time for the output to run?
Absolutely. The device features programmable time outputs and a built-in memory that supports up to 50 programmable steps for voltage, current, and time sequences.
Does it provide accurate readings for long-distance loads?
Yes, it is equipped with dedicated load-side voltage sensing terminals (Remote Sense) to compensate for voltage drops in the cables and ensure precise control at the load point.
What safety protections are built into the device?
It includes configurable Over-Voltage Protection (OVP), Over-Current Protection (OCP), and built-in Over-Temperature Protection (OTP) which triggers at 85āĀ±5%.
Can it be used for battery charging or discharge testing?
Yes, it is highly suitable for battery discharge testing and various capacitive/inductive load applications due to its stable CC/CV modes and programmable features.
