ODM/OEM Programmable DC Power Supply 25V 500V 1250VDC 10A with Dual Encoder Multiple Protection for Quality Inspection Systems
Product Description
ODM/OEM Programmable DC Power Supply 25V 500V 1250VDC 10A with Dual Encoder Multiple Protection for Quality Inspection Systems
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
1

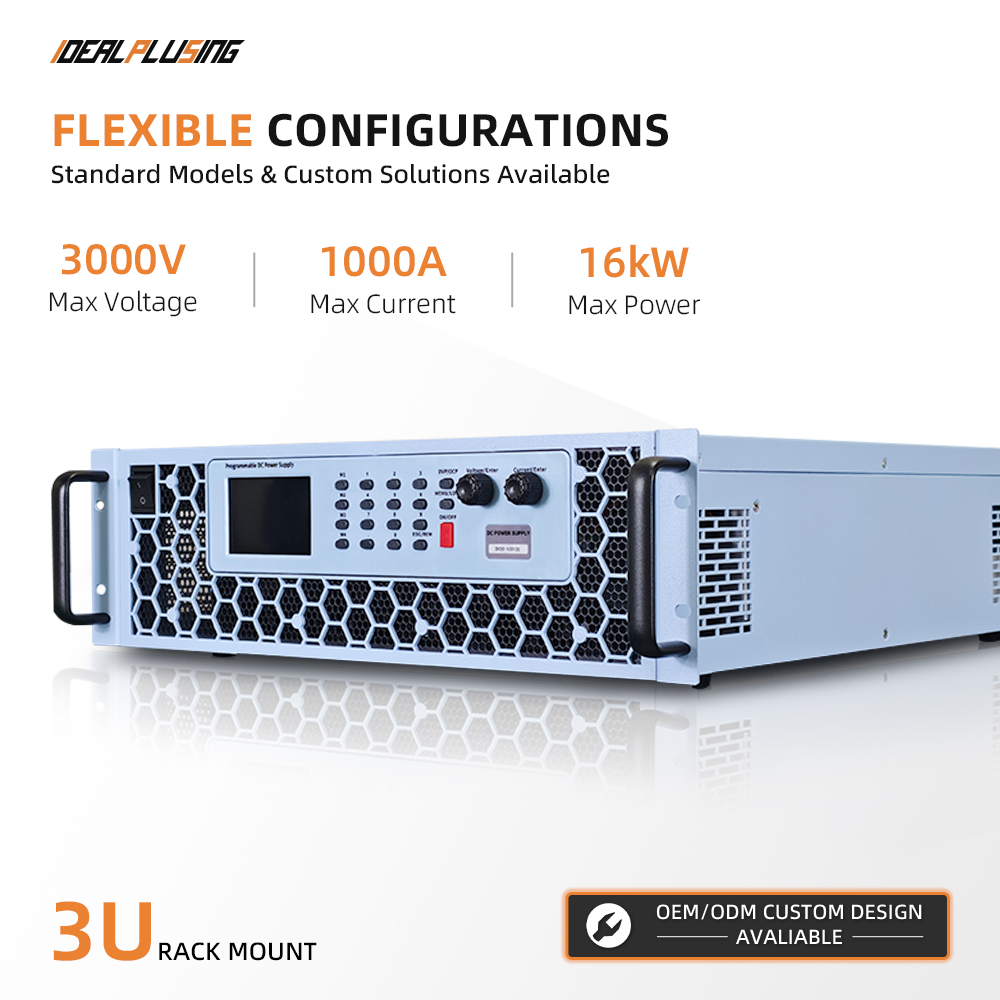

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4
Programmable control over voltage, current, and time outputs.
5
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7

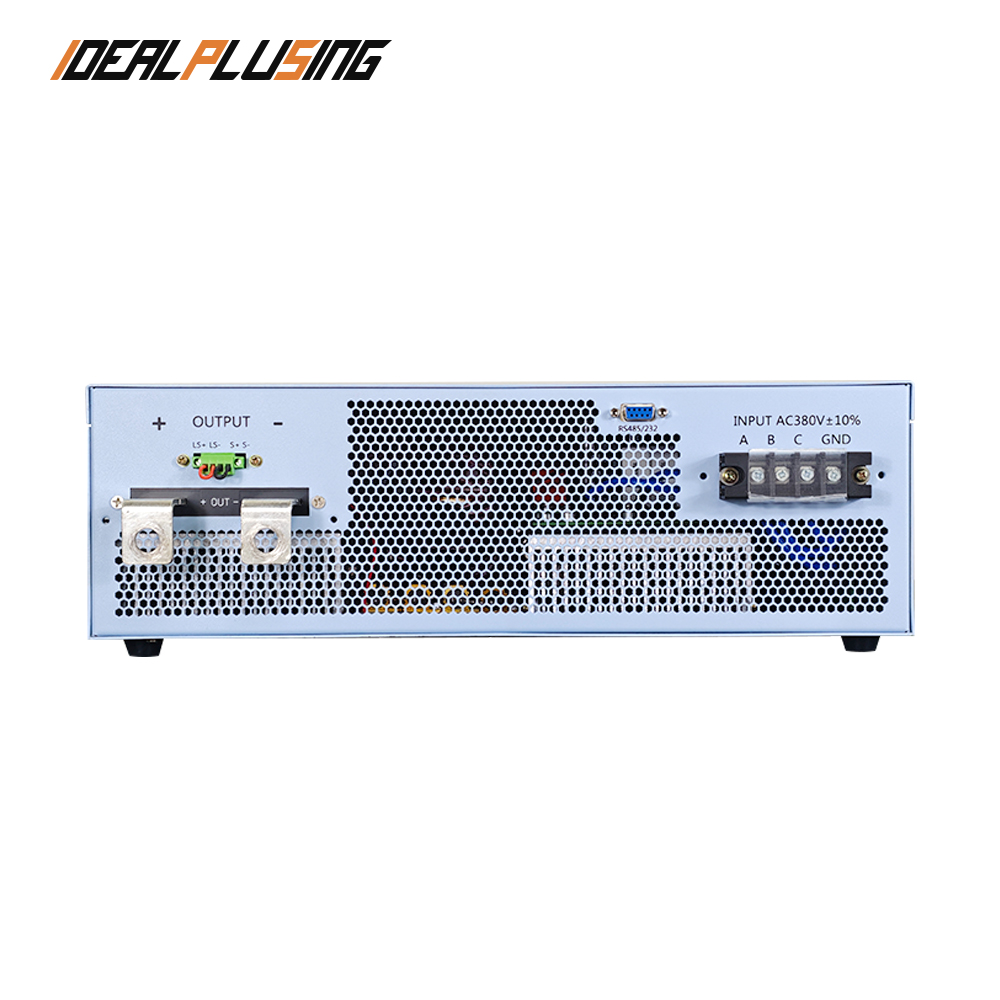

Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220V±10%/Three Phase AC380V±10%; Frequency 50Hz/60Hz |
| Output Voltage | 0-1250VDC Rated Voltage |
| Output Current | 0-10A Rated Current |
| Output Power | 0-12500W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Regulation Accuracy | Voltage: ≤±0.1%FS; Current: ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Setting Accuracy | Voltage: ±0.1%FS+10mV; Current: ±0.1%FS+10mA |
| Readback Accuracy | 5-digit Meter, ±0.1%FS+3 digits (10%-100% Rated Value) |
| Display Mode | Color LCD Display |
| Protection | OVP/OCP (configurable), OTP (85℃±5% heatsink temp) |
| Communication | RS-485/RS-232 (Modbus and SCPI) |

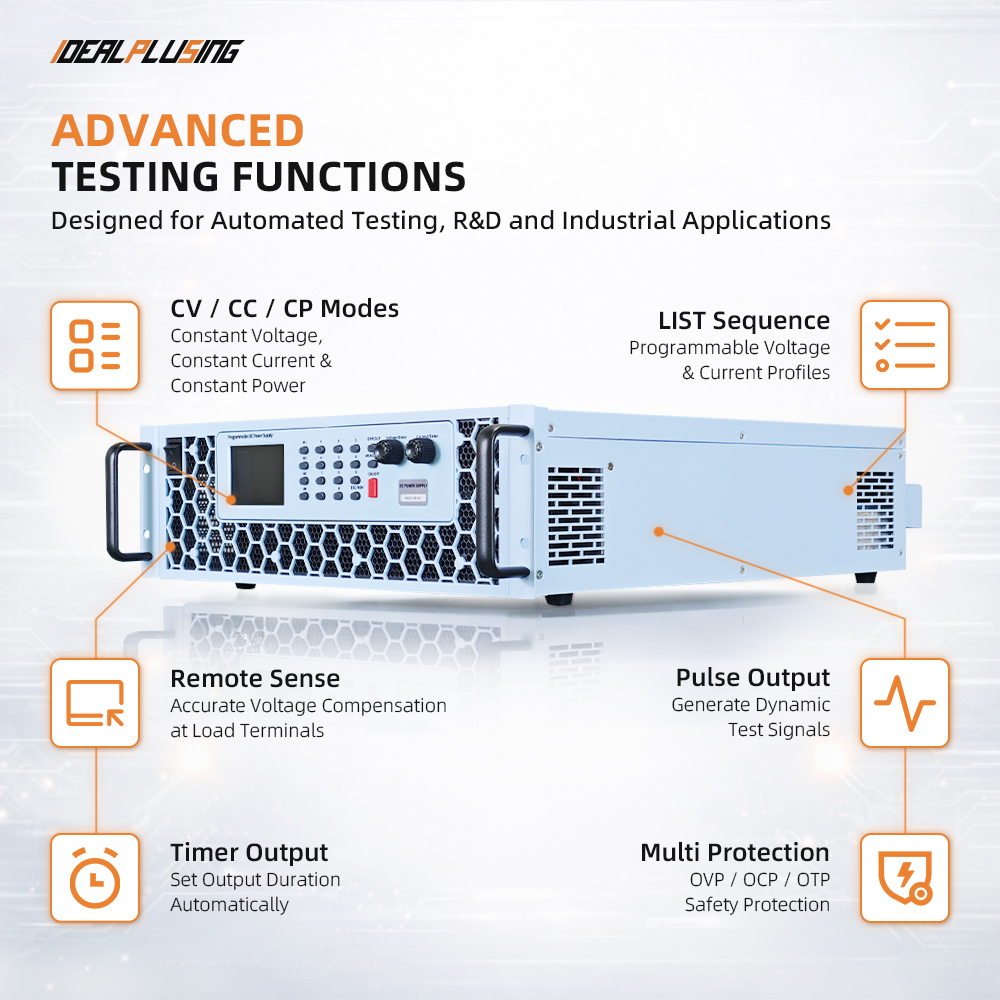

| Functions | CV/CC/CP Mode, Memory Mode, LIST Sequence, Pulse Width Output, 9999 Cycles. |
| Environment | Operating: 0℃～40℃, 10%～85% RH; Storage: -20℃～70℃ |
Description: All values are typical. Deviations may occur due to temperature and aging. FS: Full Scale.
IPS-DH10-6002
600VDC, 2A, 1200W
IPS-DH20-12003
1200VDC, 3A, 3600W
IPS-DH10-5001
500VDC, 1A, 500W
IPS-DH30-8500
8VDC, 500A, 4000W
IPS-DH10-10003
1000VDC, 3A, 3000W
IPS-DH20-8005
800VDC, 5A, 4000W

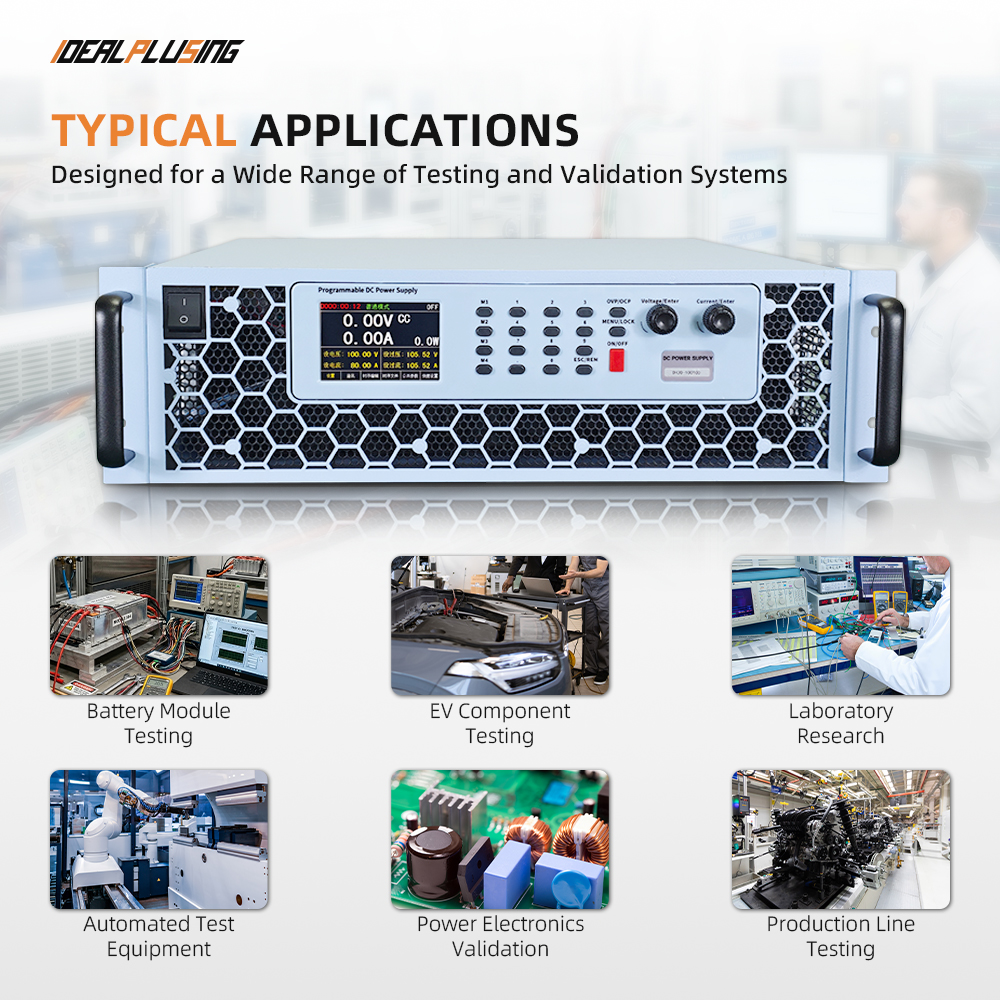

Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
| No | Model | Voltage(V) | Current(A) | Power(W) | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH30-25005 | 2500VDC | 5A | 12500W | 100mV/0.1mA |
| 2 | IPS-DH30-125010 | 1250VDC | 10A | 12500W | 100mV/1mA |
| 3 | IPS-DH30-50025 | 500VDC | 25A | 12500W | 10mV/1mA |
| 4 | IPS-DH30-25050 | 250VDC | 50A | 12500W | 10mV/1mA |
| 5 | IPS-DH30-125100 | 125VDC | 100A | 12500W | 10mV/10mA |
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
Frequently Asked Questions (FAQ)
Q1: Can this power supply be integrated into an automated test system?
A1: Yes, it features RS-232/485 interfaces and supports standard Modbus-RTU and SCPI protocols, making it ideal for integration into quality inspection and automated test systems.
Q2: What is the benefit of the dual encoder design?
A2: The dual encoders allow for independent and precise adjustment of both voltage and current settings, providing a much more intuitive and user-friendly operation compared to single-knob designs.
Q3: How does the load-side voltage sensing work?
A3: The dedicated sensing terminals compensate for voltage drops across the output leads, ensuring the power supply measures and maintains the precise set voltage directly at the load.
Q4: Does the unit support complex output sequences?
A4: Yes, the built-in memory supports LIST mode, allowing you to program up to 50 steps of varying voltage, current, and duration for cyclic testing.
Q5: Is this power supply protected against overheating?
A5: Absolutely. It includes built-in Over-Temperature Protection (OTP) that triggers if the heatsink temperature reaches 85℃±5%, along with configurable OVP and OCP.
Q6: Can I use this for both benchtop and rack-mounted applications?
A6: Yes, the standard 2U/3U dimensions are designed for easy installation in industrial racks, while the compact design and clear display also make it perfect for laboratory benchtop use.
