ODM/OEM IDEALPLUSING Programmable DC Power Supply 520V 2600VDC 5A with Modbus RTU Flexible Programming for Research Laboratories
Product Description
Programmable DC Power Supply 520V 2600VDC 5A
Modbus RTU Flexible Programming for Research Laboratories
⚠️ Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your trust.
Product Description
📏

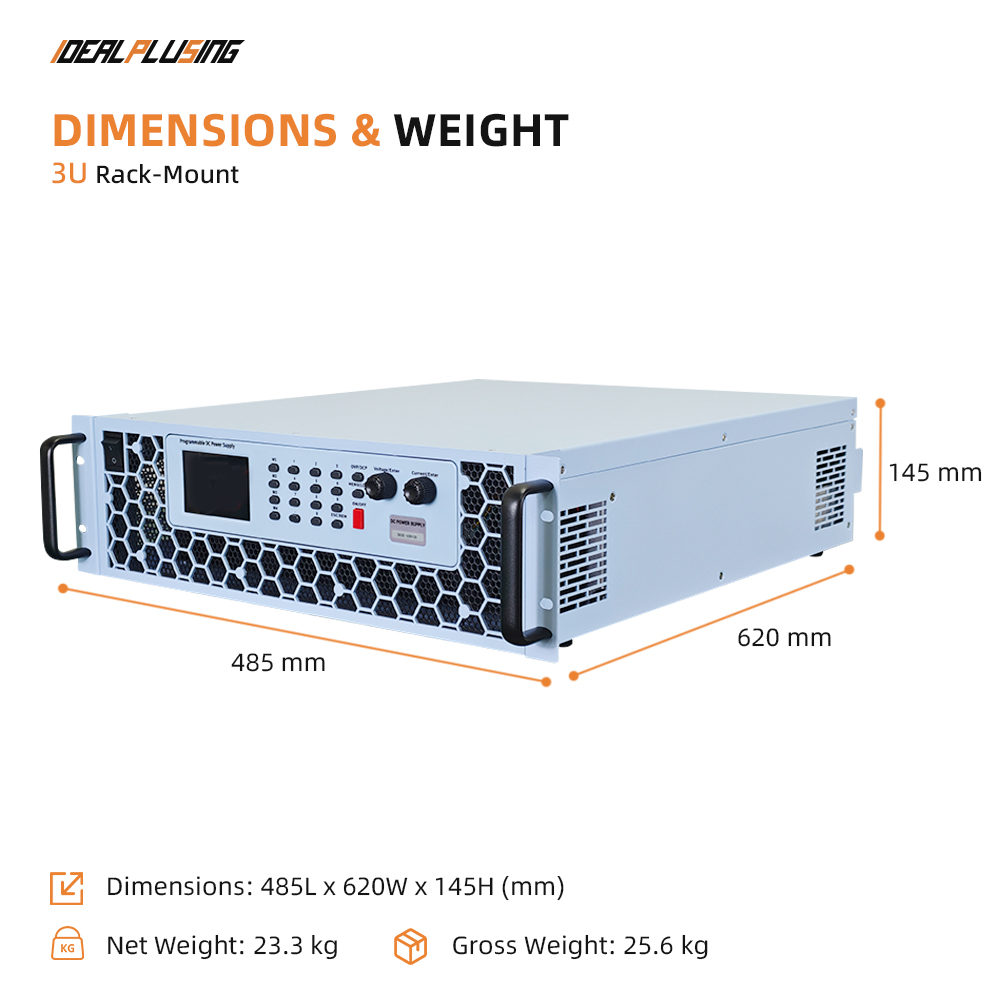

Standard 2U/3U full-width dimensions; compact design suitable for both benchtop use and rack mounting.
📺

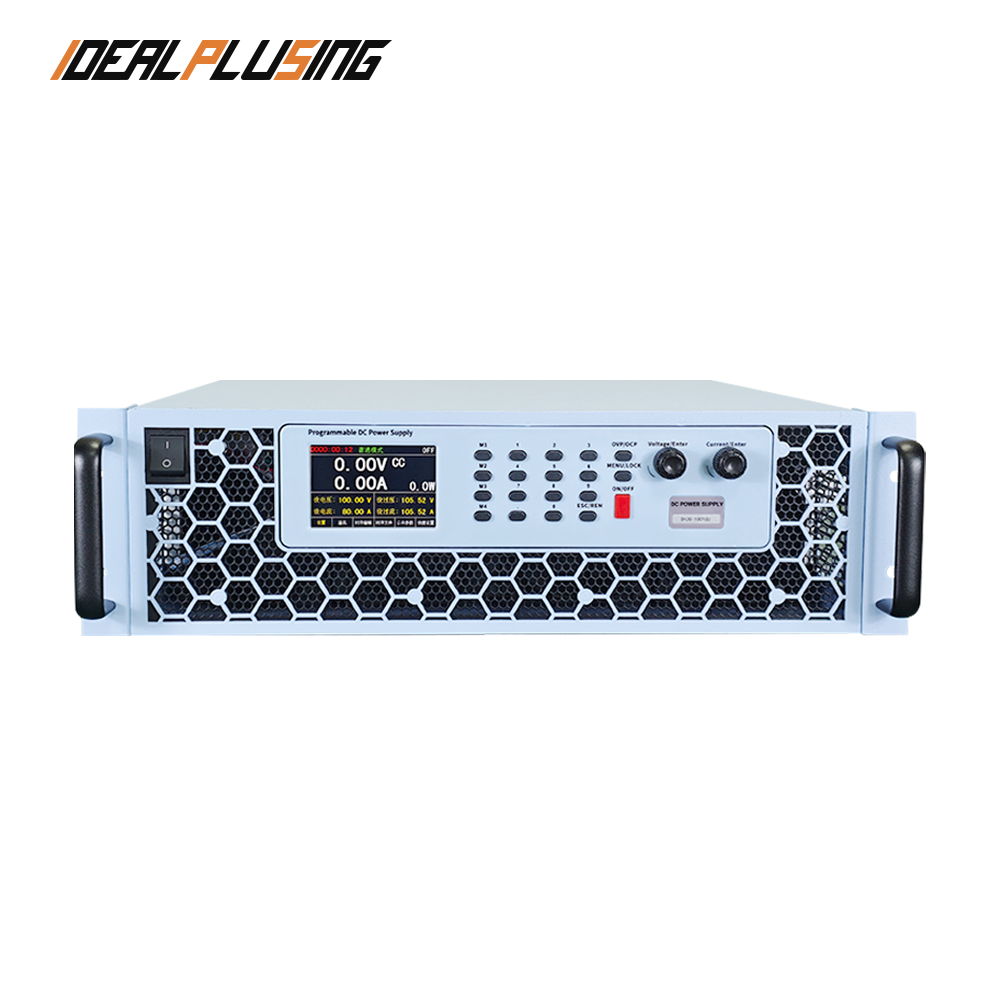

Clear 5-digit LCD screen provides comprehensive real-time information.
⚙️
Dual encoders for precise voltage and current adjustment ensure user-friendly operation.
📑

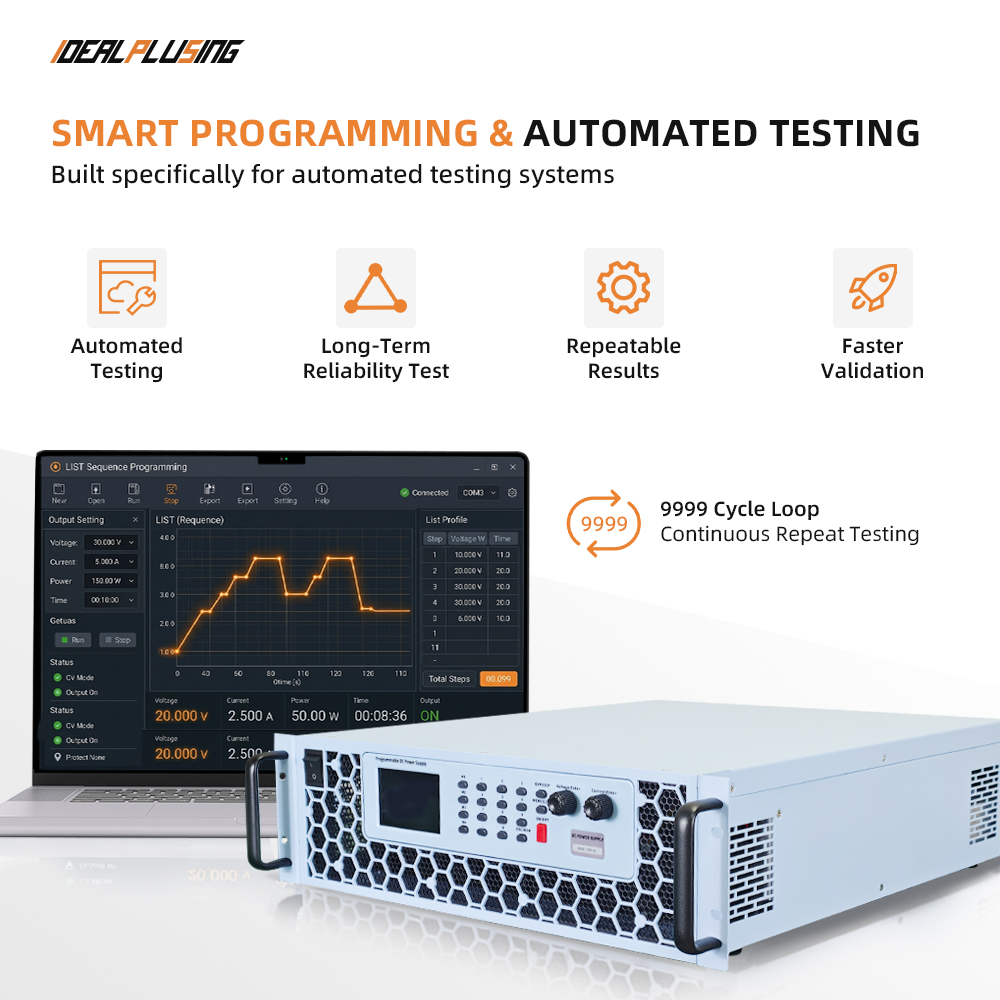

Programmable control over voltage, current, and time outputs with up to 50 memory steps.
💻

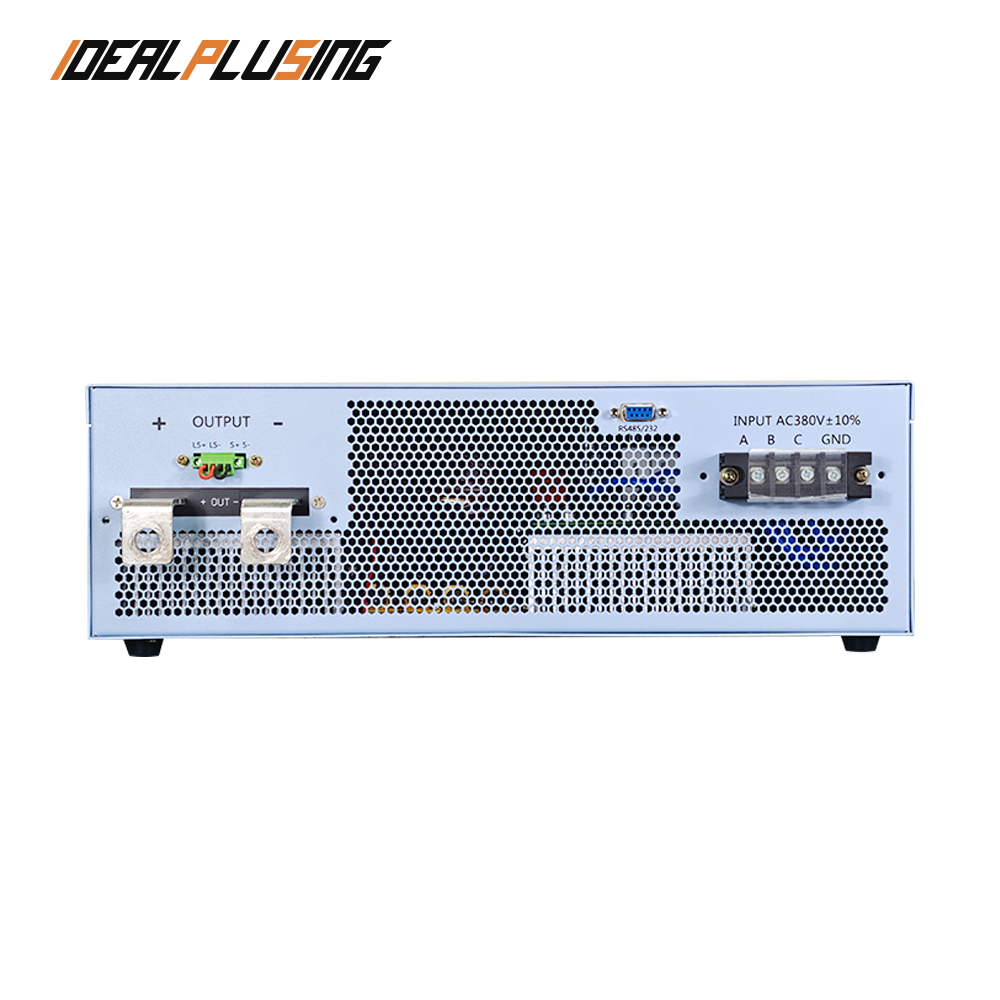

Features RS-232/485 interfaces, supporting Modbus-RTU and SCPI protocols.
🎯
Dedicated load-side voltage sensing terminals for accurate measurement and precise control.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Chassis Series | 2U/3U Series |
| Power Range | 3KW - 15KW |
| AC Input | 1-Phase 220V±10% / 3-Phase 380V±10% (50Hz/60Hz) |
| Output Voltage | 0-2600VDC Rated |
| Output Current | 0-5A Rated |
| Regulation Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Protection | OVP, OCP (User configurable), OTP (85℃ threshold) |
| Display | Color LCD Display (5-digit) |
| Interface | RS-485/RS-232 (Modbus & SCPI) |
| Operating Temp | 0℃ ～ 40℃; Humidity: 10% ～ 85% RH |
* All values are typical and may vary under different loads or conditions. Accuracy measured at load terminal.
Hot Selling Models
IPS-DH10-6002
• AC IN: 1ph 220VAC
• DC OUT: 0~600V, 0~2A
• Max Power: 1200W
• DC OUT: 0~600V, 0~2A
• Max Power: 1200W
IPS-DH20-12003
• AC IN: 1ph 220VAC
• DC OUT: 0~1200V, 0~3A
• Max Power: 3600W
• DC OUT: 0~1200V, 0~3A
• Max Power: 3600W
IPS-DH10-5001
• AC IN: 1ph 220VAC
• DC OUT: 0~500V, 0~1A
• Max Power: 500W
• DC OUT: 0~500V, 0~1A
• Max Power: 500W
IPS-DH30-8500
• AC IN: 1ph 220VAC
• DC OUT: 0~8V, 0~500A
• Max Power: 4000W
• DC OUT: 0~8V, 0~500A
• Max Power: 4000W
IPS-DH10-10003
• AC IN: 1ph 220VAC
• DC OUT: 0~1000V, 0~3A
• Max Power: 3000W
• DC OUT: 0~1000V, 0~3A
• Max Power: 3000W
IPS-DH20-8005
• AC IN: 1ph 220VAC
• DC OUT: 0~800V, 0~5A
• Max Power: 4000W
• DC OUT: 0~800V, 0~5A
• Max Power: 4000W
Detailed View
This programmable DC power supply is engineered for capacitive load testing, inductive load testing, battery discharge analysis, pulsed load applications, and advanced motor drive testing.
Application Scenarios
Our Commitment
We focus on the research, development, and service of high-quality power solutions, including DC power supplies, AC to DC rectifiers, and specialized chargers. Our goal is to provide personalized, efficient, and reliable power supply solutions for global industries. We don't just provide equipment; we provide the right technical solution for your specific requirements.
Frequently Asked Questions
Does this power supply support remote control?
Yes, it features RS-232 and RS-485 communication interfaces and supports both Modbus-RTU and SCPI protocols for seamless remote integration.
Can I program different voltage steps?
Absolutely. The built-in memory supports up to 50 programmable steps for voltage, current, and timing, making it ideal for automated testing cycles.
What safety features are included?
The unit is equipped with Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to ensure the safety of both the equipment and the load.
Is the display accurate enough for laboratory use?
Yes, it features a 5-digit high-precision color LCD display with a regulation accuracy of ≤±0.1%FS, meeting the requirements of research laboratories.
What cooling method is used?
The power supply utilizes forced air cooling with internal fans to maintain optimal operating temperatures during high-power output.
Can the unit be mounted in a standard rack?
Yes, the 2U/3U chassis designs are specifically tailored for both benchtop testing and standard industrial rack mounting.
