IDEALPLUSING OEM/ODM Programmable DC Power Supply 25VDC 4A 40A 80A 400A with RS232 Full Width Chassis for Automated Test Systems
Product Description
Programmable DC Power Supply 25VDC 4A 40A 80A 400A
Full Width Chassis for Automated Test Systems with RS232 Communication.
💡 Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions.
Product Description

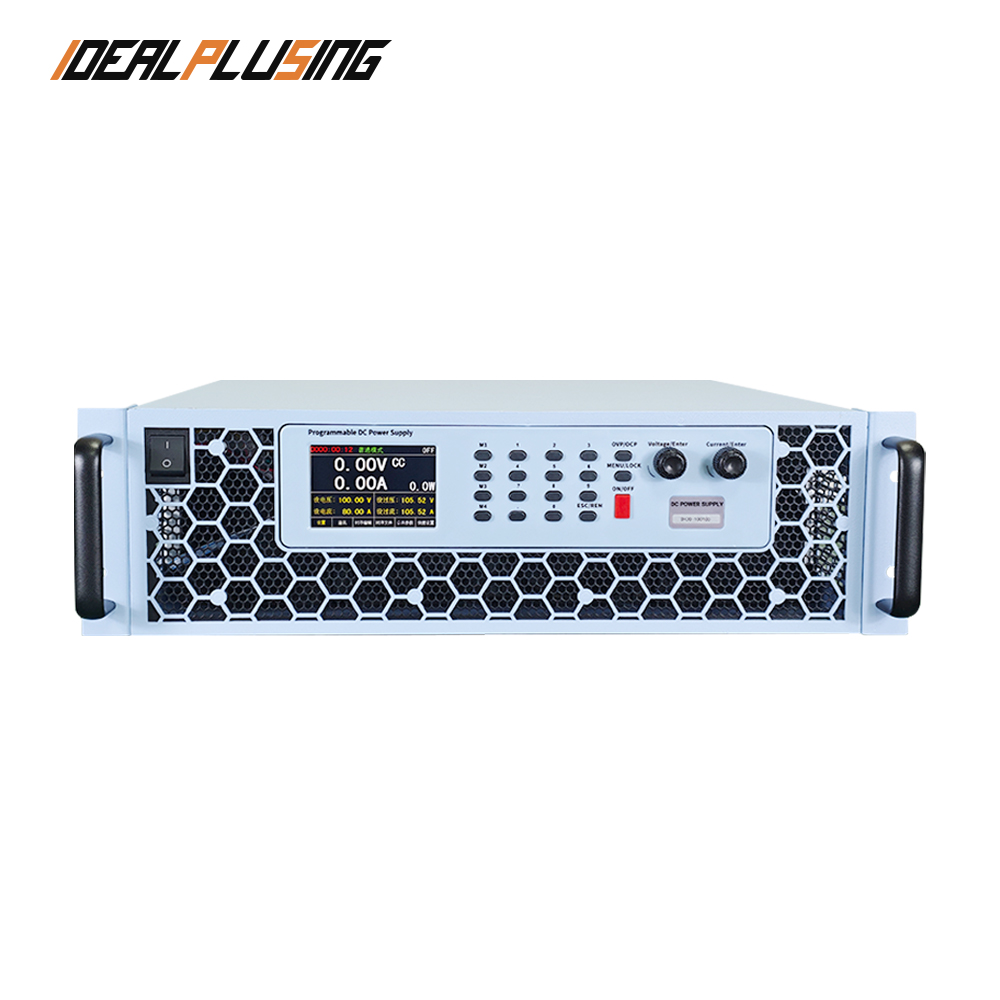

- Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
- Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
- Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
- Programmable control over voltage, current, and time outputs.
- Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
- Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.

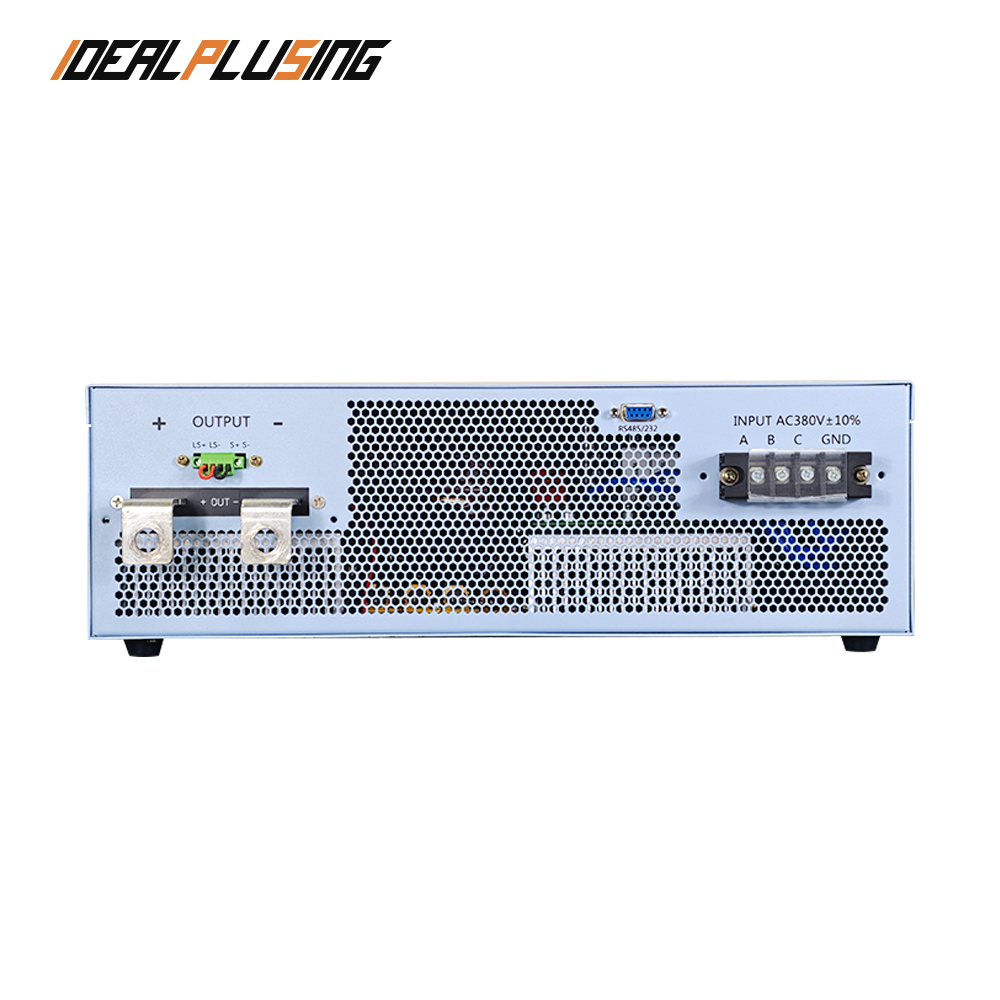

- Equipped with dedicated load-side voltage sensing terminals for accurate measurement.
Technical Specifications
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10% (50Hz/60Hz) |
| Output Voltage | 0-25VDC Rated Voltage |
| Output Current | 0-400A Rated Current |
| Output Power | 0-10000W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Voltage Regulation Accuracy | ≤±0.1%FS |
| Display Mode | Color LCD Display |
| Protection | OVP, OCP, OTP (85℃±5%) Configurable |
| Functions | CV / CC / CP Mode, Memory Mode, LIST Sequence Cycle, Pulse Width Output |
| Environment | Indoor Use, 0℃～40℃; Humidity: 10%～85% RH |
* FS: Full Scale; All values are typical and may vary under different loads.
Hot Selling Models
IPS-DH10-6002
0~600VDC, 0~2A
Max: 1200W
IPS-DH20-12003
0~1200VDC, 0~3A
Max: 3600W
IPS-DH10-5001
0~500VDC, 0~1A
Max: 500W
IPS-DH30-8500
0~8VDC, 0~500A
Max: 4000W
IPS-DH10-10003
0~1000VDC, 0~3A
Max: 3000W
IPS-DH20-8005
0~800VDC, 0~5A
Max: 4000W
Details Images
Application Scope
This series is widely used in:
- Capacitive and inductive load testing applications.
- Battery discharge testing and management.
- Pulsed load testing and simulation.
- Motor drive and power electronics testing.
Series Model List
| 10000W Series (Customization Available) | ||||
|---|---|---|---|---|
| Model | Voltage | Current | Power | Resolution |
| IPS-DH30-25004 | 2500VDC | 4A | 10000W | 100mV/0.1mA |
| IPS-DH30-100010 | 1000VDC | 10A | 10000W | 100mV/1mA |
| IPS-DH30-50200 | 50VDC | 200A | 10000W | 1mV/10mA |
| IPS-DH30-25400 | 25VDC | 400A | 10000W | 1mV/10mA |
| IPS-DH30-101000 | 10VDC | 1000A | 10000W | 1mV/100mA |
Professional Solutions
We focus on the research and development of DC power supply modules, AC to DC rectifiers, and high-power inverter systems. Our goal is to provide personalized, efficient, and reliable power solutions across all industries. We don't just sell products; we deliver the right engineering solutions tailored to your requirements.
Frequently Asked Questions (FAQ)
What are the main communication protocols supported?
The power supply supports RS-232 and RS-485 interfaces, compatible with both Modbus-RTU and SCPI standard protocols for easy integration into automated systems.
Can I customize the output voltage and current?
Yes, we provide OEM/ODM services. Specific voltage and current ranges can be customized according to your application requirements.
How does the "Remote Sensing" function work?
The dedicated load-side sensing terminals allow the power supply to compensate for voltage drops in the connection cables, ensuring the load receives the exact programmed voltage.
What safety protections are built into the unit?
It features comprehensive Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to ensure equipment safety.
Is the power supply suitable for 19-inch rack mounting?
Yes, the 2U and 3U chassis designs are standard full-width dimensions, making them ideal for standard industrial rack installations.
What is the advantage of the 5-digit display?
The high-resolution 5-digit LCD provides precise readbacks for both voltage and current, allowing for highly accurate monitoring during sensitive tests.
