IDEALPLUSING ODM Programmable DC Power Supply 56V 1750V 2800VDC 5A 14000W with SCPI Protocol Compact for Automated Test Systems
Product Description
ODM Programmable DC Power Supply 56V 1750V 2800VDC 5A 14000W
High-performance solution with SCPI Protocol for Automated Test Systems.
ā” Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. Online prices are for preliminary budget reference only.
Product Description
š
Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
š„ļø

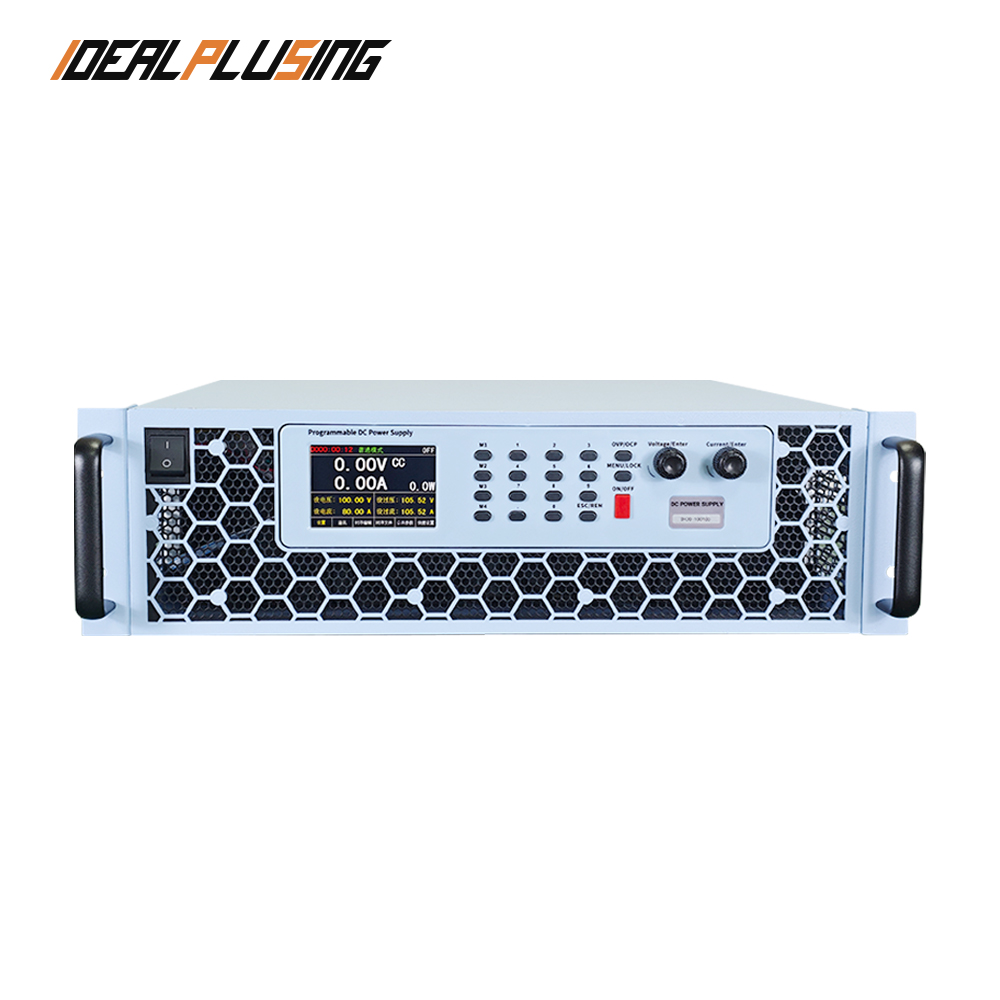

Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
āļø
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
š
Programmable control over voltage, current, and time outputs.
š¾
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
š
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
šÆ

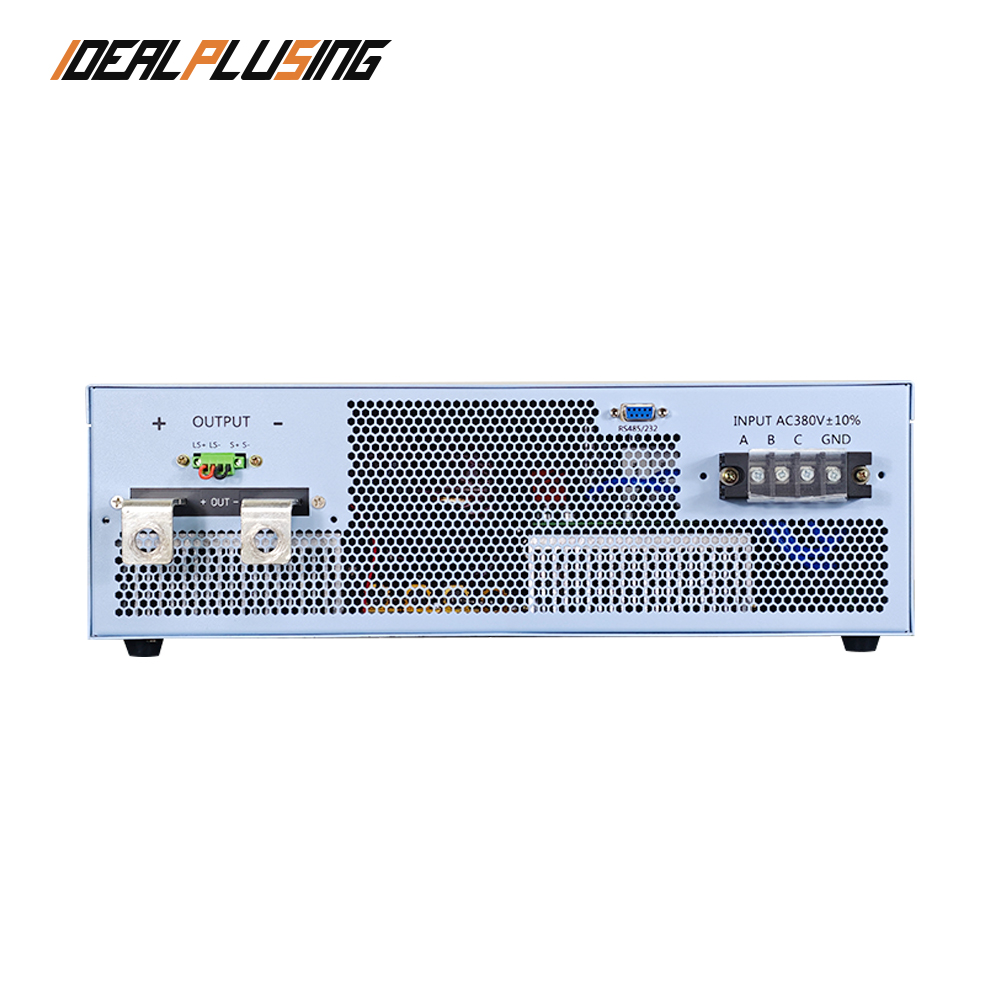

Equipped with dedicated load-side voltage sensing terminals for accurate measurement at the load.
Technical Specifications
| Specifications | 2U/3U Chassis Series Details |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10% (50Hz/60Hz) |
| Output Voltage | 0-2800VDC Rated Voltage |
| Output Current | 0-5A Rated Current |
| Output Power | 0-14KW Rated Power |
| Regulation | Source: ā¤0.1%+10mV; Load: ā¤0.1%+30mV |
| Accuracy | Voltage/Current Regulation: ā¤Ā±0.1%FS |
| Ripple (rms) | ā¤0.1%FS+10mV |
| Display | Color LCD Display (5-digit) |
| Protection | OVP, OCP (Configurable via menu), OTP (Threshold 85āĀ±5%) |
| Interface | RS-485/RS-232 (Modbus & SCPI Protocols) |
| Functions | CV/CC/CP Modes, Memory, LIST Sequence, Pulse Width Output |
| Cooling | Forced Air Cooling |
Hot Selling Models
IPS-DH10-6002
0~600VDC, 0~2A, 1200W
IPS-DH20-12003
0~1200VDC, 0~3A, 3600W
IPS-DH10-5001
0~500VDC, 0~1A, 500W
IPS-DH30-8500
0~8VDC, 0~500A, 4000W
IPS-DH10-10003
0~1000VDC, 0~3A, 3000W
IPS-DH20-8005
0~800VDC, 0~5A, 4000W
Product Detailed View
Application Scope
Ideal for capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
Model Selection List
| 14KW Series Models (Customization Available) | ||||
|---|---|---|---|---|
| Model | Voltage | Current | Power | Resolution |
| IPS-DH30-28005 | 2800VDC | 5A | 14000W | 100mV/0.1mA |
| IPS-DH30-17508 | 1750VDC | 8A | 14000W | 100mV/1mA |
| IPS-DH30-56025 | 560VDC | 25A | 14000W | 10mV/1mA |
| IPS-DH30-56250 | 56VDC | 250A | 14000W | 1mV/10mA |
| IPS-DH30-141000 | 14VDC | 1000A | 14000W | 1mV/100mA |
About Our Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We provide the right power supply solution with optimized quotations to meet your specific project needs.
Frequently Asked Questions (FAQ)
Does this power supply support remote control?
Yes, it features RS-232 and RS-485 interfaces and supports both Modbus-RTU and SCPI communication protocols for seamless integration into automated test systems.
Can I customize the output voltage and current?
Absolutely. We offer customization for various voltage and current ranges within the 2U/3U chassis series to meet your specific requirements.
What safety protections are built into the unit?
The unit is equipped with Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to ensure the safety of both the device and the load.
Is the display clear enough for high-precision monitoring?
Yes, it uses a 5-digit high-precision color LCD display that provides clear readouts of voltage, current, and power simultaneously.
Can it be used for battery charging or discharge testing?
Yes, the programmable features and stable CV/CC modes make it ideal for battery testing, including discharge cycles and capacity measurement.
What is the "load-side voltage sensing" feature?
The dedicated sensing terminals compensate for voltage drops in the connection leads, ensuring that the exact programmed voltage is delivered directly to the load terminals.
