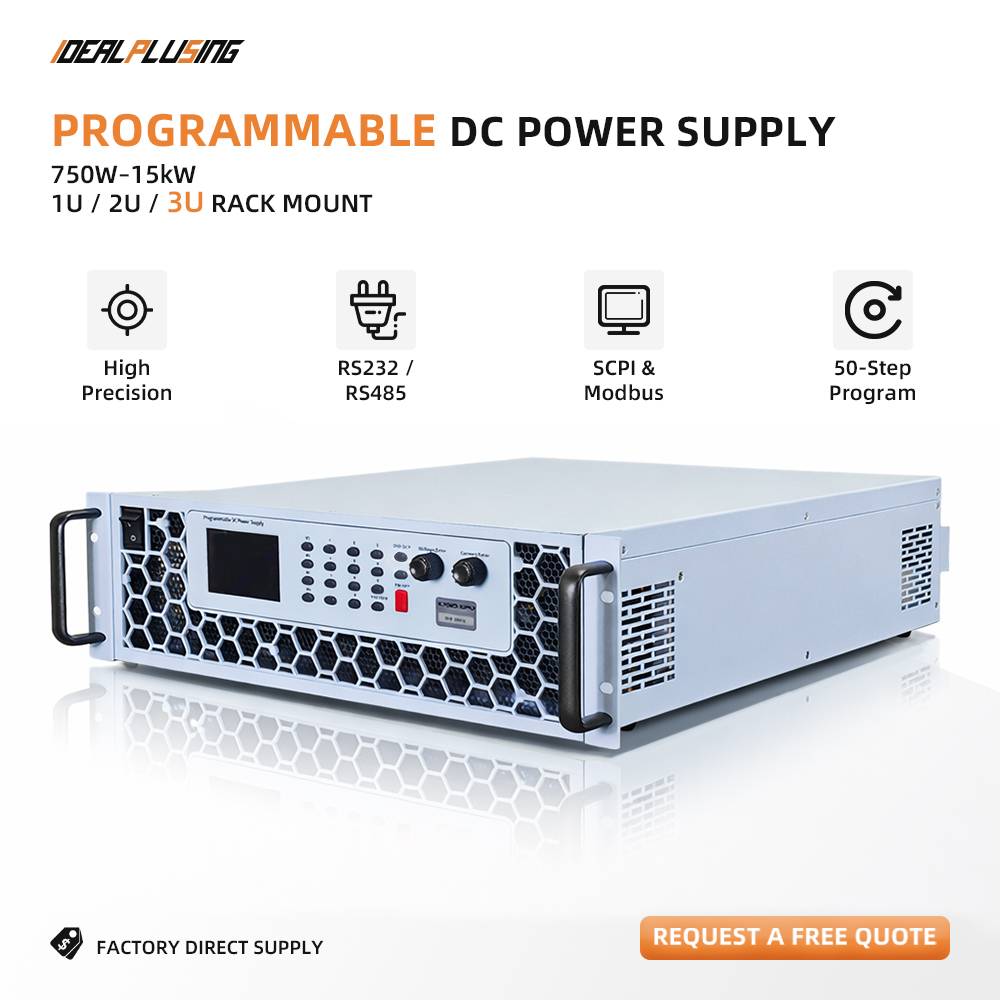

IDEALPLUSING OEM/ODM Programmable DC Power Supply 800V 1600V 2000VDC 6A with RS485 Intelligent High Accuracy for Burn-in Testing
Product Description
Programmable DC Power Supply
800V 1600V 2000VDC | 6A | RS485 Intelligent High Accuracy
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description

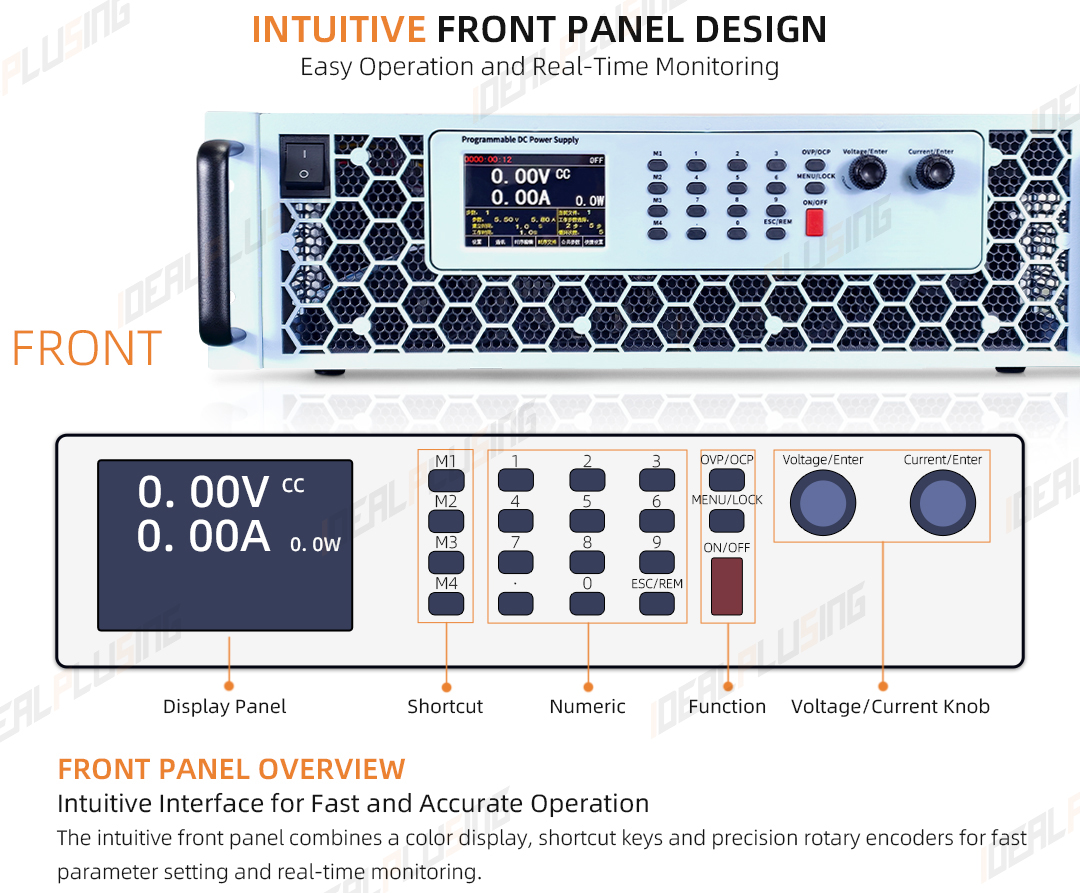

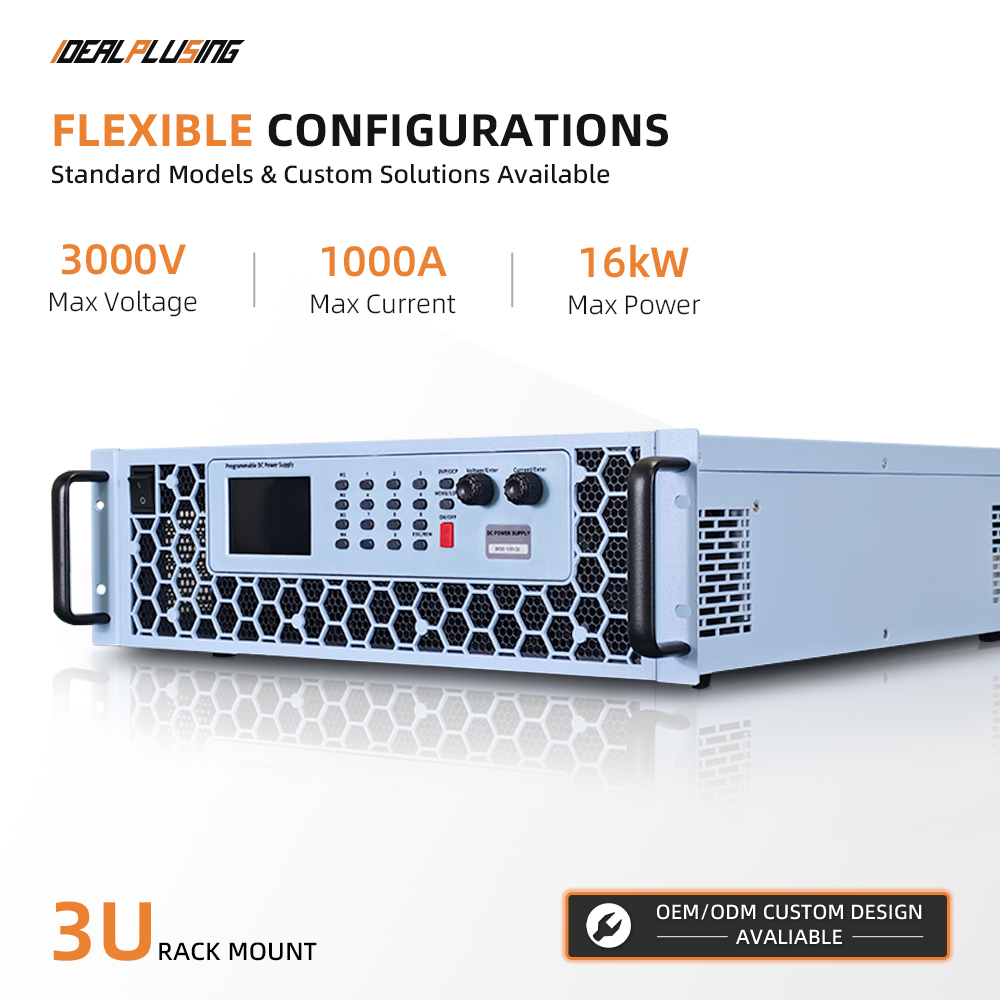

01. Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
02. Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
03. Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
04. Programmable control over voltage, current, and time outputs.
05. Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.

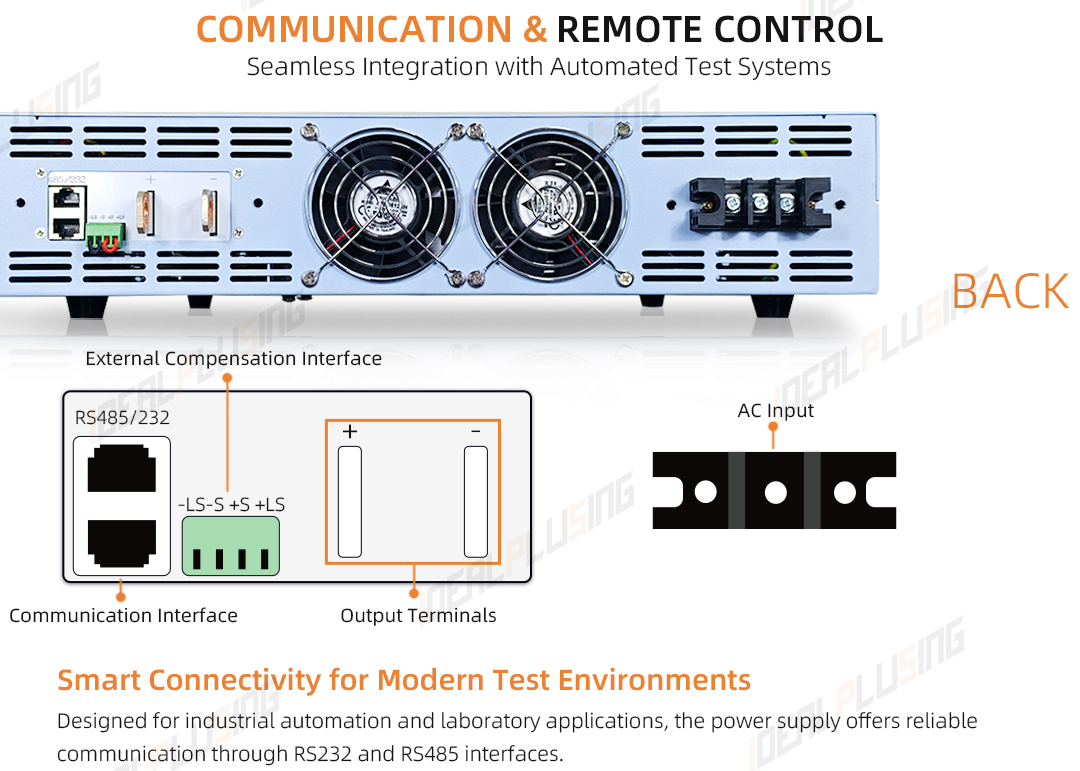

06. Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.

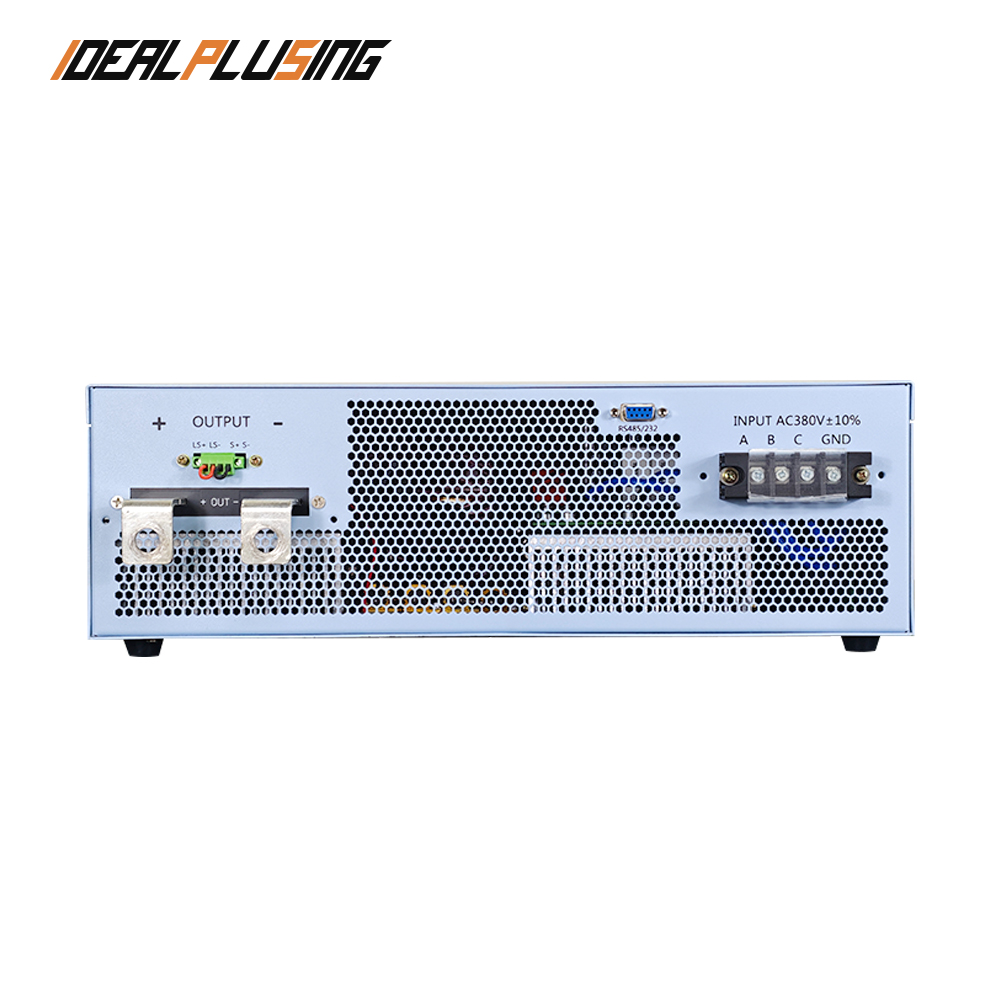

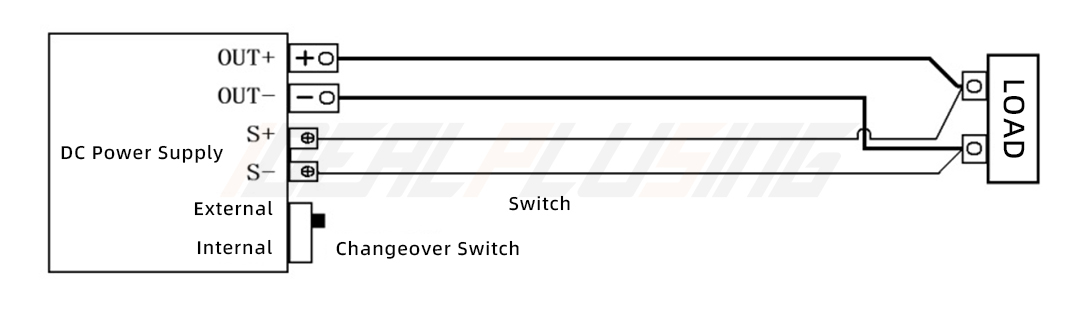

07. Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement and precise control.
Specifications
| Item | Details |
|---|---|
| Series | 2U/3U Chassis Series |
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10% (50Hz/60Hz) |
| Output Voltage | 0-2000VDC Rated Voltage |
| Output Current | 0-6A Rated Current |
| Output Power | 0-12000W Rated Power |
| Regulation Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Display Mode | Color LCD Display (5-digit) |

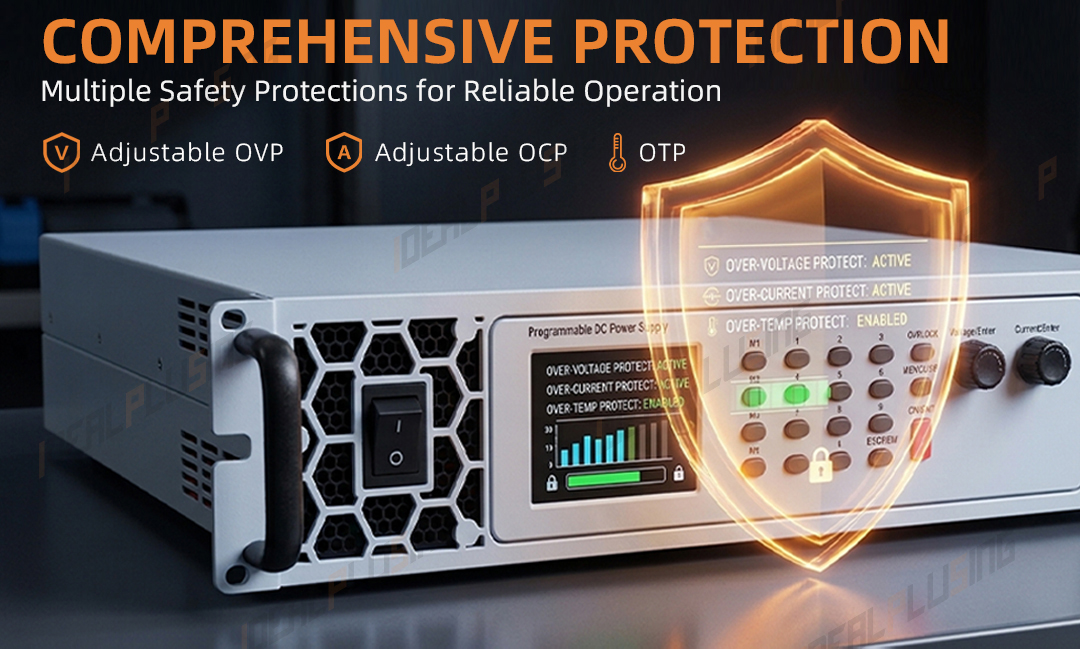

| Protection | OVP, OCP (Configurable via menu), OTP (Threshold 85℃±5%) |
| Communication | RS-485/RS-232 (Modbus and SCPI) |
| Functions | CV/CC/CP Mode, Memory Mode, LIST Sequence Cycle, Pulse Width Output |
| Cooling | Forced Air Cooling |
* Description: All values are typical. Deviations may occur due to temperature and aging.
Hot Selling Models
IPS-DH10-6002
OUT: 0~600VDC, 0~2A (1200W)
IPS-DH20-12003
OUT: 0~1200VDC, 0~3A (3600W)
IPS-DH10-5001
OUT: 0~500VDC, 0~1A (500W)
IPS-DH30-8500
OUT: 0~8VDC, 0~500A (4000W)
IPS-DH10-10003
OUT: 0~1000VDC, 0~3A (3000W)
IPS-DH20-8005
OUT: 0~800VDC, 0~5A (4000W)

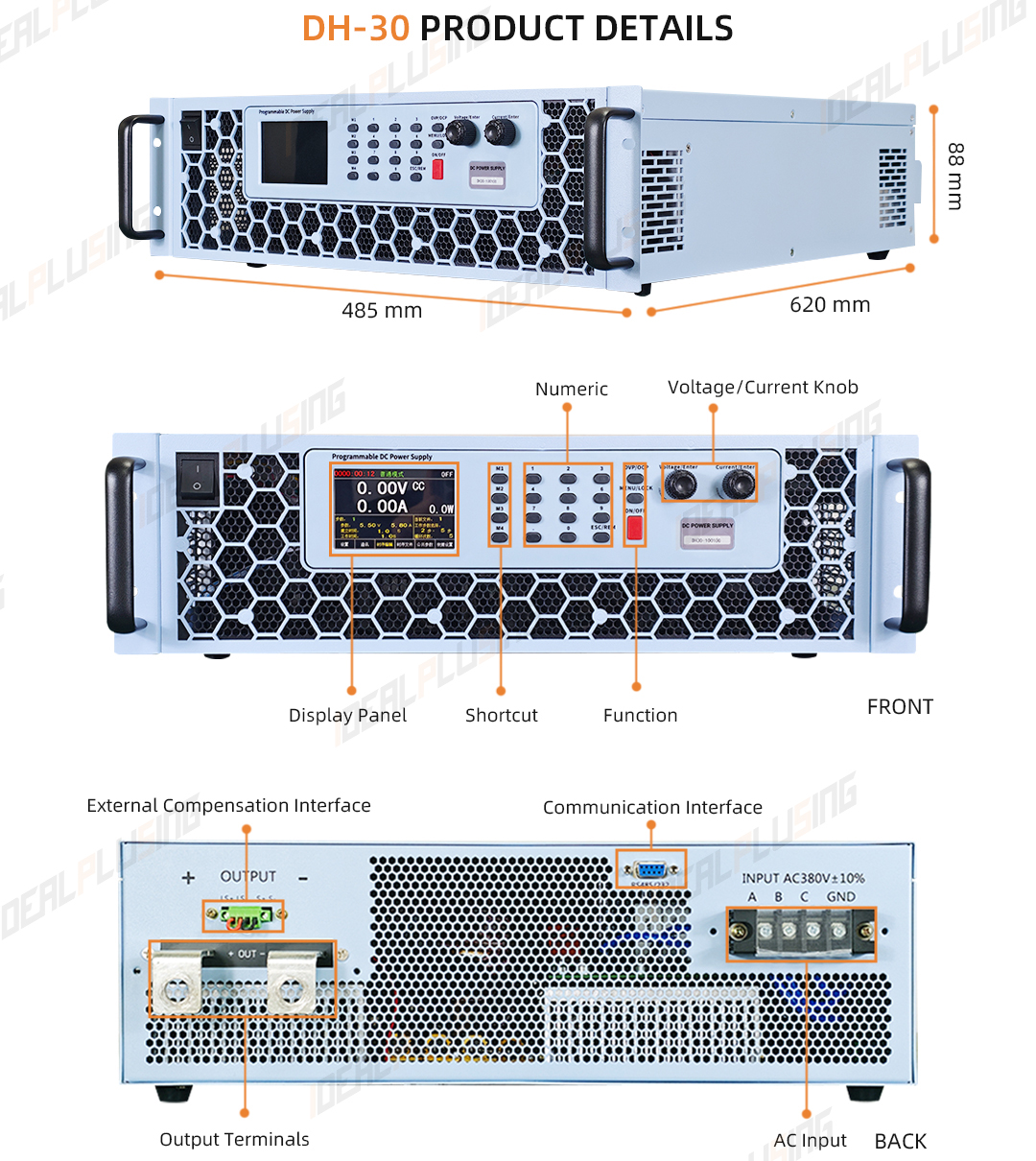

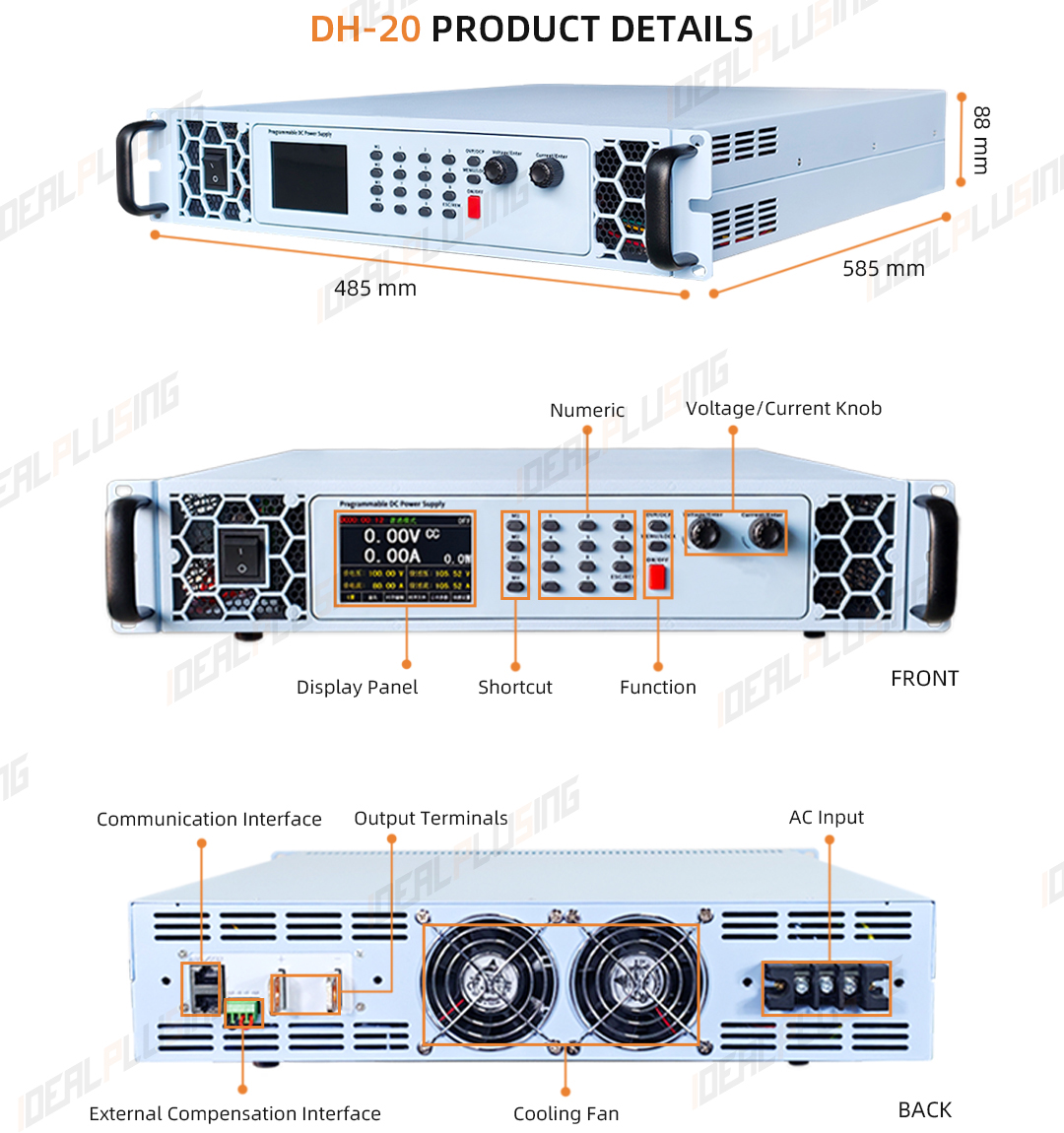

Detailed Product Views
Application Scope

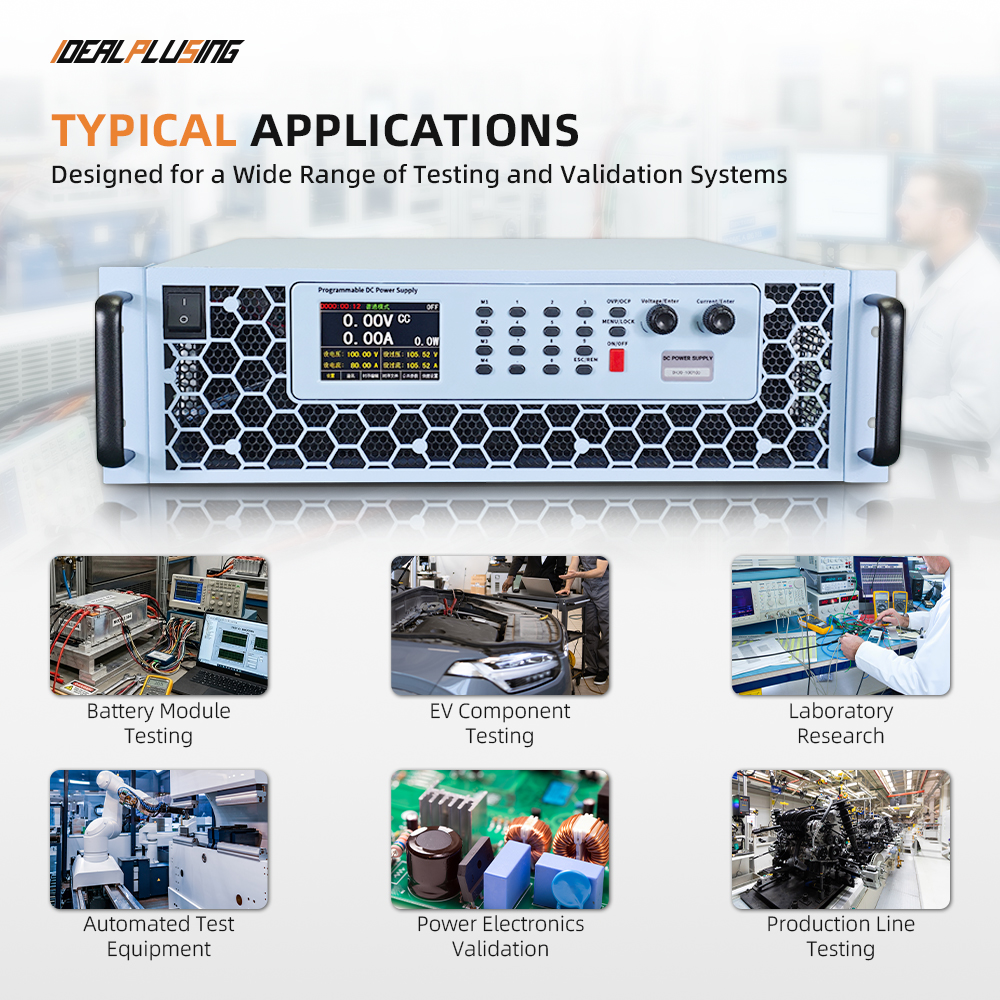

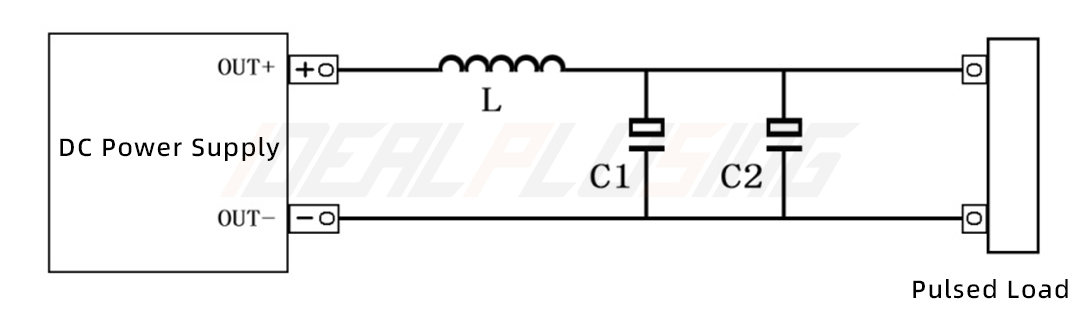

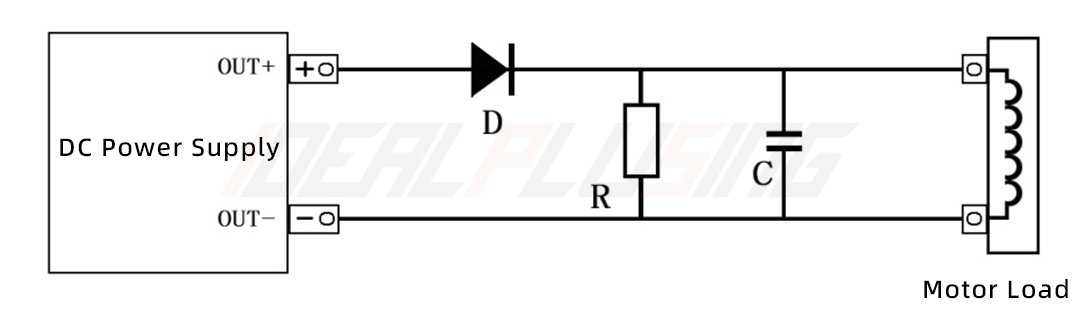

Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
Technical Expertise
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. We provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are dedicated to providing the right power supply solution and optimized quotation for your specific items. Together, let's make it much better.
Frequently Asked Questions
Is the output voltage and current programmable?
Yes, the power supply supports programmable control over voltage, current, and time outputs with built-in memory for up to 50 steps.
What communication protocols does this device support?
It features RS-232 and RS-485 interfaces and supports both Modbus-RTU and SCPI communication protocols for seamless integration.
Does it provide accurate measurements at the load side?
Yes, it is equipped with dedicated load-side voltage sensing terminals to compensate for voltage drops and ensure precise control at the actual load.
What safety protections are integrated into the system?
The system includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with configurable thresholds.
Can this power supply be mounted in a standard rack?
Yes, the unit follows standard 2U/3U full-width dimensions, making it suitable for both benchtop use and professional rack mounting.
What is the accuracy of the display?
The unit features a high-prominence 5-digit LCD display with a readback accuracy of ±0.1%FS + 3 digits.
