10kw Single Phase to 3 Phase Phase Converter Ac Frequency Converter 50hz 200hz Static Frequency Converter
Product Description
10kw Single Phase To 3 Phase Phase Converter AC Frequency Converter 50Hz 200Hz Static Frequency Converter
⚡ PERFORMANCE CHARACTERISTICS
✅
Complete isolation of input and output technology, safe and reliable power supply
✅
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
✅
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
✅
Unique double-loop control mode of instantaneous value and effective value for high control precision and good waveform quality
✅
High power IGBT module and highly integrated module drive circuit, strong overload capacity
✅
Suitable for resistive, inductive, rectifier, and other loads
✅
Multiple protection functions: overheating, overcurrent, and short circuit protection
✅
Setting parameter memory function, (10-groups) shortcut key operation
✅
Power supply voltage and frequency can be adjusted online in real-time
🛠️ APPLICATIONS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information & Communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power
Other industries
📊 SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Voltage | Low: 0~150V, High: 0~300V Adjustable | ||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | low-grade | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A | |
| high-grade | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 25A | 42A | 63A | ||
| Protection | Overvoltage, over current, overload, over temperature and short-circuit protection | |||||||||
| Dimensions (cm) | 43*18*44 | 43*18*47 | 43*65*52 | 55*74*52 | ||||||
| Net weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 | ||
📊 SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| AC output | 3-phases 380V; 40~499.9HZ | |||||||||
| Max current | low-grade (150V) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A | |
| high-grade (300V) | 84A | 125A | 188A | 250A | 417A | 500A | 625A | 834A | ||
| Product Dimension(cm) | 58*74*52 | 70*120*110 | 80*120*150 | 100*150*160 | ||||||
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 | ||
📊 SPECIFICATION (IPS-FC63) 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 |
|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| Output Frequency | 40~499.9HZ can be setting by software | ||||||||
| Output Voltage | Low Range: 0V~150V, High Range: 0V~300V | ||||||||
| Max Current (150V) | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A |
| Weight (Kg) | 30 | 35 | 45 | 60 | 78 | 140 | 170 | 280 | 650 |

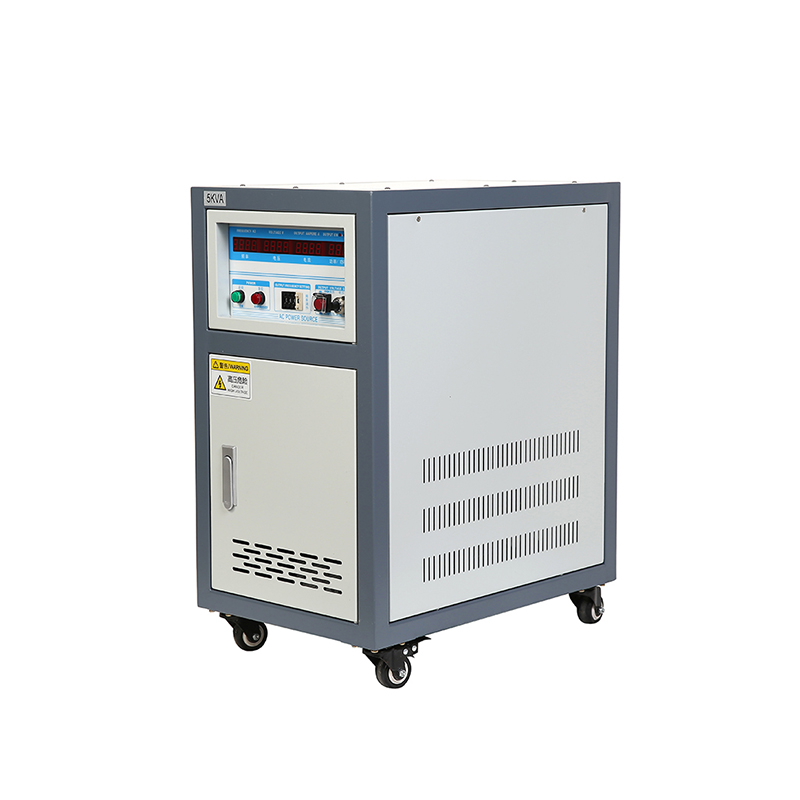

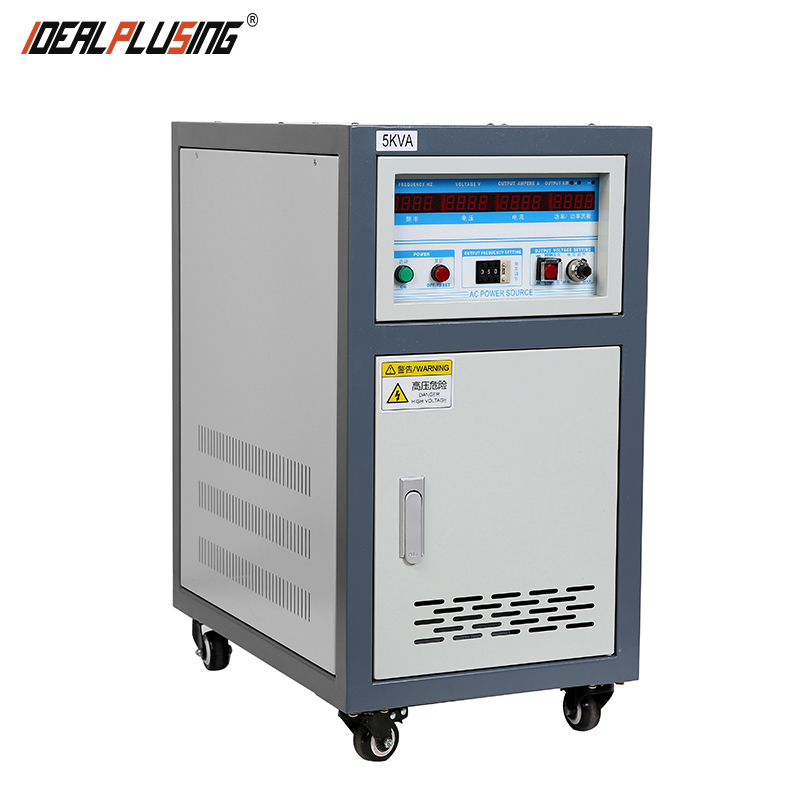

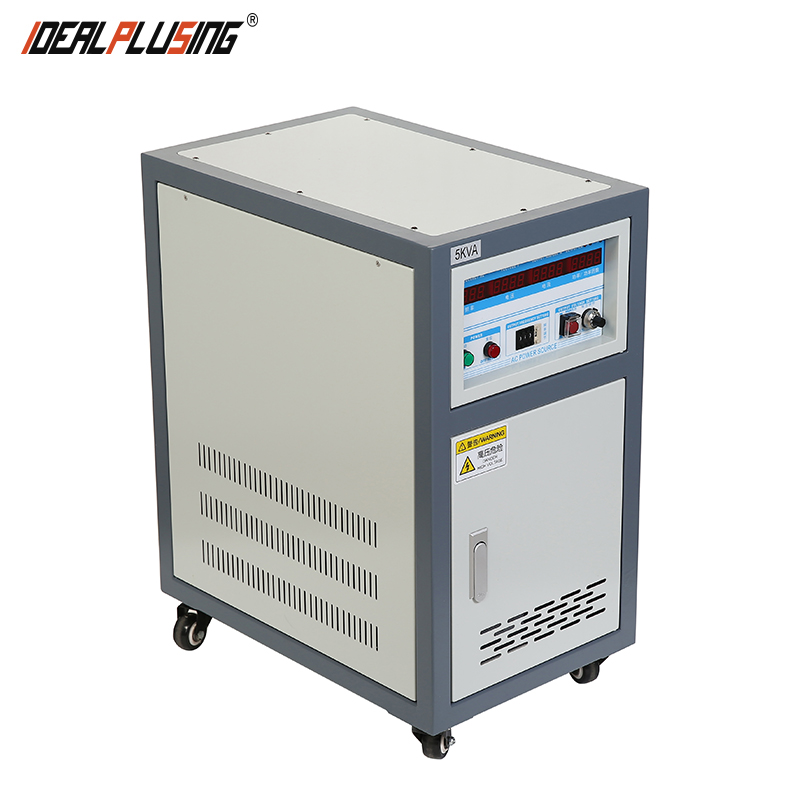

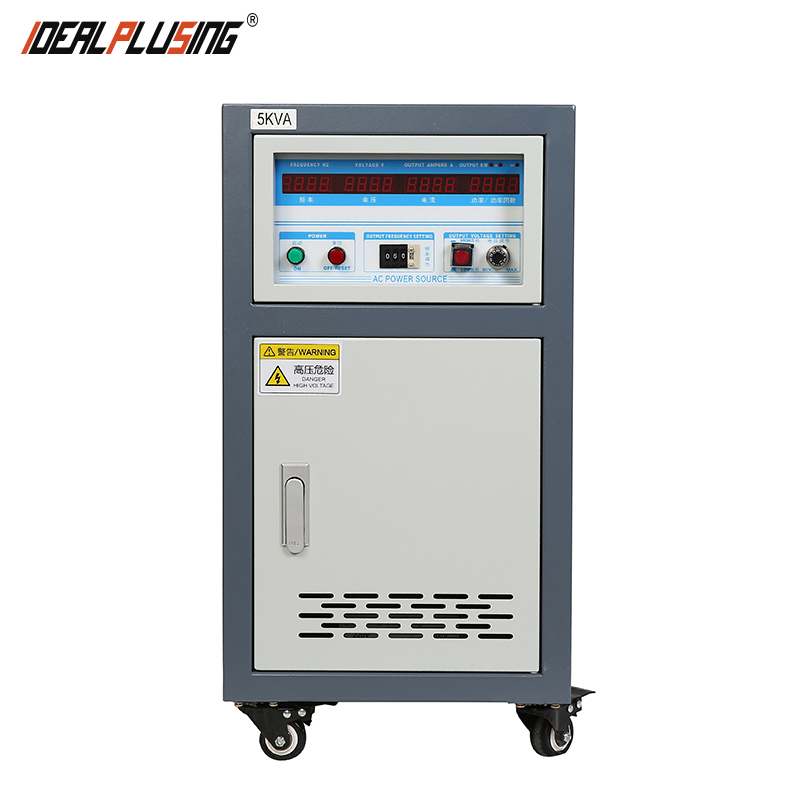

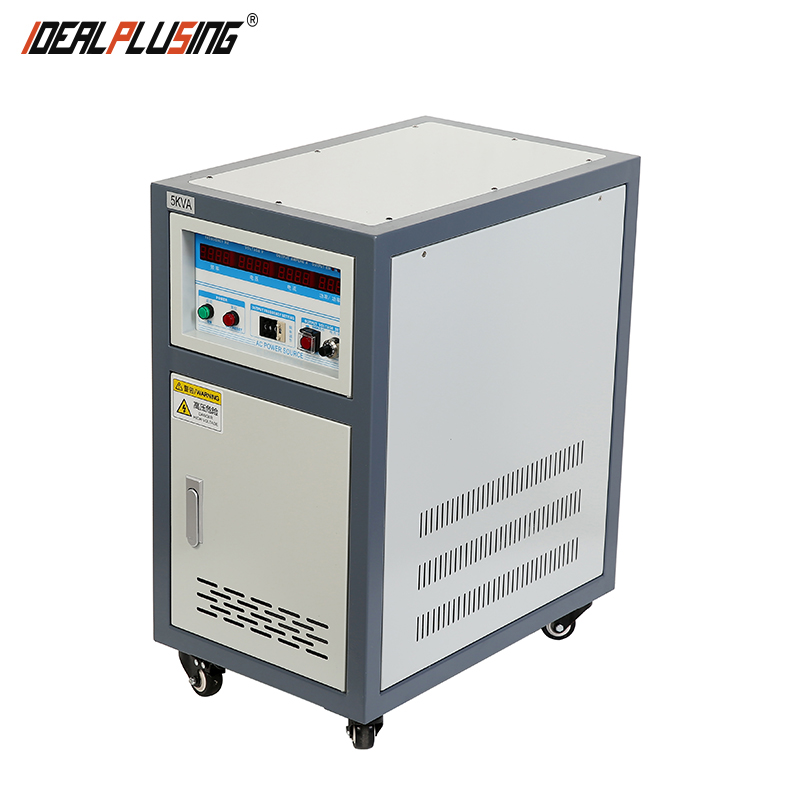

📸 PRODUCT SHOW
🔍 PRODUCT OVERVIEW
📋 MODEL LIST
❓ FAQ
What is the output frequency range of this converter?
The output frequency is highly adjustable, ranging from 40Hz to 499.9Hz, and can be easily set via the integrated software.
What types of loads can the static frequency converter handle?
This unit is designed to adapt to various loads including resistive, inductive, rectifier, and other complex industrial loads.
Does the device include circuit protection?
Yes, it features multiple protection layers for abnormal conditions such as overheating, overcurrent, short circuits, and overload, complete with automatic alarms.
Is the input and output isolated?
Yes, the converter uses complete isolation technology for input and output to ensure a safe and reliable power supply.
Can I adjust the voltage and frequency while the unit is online?
Yes, the power supply voltage and frequency can be adjusted online, and the frequency can change in real-time based on your requirements.
What are the main benefits of using IGBT technology in this converter?
The IGBT high-frequency static inverter technology allows the device to be smaller, lighter, and more efficient while maintaining low noise levels during operation.
