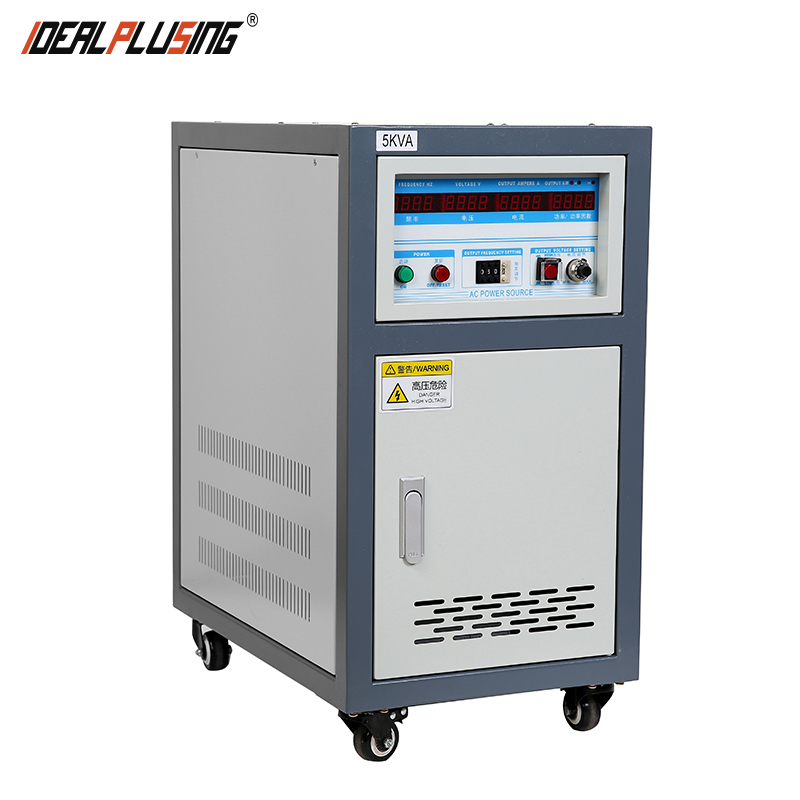

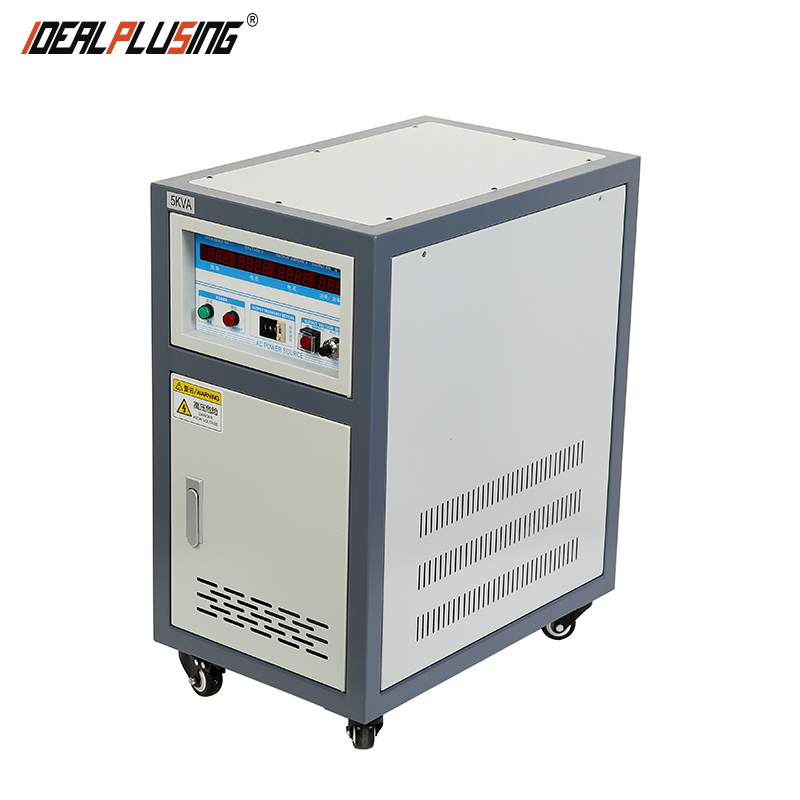

30KVA 45KVA 115V 400HZ Industrial Power Inverter - AC Power Inverter for Production Line
Product Description
30kVA 45kVA 115V 400Hz Power Supply & Variable Frequency AC Power Supply for Industry
⚡ PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4
Unique double-loop control mode of instantaneous value and effective value for high precision and waveform quality.
5
High power IGBT module and highly integrated drive circuit with strong overload capacity and low loss.
6
Suitable for resistive, inductive, rectifier, and other diverse loads.
7
Multiple protection functions: overheating, overcurrent, and short circuit protection.
8
Parameter memory function with 10-groups shortcut key operation.
9
Online adjustment of voltage and frequency with real-time frequency changes.
🛠️ APPLICATION AREAS
Home appliances
Photovoltaic
Motors
Lamps
Power tools
Electronic transformers
Switching power supplies
Electronic components
Power adapters
Low-voltage distribution
UPS
Power Industry
Communication
General Industry
📊 SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT & OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V / 50Hz or 60Hz | |||||||||
| AC output | Voltage Range | Low: 0~150V | High: 0~300V Adjustable | ||||||||
| Frequency | 40~499.9HZ (Software settable) | |||||||||
| Max current | Low Range | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A | |
| High Range | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 25A | 42A | 63A | ||
| Protection | Overvoltage, Overcurrent, Overload, Overtemp, Short-circuit, Auto-jump & Alarm | |||||||||
📊 SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 | ||
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated power output (KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| AC Output Phase | 3-phases 380V | |||||||||
| Max Current (Low 0-150V) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A | ||
| Max Current (High 0-300V) | 84A | 125A | 188A | 250A | 417A | 500A | 625A | 834A | ||
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 | ||

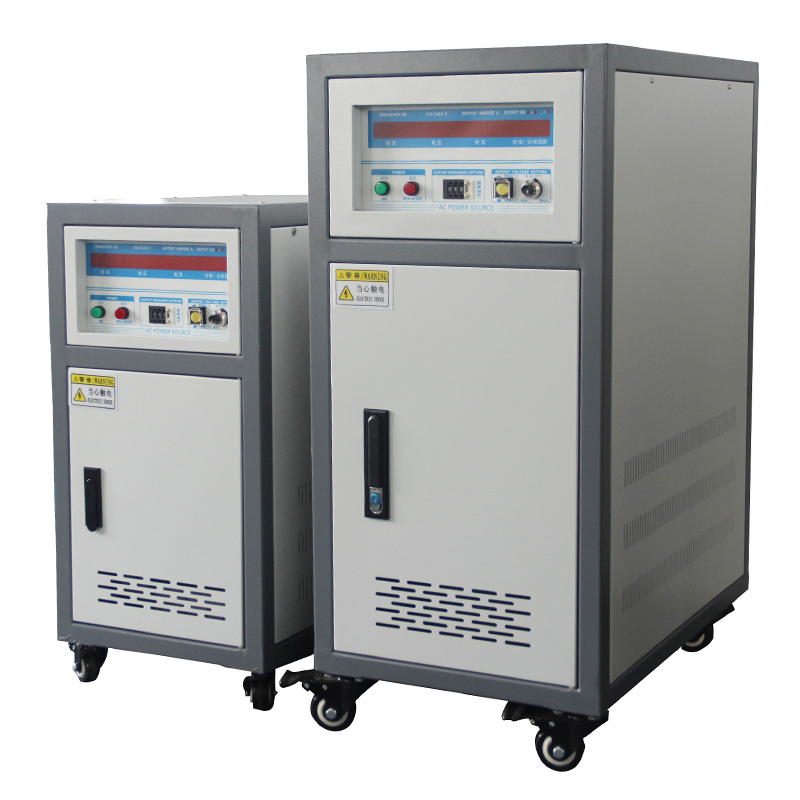

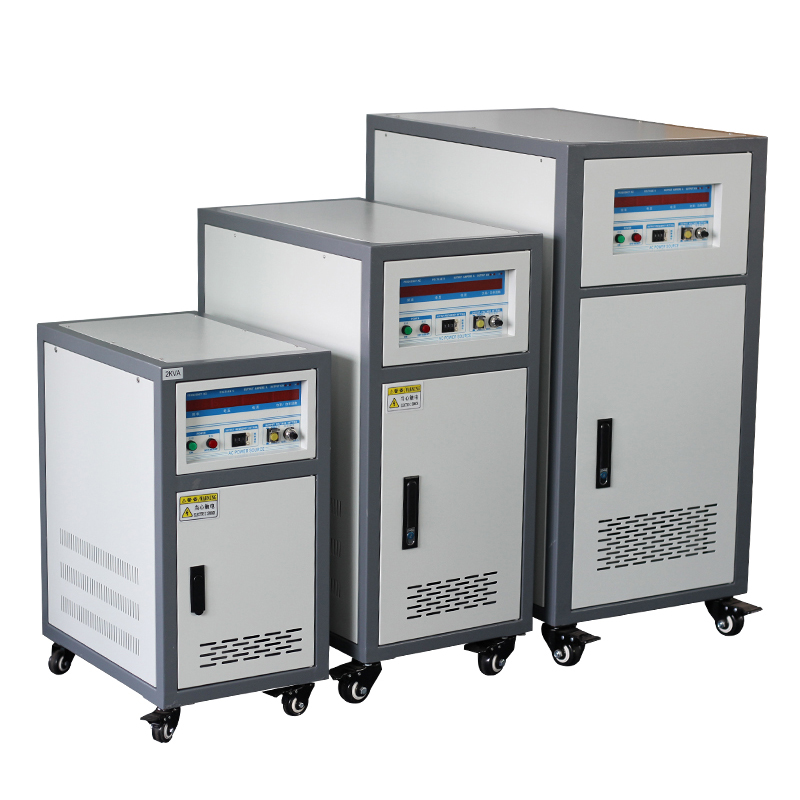

🖼️ PRODUCT SHOWCASE
🔍 PRODUCT OVERVIEW
📋 MODEL LIST
❓ FREQUENTLY ASKED QUESTIONS
What are the primary applications for a 400Hz frequency converter?
They are predominantly used in aviation, military aerospace testing, and specialized industrial equipment that requires high-frequency stable AC power for precise operations.
Can the output frequency be modified while the machine is running?
Yes, the power supply supports real-time online adjustment of both voltage and frequency through the integrated software interface.
How does SPWM technology benefit industrial power needs?
SPWM (Sinusoidal Pulse Width Modulation) provides a cleaner sine wave output with minimal distortion, ensuring that sensitive electronic components and motors operate smoothly without interference.
What safety protections are built into these converters?
The units are equipped with a comprehensive suite of safety features, including overvoltage, overcurrent, overload, over-temperature, and short-circuit protection with automatic alarms.
Is this power supply compatible with inductive loads?
Absolutely. The unique double-loop control mode and high-power IGBT modules allow the unit to adapt easily to resistive, inductive, and rectifier loads.
Does the system provide electrical isolation?
Yes, the technology provides complete galvanic isolation between the input and output stages, which significantly enhances the safety and reliability of the connected equipment.
