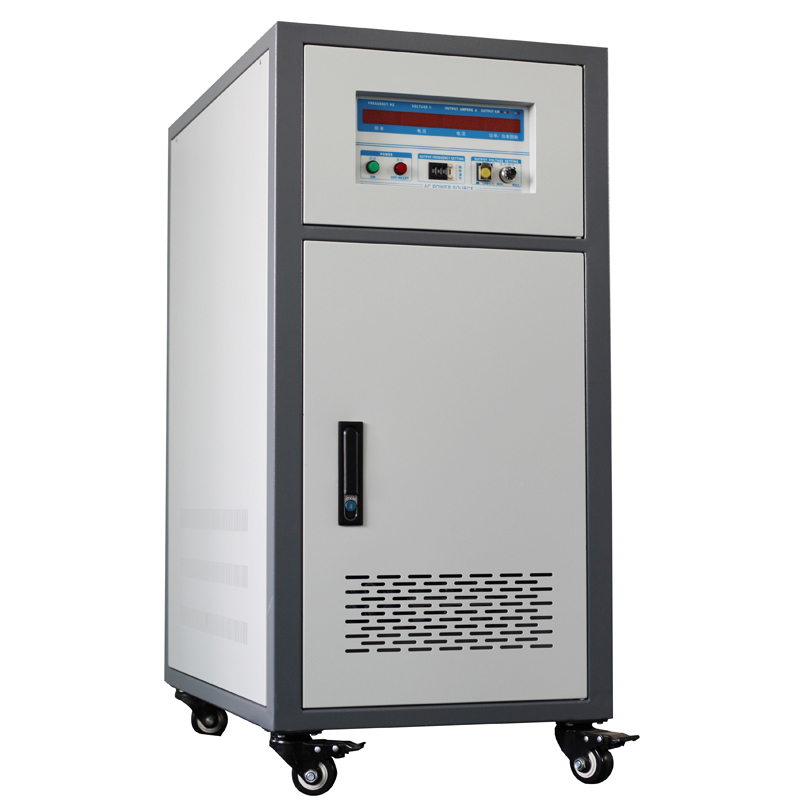

Factory Direct Inverter 60Hz to 50Hz Single Phase AC Inverter Power Supply for Aviation Industry
Product Description
Frequency Converter 60Hz to 50Hz Single Phase AC Frequency Power Supply 15kVA 220V to 300V for Aviation Industry
Product Description
PERFORMANCE CHARACTERISTICS
| No. | Key Features |
| 1 | Complete isolation of input and output technology, safe and reliable power supply |
| 2 | SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output |
| 3 | IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency |
| 4 | The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads |
| 5 | High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency |
| 6 | Suitable for resistive, inductive, rectifier, and other loads |
| 7 | It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit |
| 8 | It has the function of setting parameter memory, (10-groups) shortcut key operation |
| 9 | The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time |
Applications
- Home appliances
- Photovoltaic
- Motors
- Lamps
- Power tools
- Electronic transformers
- Switching power supplies
- Electronic components
- Power adapters
- Low-voltage distribution
- UPS
- Power
- Information and communication
- Other industries
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Voltage Range | Low: 0~150V | High: 0~300V Adjustable | ||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | Low Grade | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A | |
| High Grade | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 25A | 42A | 63A | ||
| Protection | Overvoltage, over current, overload, over temperature and short-circuit | |||||||||
| Net weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 | ||

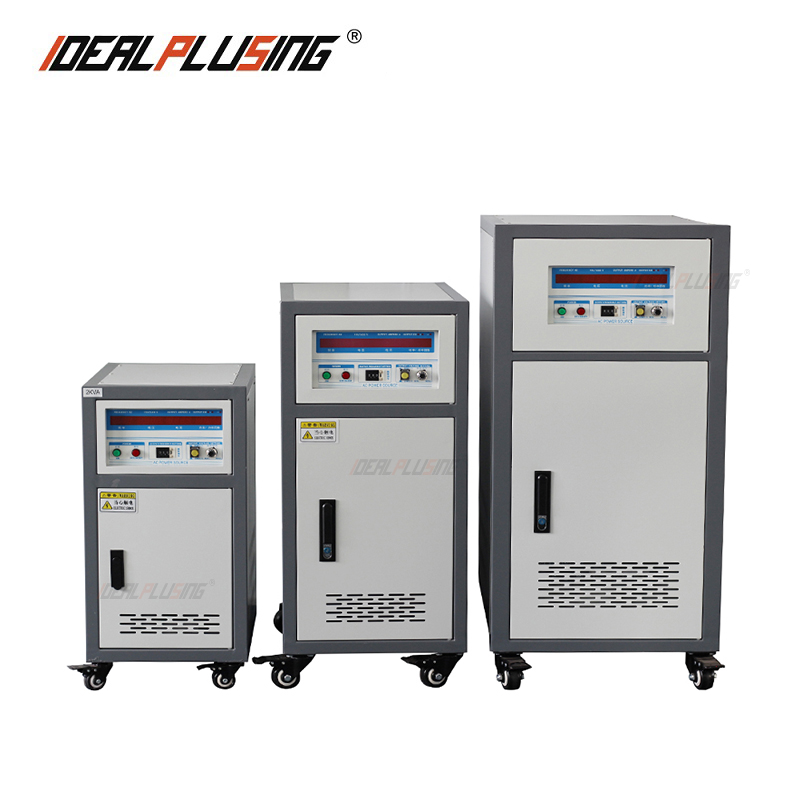

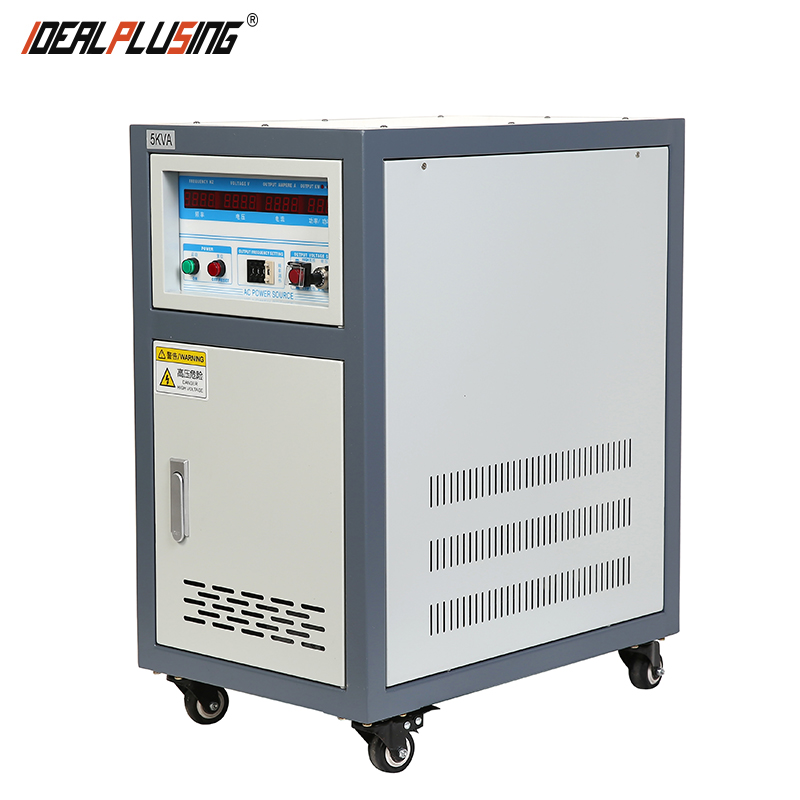

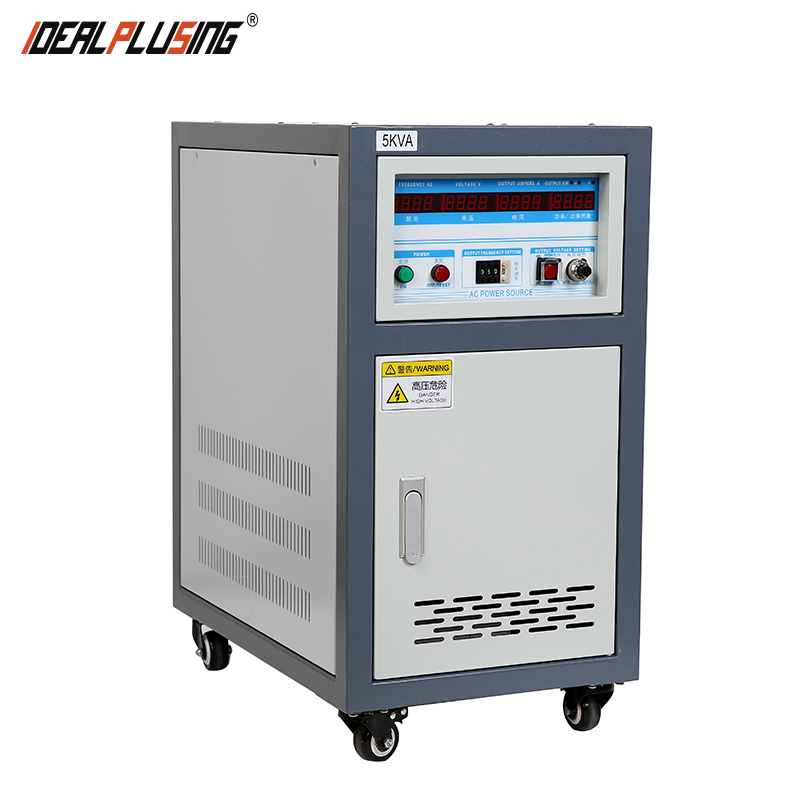

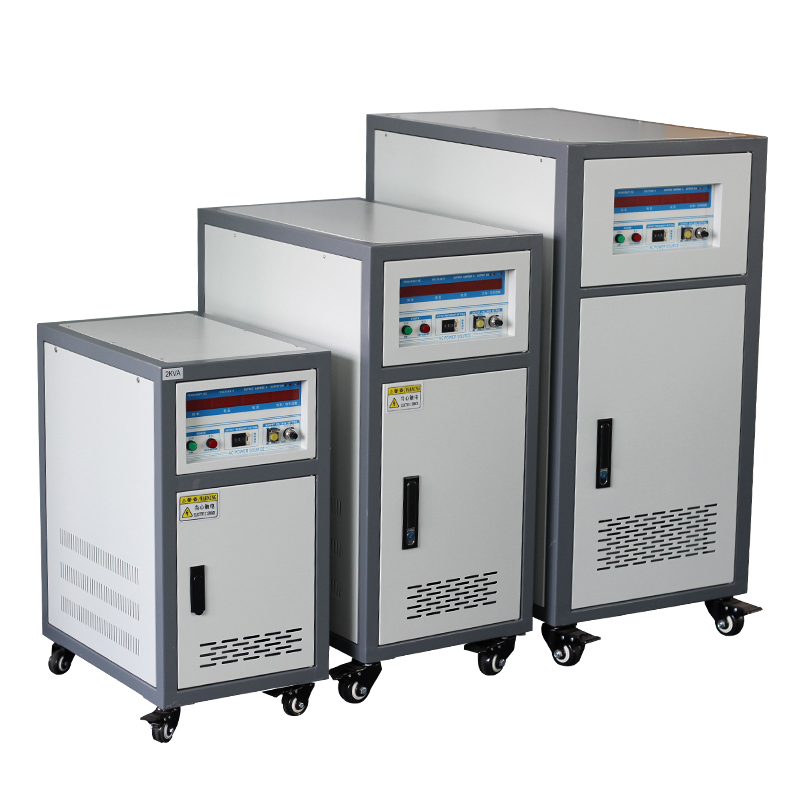

Product Showcase
Product Overview & Details
Model List & Technical Data
Frequently Asked Questions
What is the primary function of this frequency converter?
It is designed to convert AC power from 60Hz to 50Hz (or vice versa) with adjustable voltage ranges, primarily used for testing equipment in the aviation industry and other electronics sectors.
Can the output frequency and voltage be adjusted?
Yes, the frequency can be adjusted via software between 40Hz and 499.9Hz, and the voltage can be set between 0-150V or 0-300V depending on the selected range.
What types of loads are compatible with this power supply?
The unit is highly versatile and suitable for resistive, inductive, rectifier, and other types of loads commonly found in laboratory and industrial environments.
Does the device include built-in protection features?
Absolutely. It features multiple protection layers including overvoltage, overcurrent, overload, over-temperature, and short-circuit protection with automatic jump and alarm devices.
What technology is used for the inverter process?
The system utilizes high-frequency IGBT static inverter technology and SPWM (Sine Wave Pulse Width Modulation) for fast response and stable waveform quality.
