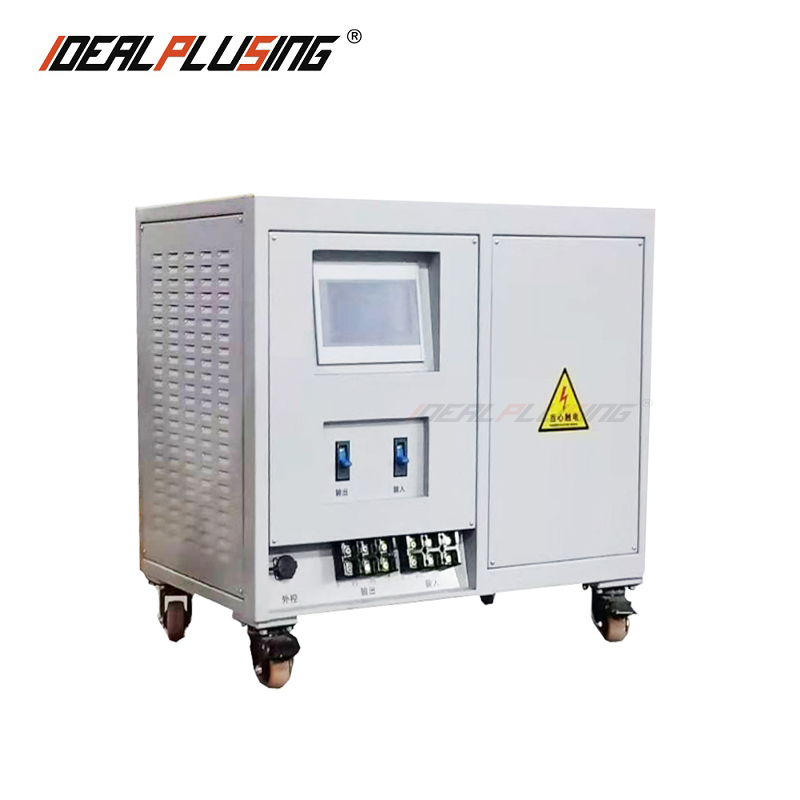

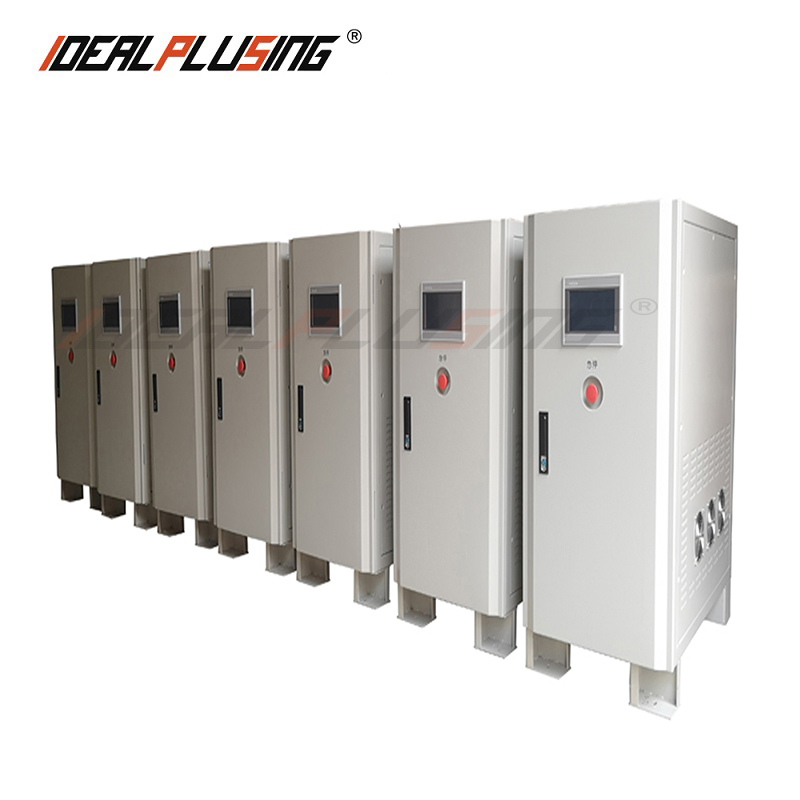

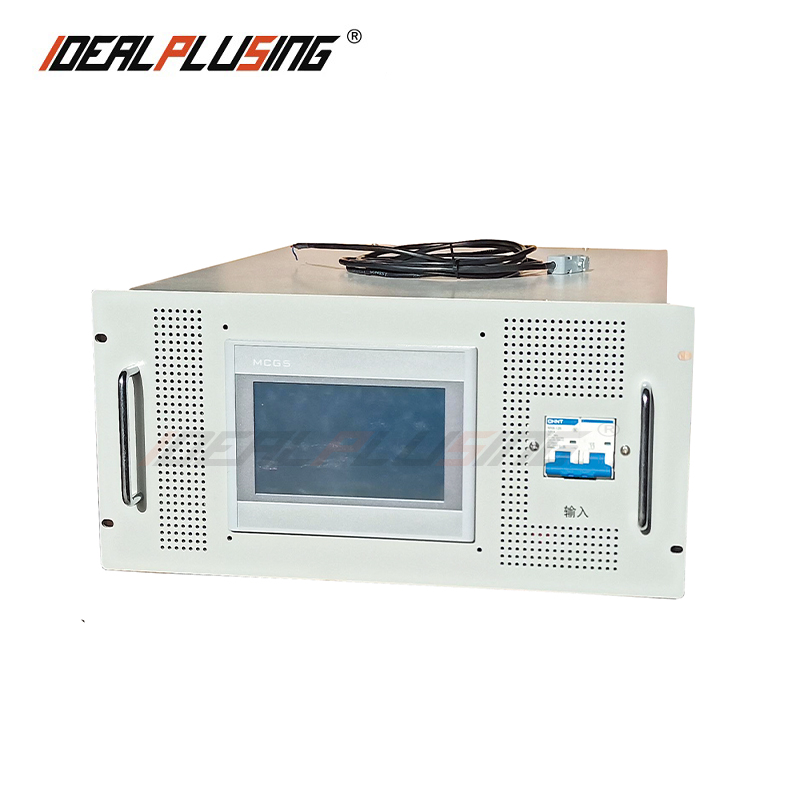

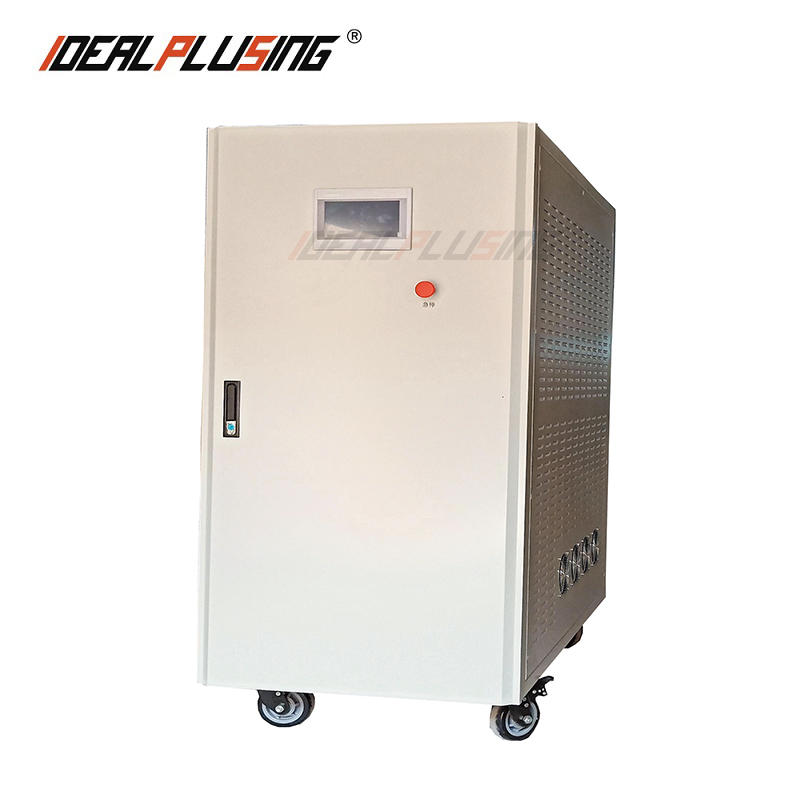

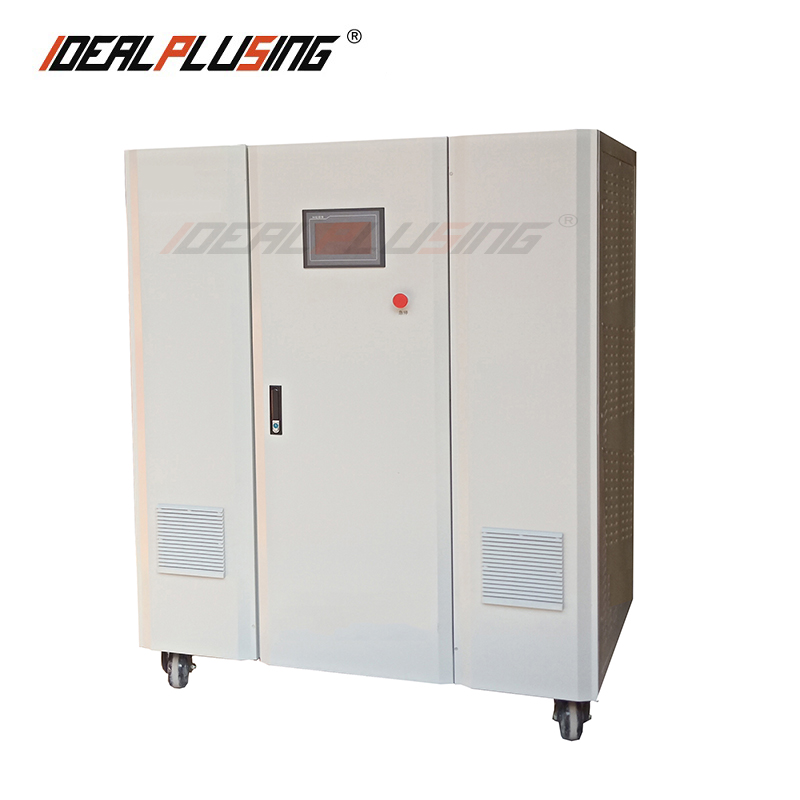

15KVA 20KVA 30KVA 45KVA 60KVA 380VAC Customizable Input Phase Converter Single Phase to Three Phase Converter Inverter
Product Description
Customized 15kva ~300kva 220v 50hz 60hz input 3 phase 380v 400hz frequency converter
Performance Characteristics
1Complete isolation of input and output technology, safe and reliable power supply
2SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality
5High power IGBT module and highly integrated module drive circuit, reliable operation and strong overload capacity
6Suitable for resistive, inductive, rectifier, and other loads
7Multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit
8Parameter memory function (10 groups) with shortcut key operation
9Voltage and frequency can be adjusted online with real-time frequency changes
Application Range
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information and communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power
Other industries

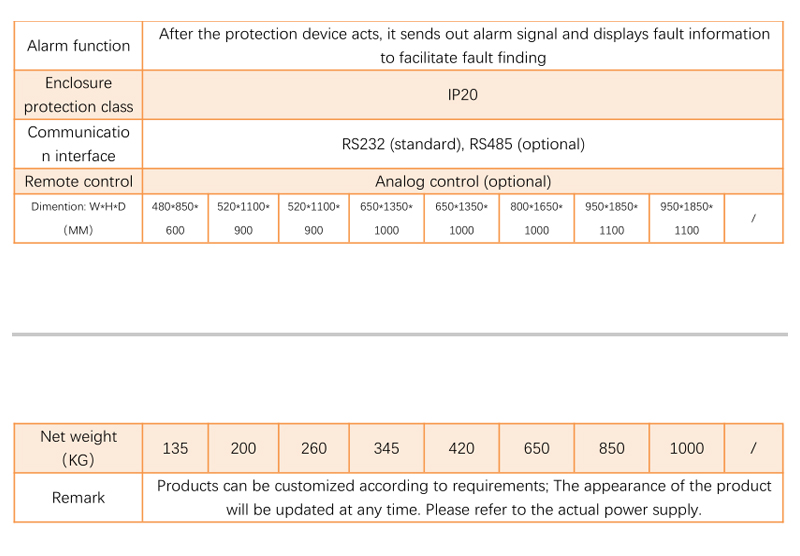

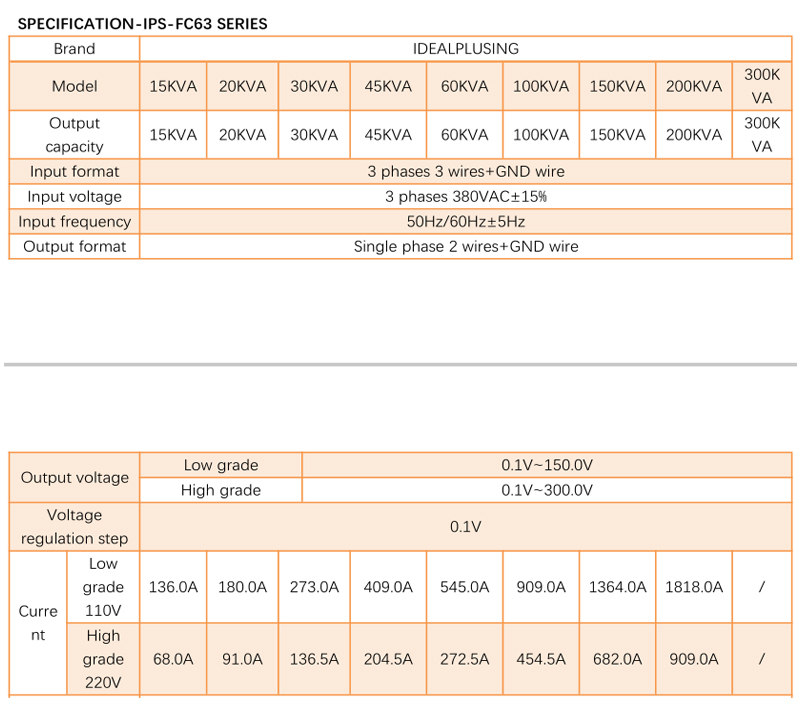

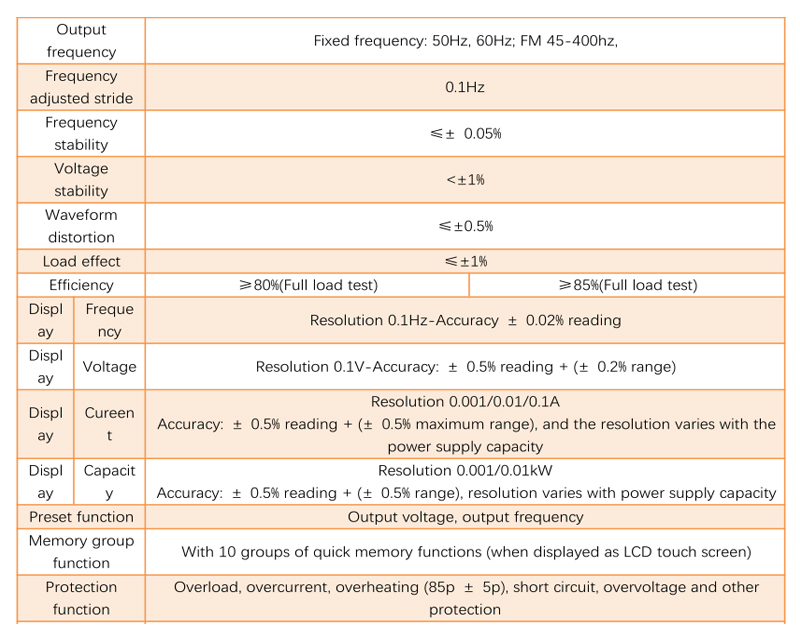

Technical Specification - IPS-FC63 Series
Frequently Asked Questions
What range of power capacities do these converters support?
Our customized frequency converters support a wide range of power capacities from 15kVA up to 300kVA, suitable for various industrial and commercial needs.
Can the output frequency be adjusted in real-time?
Yes, the power supply voltage and frequency can be adjusted online, and the frequency supports real-time changes to match your specific testing or operational requirements.
What types of loads can this frequency converter handle?
The IPS-FC63 series is highly versatile and suitable for resistive, inductive, rectifier, and other complex loads such as motors, transformers, and electronic components.
How does the isolation technology benefit my equipment?
It features complete isolation between input and output, which ensures a safe, reliable power supply and protects sensitive downstream equipment from input power disturbances.
What safety protections are built into the system?
The converter includes multiple protection functions for abnormal conditions, including overheating, overcurrent, and short-circuit protection, ensuring long-term operational stability.
Is the unit easy to operate for repeated tasks?
Yes, it features a parameter memory function with 10 groups of shortcut key operations, allowing you to quickly recall frequently used settings.
