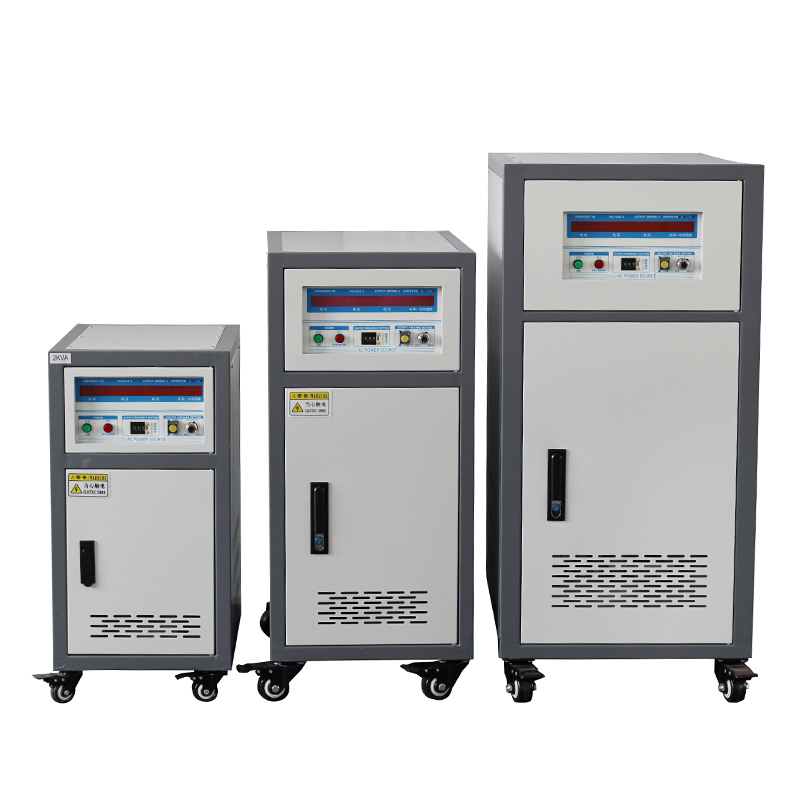

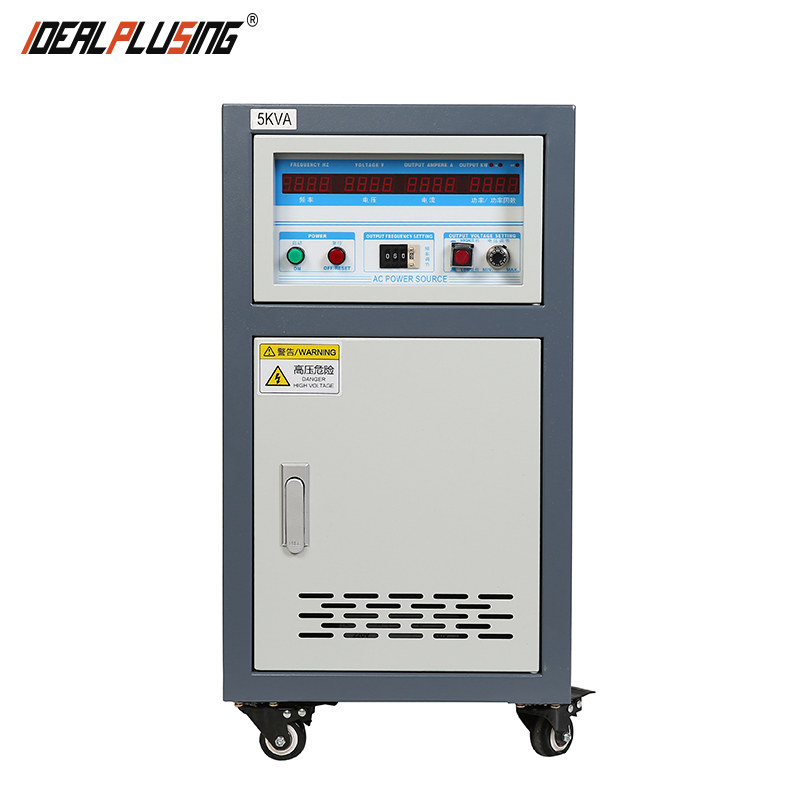

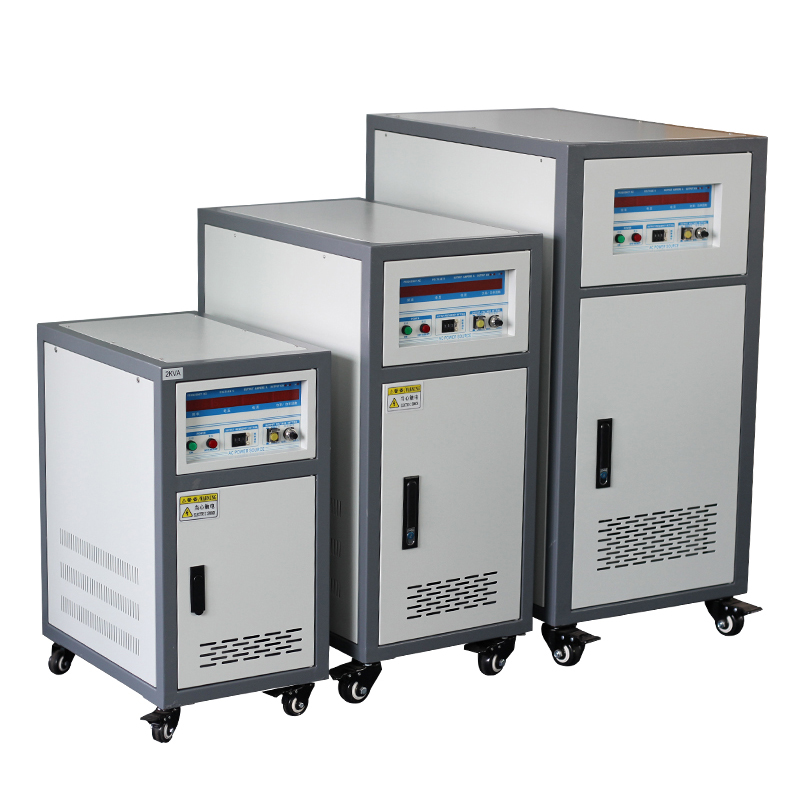

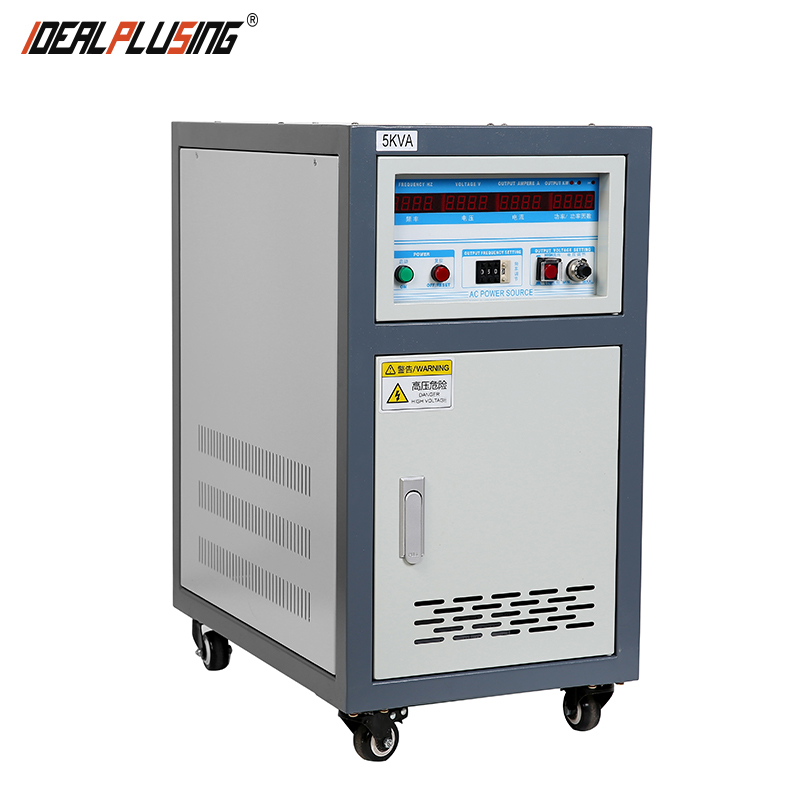

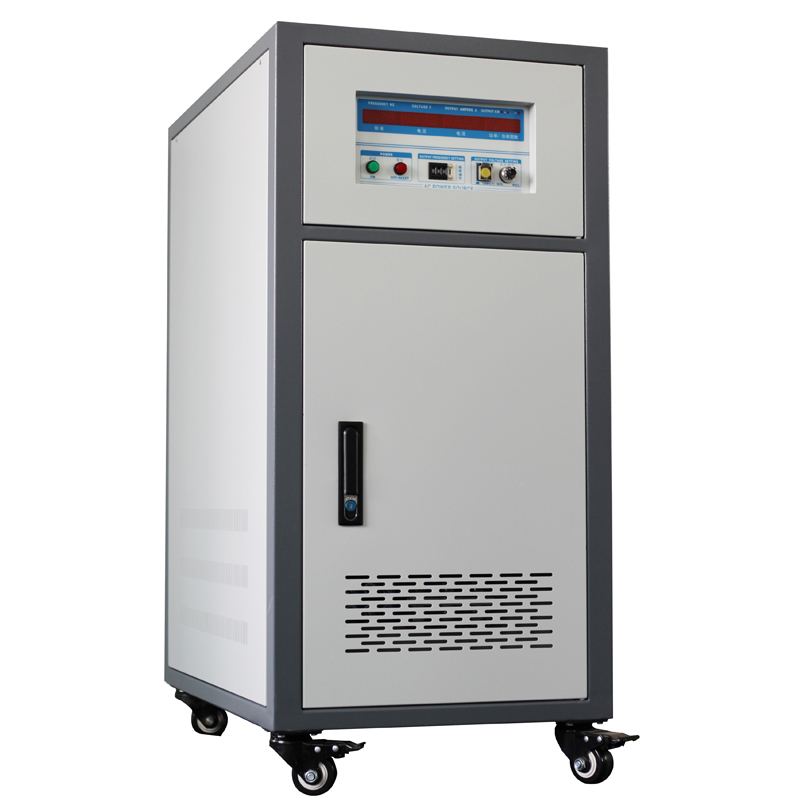

1KVA 2KVA 3KVA 4KVA High Quality Three-phase Input Single-phase Output Frequency Converter for Motor and Electronics Industry
Product Description
3 Phases Input Single Phase Output Frequency Converter
High-performance 50KVA AC Power Supply optimized for Motor and Electronics Industry applications, featuring advanced IGBT/SPWM technology.
🛡️
Complete isolation of input and output technology, providing a safe and reliable power supply.
📈
SPWM sine wave pulse width modulation technology for fast response and stable output.
💎
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
🔄
Unique double-loop control mode (instantaneous and effective value) for high precision and waveform quality.
🚀
Highly integrated module drive circuit with strong overload capacity and low loss.
⚙️
Versatile adaptation: suitable for resistive, inductive, rectifier, and other complex loads.
⚠️
Comprehensive protection for overheating, overcurrent, and short circuits.
💾
Setting parameter memory with 10-groups shortcut key operation.
🌐
Online real-time adjustment of power supply voltage and frequency.
Home Appliances
Motors
Power Tools
Switching Power Supplies
Power Adapters
UPS
IT & Communication
Photovoltaic
Lamps
Electronic Transformers
Electronic Components
Low-voltage Distribution
Power Industry
SPECIFICATION (IPS-FC61)
SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Power Output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| Circuit Mode | IGBT / SPWM | |||||||
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9Hz (Software Setting) | |||||||
SPECIFICATION (IPS-FC62)
SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC Input | Tri-phase 220V/50Hz or 60Hz | |||||||
| Max Current (L) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A |
SPECIFICATION (IPS-FC63)
3-PHASES INPUT SINGLE-PHASE OUTPUT
| Model | 6310 | 6320 | 6330 | 6345 | 6360 | 63100 | 63500 |
|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 | 500 |
| Waveform Distortion | ≤±2% (Resistance Load) | ||||||
| Response Time | ≤ 2ms | ||||||
SPECIFICATION (IPS-FC68)
3-PHASES INPUT 3-PHASES OUTPUT
| Model | 6810 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|
| Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 |
| Protection | Over voltage, current, load, temperature, short circuit jump protection | |||||
Frequently Asked Questions
What technology is used in this frequency converter?
The system utilizes IGBT high-frequency static inverter and SPWM (Sine Wave Pulse Width Modulation) technology for stable and efficient power output.
Can the output frequency and voltage be adjusted?
Yes, both the power supply voltage and frequency can be adjusted online via software. The frequency range is typically 40~499.9Hz with a resolution of 0.1Hz.
Is the device protected against short circuits?
Absolutely. It includes multiple protection functions for abnormal conditions such as overheating, overcurrent, overload, and short circuits, with an automatic jump protection and alarm device.
What types of loads are compatible with this power supply?
The power supply is designed to be versatile and is suitable for resistive, inductive, rectifier, and various other types of electronic loads.
What is the response time for load changes?
The unique double-loop control mode allows for extremely fast response times, typically ≤ 2ms, ensuring waveform quality is maintained even under changing loads.
Does the converter feature input/output isolation?
Yes, it features complete isolation between the input and output stages to ensure safe and reliable operation for sensitive electronics and industrial equipment.
