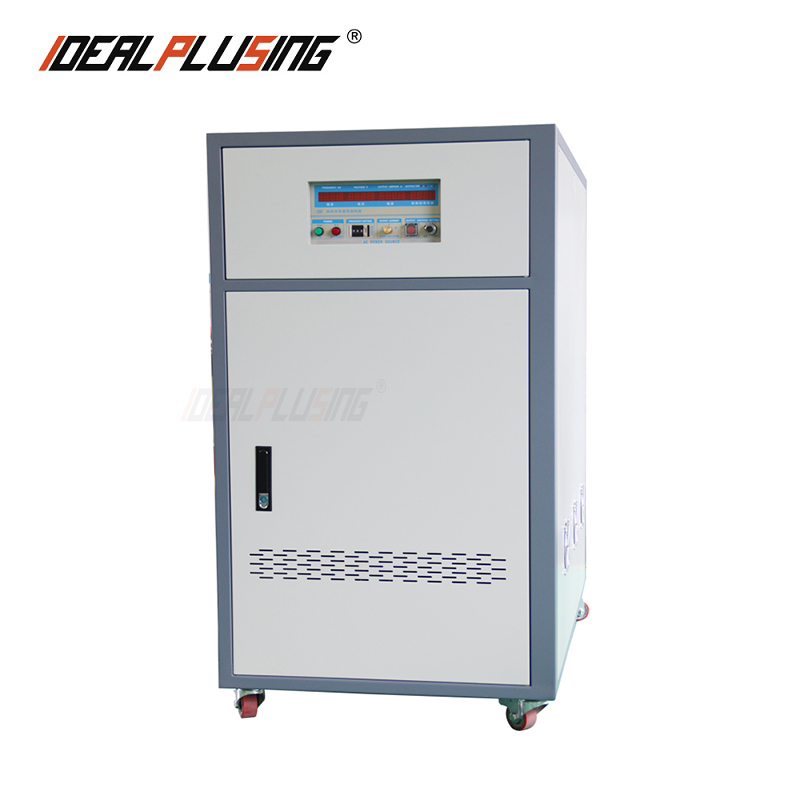

50KVA Ac Power Supply 3 Phases Input Single Phase Output Frequency Converter Inverter for Motor and Electronics Industry
Product Description
3 Phases Input Single Phase Output Frequency Converter Inverter 50KVA AC Power Supply
This high-performance frequency converter is designed specifically for the motor and electronics industry, providing a stable and reliable AC power source with adjustable parameters to meet rigorous testing and operational requirements.
Product Description
PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply.2
SPWM sine wave pulse width modulation technology for fast response and stable output.3
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.4
Unique double-loop control mode for high precision and superior waveform quality.5
Highly integrated module drive circuit with strong overload capacity and low loss.6
Versatile compatibility: Suitable for resistive, inductive, rectifier, and other loads.7
Comprehensive protection: Overheating, overcurrent, and short circuit safety functions.8
Parameter memory function with 10-group shortcut key operations.9
Real-time online adjustment for both voltage and frequency.APPLICATIONS
🏠 Home appliances
⚙️ Motors & Power tools
🔌 Switching power supplies
🔋 UPS & Power adapters
📡 Communication equipment
☀️ Photovoltaic & Lamps
🔬 Electronic components
⚡ Low-voltage distribution
Technical Specifications
IPS-FC61: SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Rated power output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| Circuit mode | IGBT/SPWM | |||||||
| AC Input | Single-phase 220V / 50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V; High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9Hz (Software Setting) | |||||||
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A |
| Weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 |
IPS-FC62: SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Rated power (KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 |
| AC Output Phase | 3-phases 380V | |||||||
| Frequency | 40~499.9Hz adjustable | |||||||
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 |
IPS-FC63: 3-PHASES INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC63) | 6310 | 6320 | 6330 | 6345 | 6360 | 63100 | 63400 | 63600 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 | 400 | 600 |
| AC Input | Tri-phase 380V/50Hz, 60Hz | |||||||
| Output Phase | Tri-phase (Phase difference 120°±2°) | |||||||
| Dimensions (mm) | 620*320*620 | 950*560*650 | 950*560*650 | 700*1340*1280 | 700*1340*1280 | 1700*1750*1000 | 1650*850*1090 | 1650*800*1200 |

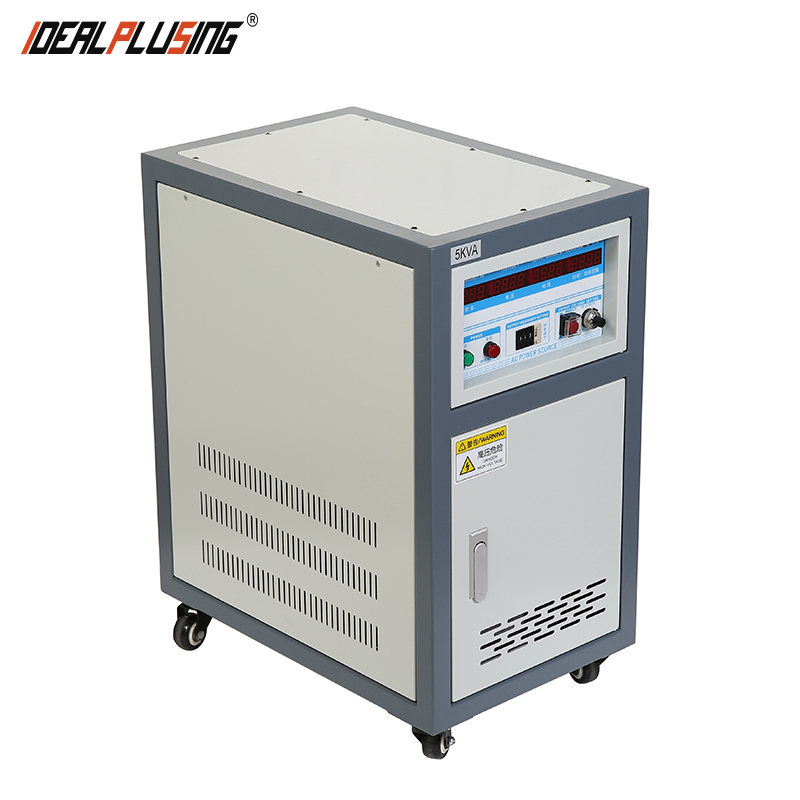

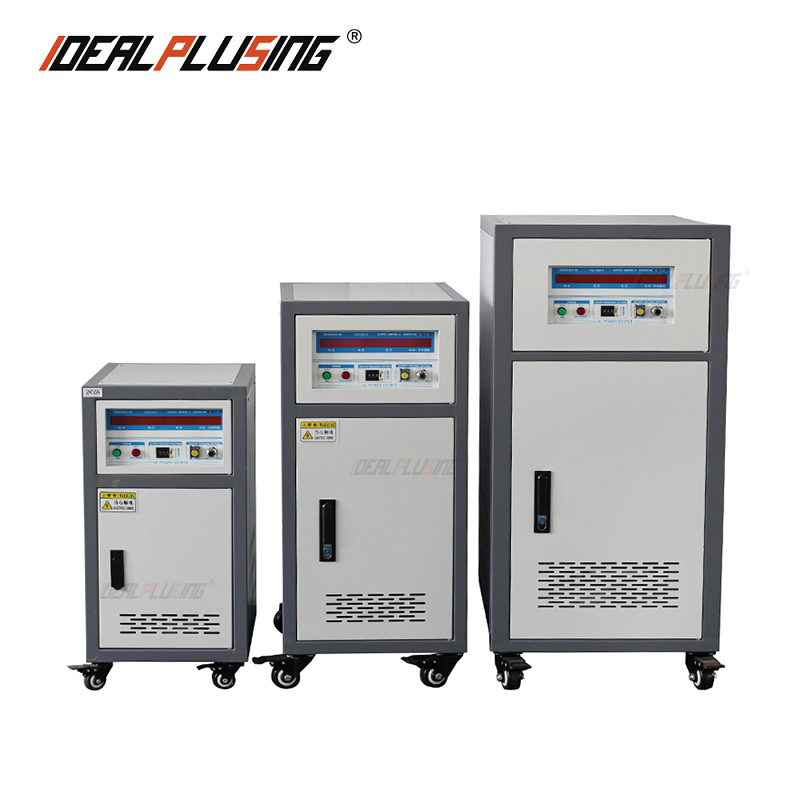

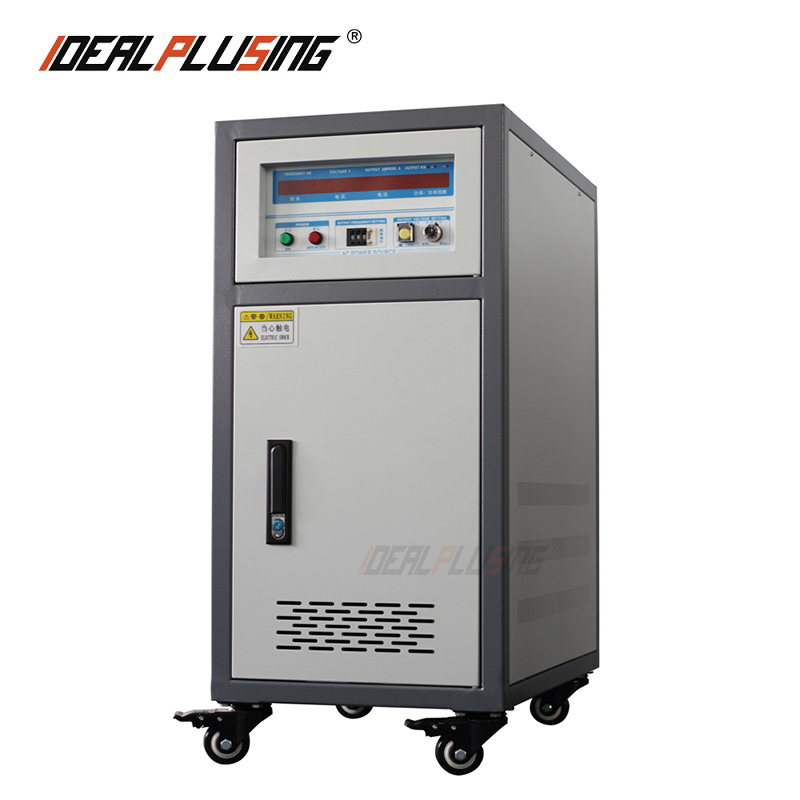

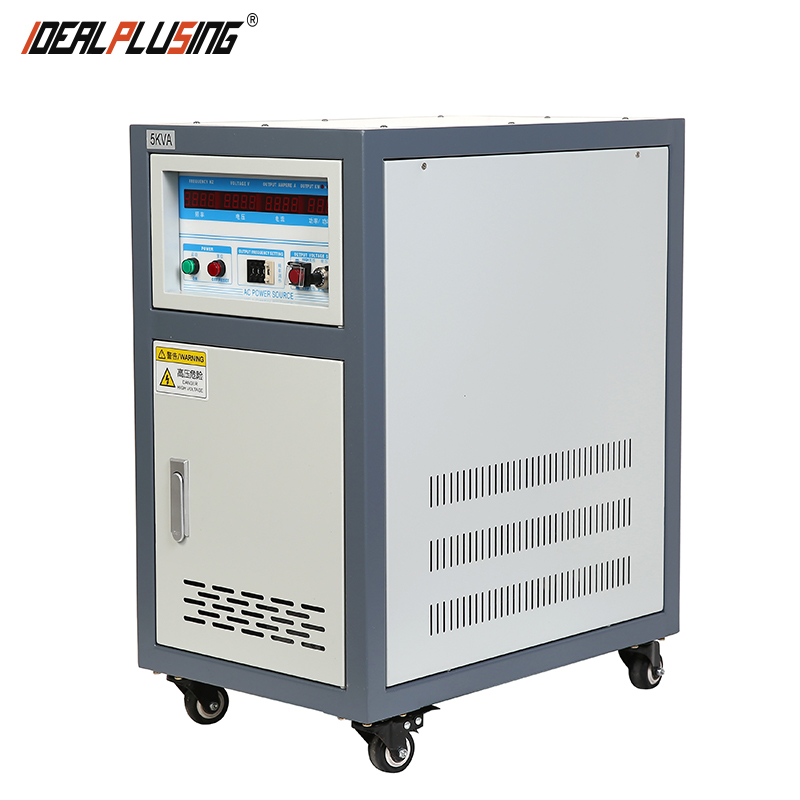

Product Visuals
PRODUCT OVERVIEW & SCHEMATICS
MODEL SELECTION LIST
Frequently Asked Questions
What is the primary function of this frequency converter?
It converts the input AC power (frequency and voltage) into a stable, adjustable AC output, commonly used for testing electronic equipment and motors under different international power standards.
What range of frequency can be adjusted?
The output frequency can be adjusted via software from 40Hz to 499.9Hz, making it suitable for simulating both 50Hz and 60Hz grids, as well as high-frequency applications.
Is the device protected against electrical faults?
Yes, it features multiple protection layers including overvoltage, overcurrent, overload, over-temperature, and short-circuit protection with automatic jump-off and alarms.
Can it handle inductive loads like motors?
Absolutely. The SPWM technology and robust IGBT modules allow it to adapt to various loads, including resistive, inductive (motors), and rectifier loads.
What are the shortcut keys for?
The system allows you to store up to 10 groups of parameter settings. You can quickly recall these presets using shortcut keys for efficient testing workflows.
Is the output isolated from the input?
Yes, the unit uses complete isolation technology between the input and output to ensure the safety of the equipment and the operators.
