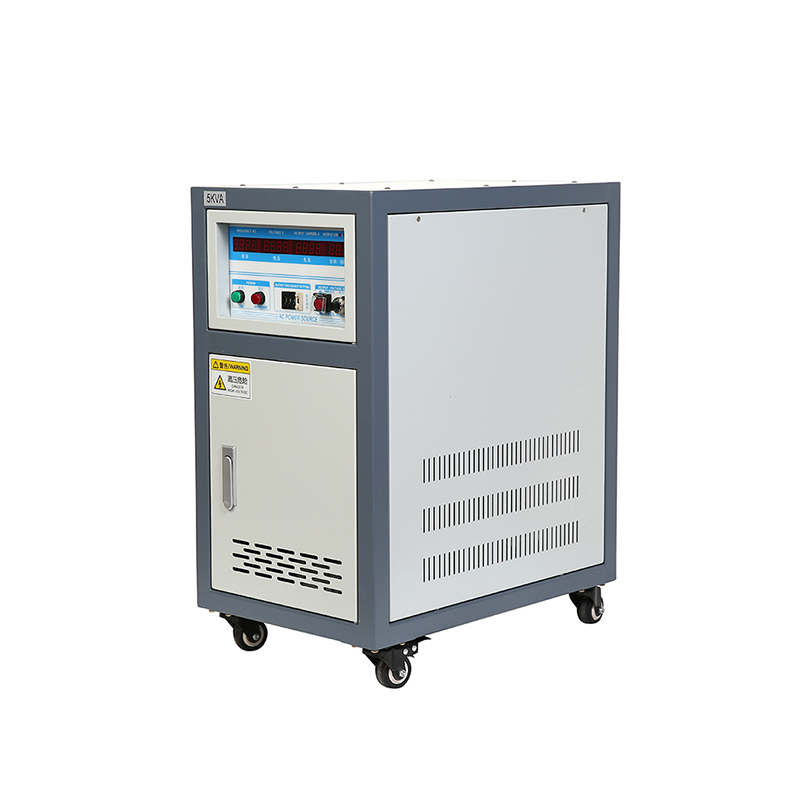

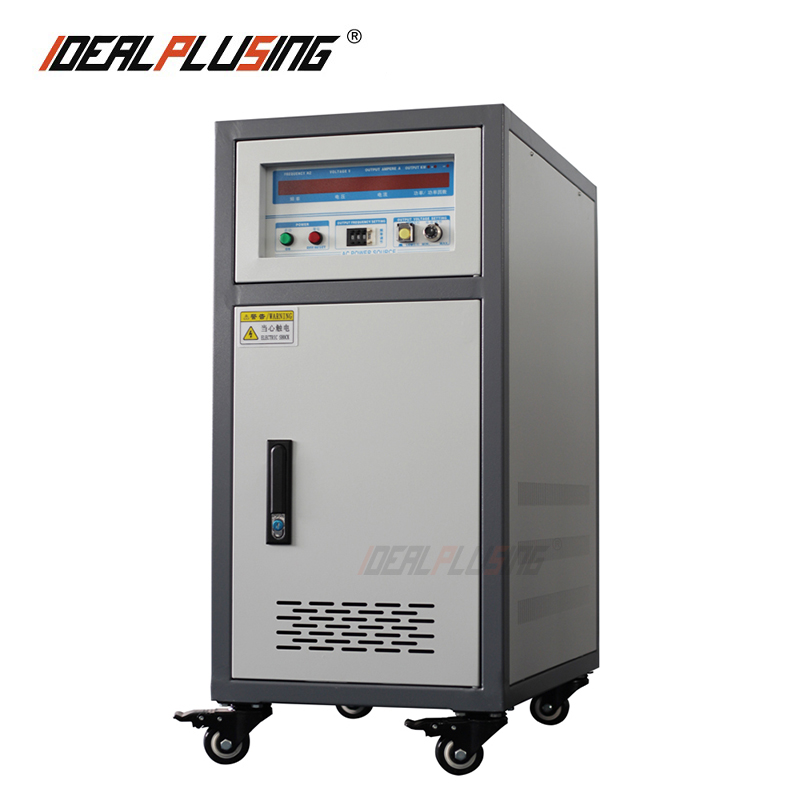

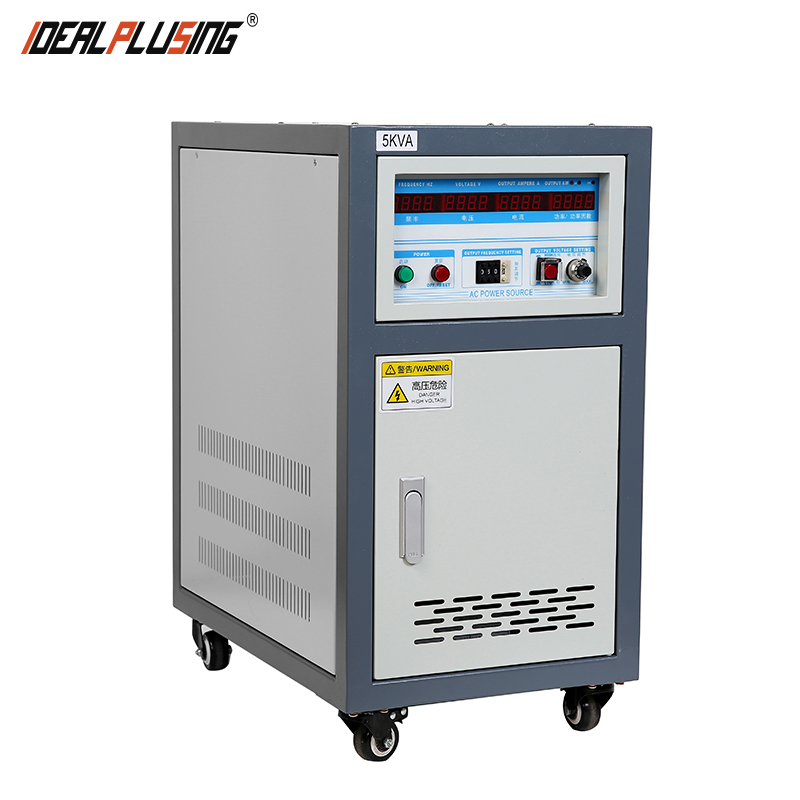

50KVA 60KVA 100KVA Energy-saving Three-phase AC Variable Voltage and Frequency Power Supply for Controlling Electric Motors
Product Description
60kVA Three Phase 480V/380V AC Variable Voltage and Frequency Power Supply
Frequency Converter 50Hz to 60Hz Solution
⚡ PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4
Unique double-loop control mode of instantaneous value and effective value for high precision and waveform quality.
5
High power IGBT module and highly integrated module drive circuit for strong overload capacity.
6
Suitable for resistive, inductive, rectifier, and other various loads.
7
Multiple protection functions for overheating, overcurrent, and short circuit conditions.
8
Parameter memory function with 10-groups shortcut key operation.
9
Power supply voltage and frequency can be adjusted online in real-time.
🚀 APPLICATION FIELDS
| 1. Home appliances | 8. Photovoltaic |
| 2. Motors | 9. Lamps |
| 3. Power tools | 10. Electronic transformers |
| 4. Switching power supplies | 11. Electronic components |
| 5. Power adapters | 12. Low-voltage distribution |
| 6. UPS | 13. Power Industry |
| 7. Information and communication | 14. Other specialized industries |
📋 TECHNICAL SPECIFICATIONS

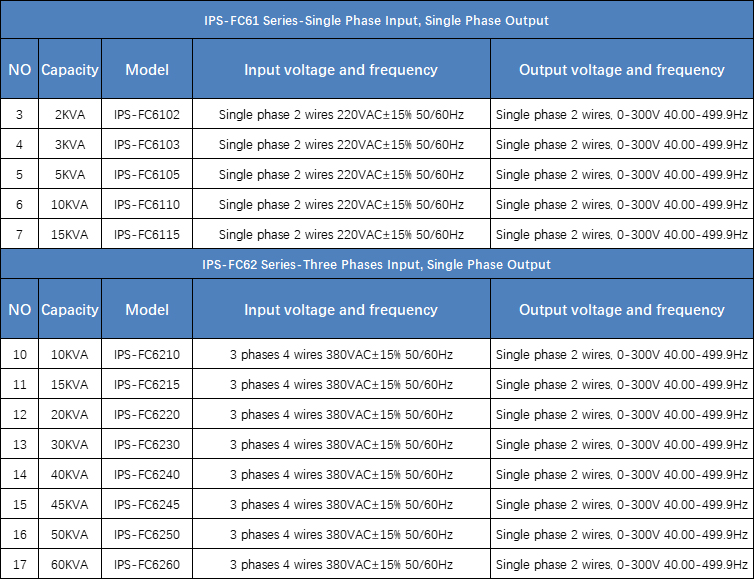

IPS-FC61 Series: Single-Phase Input / Single-Phase Output
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 |
| AC Input | Single-phase 220V / 50Hz or 60Hz | ||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | ||||||
| Frequency | 40~499.9Hz (Software Setting) | ||||||
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 |
|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 |
| AC Input | Tri-phase 220V / 50Hz or 60Hz | ||||
| Output Phase | 3-Phases 380V | ||||

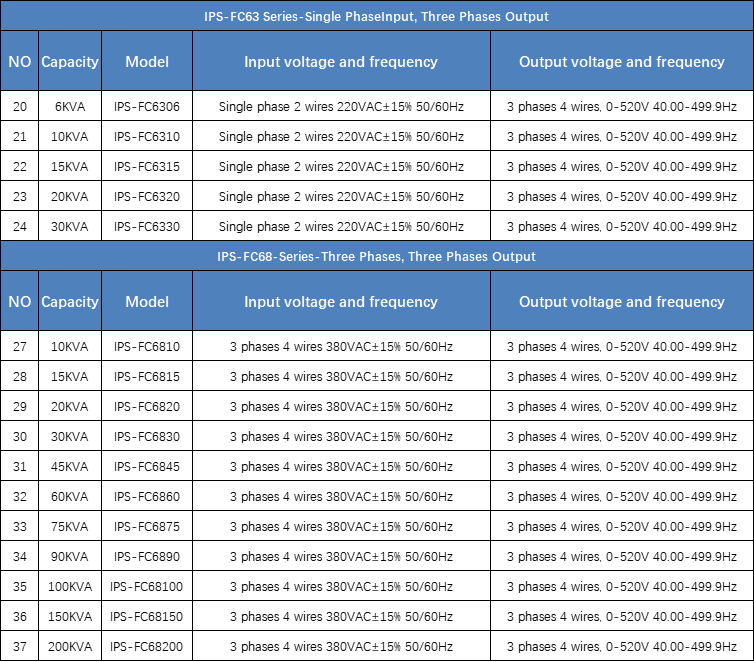

| Model (IPS-FC63) | 6310 | 6320 | 6330 | 6360 | 63100 |
|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 60 | 100 |
| AC Output | Trip phase (phase difference 120°±2°) | ||||

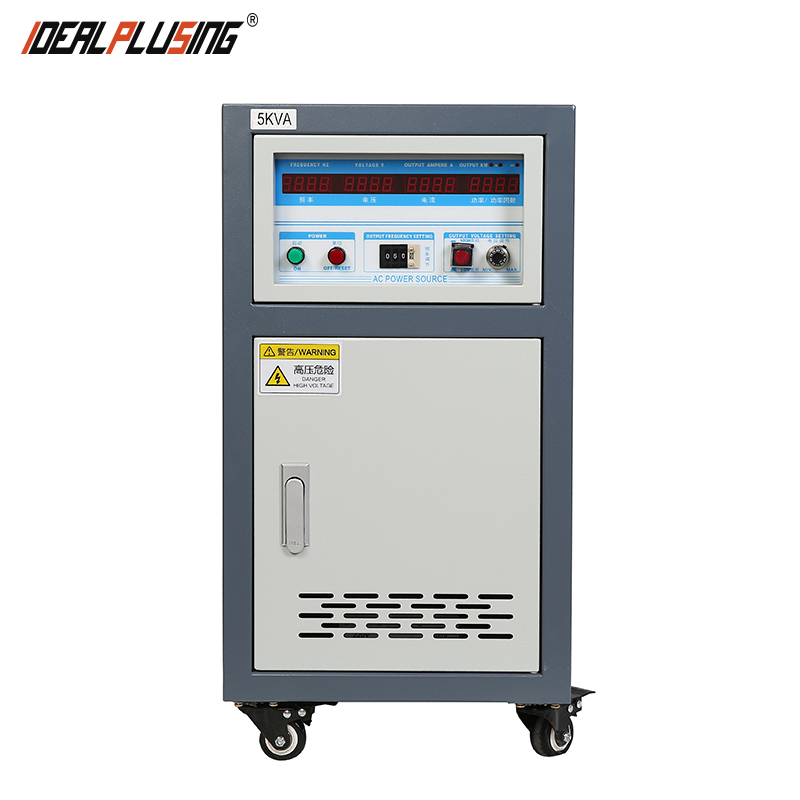

📸 PRODUCT SHOWCASE

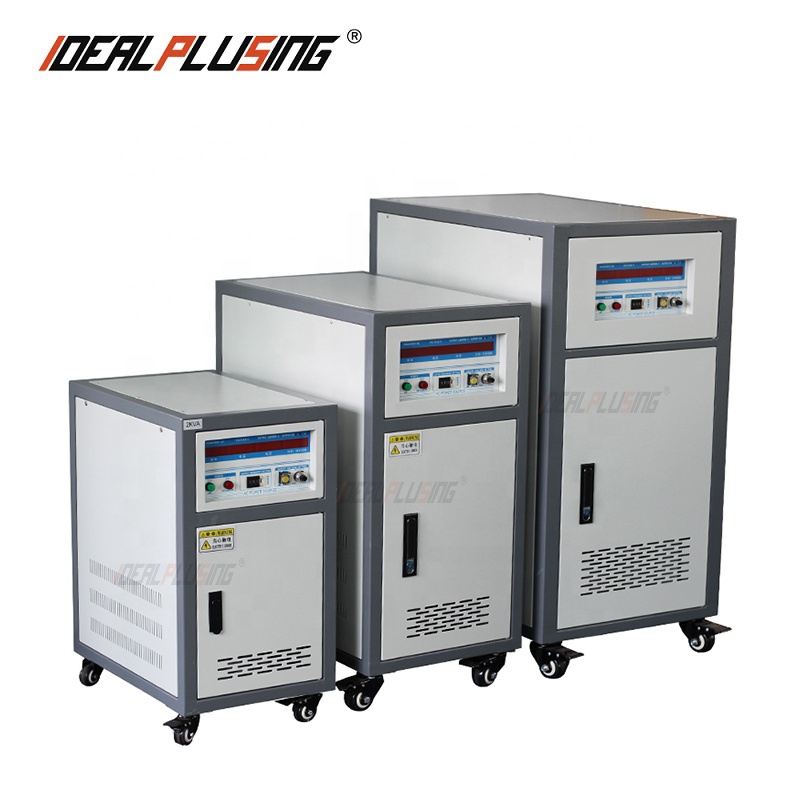

🔍 PRODUCT OVERVIEW & MODELS
❓ FREQUENTLY ASKED QUESTIONS
What is the main function of this frequency converter?
It is designed to convert AC power from one frequency (e.g., 50Hz) to another (e.g., 60Hz) and allow for variable voltage adjustment, making it ideal for testing equipment designed for different international power grids.
Can the output voltage and frequency be adjusted during operation?
Yes, the power supply voltage and frequency can be adjusted online in real-time through the software settings and control panel.
What types of protection are built into the system?
The unit includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with an automatic jump protection and alarm device.
Is this frequency converter suitable for motor testing?
Absolutely. Thanks to the SPWM technology and high-frequency IGBT inverter, it provides a stable and clean sine wave output suitable for motors, inductive loads, and precision electronics.
Does the machine support memory settings for frequent tasks?
Yes, it features a parameter memory function with 10 groups of shortcut keys to quickly recall commonly used voltage and frequency settings.
What cooling method does the device use?
The system utilizes forced fan cooling to maintain optimal working temperatures between 0°C and 45°C.
