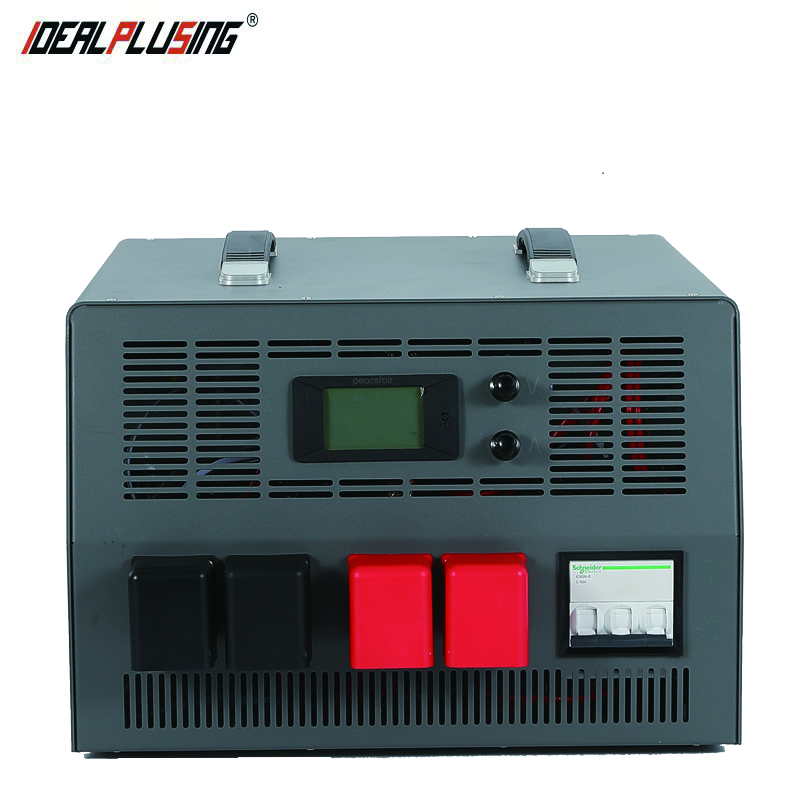

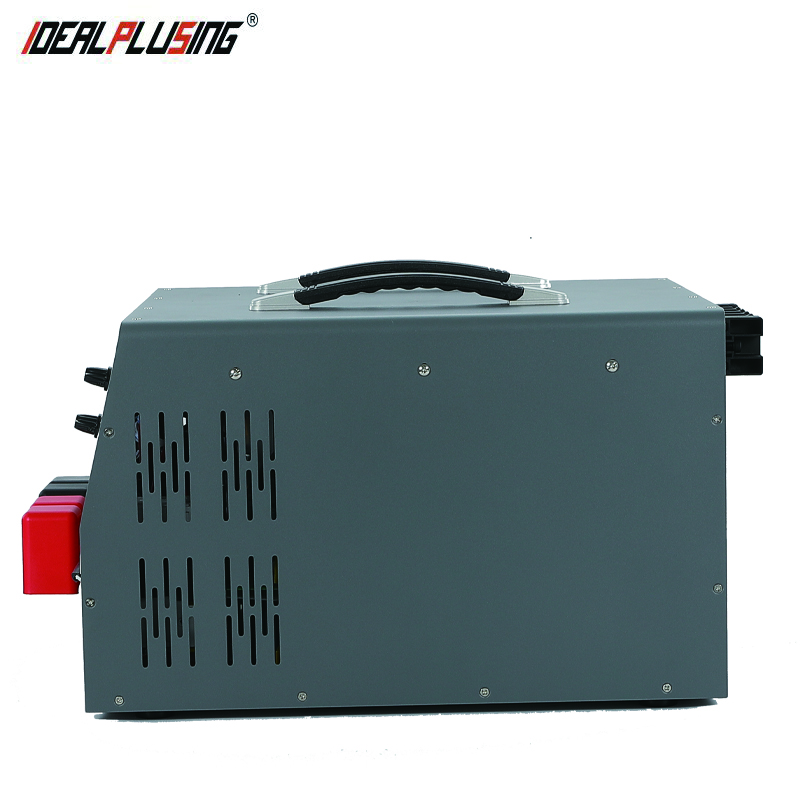

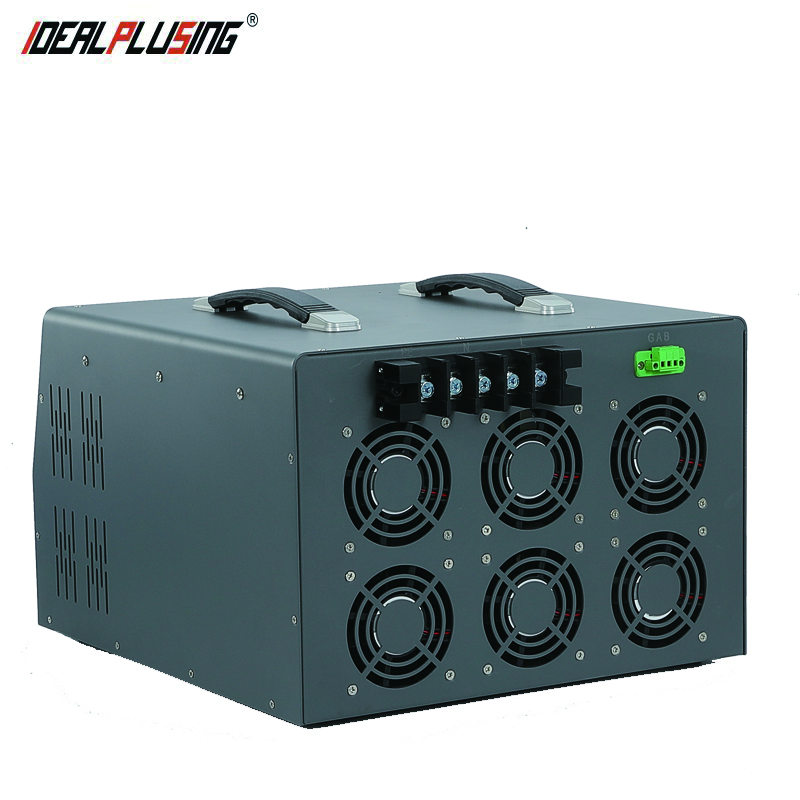

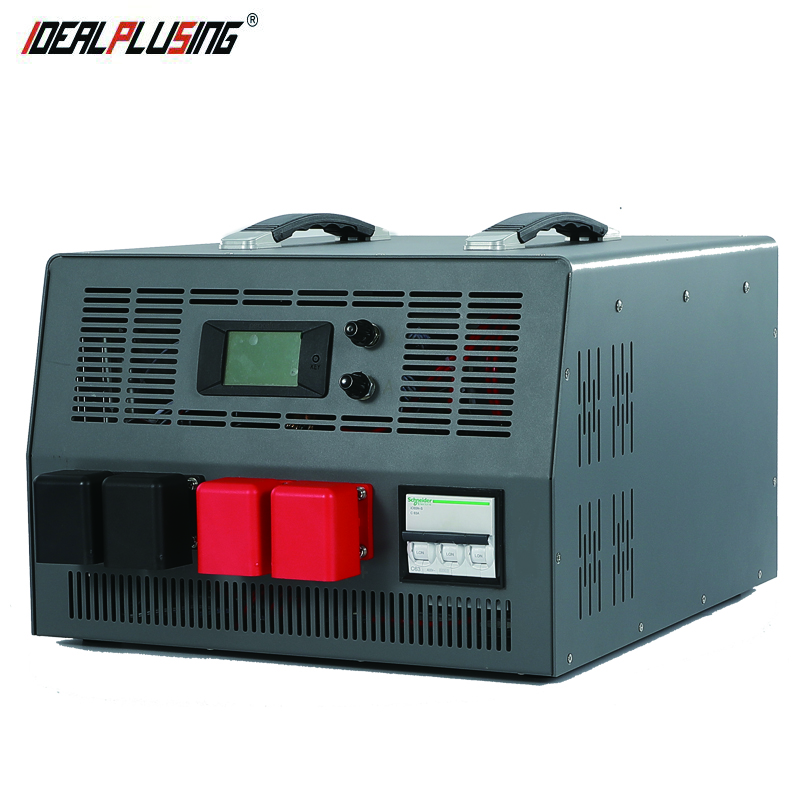

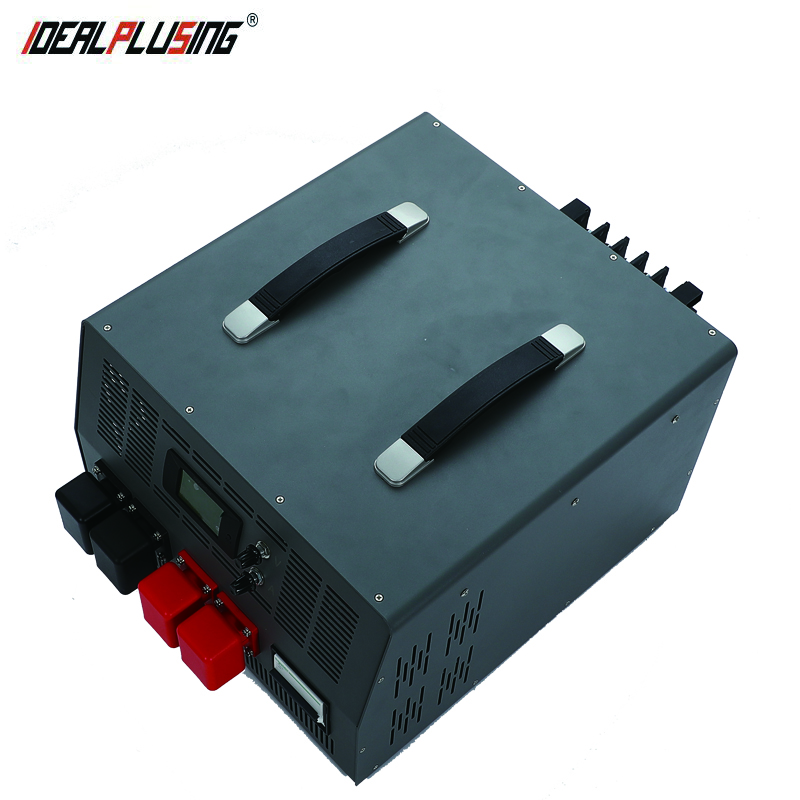

12000W Input 240V/380VAC Output 110V 220V 92A 46A High Frequency Smps Switching Power Supply for Circuit Power Supply Switching
Product Description
12000W Input 240V/380VAC Output 110V 220V 92A 46A High Frequency Smps Switching Power Supply for Circuit Power Supply Switching
Company Profile
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
Our Advantages: We specialize in customizing switching Power Supply to meet your specific requirements. If you cannot find the right specification to meet your requirement, contact us now! Our dedicated team endeavors to respond within one hour.
Product Feature
- Adjustable with Compact size, light weight
- AC input 200-240VAC 50/60HZ (110VAC/120VAC available)
- 100% full load burn-in test
- Protection: Short circuit / Over load / Over voltage
- Fixed switching frequency at 25KHz
- High efficiency, reliability quality, competitive cost
- 0-5Vdc / 0-10Vdc External control output (Optional)
- Extra adjustable potentiometer (Optional)
- Output voltage adjustable, output current fixed (Optional)
| Parameter | Specification Details |
|---|---|
| Brand | Professional Series |
| Type | Switching Mode Power Supply |
| Model | IPS-SP220-46 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | 12000W Max |
| Dimension | 455*345*251(mm) |
| Net / Gross Weight | 18KG/24.3KG |
8000W Model List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-425 | 100-120V/200-240V/380VAC | 24VDC | 425A |
| IPS-SP36-283 | 100-120V/200-240V/380VAC | 36VDC | 283A |
| IPS-SP48-212 | 100-120V/200-240V/380VAC | 48VDC | 212A |
| IPS-SP60-170 | 100-120V/200-240V/380VAC | 60VDC | 170A |
| IPS-SP110-92 | 100-120V/200-240V/380VAC | 110VDC | 92A |
| IPS-SP220-46 | 100-120V/200-240V/380VAC | 220VDC | 46A |
Hot Selling Models
IPS-PFC500-24 24VDC 500W
Input: 95-264VAC | Output: 24V, 20.83A
IPS-PFC500-48 48VDC 500W
Input: 95-264VAC | Output: 48V, 10.42A
IPS-PFC350-12 12VDC 350W
Input: 95-264VAC | Output: 12V, 29.17A
High Power Models (2000W - 6000W)
12VDC 2000W Series
Input: 200-240VAC | Output: 12VDC 150A
24V/48V 6000W Series
High capacity for industrial loads
150VDC 6000W Series
Precision output for specialized equipment
Customization Services
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Just tell us your needs and we will recommend the best solution for you. Our professional sales engineers provide solutions in a very short time.
Gallery & Dimensions
Application & Factory
Frequently Asked Questions
What are the primary protections included in these power supplies?
All units come with standard industrial protections including Short Circuit, Over Load, and Over Voltage protection to ensure safety and longevity.
Can I customize the input voltage for my region?
Yes. While 200-240VAC is standard for high-power models, we can customize units to support 110VAC/120VAC or 380VAC inputs upon request.
Are these power supplies tested before shipping?
Absolutely. Every unit undergoes a 100% full load burn-in test to guarantee reliability and performance quality before leaving our facility.
Is it possible to control the output externally?
Yes, we offer optional external control interfaces (0-5Vdc or 0-10Vdc) for remote output adjustment.
What is the range of customization available?
We can customize voltage from 1V to 1000V and current from 1A to 1000A to meet specific industrial usage scenarios.
How long does it take to get a technical solution?
Our professional sales engineers aim to respond to all technical inquiries and provide customized solutions within one hour.
