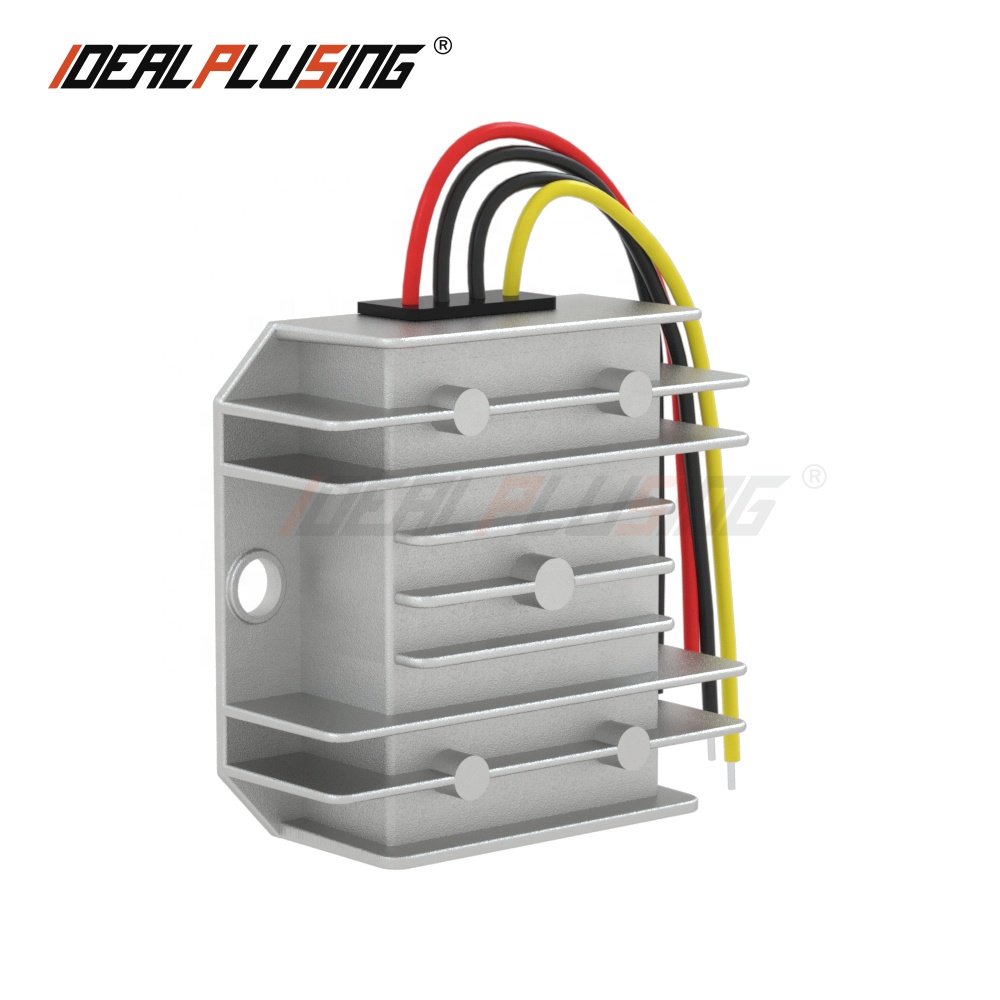

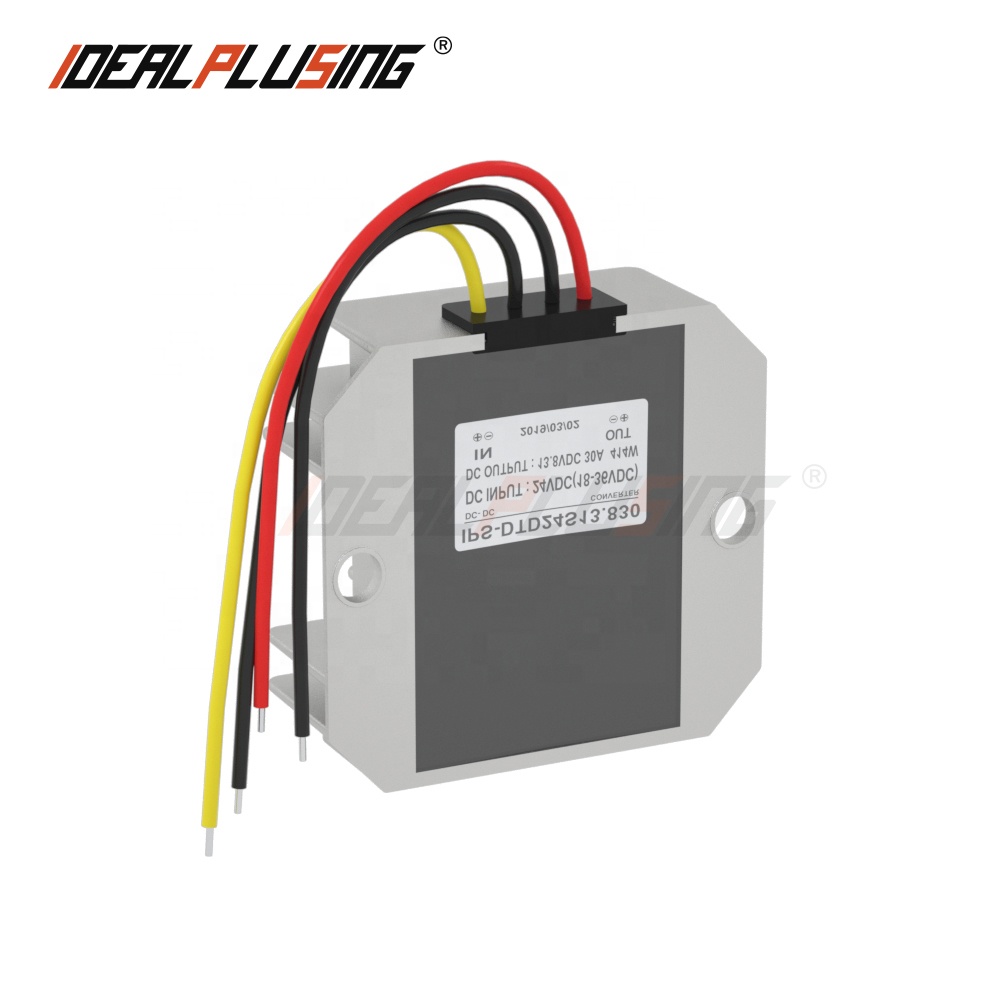

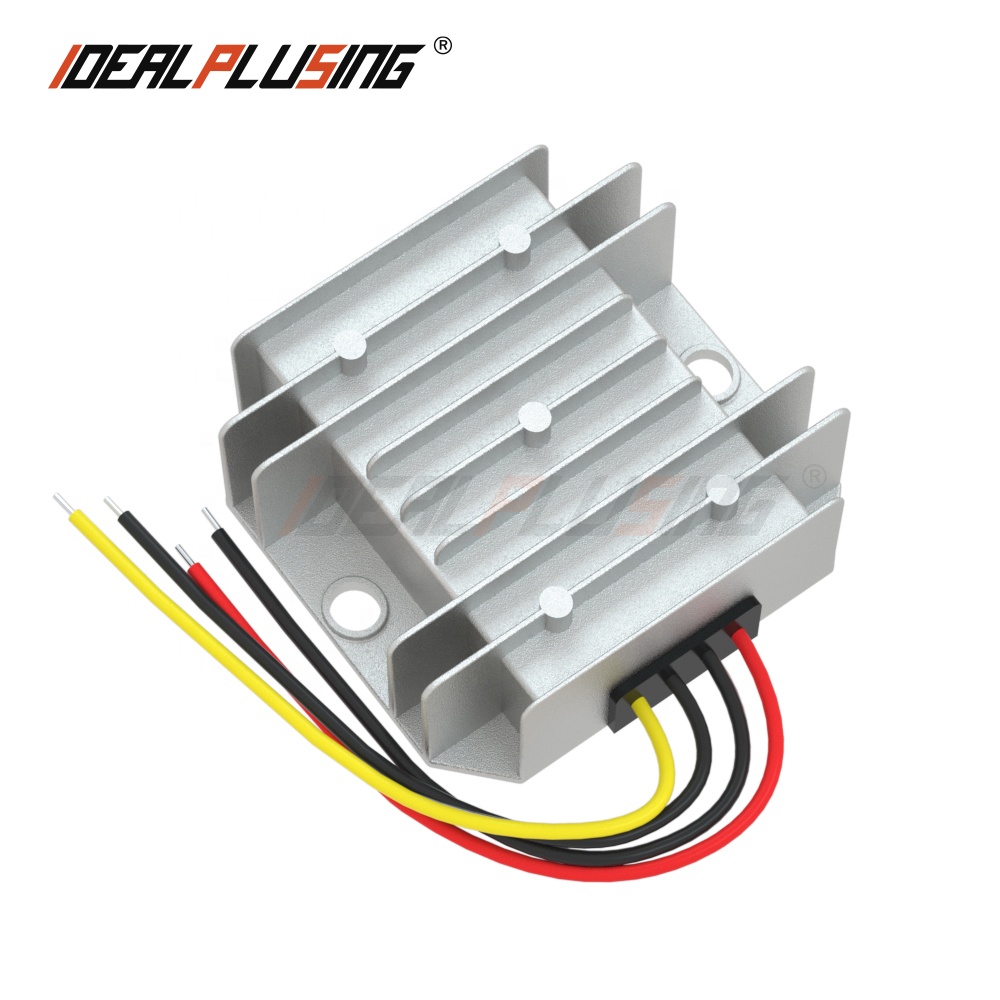

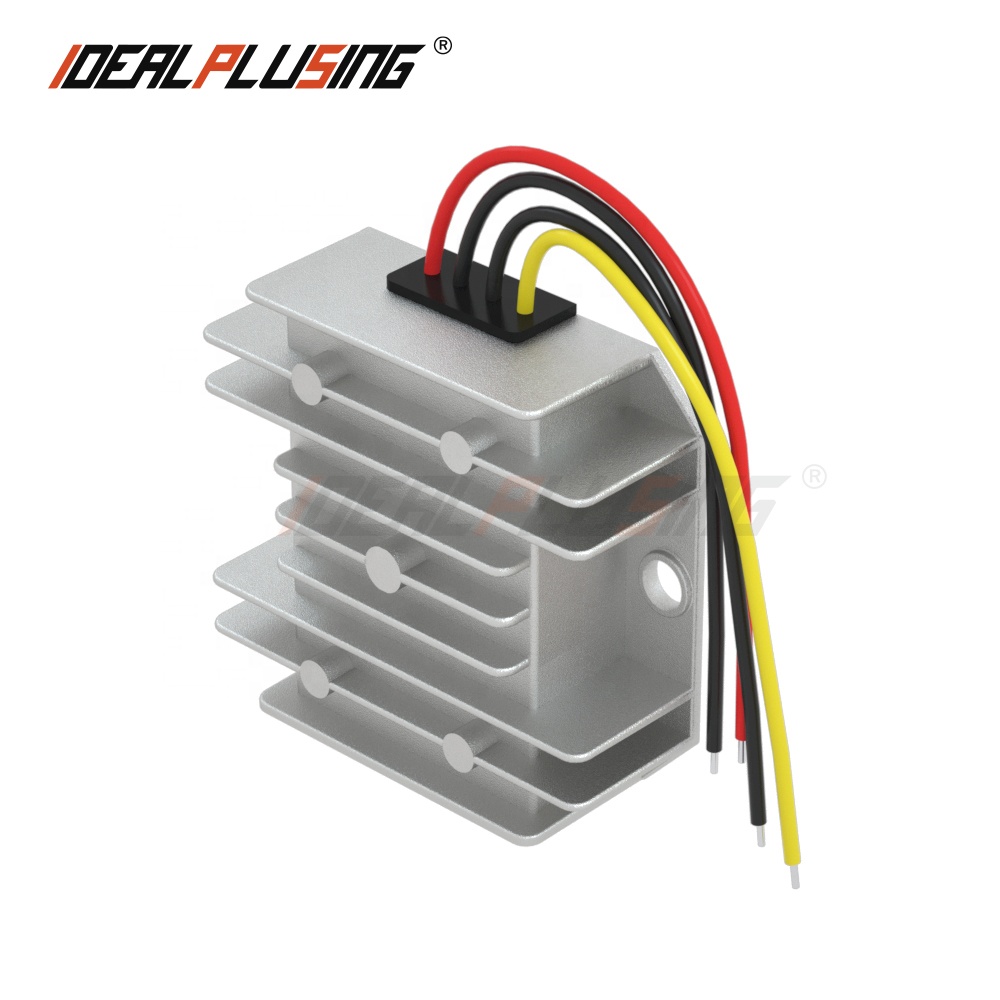

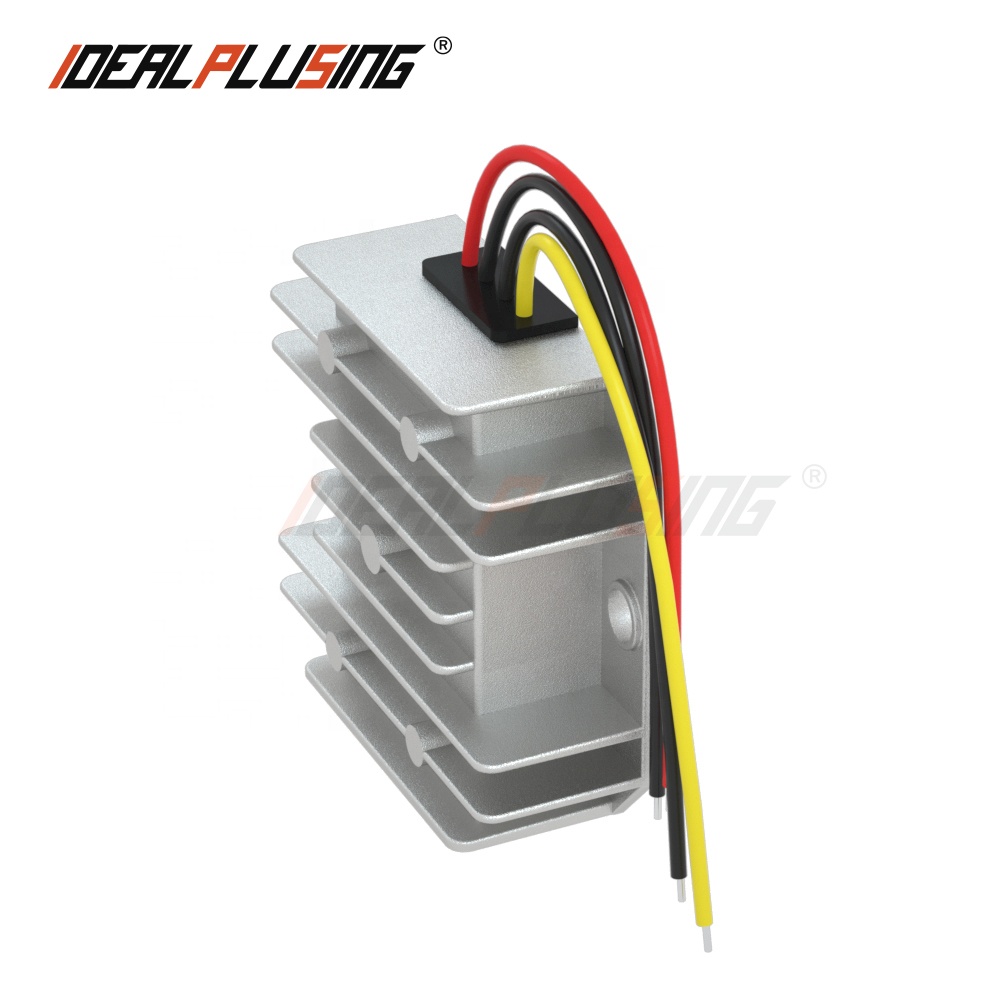

Made in China 12v24v to 12v 3amp Dc Converter for Factory Direct Sales Sofar
Product Description
Professional DC/DC Converter Solutions
Our DC/DC converter is a high-performance voltage converter designed to output fixed voltage effectively. We offer three primary categories: Boost type, Boost & Buck type, and Buck type. Depending on your needs, PWM control provides high efficiency with low noise, while PFM control ensures minimal power consumption for long-term use and light loads.
⚡
Advanced Features
PWM/PFM automatic conversion ensures optimal performance under both heavy and small loads. Widely used in automotive, marine, industrial, and portable digital products.
🔧
Customization Experts
We specialize in customized input/output voltages (1V to 1000V DC) and currents (1A to 1000A). Both isolated and non-isolated designs are available.
🛡️
High Reliability
Design life spans 15 to 20 years. Built to meet rigorous standards for global complex working environments with perfect test equipment and management processes.
Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD1224S123 or Customizable |
| Input Voltage | 6~20VDC or Customizable |
| Output Voltage | 12VDC or Customizable |
| Output Current | 3Amps or Customizable |
| Output Power | 36Watts or Customizable |
| Shell Material | Aluminum |
| Dimensions | 58*40*22MM or Customizable |
| Net Weight | 0.1kg |
| Waterproof Level | IP67 |
Model Range & Series
| Series Type | Input Range | Output Voltage | Current Options |
|---|---|---|---|
| DC-DC Boost | 5~11V to 24V | 12V to 56V | 1A to 50A |
| DC-DC Buck | 12V to 96V | 5V to 36V | 1A to 100A |
| Boost & Buck | 8~40V | 12V / 13.8V / 24V | 1A to 25A |
| Isolated Step Down | 9~150V | 5V / 12V / 24V | 1A to 125A |
Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
Product Shows
Technical Application Guide
1. Protection Systems: Standard buck-boost products include output overcurrent, short-circuit, undervoltage, and chip overheating protection.
2. Inductive Loads: For motors, coils, and speakers, we recommend a power supply 3-5 times the rated power of the load.
3. Non-Isolated Risk: In non-isolated buck converters, a worst-case failure can pass high input voltage to the output. For precious loads, isolated converters are strongly recommended.
4. Isolated Advantages: Isolated power supplies prevent high input voltage from reaching equipment, making them the safest choice (similar to mobile phone chargers).
5. Installation Note: For high input voltage applications (3x output voltage or more), use isolated products for maximum reliability.
6. Shell Design: Small gold aluminum casings are designed for high-temperature resistance and high-demand outdoor applications.
Frequently Asked Questions
What is the difference between isolated and non-isolated converters?
Isolated converters have a physical barrier between input and output, preventing high voltage pass-through in case of failure, making them safer for sensitive equipment. Non-isolated converters are more compact and efficient but share a common ground.
Can you provide customized voltage and current ranges?
Yes, we specialize in customization. We can design converters from 1V to 1000V DC and currents ranging from 1A to 1000A based on your specific requirements.
Are these converters waterproof for outdoor use?
Most of our standard aluminum shell converters meet IP67 waterproof standards, making them suitable for complex and outdoor environments.
What is the expected lifespan of your power solutions?
Our products are engineered with a design life of 15 to 20 years, utilizing high-quality components and robust thermal management.
What should I consider when using a converter for a motor?
Motor loads have high startup currents. It is recommended to choose a converter with a power rating 3 to 5 times the rated power of the motor to ensure stable operation.
Do you offer over-temperature protection?
Yes, large power supply products feature over-temperature protection on the circuit board or casing, typically triggering around 90°C.
