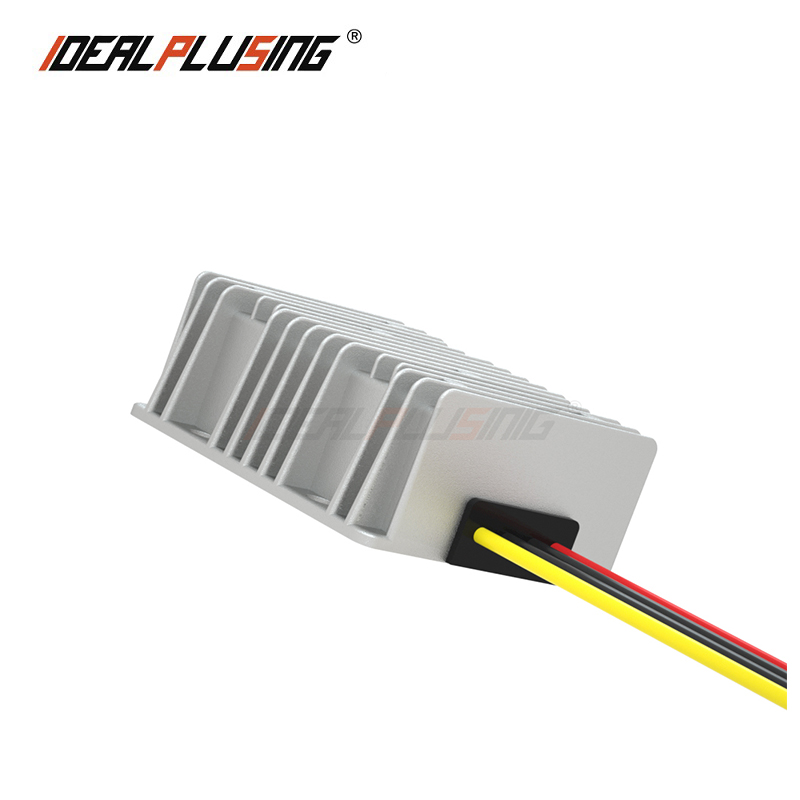

IDEALPLUSING High Efficiency 18-36V to 28V 20A 560W Voltage Stabilizer DC to DC Converter for Wide Input Voltage
Product Description
High Efficiency 18-36V to 28V 20A 560W Voltage Stabilizer DC to DC Converter
🚀 Core Features & Overview
The DC/DC converter is a high-performance voltage regulator designed to provide a stable fixed output from variable input sources. These converters are categorized into Boost, Buck, and Boost-Buck types to meet diverse industrial demands.
Utilizing PWM (Pulse Width Modulation) for high efficiency and low noise, and PFM (Pulse Frequency Modulation) for low power consumption under small loads, these units automatically switch modes to ensure optimal performance. Widely used in mobile devices, digital cameras, and industrial electronics, they are essential components for modern power management.
Utilizing PWM (Pulse Width Modulation) for high efficiency and low noise, and PFM (Pulse Frequency Modulation) for low power consumption under small loads, these units automatically switch modes to ensure optimal performance. Widely used in mobile devices, digital cameras, and industrial electronics, they are essential components for modern power management.
We focus on R&D and service for DC to DC power supply modules, rectifiers, and inverters. Our goal is to provide personalized, efficient, and cost-effective power solutions across all industries. We specialize in customizing converters ranging from 1V to 1000V DC and 1A to 1000A, offering both isolated and non-isolated design options.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD18-36S2820 |
| Input Voltage | 18-36VDC |
| Output Voltage | 28VDC |
| Output Current | 20 Amps |
| Output Power | 560 Watts |
| Shell Material | Aluminum |

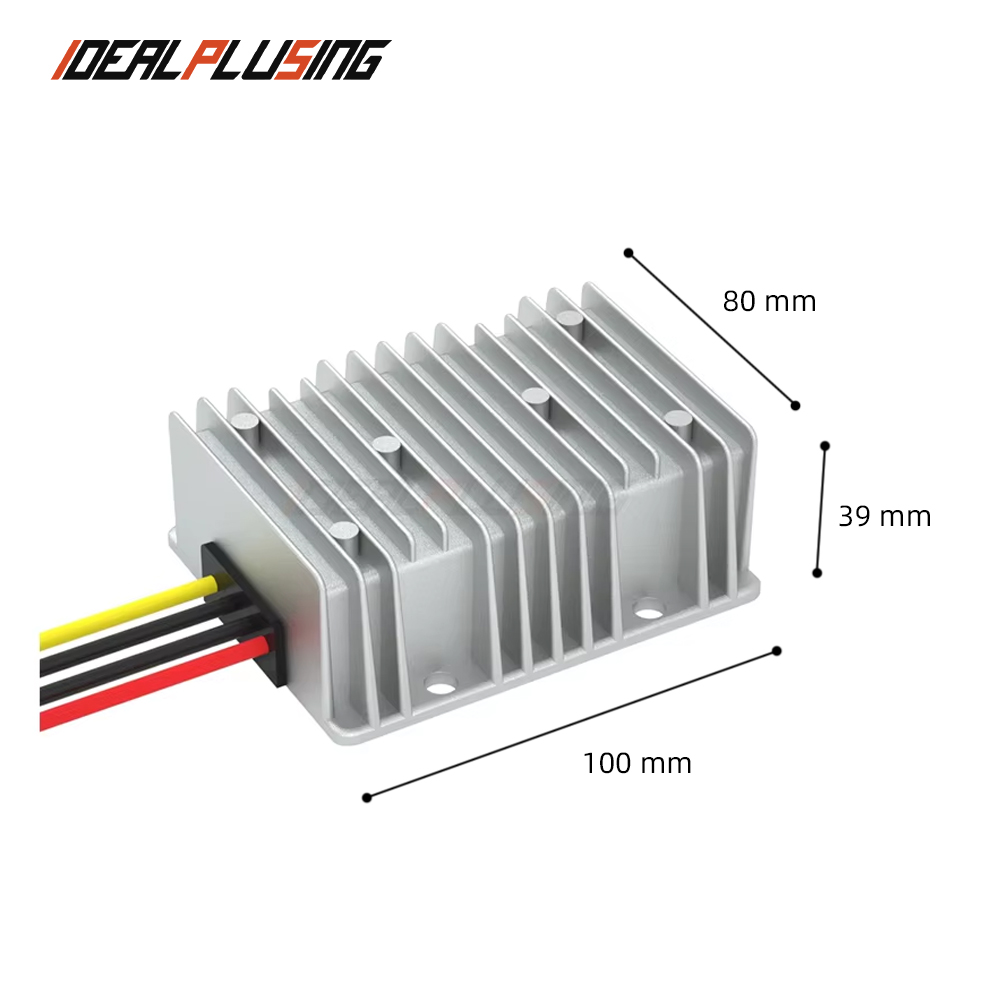

| Dimensions | 100*80*39MM |
| Net Weight | 500G |
| Waterproof Level | IP67 |
📋 Model Series List
| Category | Model/Series | Input to Output | Current Range |
|---|---|---|---|
| Boost Converters | IPS-DTD12S24** | 12V to 24V | 1A - 50A |
| IPS-DTD12S48** | 12V to 48V | 1A - 20A | |
| IPS-DTD24S48** | 24V to 48V | 2A - 40A | |
| Buck Converters | IPS-DTD24S12** | 24V to 12V | 1A - 100A |
| IPS-DTD48S12** | 48V to 12V | 1A - 60A | |
| IPS-DTD48S24** | 48V to 24V | 1A - 50A | |
| Battery Chargers | IPS-DTDYC* | 10-36V Input | Lithium/Lead Acid Support |
| IPS-DTDGC* | 10-32V Input | High Power Support |
🔥 Hot Selling Models
IPS-DTD30-60S1210
Non-Isolate
IPS-DTD20-100S122
Non-Isolate
IPS-DTD15-40S1210
Non-Isolate
IPS-DTD50-60S488
IPS-DTD50-60S488
IPS-DTD48S1240
⚙️ Industrial Power Solutions
⚠️ Technical Application Notes
✔
Standard Protections: Includes overcurrent, short-circuit, undervoltage, and overheating protection (threshold approx. 90°C).
✔
Step-up Precautions: Boost series do not have inherent short-circuit protection; please add external fuses at the input.
✔
Durability: Small aluminum casings are high-temperature resistant and reliable for outdoor use.
✔
Inductive Loads: For motors/solenoids, select a power supply with 3-5 times the rated power of the load.
✔
Safety Recommendation: For precious loads, isolated converters are strongly recommended to prevent high input voltage pass-through.
✔
Isolated Flexibility: Supports negative voltage input and provides the highest safety for equipment like mobile chargers.

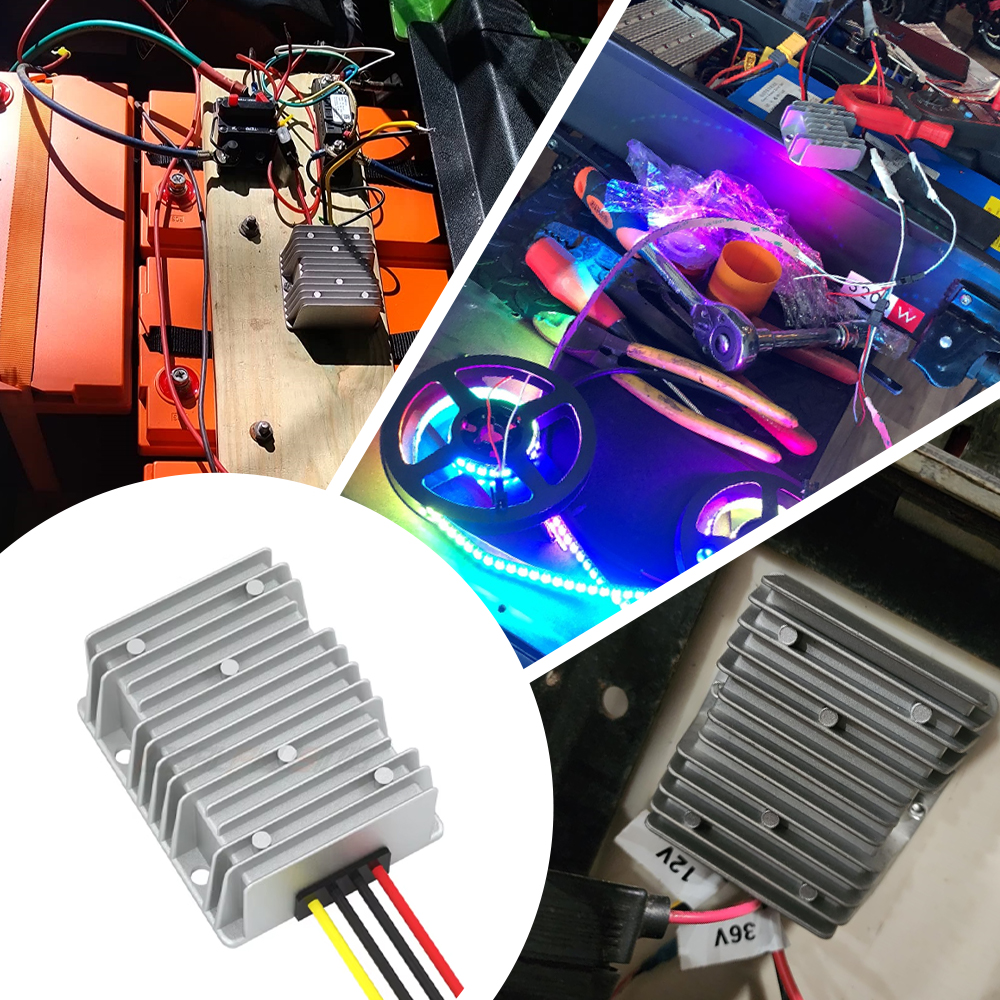

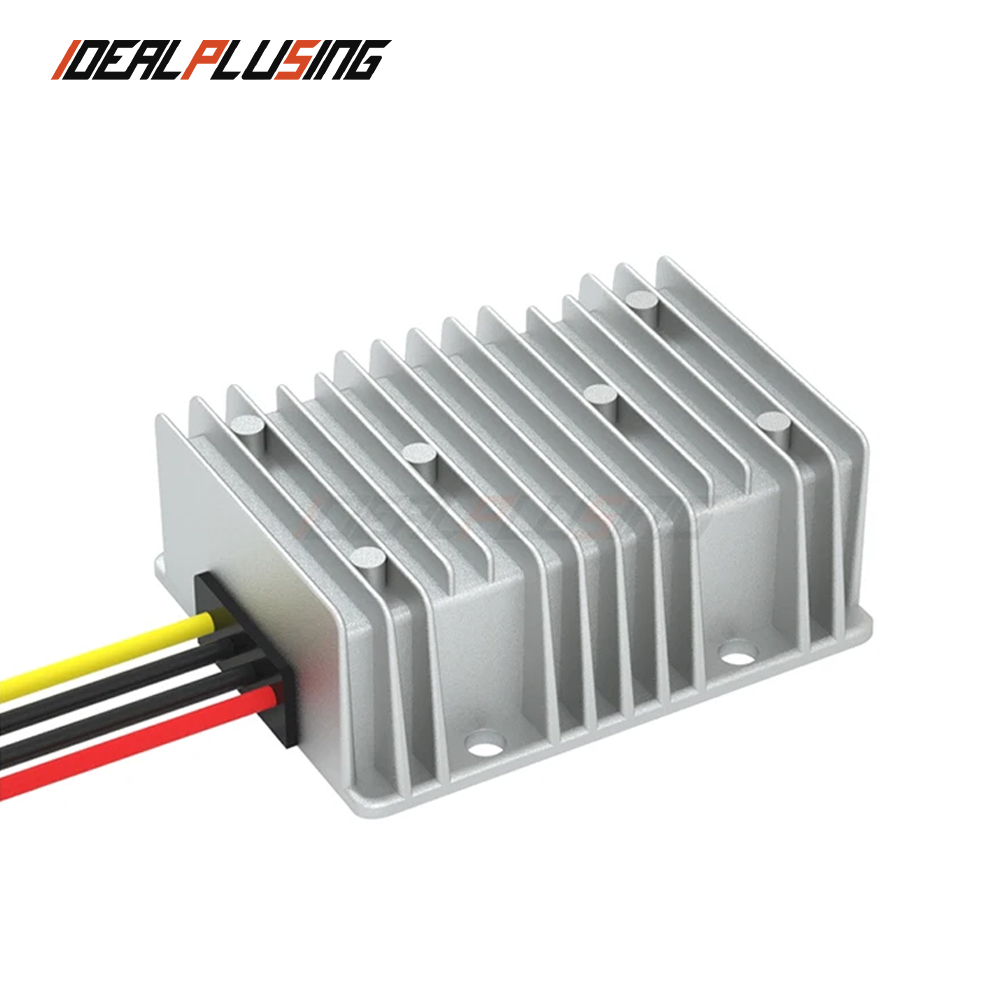

📸 Product Showcase
Frequently Asked Questions
1. What is the difference between isolated and non-isolated DC-DC converters?
Isolated converters provide an electrical barrier between input and output, preventing high voltage from reaching the load in case of failure. Non-isolated converters share a common ground and are more compact but lack this safety barrier.
2. Can I use these converters for motor or inductive loads?
Yes, but due to high start-up currents, we recommend choosing a converter with 3 to 5 times the rated power of your inductive load to ensure stability.
3. Does the product support outdoor installation?
Many of our units come with an IP67 waterproof rating and durable aluminum shells, making them suitable for harsh outdoor environments and high-temperature applications.
4. What happens if the input voltage drops below the specified range?
Most models include input undervoltage protection, which will shut down the unit to protect both the converter and the source battery from damage.
5. Are these converters protected against short circuits?
Standard buck-boost and step-down models include output short-circuit protection. For boost (step-up) models, we recommend adding an external fuse at the input end.
6. Can the output voltage be adjusted?
While many units have fixed outputs for maximum stability, we offer customization services for specific voltage requirements ranging from 1V to 1000V.
