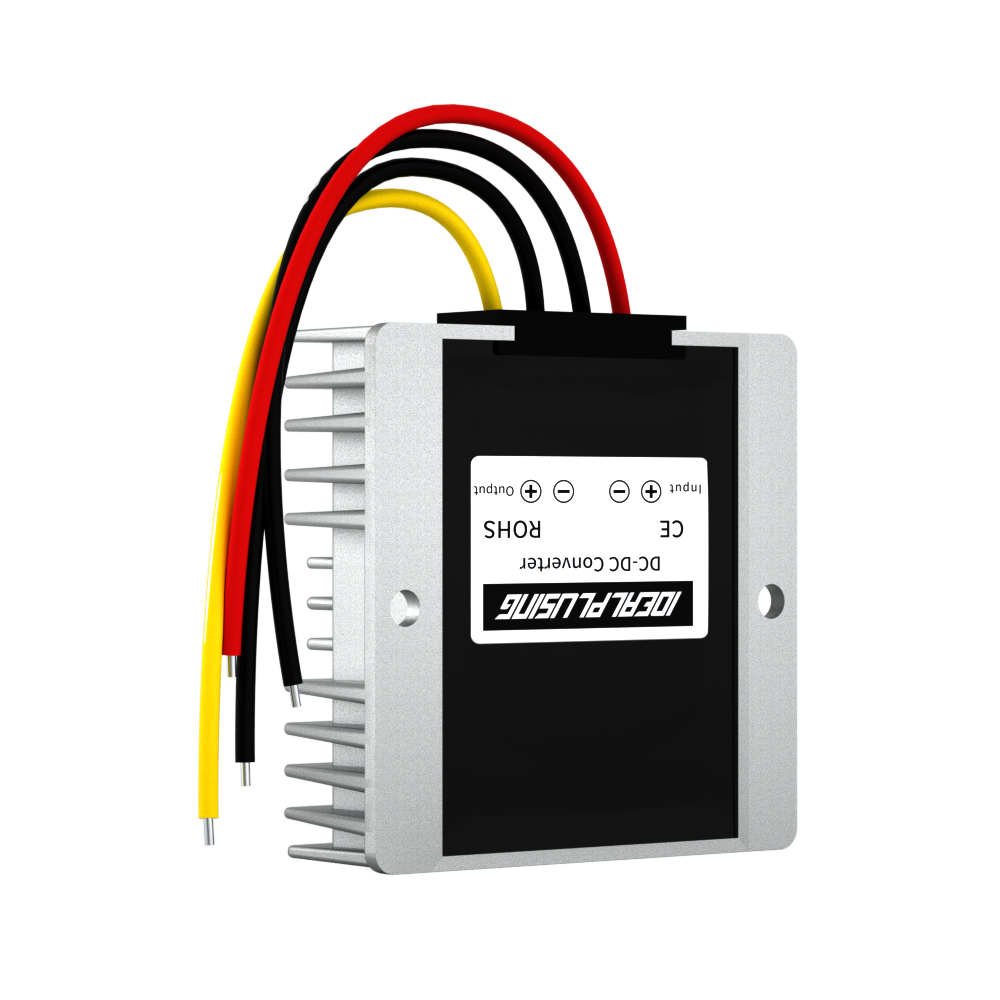

Stabilized DC Converter 8-60V to 24V 5A 10A 12A 120W 240W 288W Non-isolated Voltage Stabilizer for Automotive Grade Standard
Product Description
Features & Overview
★ A DC/DC converter is a specialized voltage regulator designed to provide a stable, fixed output voltage. These converters are essential for modern electronics, categorized into Boost, Buck, and Boost-Buck types. Depending on your application, they utilize PWM control for high efficiency and low noise, or PFM control for optimized power consumption under light loads.
Customization Solutions: We specialize in tailored DC-DC power modules ranging from 1V to 1000V DC and 1A to 1000A. Whether you require isolated or non-isolated designs, we provide efficient, reliable, and cost-effective solutions for all industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated Voltage Stabilizer |
| Model | IPS-DTD9-36S245 |
| Input Voltage | 9-36V DC |
| Output Voltage | 24V DC |
| Output Current | 5 Amps |
| Output Power | 120 Watts |

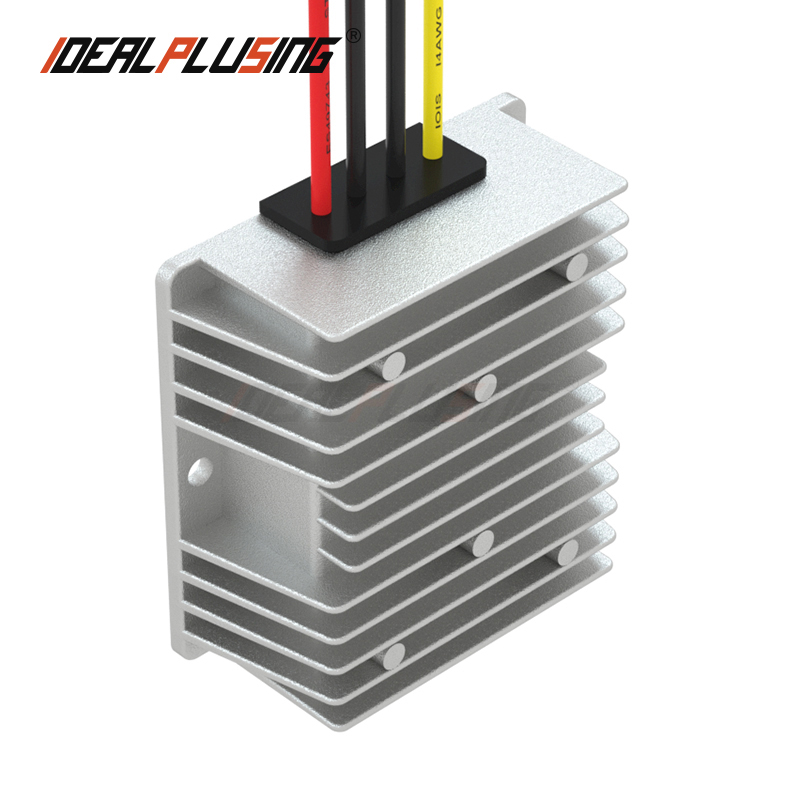

| Shell Material | Aluminum |
| Size | 74*74*32 MM |
| Waterproof Level | IP67 |
Product Range - Non-Isolated
| Category | Model/Series | Input to Output | Available Current |
|---|---|---|---|
| Boost | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| Boost | IPS-DTD12S48** | 12V to 48V | 1A to 20A |
| Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| Buck | IPS-DTD48S24** | 48V to 24V | 1A to 50A |
| Buck-Boost | IPS-DTD9~40S24* | 9~40V to 24V | 2A to 10A |
Industrial & Isolated Solutions
| Series | Input Rating (VDC) | Output Voltage (VDC) | Power Range |
|---|---|---|---|
| Industrial High Power | 12V - 700V Range | 12V - 1000V Range | 100W to 8000W |
| Rack Mount | 24V/48V/110V/220V | 24V/48V/110V/220V | Up to 60A |
| Battery Charger | 10-36V DC | 12.6V - 58.8V DC | 1A to 60A |
Hot Selling Models
Technical Guidelines
- Standard protection features: Overcurrent, short-circuit, undervoltage, and overheating protection.
- Inductive loads (motors, magnetic valves): Recommend power supply 3-5 times the rated load power.
- Non-isolated safety: For precious loads, isolated products are highly recommended to prevent high voltage pass-through.
- Inductive loads: For charging or motor applications, choose specific functional power supplies.
- Isolation: Isolated units support negative voltage input and provide superior safety for 90% of global applications.
- Prototype production: Isolated units require custom transformer adjustments; allow for longer delivery periods.
Product Manufacturing & Details
Frequently Asked Questions
? What is the difference between PWM and PFM control?
PWM control offers high efficiency and excellent output ripple/noise performance. PFM control is advantageous for low power consumption during long periods of small load usage.
? Are these DC converters waterproof?
Yes, models like the IPS-DTD9-36S245 feature an IP67 waterproof level, making them suitable for automotive and outdoor environments.
? When should I choose an isolated converter over a non-isolated one?
Isolated converters are highly recommended for precious loads to prevent high input voltage from passing directly to the output end. They are also safer for applications where input voltage is 3x higher than output.
? Can I customize the voltage and current ranges?
Absolutely. We offer customization for input and output voltages ranging from 1V to 1000V and current from 1A to 1000A.
? What protection features are included?
Standard features include output overcurrent, short-circuit, input undervoltage, and overheating protection. Large power supplies also include casing over-temperature protection.
? How do I select a power supply for motor applications?
For motor loads or inductive loads (like speakers or magnetic valves), we recommend a power supply with a rated power 3 to 5 times greater than the load's rated power.
