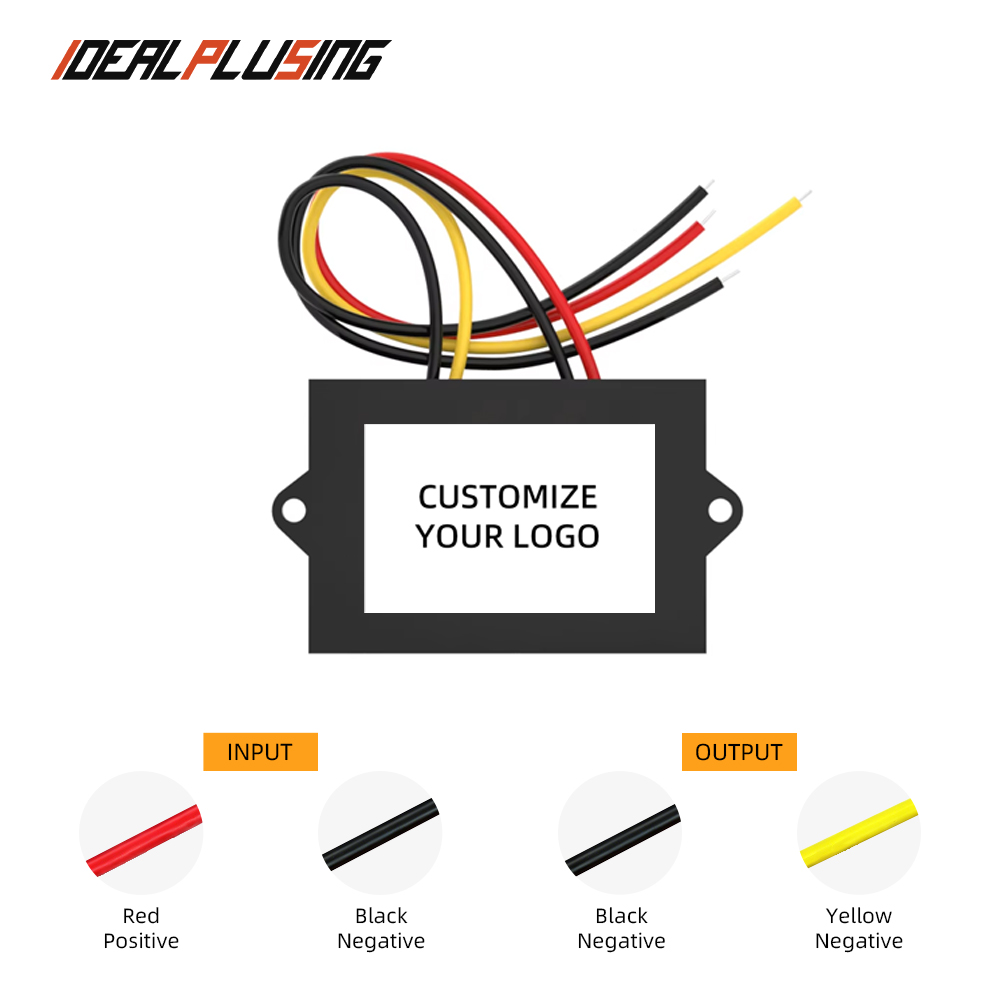

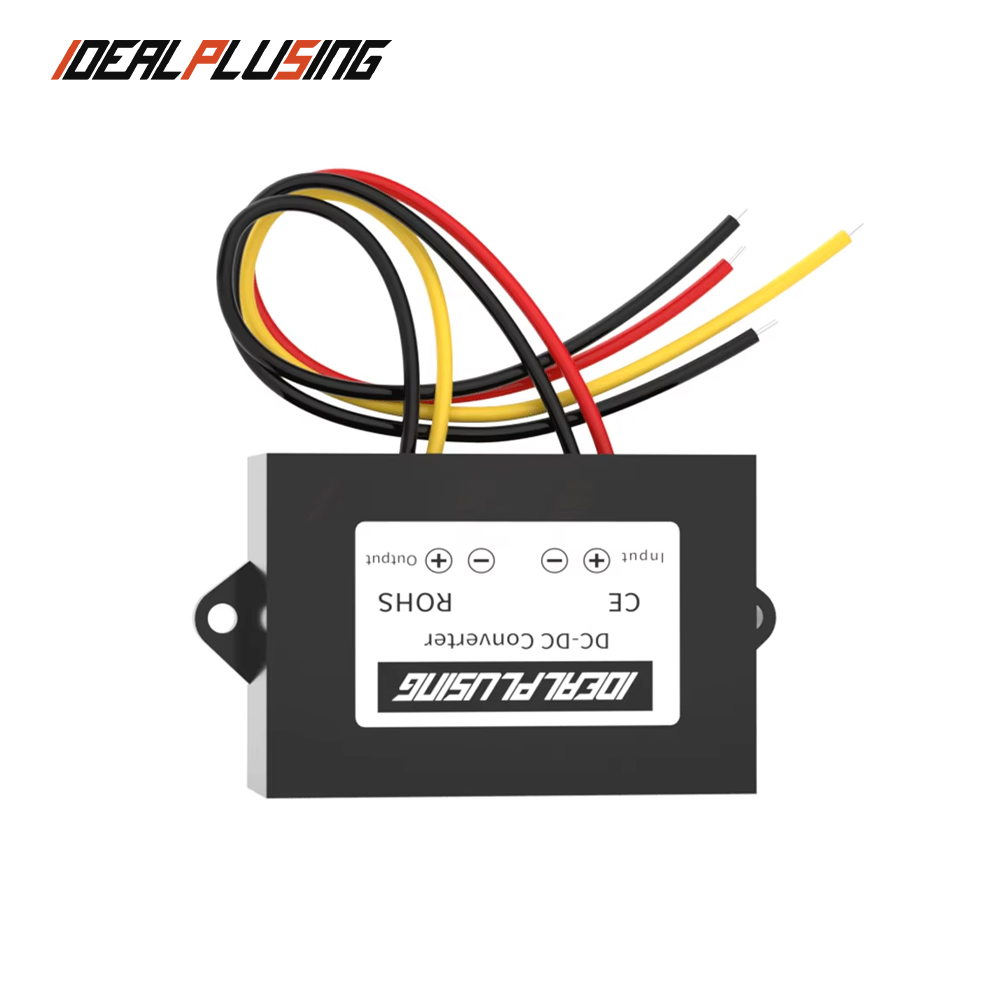

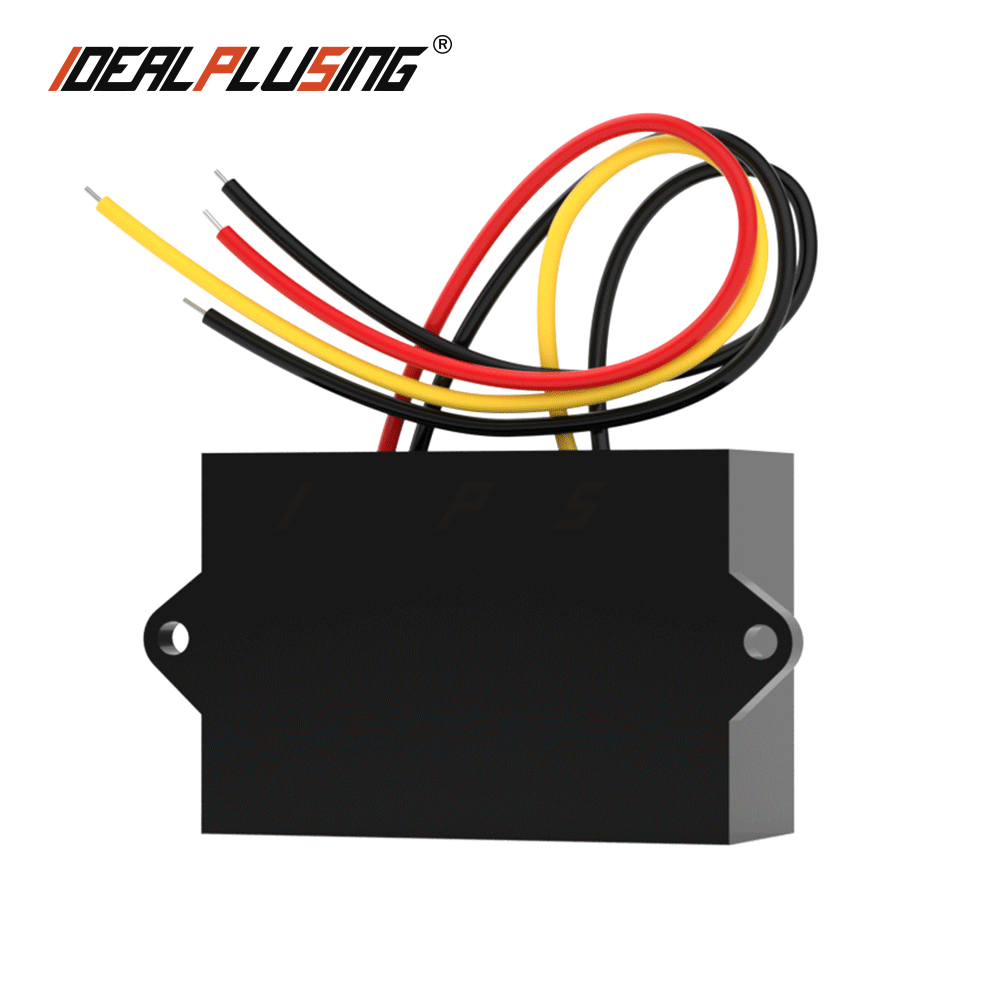

IDEALPLUSING High Efficiency 10-36V to 24V 2A 48W Voltage Stabilizer DC DC Converter for Stable Voltage Output
Product Description
High Efficiency 10-36V to 24V 2A 48W Voltage Stabilizer DC DC Converter
A DC/DC converter is a voltage converter which can effectively output a fixed voltage after converting input voltage. These converters are essential components in modern electronics, providing stable power for mobile phones, digital cameras, and portable media players.
⚙️
Control Types
PWM control provides high efficiency with low noise. PFM control offers low power consumption for long-term use, especially under small loads.
🛡️
Reliable Design
Automatic conversion between PWM/PFM ensures optimal performance during load fluctuations. Widely used in industrial and consumer electronics.
We specialize in research, development, and providing efficient power solutions including DC to DC modules, AC to DC rectifiers, and inverters. Our goal is to provide reliable and cost-effective solutions tailored to your industry needs.
- Customization Range: Input/Output voltages from 1V to 1000V DC.
- Current Options: Flexible current output from 1A to 1000A.
- Design Variety: Both isolated and non-isolated converter options available.
- Rapid Response: Dedicated technical support for all power inquiries.
| Parameter | Details |
|---|---|
| Model | IPS-DTD10-36S242 |
| Type | Non-isolated |
| Input Voltage | 10-36VDC |
| Output Voltage | 24VDC |
| Output Current | 2A |
| Output Power | 48W |
| Shell Material | High-grade Plastic |

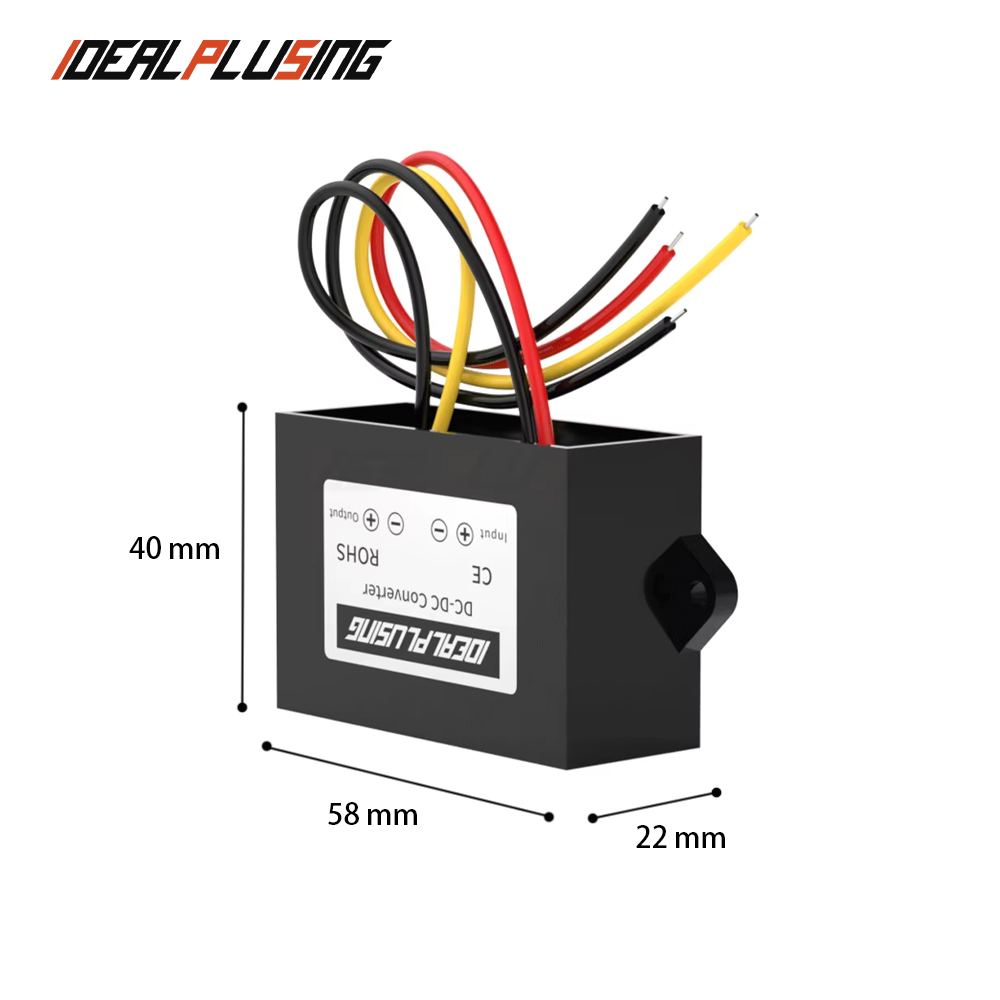

| Dimensions | 58*40*22MM |
| Waterproof Level | IP67 |
| Net Weight | 0.1KG |
1. Protection Features: Standard units include overcurrent, short-circuit, undervoltage, and overheating protection.
2. Load Recommendations: For inductive loads (motors, speakers, valves), we recommend a power supply 3-5 times the rated power of the load.
3. Isolation Safety: Isolated converters prevent high input voltage from passing to the output, making them the safest choice for precious loads.
4. Installation Tip: For non-isolated boost products, always add a fuse at the input to prevent wiring damage during short circuits.
5. Custom Prototypes: Isolated power supplies require custom transformer adjustments; please allow for longer lead times for custom prototypes.
Frequently Asked Questions
What is the difference between Isolated and Non-Isolated converters?
Isolated converters provide a physical barrier between input and output circuits, preventing high voltage passage and offering higher safety for sensitive equipment. Non-isolated converters are generally more efficient and compact but share a common ground.
How do I choose the right power for my motor application?
For motors and inductive loads, it is highly recommended to choose a converter with a rated power 3 to 5 times higher than the load's nominal power to handle start-up surges.
Does this unit have short-circuit protection?
Most buck-boost and step-down models include integrated short-circuit protection. However, some step-up (boost) series require an external fuse at the input end for safety.
Is the converter waterproof for outdoor use?
Yes, models like the IPS-DTD10-36S242 feature an IP67 waterproof rating, making them suitable for harsh environments and outdoor applications.
Can the output voltage be adjusted?
While fixed voltage outputs are standard for high efficiency, we offer customization services for specific input/output requirements ranging from 1V up to 1000V.
What happens if the input voltage is too low?
The converter features input undervoltage protection, which will safely shut down or stabilize the unit to prevent damage to the internal circuitry and the connected load.
