9-36V to 24V 15A 20A 360W 480W Automotive Grade Non-isolated Regulator DC DC Converter for Anti Interference Ability
Product Description

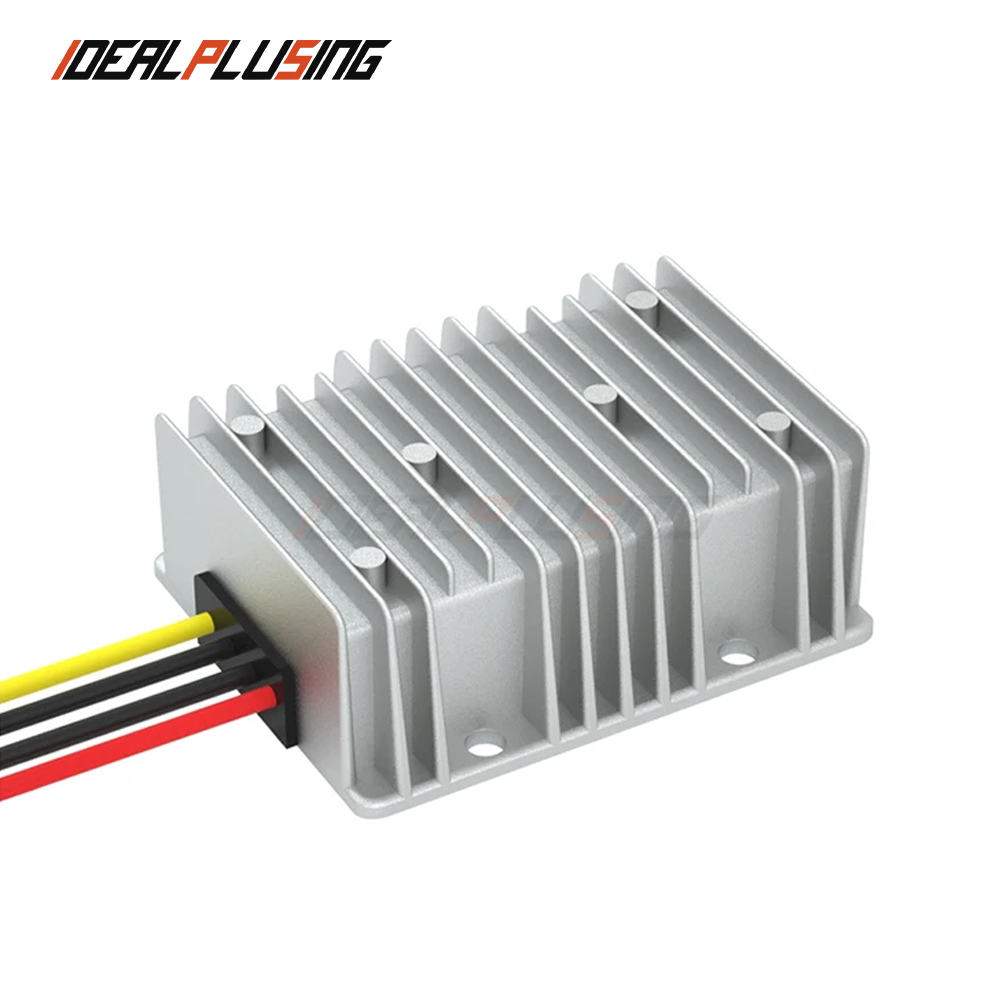

Automotive Grade DC-DC Converter
9-36V to 24V 15A 20A 360W 480W High-Efficiency Regulator

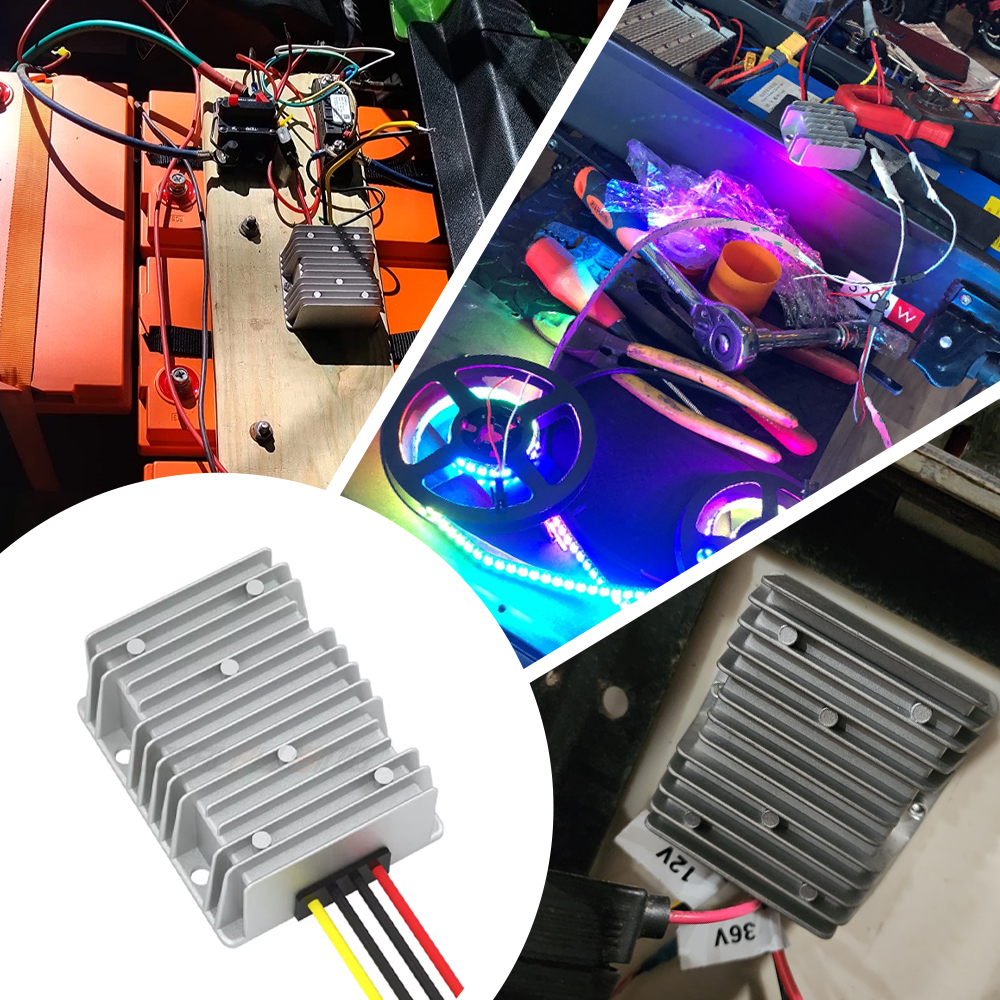

This DC/DC converter is a voltage regulator designed to effectively output fixed voltage after converting input voltage. Featuring anti-interference ability, it is widely used in automotive systems, mobile devices, digital cameras, and portable media players.
Core Features & Solutions
- Advanced Control: Utilizes PWM for high efficiency and low noise, and PFM for low power consumption under light loads.
- Wide Customization: We specialize in custom solutions with input/output ranges from 1V to 1000V DC and 1A to 1000A.
- Design Options: Both isolated and non-isolated converter designs are available to meet specific application safety requirements.
- Smart Conversion: Automatic transition between PWM and PFM control based on load weight.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | OEM / Customized |
| Type | Non-isolated |
| Model | IPS-DTD10-36S2415 |
| Input Voltage | 10-36VDC |
| Output Voltage | 24VDC |
| Output Current | 15 Amps |
| Output Power | 360 Watts |
| Shell Material | Aluminum |

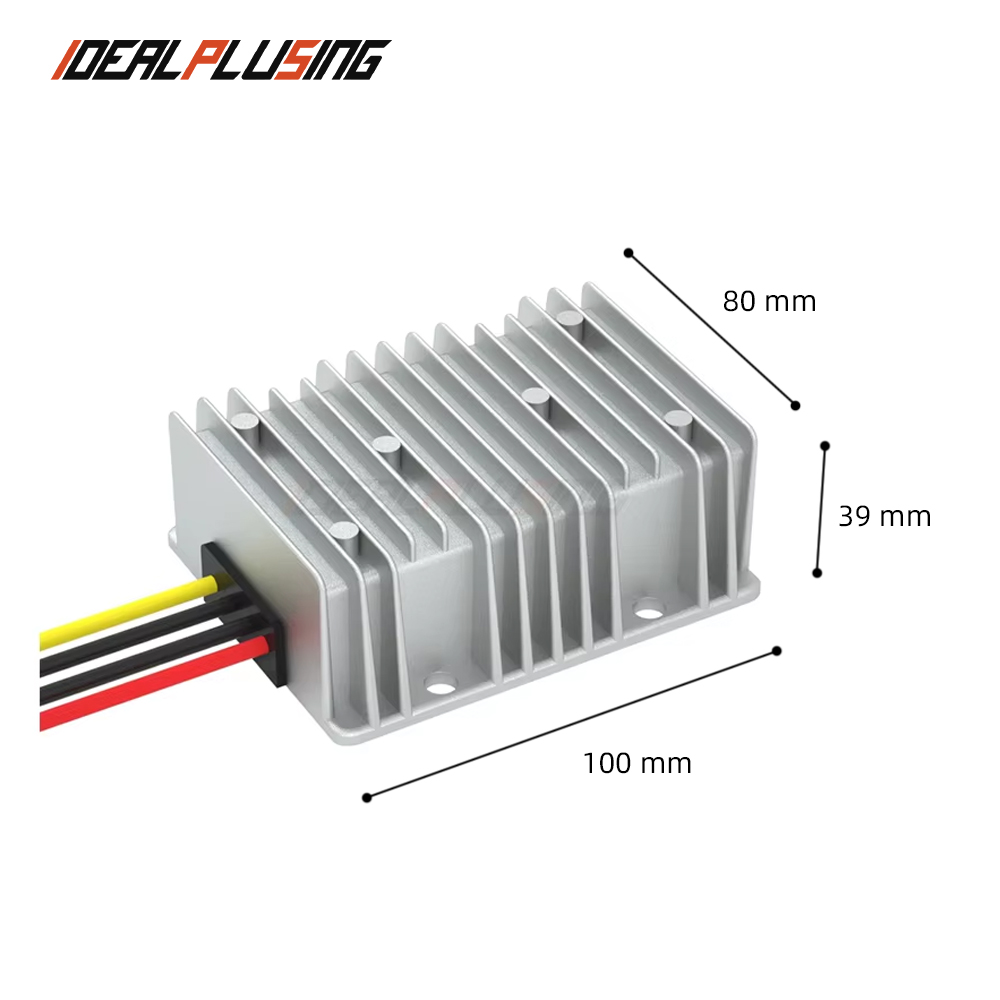

| Dimensions | 100*80*39MM |
| Net Weight | 500G |
| Waterproof Level | IP67 |
Model Gallery & Popular Selections
Non-Isolated & Isolated Series
| Type | Model Series | Conversion | Current Range |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1A - 50A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A - 100A |
| Isolated Step Down | IPS-DTDYI24S24* | 9-36V to 24V | 1A - 20A |
| Battery Charger | IPS-DTDYC* | 10-36VDC Input | 1A - 20A |
| Rack Mount | IPS-DTD110S**** | 110VDC to 24/48V | 5A - 50A |
Technical Application Guide
1. Protections: All buck-boost products come standard with overcurrent, short-circuit, undervoltage, and overheating protection.
2. Fuses: Due to circuit structure, step-up series products lack internal short-circuit protection; please add appropriate fuses at the input end.
3. Inductive Loads: For motor applications or inductive loads (magnetic valves, speakers), we recommend a power supply 3-5 times the rated power of the load.
4. Isolation Safety: Non-isolated buck units may pass high input voltage to the output if they fail. For precious loads, isolated products are strongly recommended.
5. Negative Voltage: Isolated power supplies can support negative voltage input. Note that the 0V line connects to the red wire and the negative voltage line to the black wire.

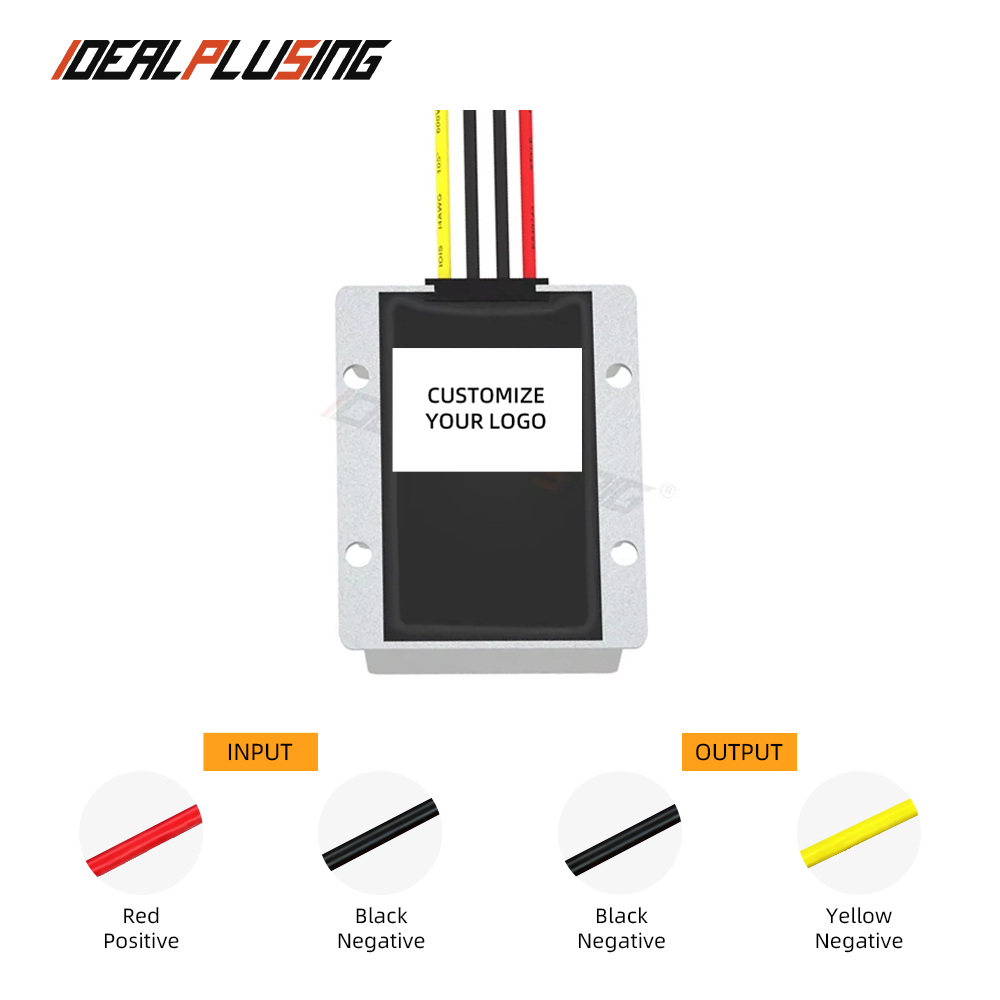

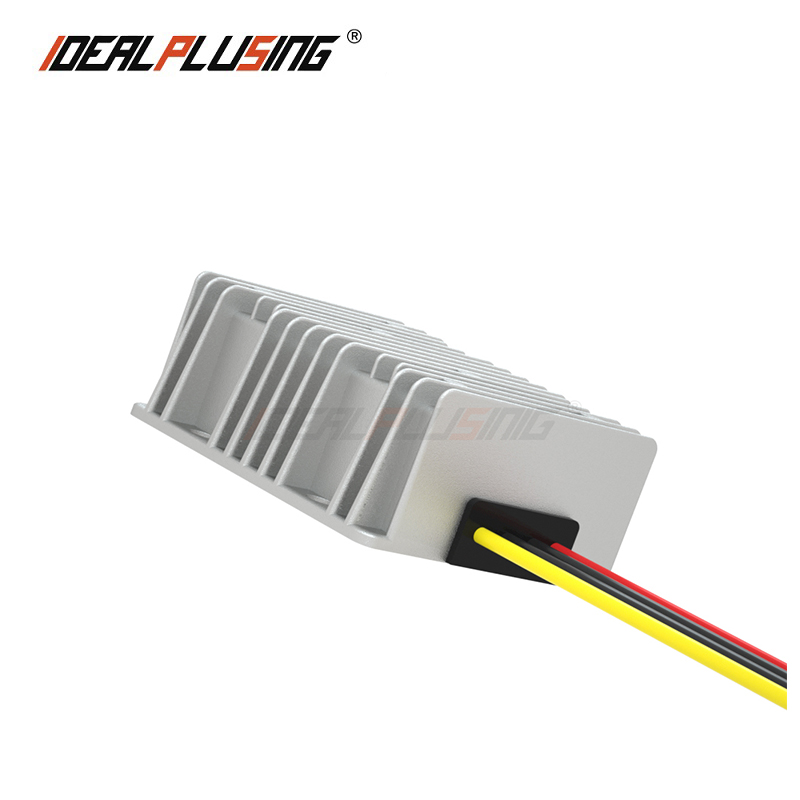

Product Details & Installation
Frequently Asked Questions
What is the advantage of PWM/PFM control in these converters?
PWM control provides high efficiency and low noise during heavy loads, while PFM control ensures extremely low power consumption during long-term light-load operation.
Should I choose an isolated or non-isolated converter?
Non-isolated converters are smaller and more efficient but carry a risk of high voltage passing to the load upon failure. Isolated converters offer superior safety and are recommended for precious or sensitive equipment.
How do I handle inductive loads like motors?
Inductive loads have high startup currents. We recommend using a power supply with a rated capacity 3 to 5 times larger than the continuous load requirement.
Are these converters waterproof?
Yes, many models in this series are rated at IP67, featuring hard gel encapsulation for high-demand outdoor and automotive applications.
Can I get a custom voltage range?
Absolutely. We offer customized solutions for input/output voltages ranging from 1V to 1000V DC and currents up to 1000A.
What happens if a short circuit occurs at the input?
For non-isolated boost converters, a short circuit can burn the wiring. We strongly advise adding an external fuse at the input end to prevent large currents from damaging your power source.
