IDEALPLUSING CE Certified 8-36V to 24V 3A 72W Voltage Stabilizer Buck Boost Voltage Converter for Solar
Product Description
CE Certified 8-36V to 24V 3A 72W Voltage Stabilizer Buck Boost Voltage Converter for Solar
🚀 Features: DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load.
At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.
🛠️Customization Solutions
We focus on the research and development of D C to D C power supply modules, A C to D C rectifier modules, and various power solutions. We specialize in customizing DC-DC converters to meet your specific requirements.
- Range: 1V to 1000V DC and 1A to 1000A
- Design options: Isolated and non-isolated converters
- Applications: Solar systems, mobile devices, and industrial equipment
📊Technical Specification
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD8-36S243 |
| Input Voltage | 8-36VDC |
| Output Voltage | 24VDC |
| Output Current | 3Amps |
| Output Power | 72Watts |
| Material | Aluminum Shell |

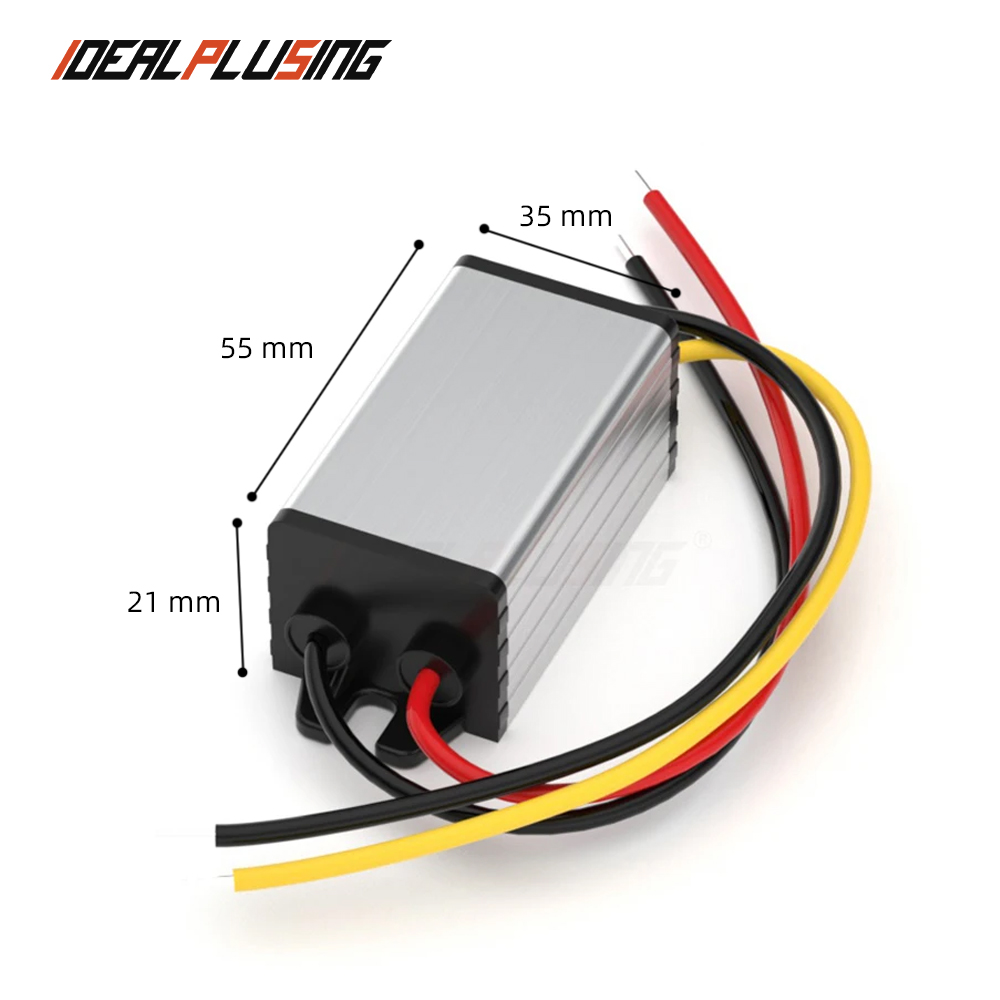

| Size | 54*35*21MM |
| Net Weight | 75G |
| Waterproof | IP67 |
🔥Hot Selling Models
IPS-DTD30-60S1210
Type: Non-Isolate
IPS-DTD20-100S122
Type: Non-Isolate
IPS-DTD15-40S1210
Type: Non-Isolate

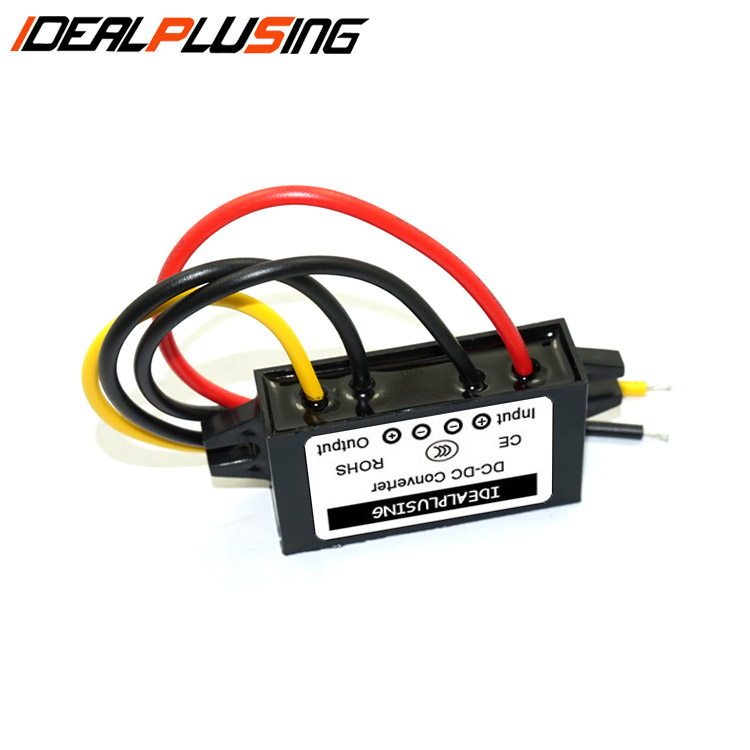

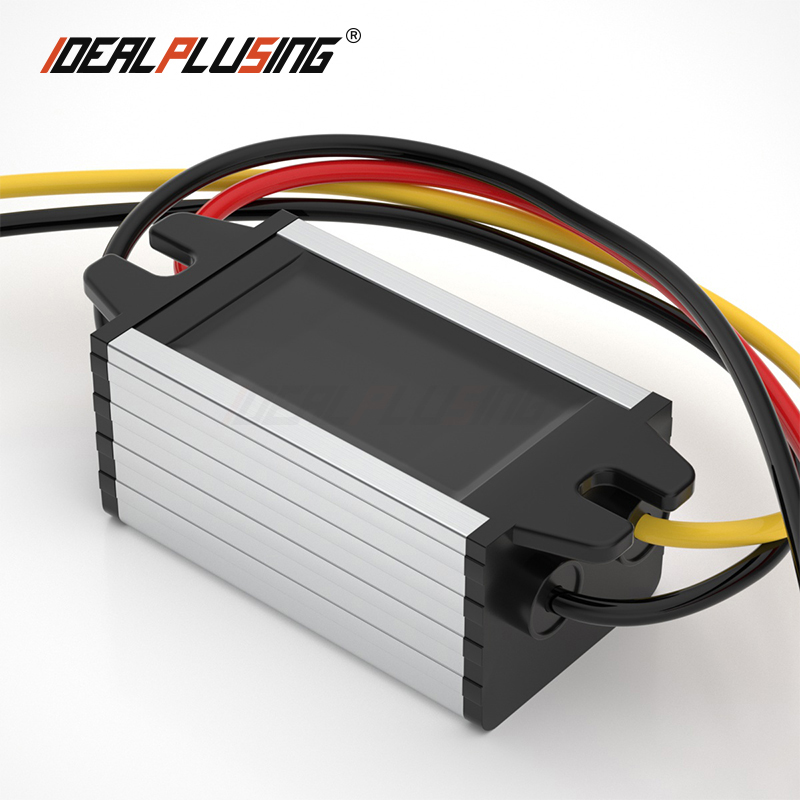

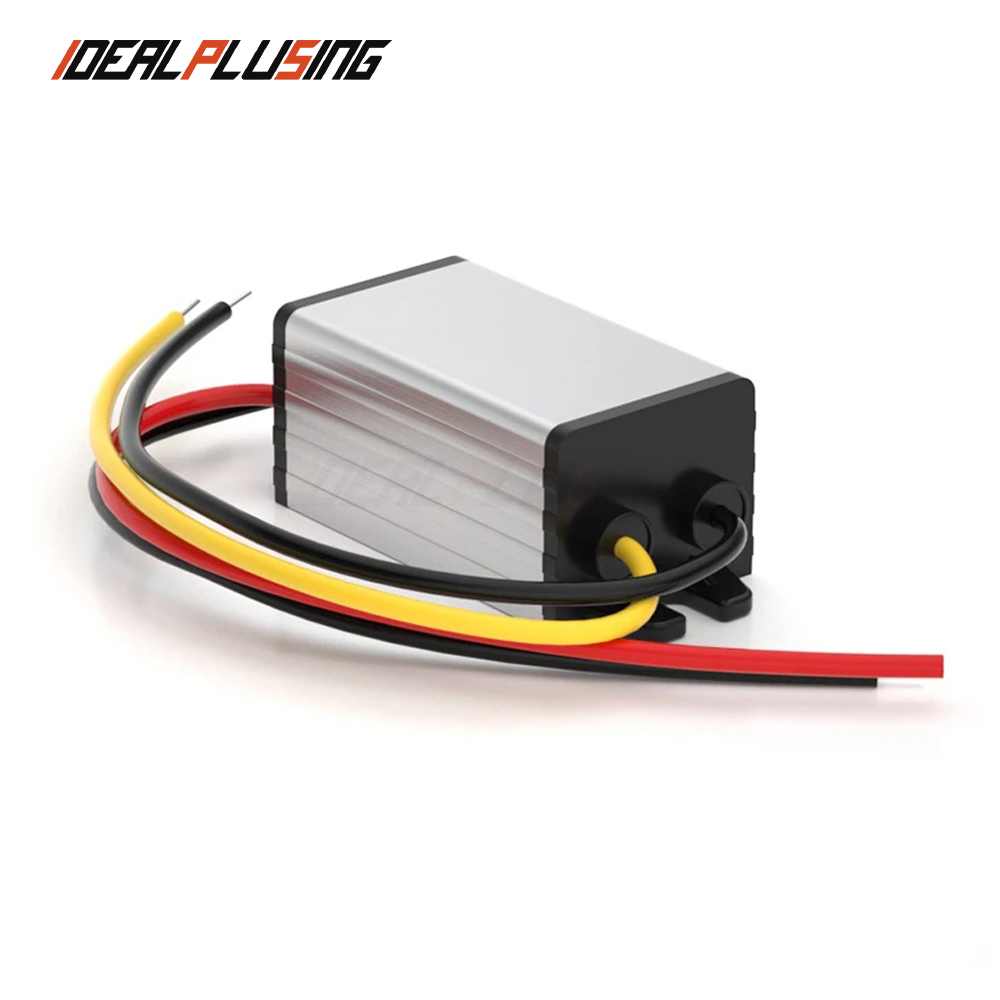

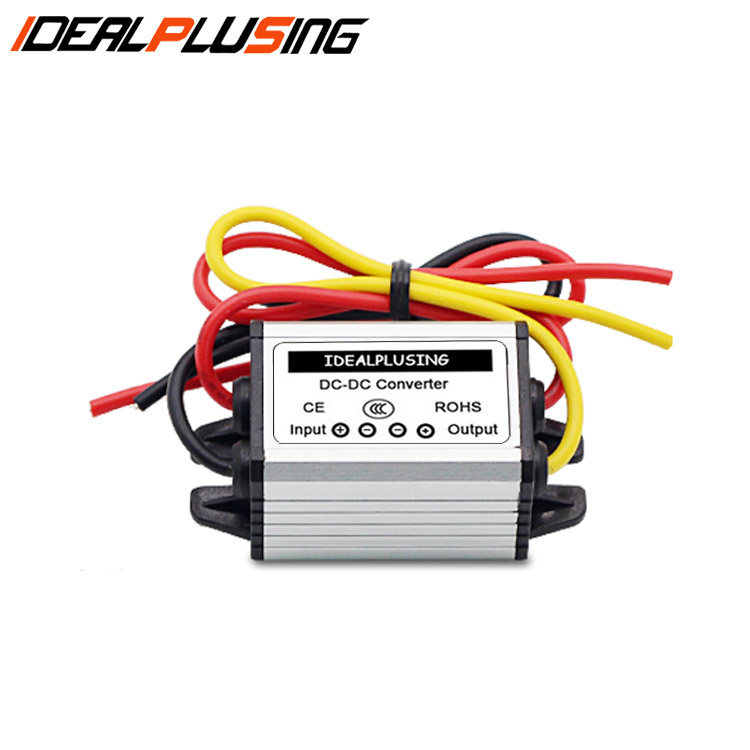

📸Product Gallery
💡Technical Applications & Safety
- Protection Standards: All buck-boost products come with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.

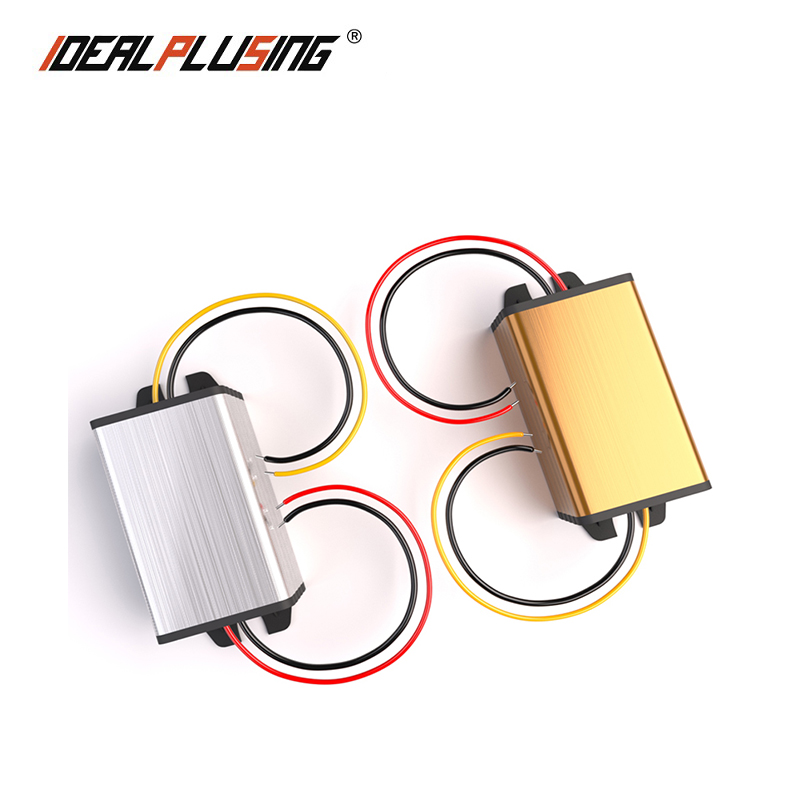

- High Reliability: The gold-colored aluminum casing is high-temperature resistant, ideal for outdoor applications.
- Safety Measures: To prevent short circuits, fuses are required. For anti-reverse connection, add diodes.
- Inductive Loads: For coils, magnetic valves, or motors, a power supply 3-5 times the rated power is recommended.
- Isolation Benefits: Isolated power supplies prevent high input voltage from passing to the output, protecting precious loads.

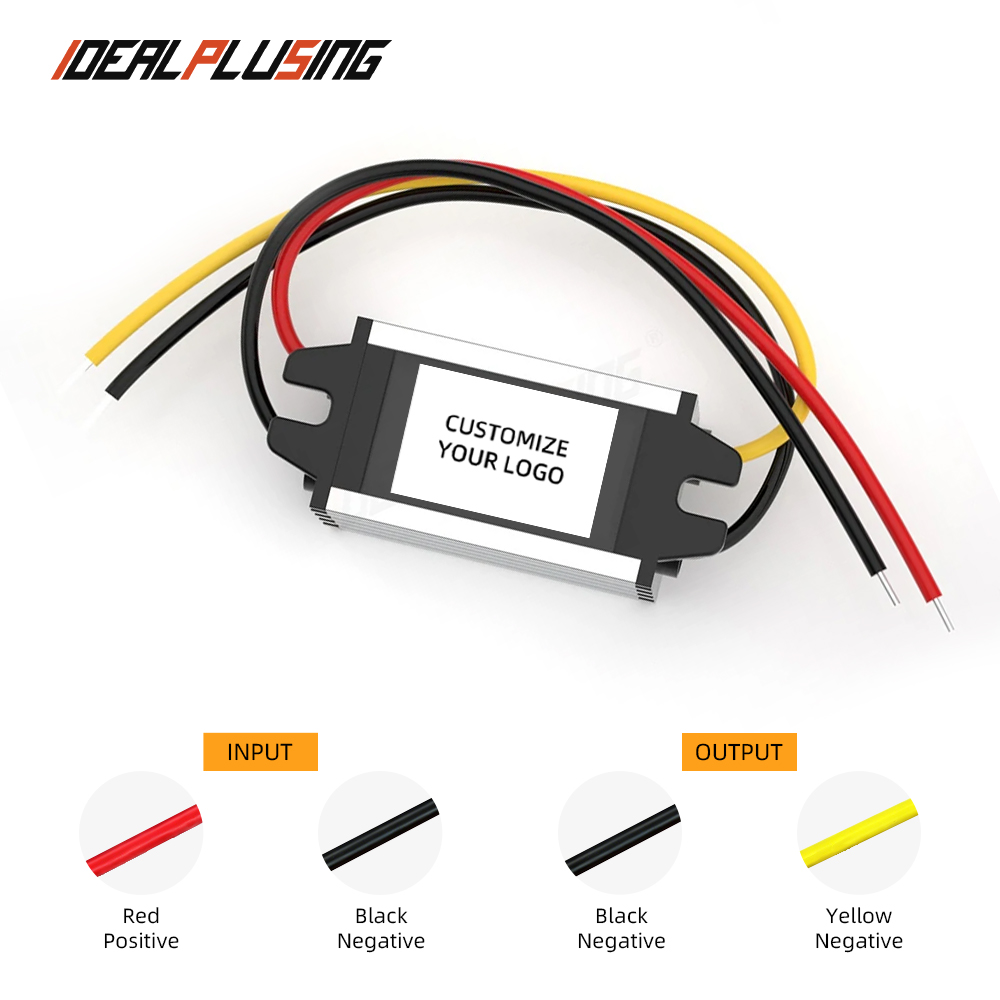

- Negative Voltage: Isolated supplies can support negative voltage input (Black wire for negative, Red for 0V).
Frequently Asked Questions
What is the difference between isolated and non-isolated converters?
Isolated converters provide a physical barrier between input and output, preventing high voltage from reaching the load in case of failure. Non-isolated converters share a ground and are more compact but carry a higher risk for sensitive equipment.
Is the device waterproof for outdoor use?
Yes, this specific model features an IP67 waterproof level and a high-temperature resistant aluminum shell, making it suitable for demanding outdoor environments.
Can I use this converter to charge a battery?
For charging applications, it is recommended to choose products specifically designed with charging functions to ensure proper voltage and current regulation.
What should I consider for motor or inductive loads?
Inductive loads like motors or magnetic valves have high startup currents. It is recommended to use a power supply with 3-5 times the rated power of the load.
How do I prevent the wiring from burning during a short circuit?
For high-power non-isolated boost converters, adding an appropriate fuse at the input end is essential to prevent damage to the input power source.
Are your converters customizable?
Yes, customized solutions are available for input/output voltages ranging from 1V to 1000V and current from 1A to 1000A in both isolated and non-isolated designs.
