IDEALPLUSING Industrial 30-60V to 48V 6A 288W Voltage Regulator Buck Boost Converter for Low Noise Operation
Product Description
Industrial 30-60V to 48V 6A 288W Voltage Regulator
High-Efficiency Buck Boost Converter for Low Noise Operation
Product Features
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are designed to output fixed voltage effectively, categorized into Boost, Buck, and Buck-Boost types.
Three kinds of control can be adopted according to demand:
Three kinds of control can be adopted according to demand:
- ⚡ PWM Control: High efficiency with excellent output voltage ripple and noise management.
- ⚡ PFM Control: Low power consumption even for long-term usage, particularly optimized for small loads.
- ⚡ Smart Conversion: Automatically switches to PWM control when heavy loads occur for maximum stability.
Customized Power Solutions
🛠️
Custom Voltage & Current
Offerings range from 1V to 1000V DC and 1A to 1000A tailored to your specific requirements.
🛡️
Circuit Options
Available in both isolated and non-isolated converter design options for different safety levels.
🎯
Efficient Service
Dedicated technical support focused on providing personalized and cost-effective solutions.
Technical Specifications
| Parameter | Detail |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD30-60S486 |
| Input Voltage | 30-60VDC |
| Output Voltage | 48VDC |
| Output Current | 6 Amps |
| Output Power | 288 Watts |
| Material of Shell | Aluminum |

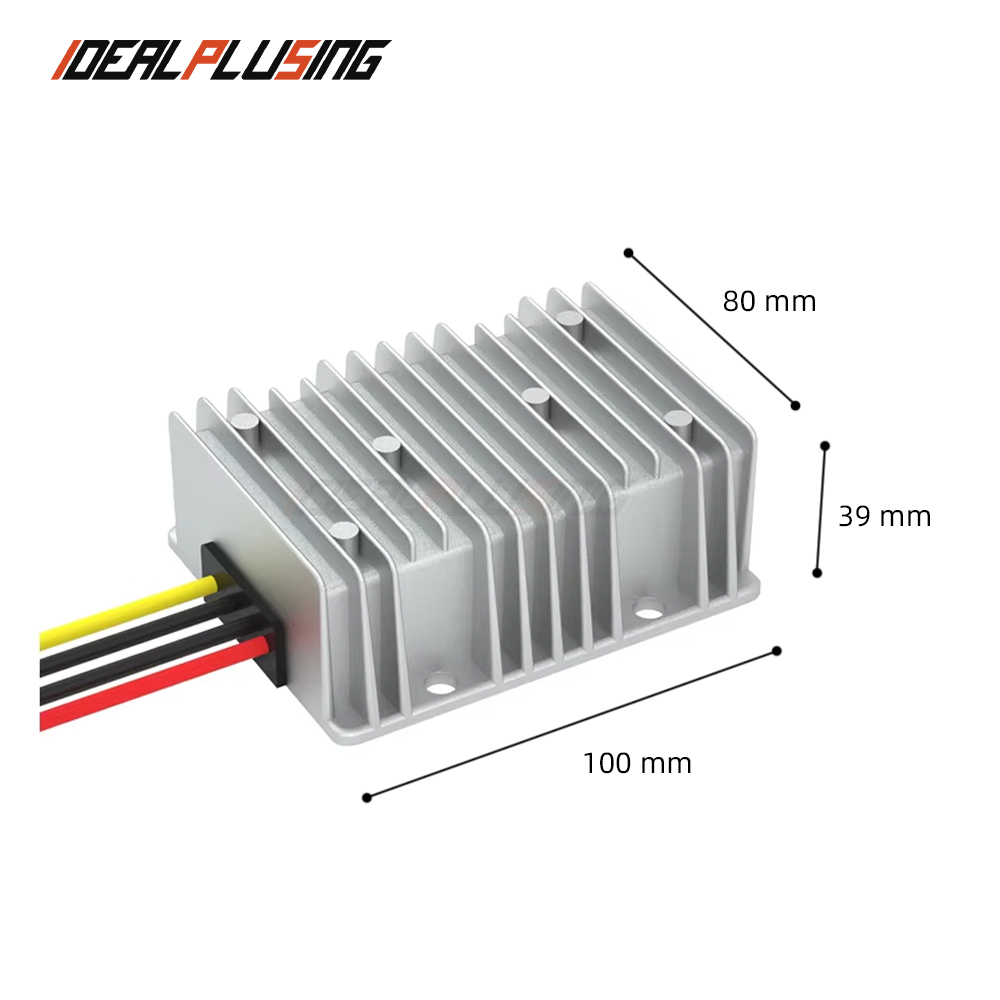

| Converter Size | 100*80*39MM |
| Waterproof Level | IP67 |
| Net Weight | 500G |

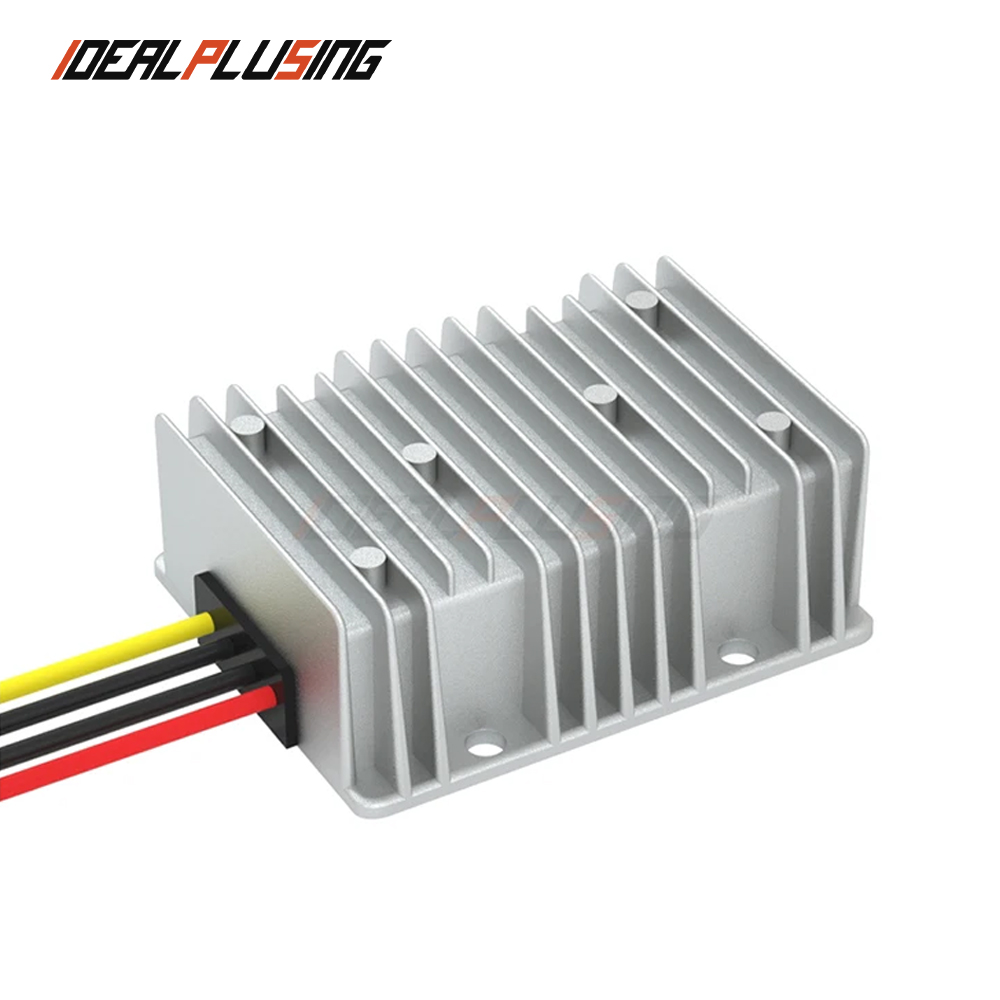

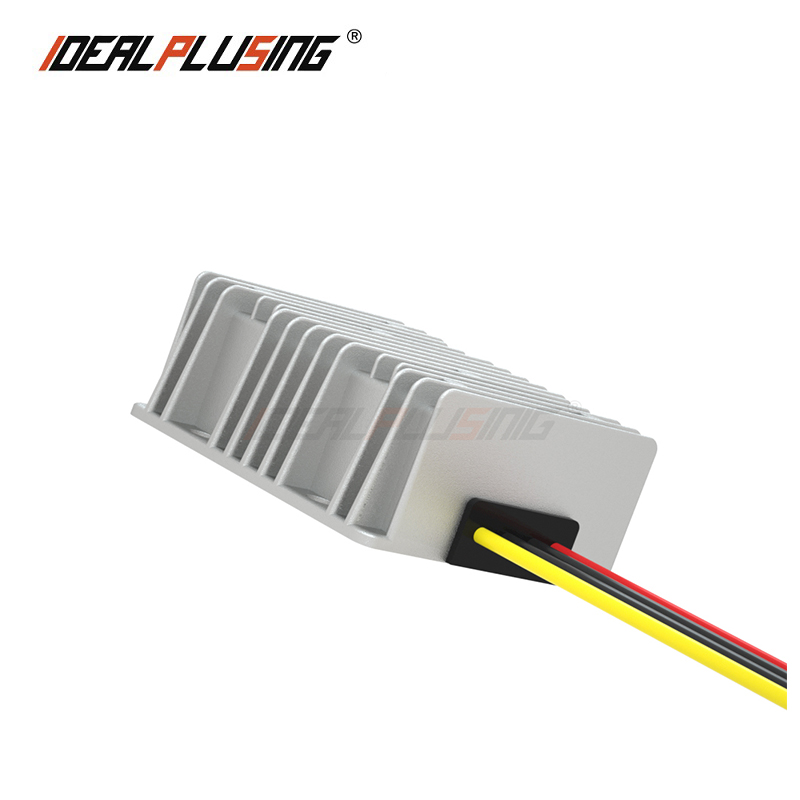

Product Shows

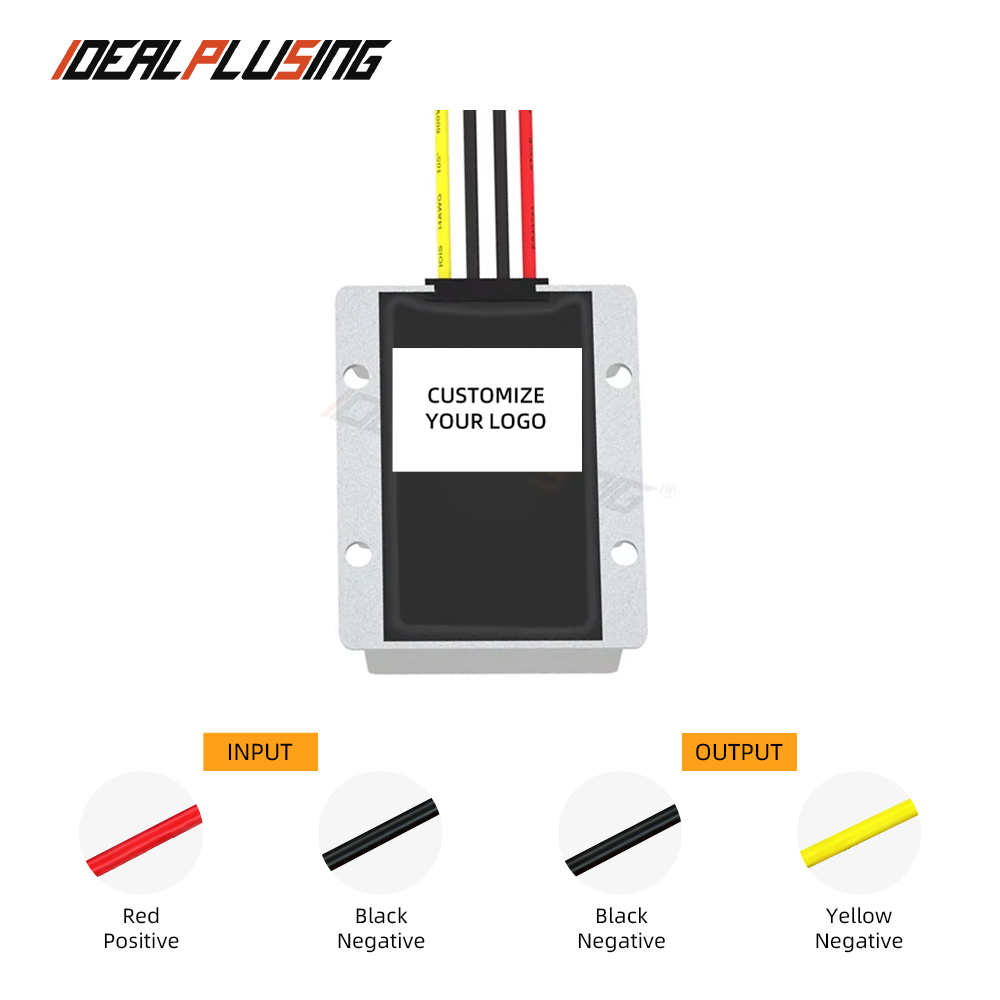

Detailed Interface & Components
Technical Application Guide
01
Standard products include output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
02
The aluminum casing is high-temperature resistant and reliable for outdoor or high-demand applications.
03
For inductive loads (motors, magnetic valves), we recommend a power supply 3-5 times the rated power of the load.
04
Isolated products are recommended for precious loads to prevent high input voltage direct pass-through risks.
05
Isolated power supplies support negative voltage input and provide the highest safety level for modern electronics.
06
For applications where input voltage is 3x the output voltage, isolated products significantly improve safety.
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) provides high efficiency and stable ripple control for heavy loads. PFM (Pulse Frequency Modulation) is optimized for low power consumption during long-term use or small load conditions. Our converters often switch automatically between them to ensure optimal performance.
Are these DC-DC converters waterproof?
Yes, many of our industrial models, such as the IPS-DTD30-60S486, are rated at IP67, making them dust-tight and capable of withstanding immersion in water, suitable for harsh outdoor environments.
How do I choose a converter for a motor or inductive load?
Inductive loads like motors, coils, and speakers have high startup currents. It is strongly recommended to select a power supply that is 3 to 5 times the rated power of your load to prevent overcurrent protection from triggering during startup.
Why should I choose an isolated converter over a non-isolated one?
Isolated converters provide a physical barrier between input and output. This protects expensive loads from being damaged if the converter fails, as it prevents high input voltage from passing directly to the output end.
What built-in protections do your power supplies offer?
Most models include standard protections such as output overcurrent, output short-circuit, input undervoltage, and chip/board overheating protection (typically triggering at 90°C).
Can I request a custom voltage range?
Yes, we specialize in custom DC-DC solutions. We can design converters with input/output voltages ranging from 1V to 1000V and currents from 1A to 1000A to fit your specific industrial application.
