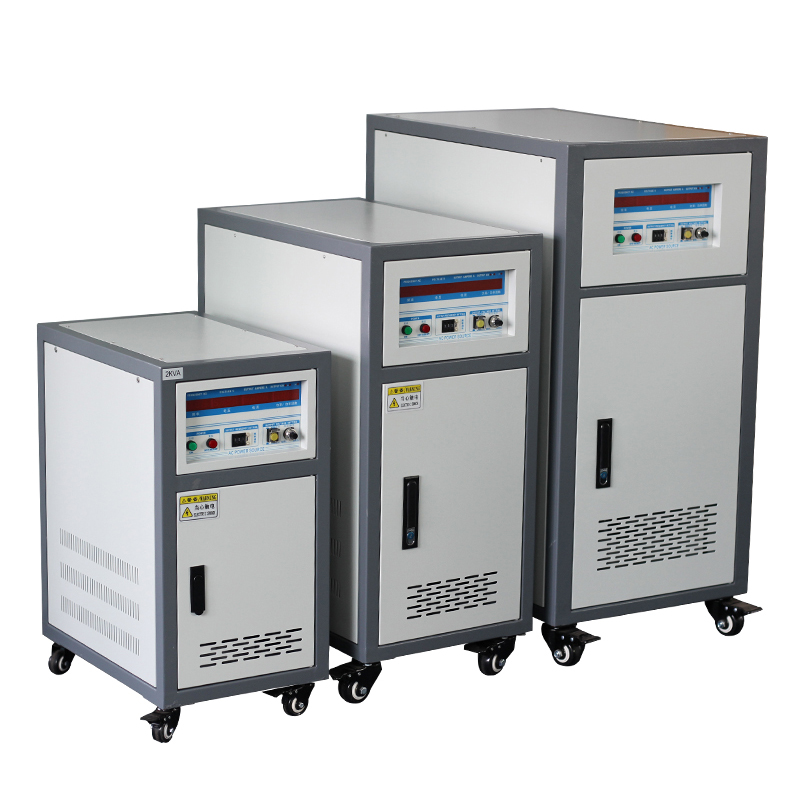

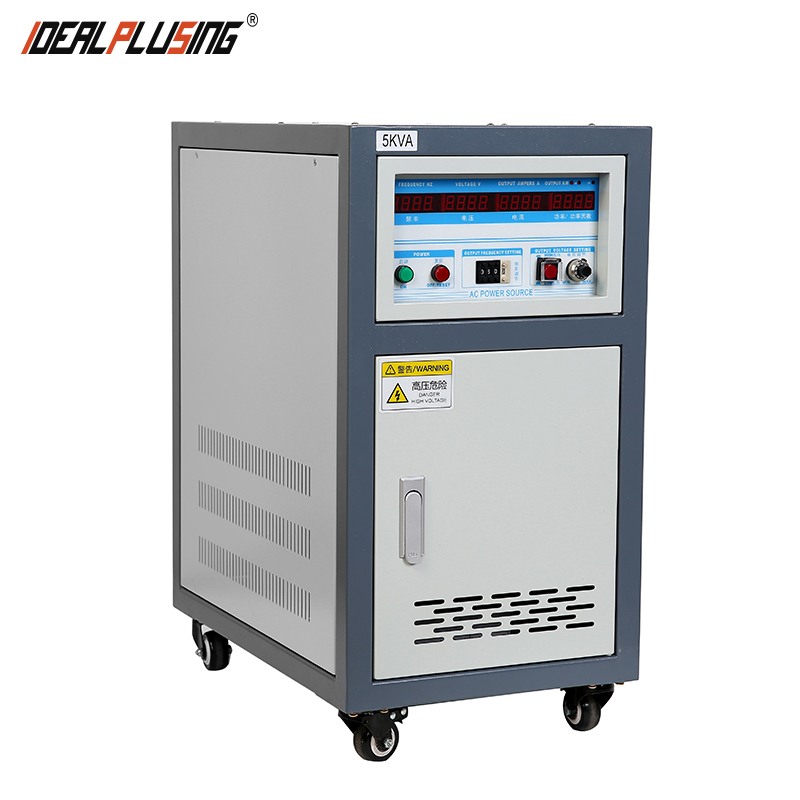

150kva AC 480v 60hz to AC 380v 50hz Frequency Converter Three Phase in and Three Phase Out Inverter
Product Description
150kva AC 480v 60hz to AC 380v 50hz frequency converter three phase in and three phase out inverter
Product Description
PERFORMANCE CHARACTERISTICS
01 Complete isolation of input and output technology, safe and reliable power supply
02 SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
03 IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
04 Unique double-loop control mode for high control precision and good waveform quality
05 High power IGBT module and highly integrated module drive circuit, strong overload capacity
06 Suitable for resistive, inductive, rectifier, and other loads
07 Multiple protection functions: overheating, overcurrent, and short circuit
08 Parameter memory function with 10-groups shortcut key operation
09 Power supply voltage and frequency can be adjusted online in real-time
APPLICATION
| 1. Home appliances | 2. Motors | 3. Power tools | 4. Switching power supplies |
| 5. Power adapters | 6. UPS | 7. Information & Communication | 8. Photovoltaic |
| 9. Lamps | 10. Electronic transformers | 11. Electronic components | 12. Low-voltage distribution |
| 13. Power industry | 14. Other industries | - | - |
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT & OUTPUT
| Model | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| AC Output Voltage | Low range: 0~150V | High range: 0~300V adjustable | |||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||
SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Circuit mode | IGBT/SPWM | |||||||
SPECIFICATION (IPS-FC63) 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 | 63120 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 15 | 20 | 30 | 45 | 60 | 100 | 120 |
| AC Output | 40~499.9HZ setting by software | |||||||
SPECIFICATION (IPS-FC68) 3-PHASE INPUT 3-PHASE OUTPUT
| Model | 6810 | 6815 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| Protection | Over voltage, current, load, temperature, short circuit jump protection | ||||||
Product Gallery
Overview & Model Selection
Frequently Asked Questions
What is the primary function of this frequency converter?
It is designed to convert electrical power, specifically 480V 60Hz to 380V 50Hz, supporting three-phase input and three-phase output for industrial machinery and testing applications.
What output technology does the system use?
The device utilizes SPWM (Sine Wave Pulse Width Modulation) technology and IGBT high-frequency static inverters to ensure stable, low-noise, and high-efficiency power output.
Is the frequency range adjustable?
Yes, the output frequency can be set via software within a range of 40Hz to 499.9Hz, and it features real-time adjustment capabilities.
What types of loads are compatible with this converter?
This frequency converter is highly versatile and suitable for resistive, inductive, rectifier, and various other industrial loads.
What safety protections are built into the unit?
The unit includes comprehensive protection for abnormal conditions such as overheating, overcurrent, overload, over-voltage, and short circuits, complete with an automatic alarm device.
How does the cooling system operate?
The converter uses a forced fan cooling system to maintain an optimal working temperature between 0℃ and 45℃, even under heavy load conditions.
