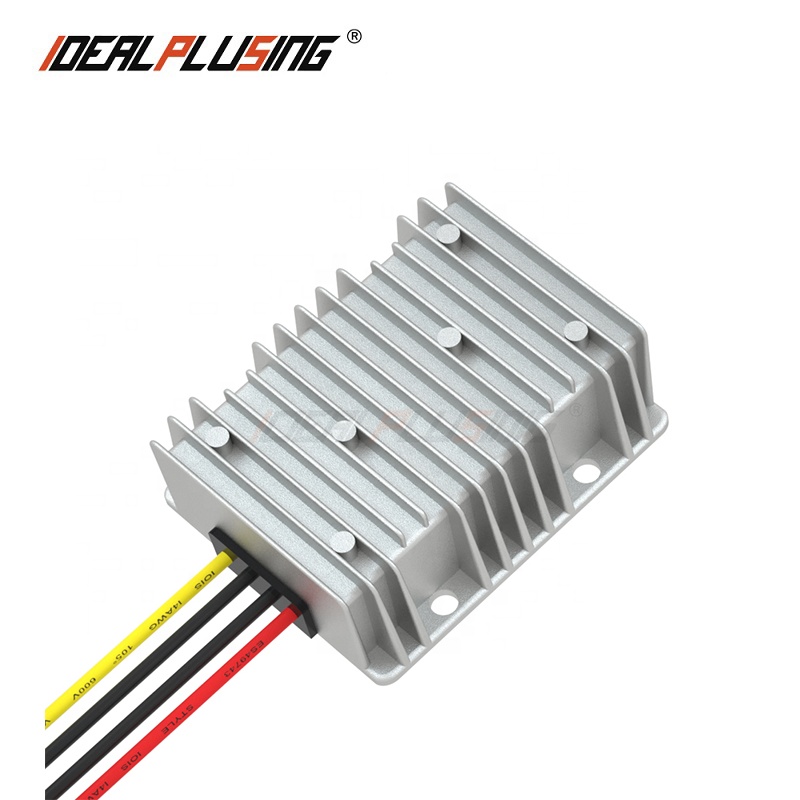

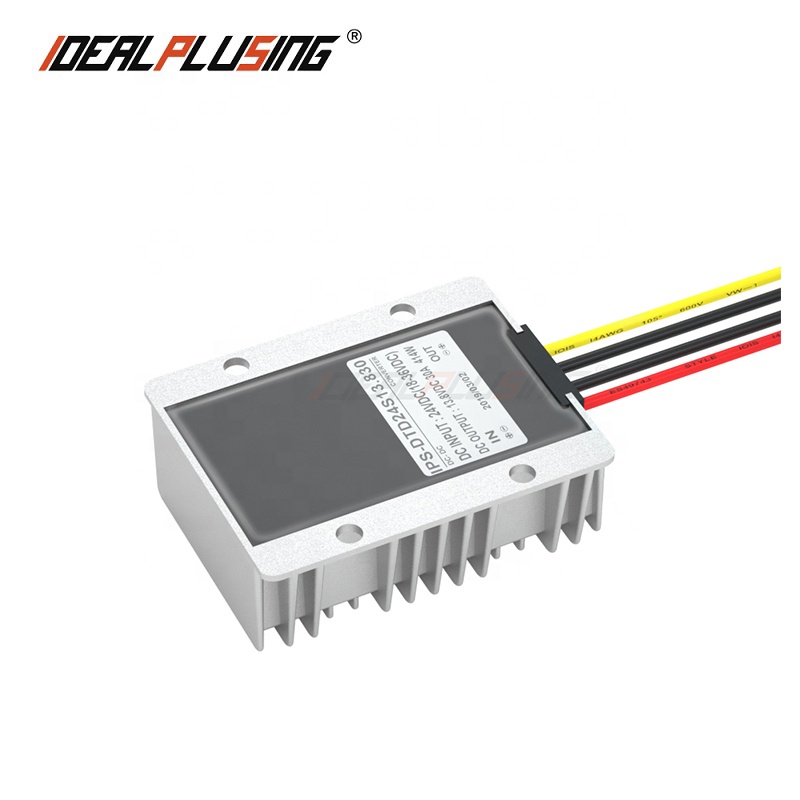

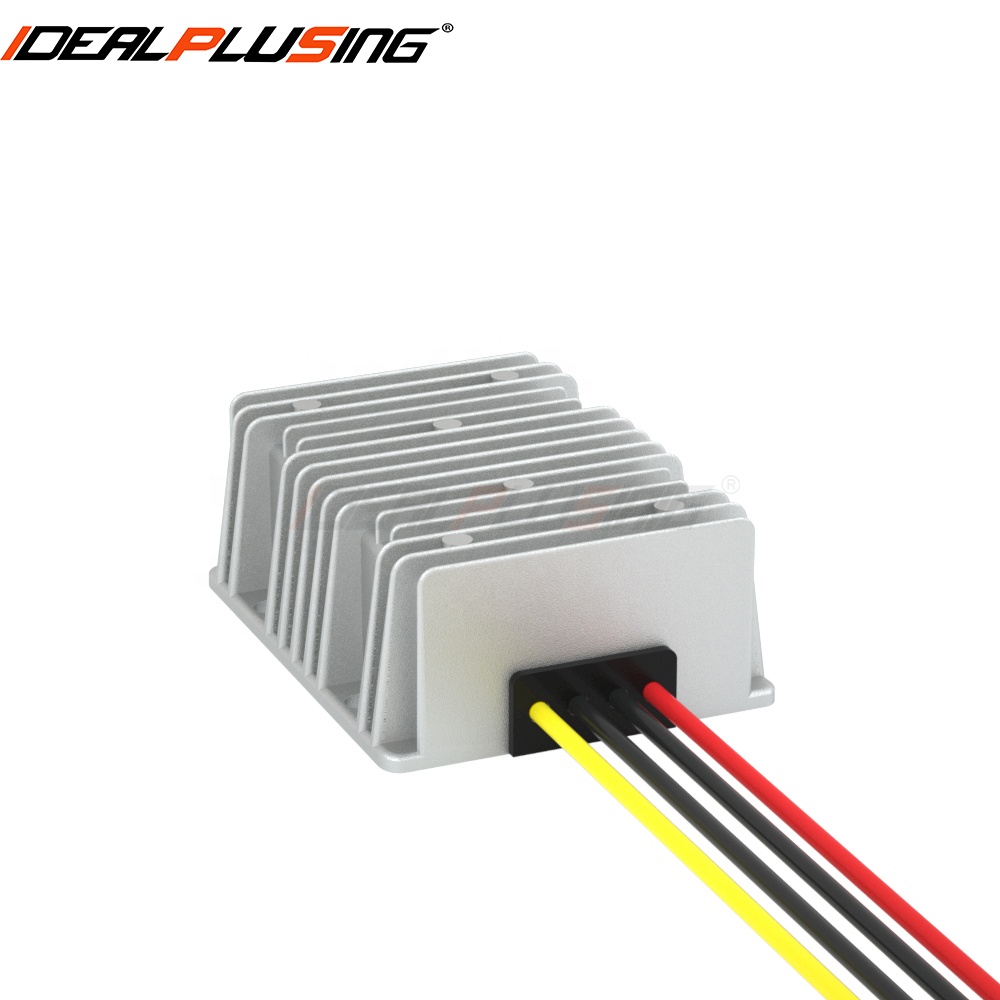

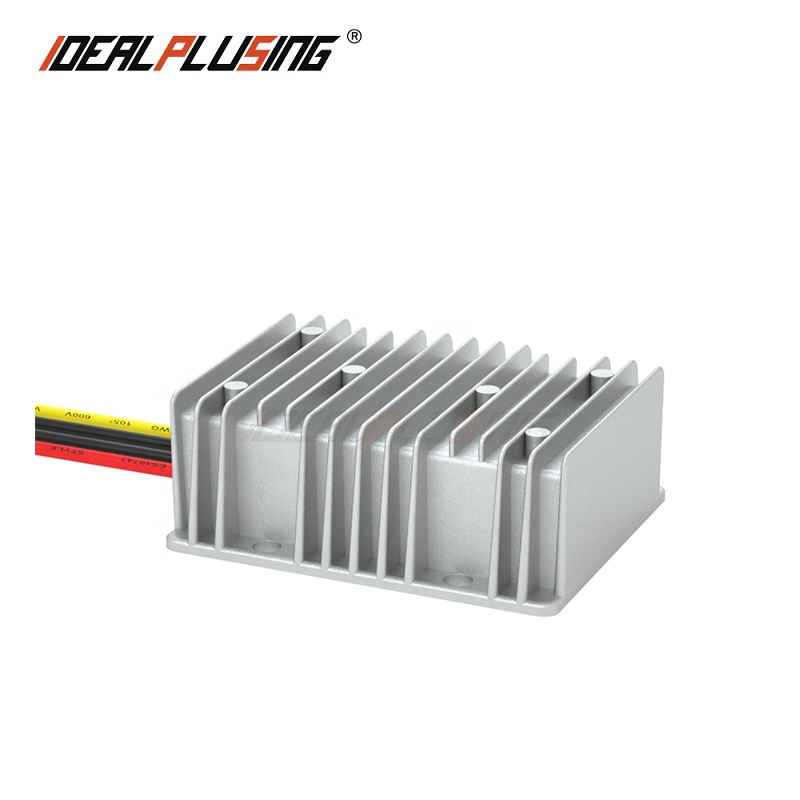

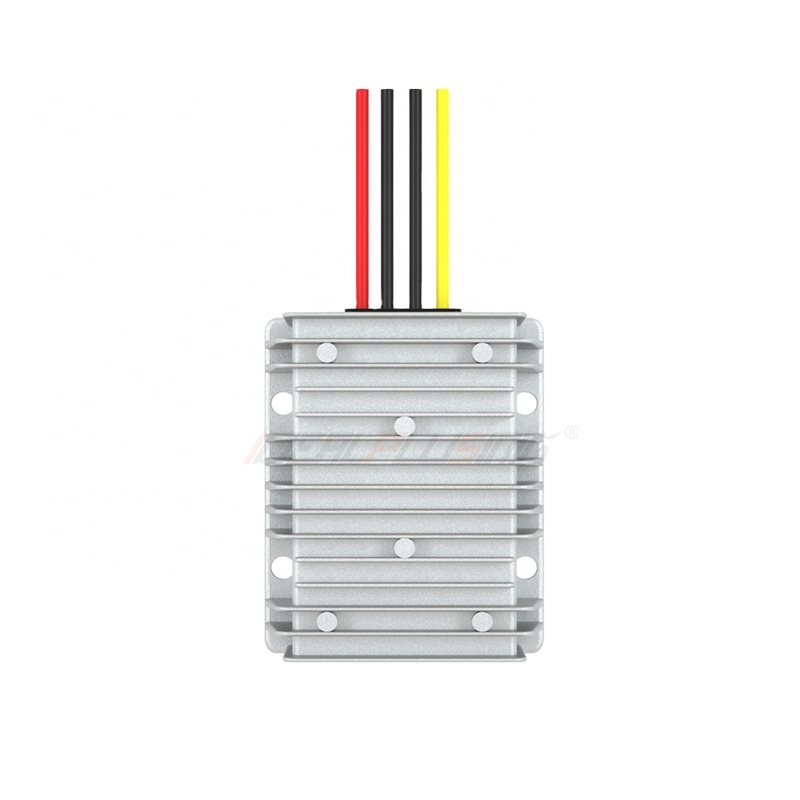

Factory Customization 180W 9-36V 12 Volt DC Converter 15A Buck Boost Transformer Customizable DC Converter Inverters Converters
Product Description
⚡ Factory Customization 180W DC Converter
⚙️
Advanced Power Conversion Features:
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load.
Our company specializes in power conversion solutions. Our products are widely used in electric vehicles, automobiles, RVs, and other vehicles, in the marine, communication, and industries. Our team has been providing power solutions since 2001.
We have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts. Our R&D team has more than 24 years of experience, ensuring high reliability. The design life of the products is 15 to 20 years, suitable for complex working environments globally.
Customization Scope:
- Input and output voltage and current customizable
- Voltage range: 1V to 1000V DC
- Current range: 1A to 1000A
- Isolated and non-isolated design options available
📋 Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD12S1215 or Customizable |
| Input voltage | 8~40VDC or Customizable |
| Output Voltage | 12VDC or Customizable |
| Output Current | 15Amps or Customizable |
| Output Power | 180Watts or Customizable |
| Material of shell | Aluminum |
| Converter Size | 100*80*38MM or Customizable |
| Waterproof Level | IP67 |
🔥 Hot Selling Models
IPS-DTD30-60S1210
Non-Isolate Type
IPS-DTD20-100S122
Wide Input Range
IPS-DTD15-40S1210
Efficient Conversion
IPS-DTD50-60S488
Industrial Standard
IPS-DTD50-60S488
Reliable Performance
IPS-DTD48S1240
High Current Output
🛠️ Technical Application Guidelines
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- Large power supplies feature over-temperature protection (approx. 90°C).
- Aluminum casings provide high-temperature resistance for outdoor applications.
- Inductive loads (motors, coils) require power supplies 3-5 times the rated load power.
- Isolated products are highly recommended for precious loads to prevent high input voltage pass-through.
- Non-isolated products are more cost-effective but negative poles (ground) must be handled according to specific wiring requirements.
- Isolated power supplies support both positive and negative voltage outputs.
📷 Product Showcase
❓ Frequently Asked Questions
Q1: What is the difference between PWM and PFM control in your converters?
PWM control offers high efficiency and excellent output voltage stability with low noise. PFM control is optimized for low power consumption during long-term use, particularly under small load conditions.
Q2: Can I request a custom input/output voltage?
Yes, we specialize in customization. We can design converters with input/output voltages ranging from 1V to 1000V and current from 1A to 1000A.
Q3: Should I choose an isolated or non-isolated converter?
Isolated converters provide the highest safety by preventing high input voltage from reaching the load in case of a fault. Non-isolated types are typically more efficient and compact but carry a higher risk for precious equipment.
Q4: What protections are built into the 180W DC converter?
Our standard products include overcurrent, short-circuit, undervoltage, and overheating protection to ensure long-term stability and safety.
Q5: What is the typical lifespan of these power supplies?
With our high-reliability management process and quality components, our products are designed for a lifespan of 15 to 20 years.
Q6: Are these converters waterproof?
Many of our models, like the IPS-DTD12S1215, feature an IP67 waterproof rating, making them suitable for marine and outdoor environments.
