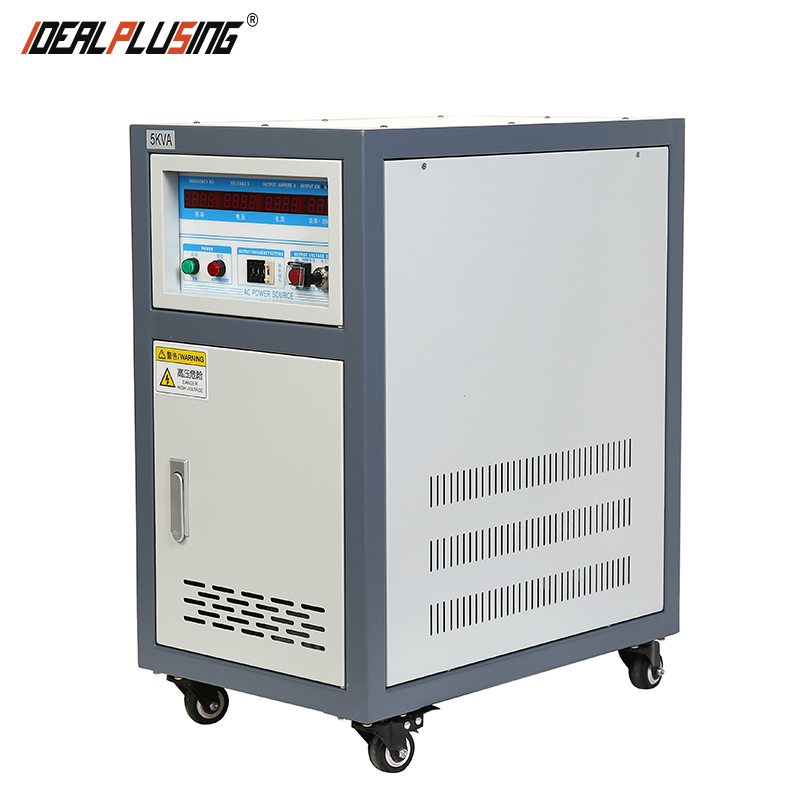

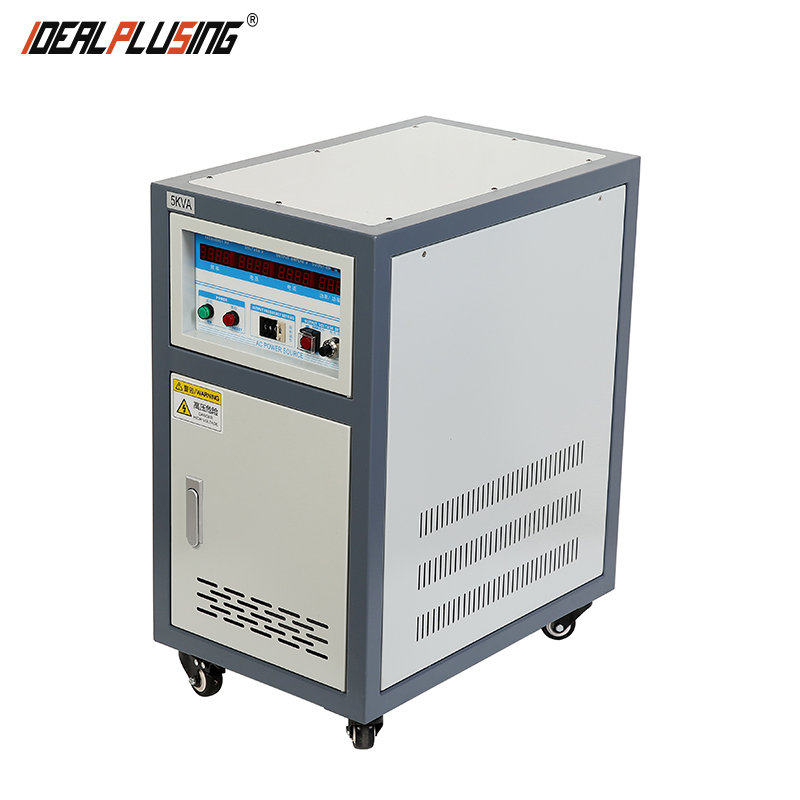

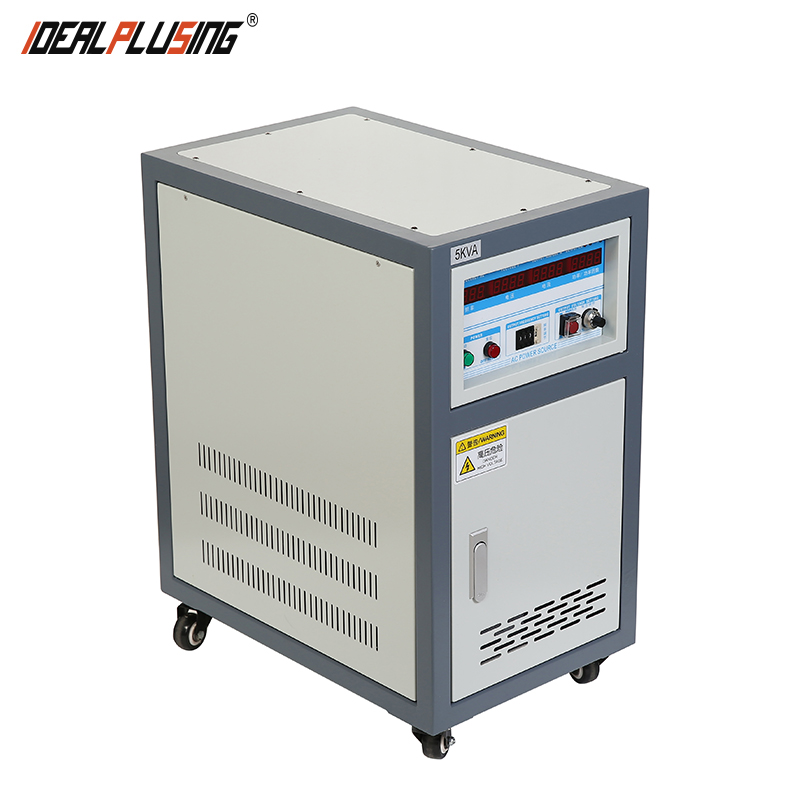

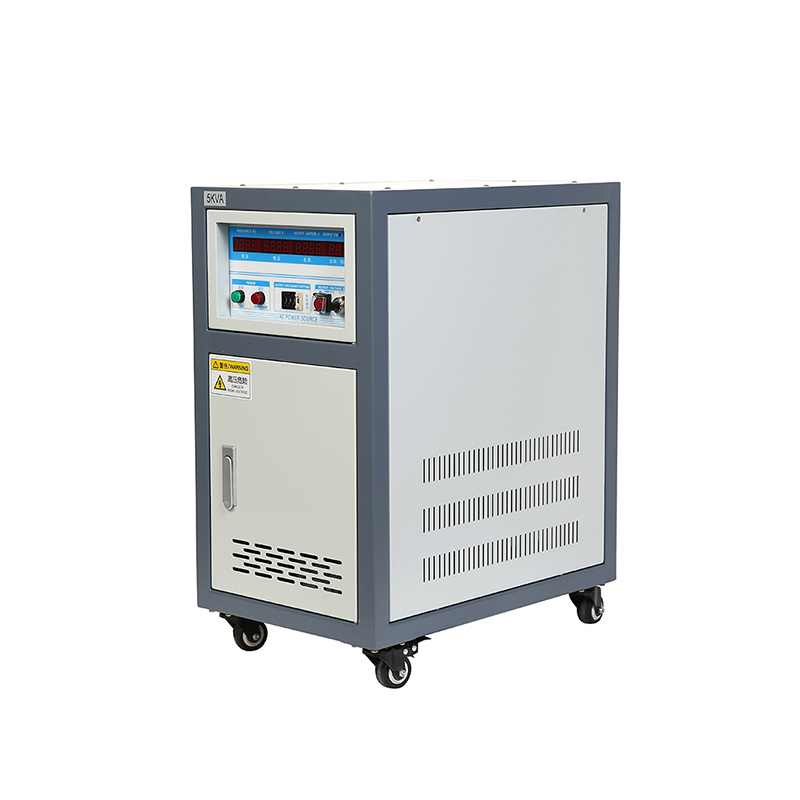

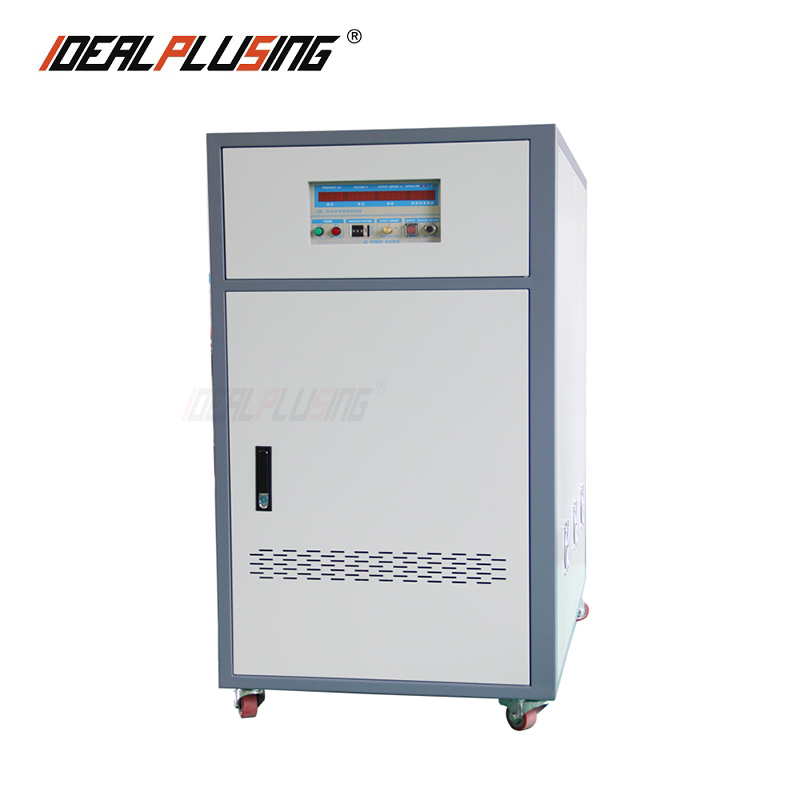

Good Product 20kva Frequency Converter 50hz to 60hz Ac Frequency Converter 50hz 200hz
Product Description
Good product 20kva frequency converter 50hz to 60hz ac frequency converter 50hz 200hz
PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency4
Unique double-loop control mode of instantaneous value and effective value, high control precision and good waveform quality5
High power IGBT module and highly integrated module drive circuit, strong overload capacity and low loss6
Suitable for resistive, inductive, rectifier, and other loads7
Multiple protection functions for overheating, overcurrent, and short circuit8
Setting parameter memory function with 10-groups shortcut key operation9
Power supply voltage and frequency can be adjusted online in real-timeAPPLICATION
| 1. Home appliances | 8. Photovoltaic |
| 2. Motors | 9. Lamps |
| 3. Power tools | 10. Electronic transformers |
| 4. Switching power supplies | 11. Electronic components |
| 5. Power adapters | 12. Low-voltage distribution |
| 6. UPS | 13. Power |
| 7. Information and communication | 14. Other industries |
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT & OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Rated power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||
| AC Output | Single-phase 220V (0~300V adjustable) | |||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||
| Max current (300V) | 2.1 A | 4.2 A | 8.4 A | 12.5 | 21 A | 25 A | 42 A | 63 A |
SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Rated Power (KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 |
| AC Output | 3-phases 380V (0~300V adjustable) | |||||||
| Weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 |
SPECIFICATION (IPS-FC63) 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model IPS-FC63 | 6310 | 6320 | 6330 | 6345 | 6360 | 63100 | 63400 | 63600 |
| Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 | 400 | 600 |
| Input Phase | Single phase 220V or Tri phase 380V | |||||||
| Output Phase | Trip phase (phase difference 120°±2°) | |||||||
SPECIFICATION (IPS-FC68) 3-PHASE INPUT 3-PHASE OUTPUT
| Model 68... | 6810 | 6815 | 6820 | 6830 | 6845 | 6860 | 68100 |
| Capacity (KVA) | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| Protection | Over voltage, current, load, temperature and short circuit | ||||||
Frequently Asked Questions (FAQ)
Can this frequency converter convert 50Hz to 60Hz?
Yes, this frequency converter is specifically designed to convert input power from 50Hz to a stable 60Hz output (and vice-versa), making it ideal for testing international equipment.
What types of loads can this device handle?
It is highly versatile and suitable for resistive, inductive, rectifier, and other complex loads such as motors, home appliances, and power tools.
Is the output voltage adjustable?
Yes, the converter features dual ranges: a low range (0~150V) and a high range (0~300V), both of which are fully adjustable to meet your specific requirements.
What protection features are included for safety?
The system includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with automatic jump protection and alarms.
What technology ensures the stability of the output?
The unit utilizes high-frequency IGBT static inverter technology and SPWM sine wave pulse width modulation to ensure high precision, low noise, and excellent waveform quality.
Can the output frequency be customized beyond 50/60Hz?
Yes, the output frequency can be set via software within the range of 40Hz to 499.9Hz, offering great flexibility for specialized industrial applications.
